Aputure INFINIBAR PB12 8-Light Kit (EU Version)

Article number:

12447732

Aputure INFINIBAR PB12 8-Light Kit (EU Version)

For professionals looking to build large ranges of dynamic lighting structures for volume stages and sets, the Aputure INFINIBAR PB12 8-Light Kit (EU Version) extends the flexibility of the INFINIBAR PB12s with not only 8x as much available light, but also additional power cables, adapters and lighting control grids to expand your creative possibilities.

The INFINIBAR PB12 8-Light Kit is designed to get cinematographers and lighting designers through long productions. Besides charging each light individually, the 8-Light Kit includes a 330W power adapter with 8-way splitters, so you can simultaneously power all 8 fixtures.

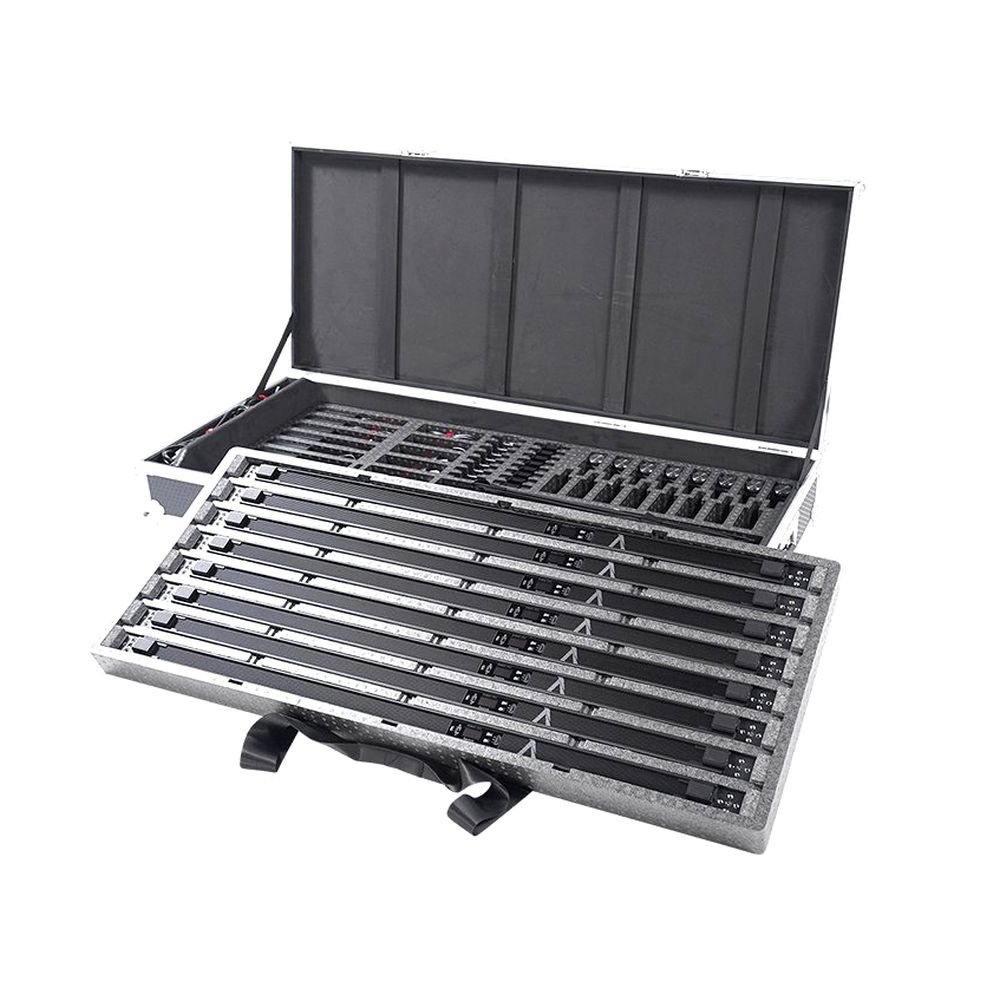

Designed for lighting professionals, the INFINIBAR PB12 8-Light Kit comes in a sturdy flight case so you can safely transport and store the included accessories and large power supply - making it ready for grip trucks and film sets.

The INFINIBAR PB12 is a 1.20-metre-long RGBWW LED pixel bar for cinematographers and lighting designers. With infinite mixing design with intuitive mounting and connection options, advanced connectivity methods with CRMX wireless connectivity and industry-leading pixel density, the INIFINIBAR PB12 excels at building and creating unique, colourful designs that bring scenes to life in new and exciting ways.

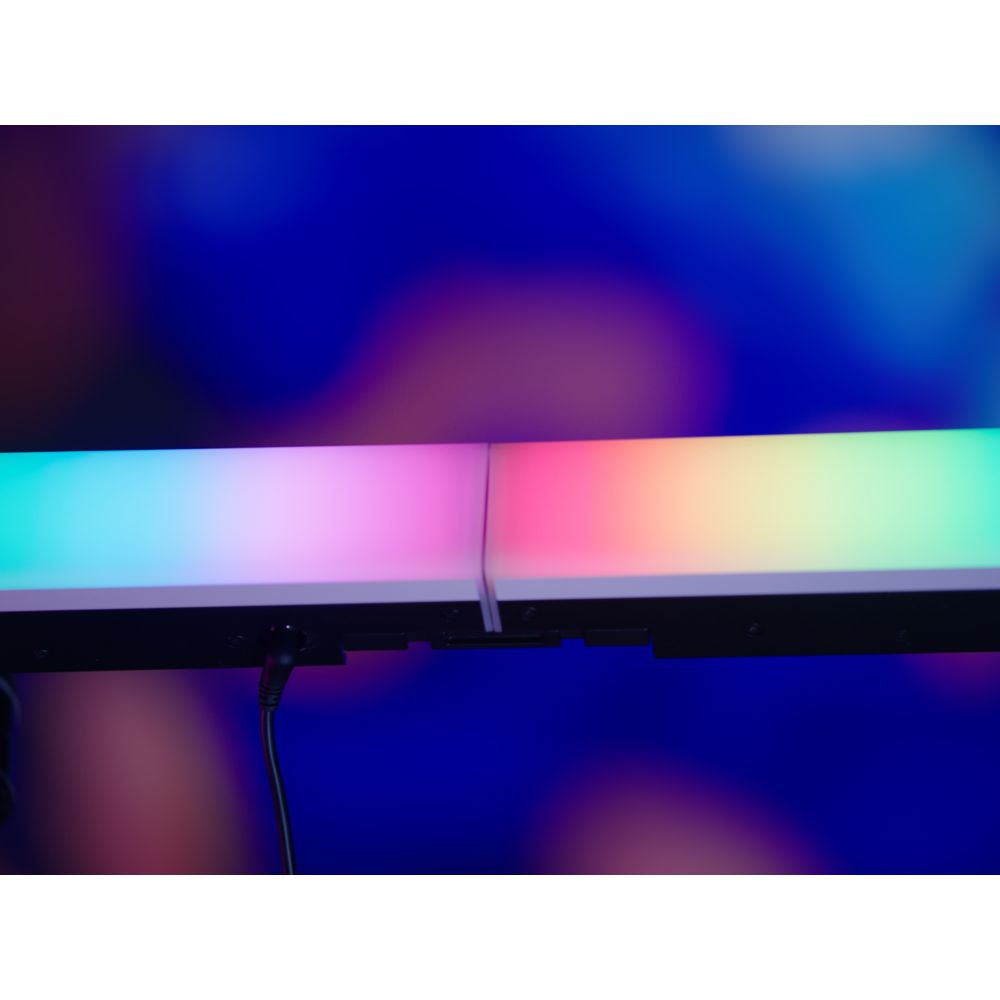

As a rectangular linear LED light, INFINIBARs can be connected infinitely and seamlessly from start to finish with no visible gaps between lights, opening up new creative possibilities for filmmakers, whether hidden in scenes or used as on-camera practicals on set. Create seamless pixel effects across the PB12's 96 RGB pixels, or across multiple pixel bars with the 10 split connectors\* to create a range of shapes.

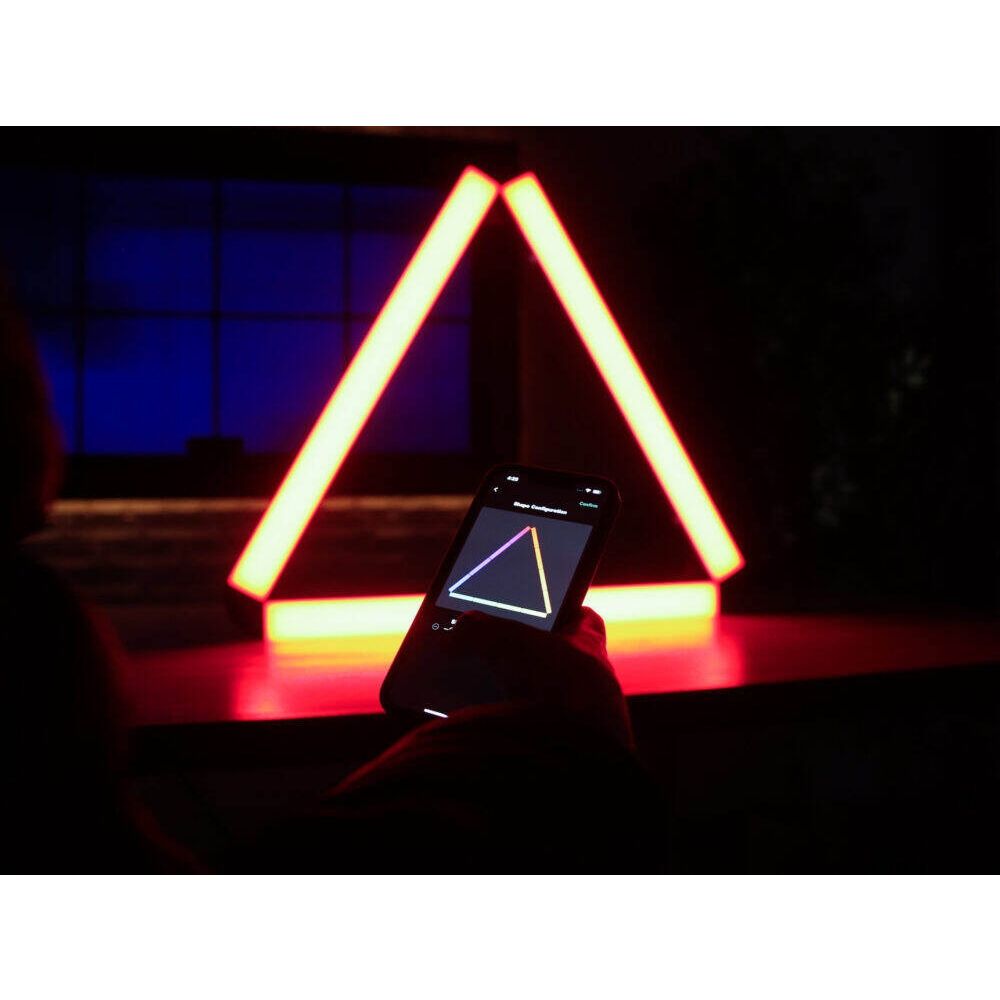

From flat and three-dimensional triangles, hexagons, squares, straight lines to rotating 3-point, 4-point or 6-point stars, the design and configuration possibilities are endless. Connect multiple linear pixelated lamps with the 10 split connectors\* on the back of each INFINIBAR to meet your production needs, and even share AC power across multiple lamps.

(\* The INFINIBAR PB12 set with 8 lamps includes 8 straight connectors. The remaining 9 connectors are sold separately or in the INFINIBAR Multi-Light Shaping Kit).

With 96 RGB light engines per 30 cm, the pixel mapping INFINIBAR PB12 has an industry-leading pixel density, second only to the Aputure MT Pro. Get access to 7 built-in Pixel FX, control the 24 pixels independently via Pixel Control on Sidus Link, or up to 1,024 pixels across multiple lights with Sidus Link's all-new Magic Infinity FX feature, which lets you shape, position and adjust the length of your light in any way imaginable, putting more than 12.5 metres of creative lighting control at your fingertips.

Information on the EU General Product Safety Regulation (GPSR)

Amgreat Europe B.V.

De Strubbenweg 15, 1327 GB Almere, The Netherlands

Features of the Aputure INFINIBAR PB12 8-Light Kit (EU Version)

  • Colour temperature: 2,000K - 10,000K
  • CRI: 96+
  • TLCI: 98+
  • CQS: 96
  • SSI (D56): 74
  • SSI (tungsten): 85
  • TM-30 RF (average): 94
  • TM-30 RG (average): 103
  • Colour chipset: RGBWW
  • Beam angle (half-peak): 120º
  • Lumen: 2,077 lm
  • Maximum output power: 27 W
  • Maximum power consumption (luminaire): 36,5 W
  • Maximum power consumption (power supply): 40 W
  • Operating voltage and current (luminaire): 24V, 1.8A
  • Operating voltage and current (power supply): 100V-240V 50/60Hz, 1.5A
  • Battery capacity: 7.4 V, 8000 mAh, 59.2 Wh
  • Battery life: approx. 80 minutes at maximum output
  • Charging time: approx. 120 minutes (24V/2.67A)
  • Operating temperature: -10ºC ~ 45ºC
  • Control methods: Sidus Link app, DMX/RDM, LumenRadio CRMX
  • Wireless range (Bluetooth): ≤80m
  • Wireless range (LumenRadio): ≤100m
  • IP rating: IP20
  • Screen type: OLED
  • Fixture dimensions: 120.4 x 4.5 x 4.3 cm
  • Dimensions luminaire + spacer: 120.4 x 4.5 x 5.2 cm
  • AC power supply dimensions: 12.0 x 5.3 x 3.2 cm
  • INFINIBAR clamp dimensions: 12.2 x 5.5 x 4.0 cm
  • Flight case dimensions: 127.7 x 13 x 12.5 cm
  • Weight fixture: 1.96 kg
  • Weight fixture + spacer: 2.09 kg
  • Weight of AC power supply: 0.49 kg
  • Weight of INFINIBAR clamp: 0.27 kg
  • Total weight: 26.8 kg

In the Box

  • 8x INFINIBAR PB12
  • 8x 48W DC power adapter (3m)
  • 1x AC lockable power cable (4m)
  • 8x AC lockable power cable (1.5m)
  • 1x 330W power adapter with 8-way splitters
  • 16x Magnetic spacer
  • 8x INFINIBAR clamp-to-baby-pin adapter
  • 8x INFINIBAR straight connector
  • 1x 5 mm Allen key
  • 8x INFINIBAR PB12 45º grid
  • 1x flight case
Connections & Connectivity
App control
Wireless control Bluetooth
Dimensions & Weight
Weight (g) 1960.0 g
Width (mm) 45.7 mm
General
Display
Compatibility
Compatible with brand/series Aputure INFINIBAR / Sidus Link
DMX compatible
Light & Flash
Barndoors included
CRI/TLCI (Ra) 96.0 Ra
Dimmable
Colour temperature 2000-10000 K
Cooling Passive
Lux @1m (lux) 617.0 lux
Mount/fixture Magnetic
RGB
Runtime @100% (h) 1.33 h
Variable colour temperature (bi-color)
Built-in light effects (FX)
Power
Power (W) 27.0 W
Mains
Battery
