The Atomos Shogun Studio 2 is a double monitor and recorder with two clear 7" screens. Both screens have a brightness of no less than 3000cd/m². This gives you a good view of the screens in every situation.

Atomos Shogun Studio 2

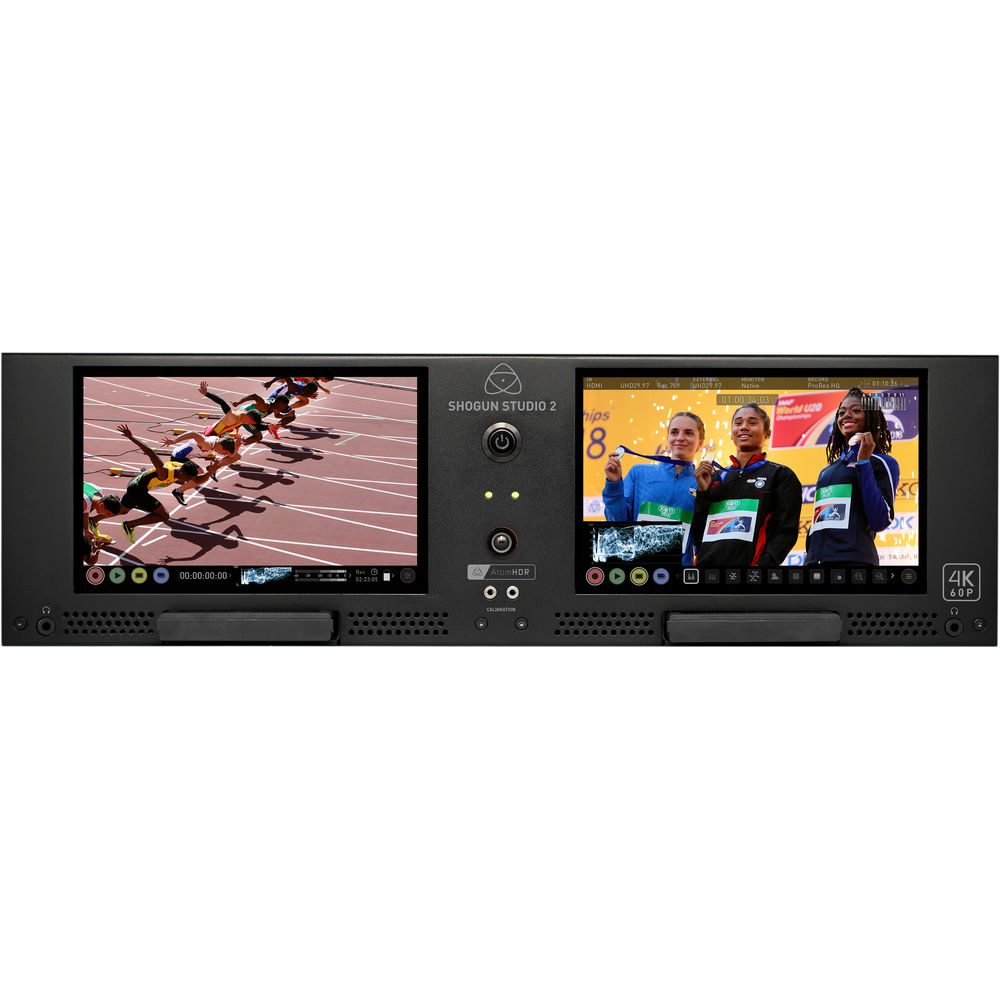

The Atomos Shogun Studio 2 is a dual monitor and recorder with two bright 7" screens. Both screens have a brightness of no less than 3000cd/m². This gives you a good view of the screens in every situation. The Shogun Studio 2 gives you the option of recording in 4K60 on both channels, as well as monitoring them. It is even possible to record up to four 1080p60 SDI recordings if you work with multiple cameras at the same time.

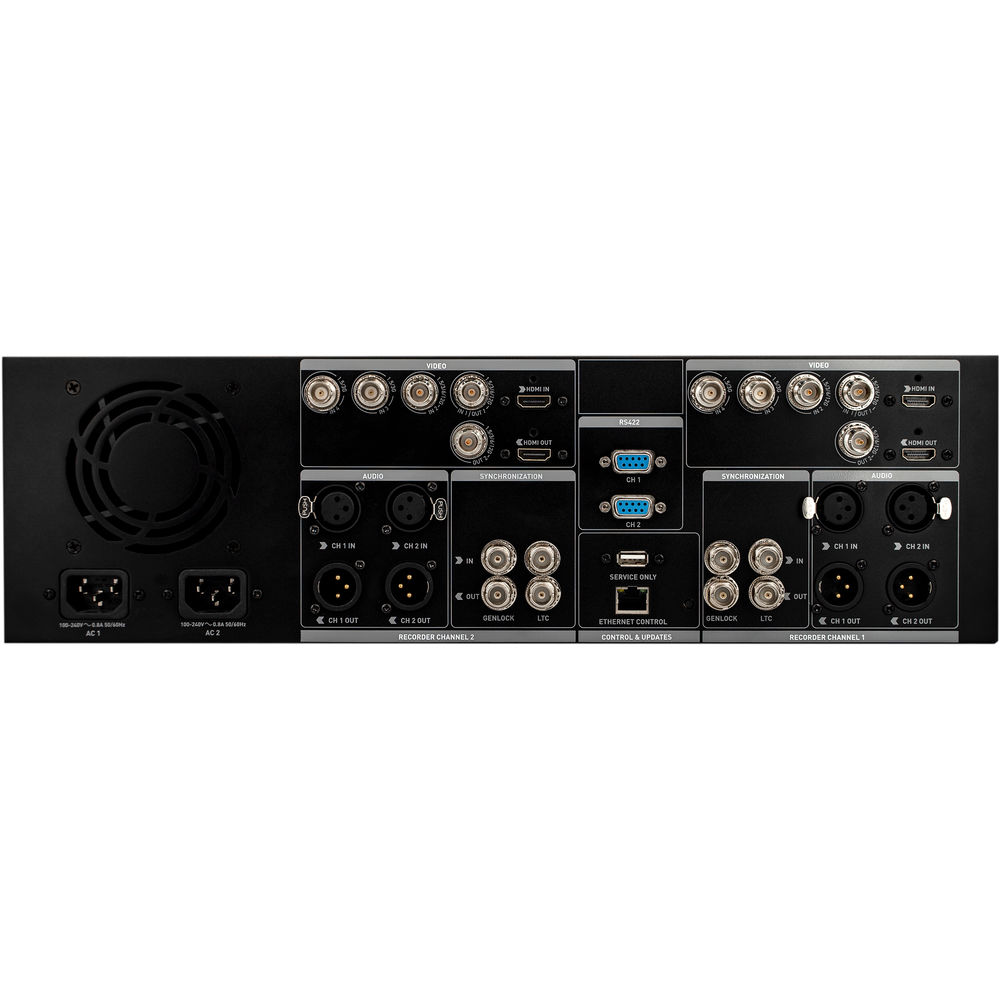

The Shogun Studio 2 has SDI and HDMI inputs and outputs with the option of converting the signal. Per video channel there is an XLR input and output with 48V phantom power for recording high-quality sound with the videos. In addition, the Studio 2 is compatible with ProRes RAW, ProRes, DNxHR and Adobe CDNG encodings.

The monitors are easy to operate with the touchscreen, where you can also enable various tools (Wave Form and Focus Peaking) to make monitoring the correct settings even easier.

Information on the EU General Product Safety Regulation (GPSR)

Mafico BV

Dorsvloerweg 897, 2661 MN Bergschenhoek, The Netherlands

Features of the Atomos Shogun Studio 2

  • Dual monitor and recording
  • Record up to 4K60p
  • Multi-cam up to 4 shots in 1080p60 (SDI)
  • 12G-SDI inputs and outputs
  • 3G-SDI inputs
  • 2 HDMI inputs and outputs
  • XLR inputs and outputs with 48V phantom power
  • ProRes RAW, ProRes, DNxHR, and Adobe CDNG
  • 7" IPS screens
  • Touchscreen
  • Wave Form and Focus Peaking

In the Box

  • Atomos Shogun Studio 2
  • 2x Rack Ear with screws
  • 5x Master II caddies
  • 4x rubber feet
  • 2x large rubber foot
  • 2x IEC power cable
  • Cleaning cloth
  • 1 year factory warranty and 3 years after [registration with Atomos](https://www.atomos.com/register)
Connections & Connectivity
12G-SDI
HDMI version HDMI 2.0
Inputs HDMI
SDI input
SDI output
Dimensions & Weight
Length (mm) 280.0 mm
Weight (g) 5000.0 g
Width (mm) 447.0 mm
Height (mm) 152.0 mm
General
Color Black
Display & Viewing
Cross conversion
Brightness (nits) 2000.0 nits
Quadview/PiP
Screen size (in) 7.0 in
Scopes (waveform/vectorscope)
Touchscreen
HDR support
Recording & Codecs
HDR standards PQ (HDR10)
LUT support
Sensor
Resolution Full HD
Power
Mains
Battery
