Blackmagic Cable - DeckLink Studio

Blackmagic Cable - DeckLink Studio

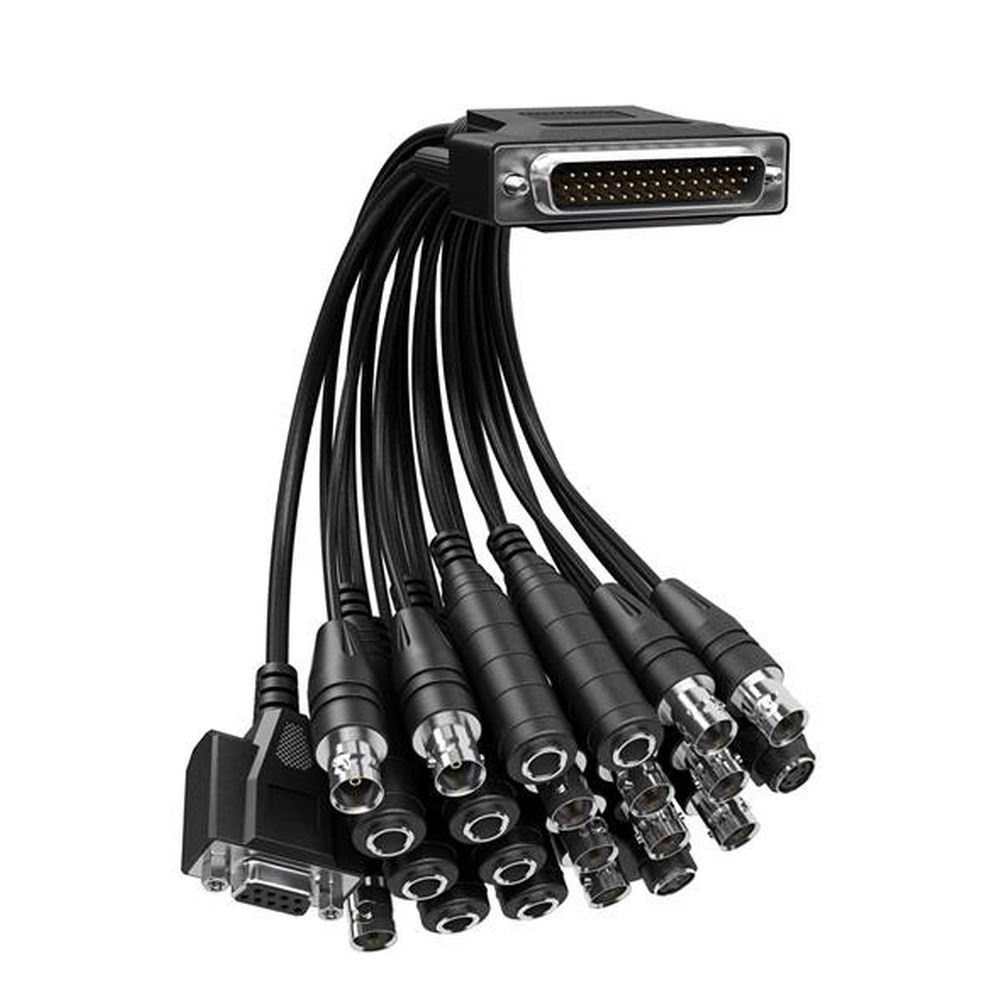

The Blackmagic Cable - DeckLink Studio is designed to facilitate the input and output of various signal types with your audio-video system. It features a serial connector on one end and (23) different input and output connectors on the other end.

Connector 1:

• Serial connector

Connector 2:

• RS-422 deck control
• Component output
• Component output
• Component output
• Genlock Tri-Sync input
• Component input
• Component input
• Component input
• AES/EBU output
• AES/EBU input
• Analogue audio output 1
• Analogue audio output 2
• Analogue audio output 3 or AES/EBU output
• Analogue audio output 4 or AES/EBU output
• Analogue audio input 1
• Analogue audio input 2
• Analogue audio input 3
• Analogue audio input 4
• Composite input
• Composite output
• S-video input
• S-video output
• SD-SDI output
