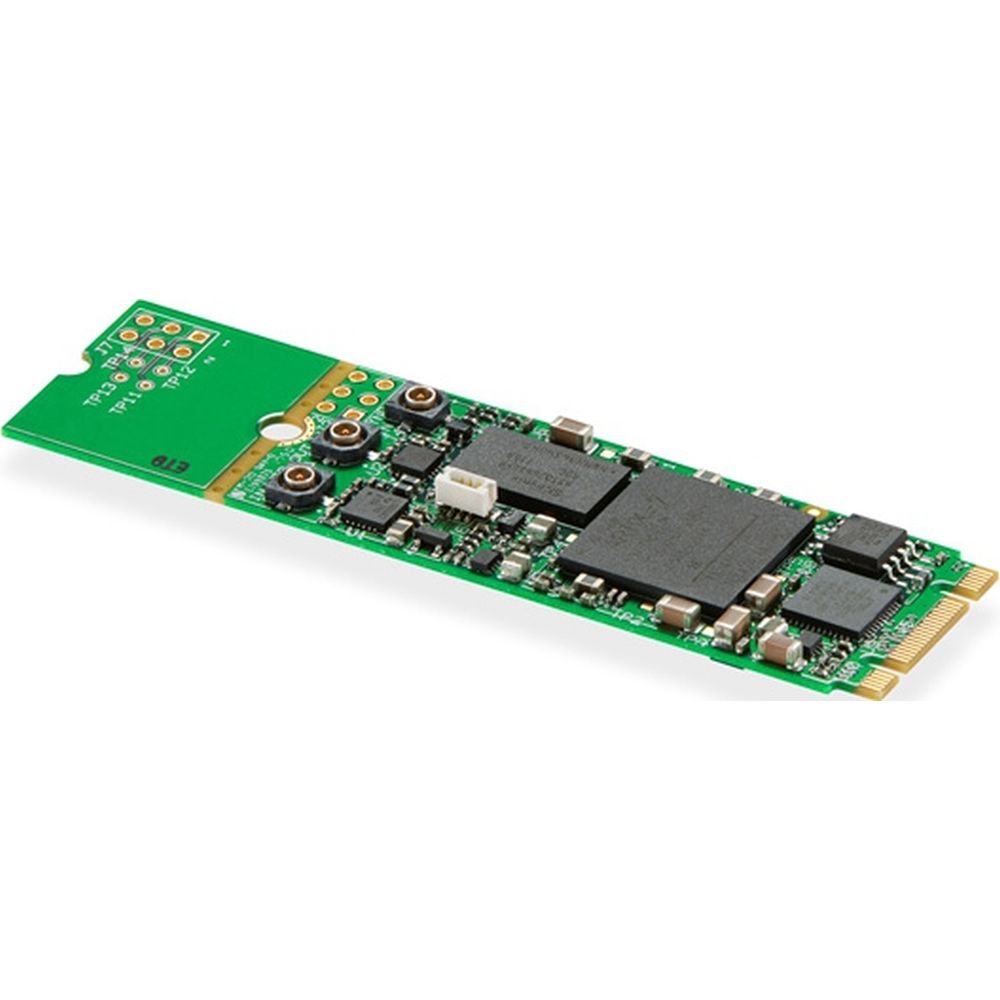

The Blackmagic DeckLink SDI Micro is a miniature M.2 card with 3G-SDI connections for simultaneous recording and playback in all SD and HD formats up to 1080p60.

Blackmagic DeckLink SDI Micro

The DeckLink SDI Micro features a Black Burst and Tri-Sync reference input and, thanks to its compact form factor, is ideal for use in portable solutions with compact computers!

Information on the EU General Product Safety Regulation (GPSR)

Blackmagic Design

Runcorn WA7 1ST, Christleton Court 5-B, United Kingdom

Features of the Blackmagic DeckLink SDI Micro

  • Standards
  • SD video standards: 525i59.94 NTSC, 625i50 PAL
  • HD video standards
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080p5023.98, 1080p5024, 1080p5025, 1080p5029.97, 1080p30
  • 1080i50, 1080i59.94, 1080i60
  • SDI video sampling
  • 4:2:2, 4:4:4
  • SDI colour precision
  • 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes
  • SDI compliance
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU-R BT.656 and ITU-R BT.601
  • Power consumption: 4.03 W (max)

In the Box

  • Blackmagic DeckLink SDI Micro
  • Fan and heatsink assembly
Dimensions & Weight
Length (mm) 80.8 mm
Width (mm) 21.8 mm
