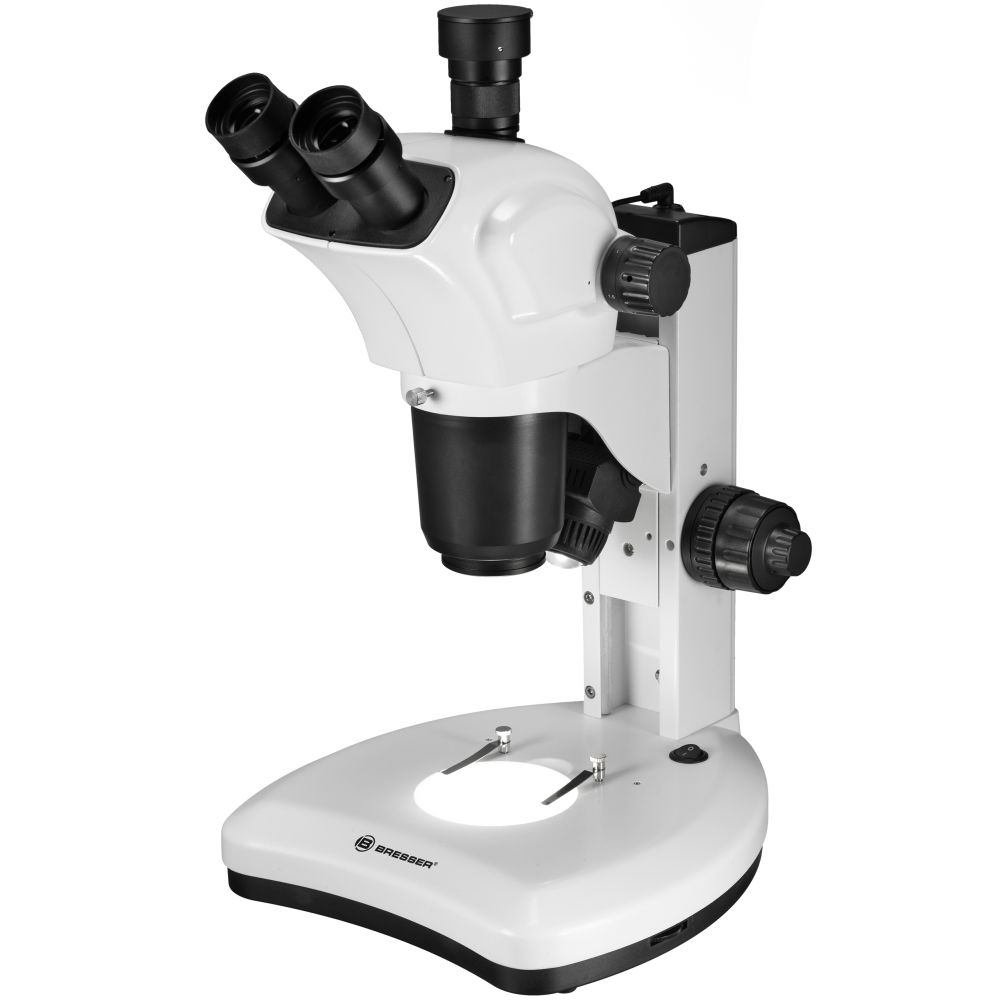

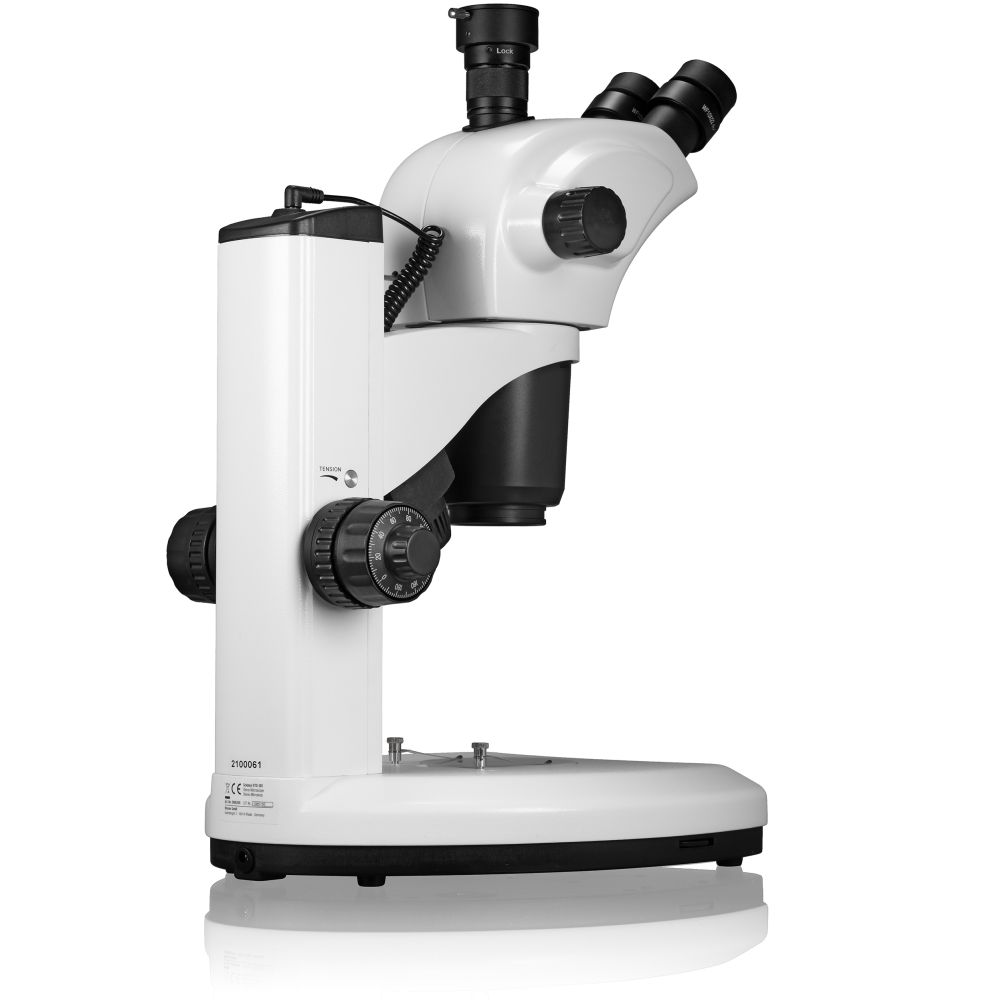

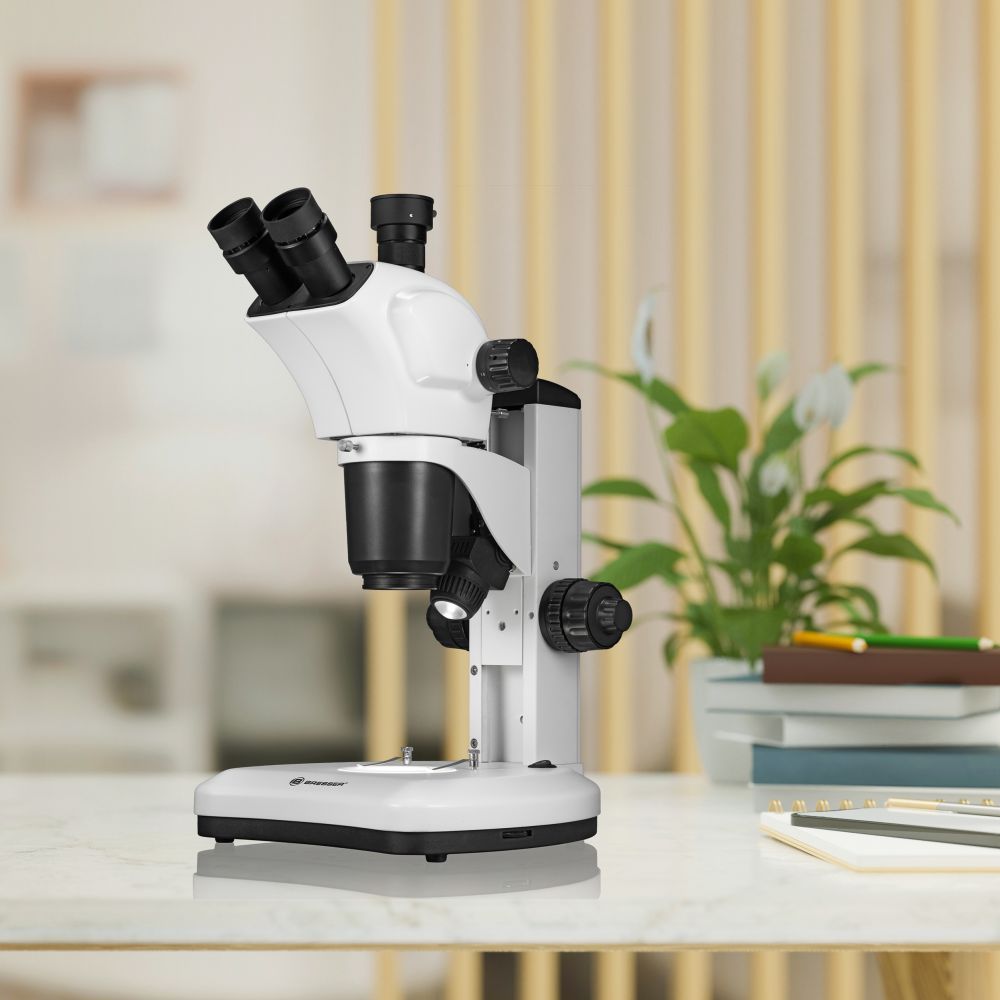

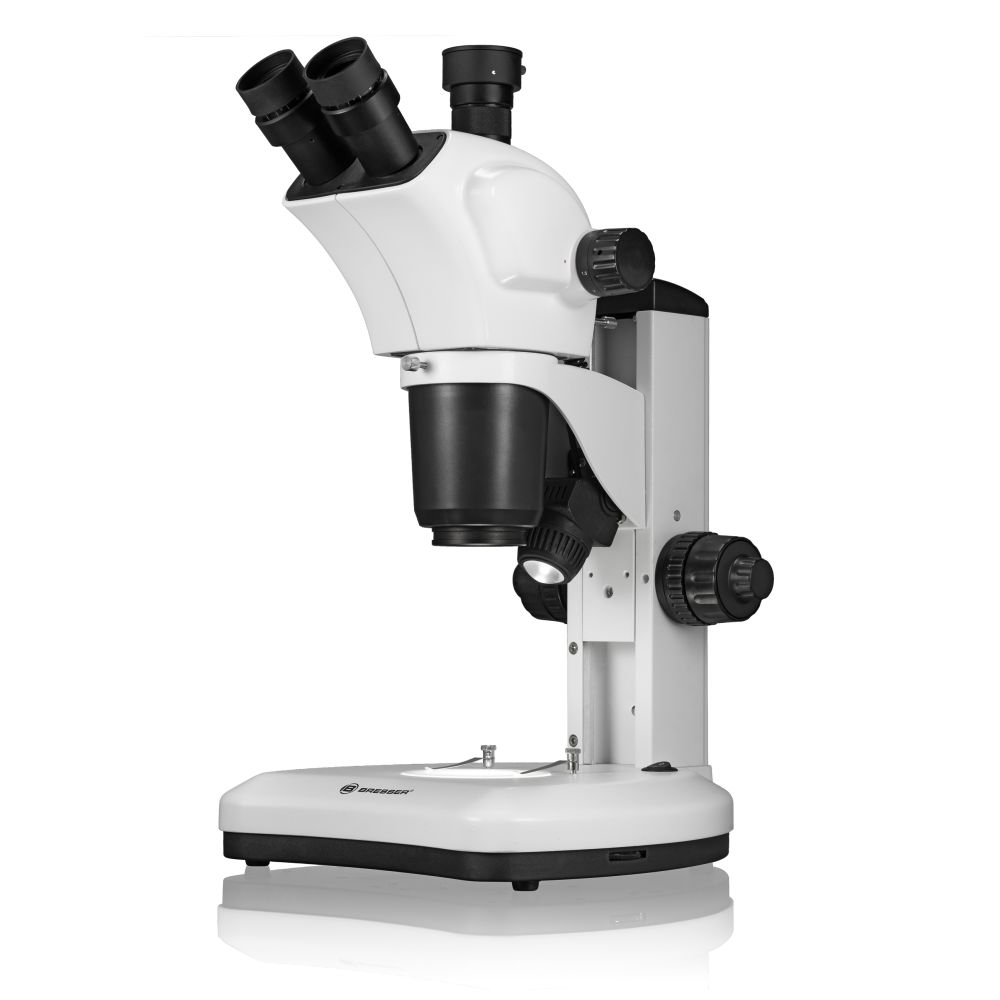

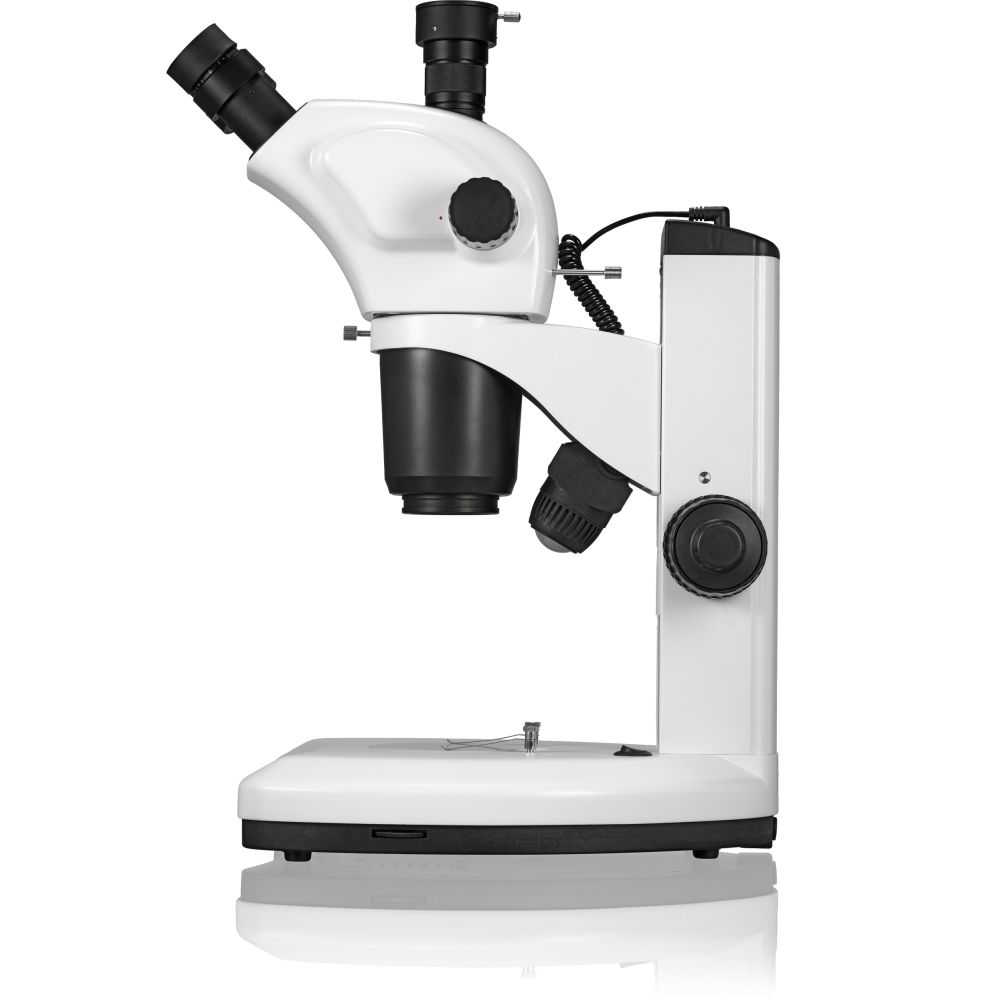

Bresser Science ETD-301 Microscope Trino 7x - 63x

Bresser Science ETD-301 Microscope Trino 7x - 63x

The Bresser Science ETD-301 Microscope Trino 7x - 63x is a stereo illumination and transmission microscope with high-quality optics. It is suitable for use in medicine, agriculture, forestry, forensic science, scientific research institutes and schools, as well as for the assembly and inspection of small parts in precision mechanics and electronics.

The extra-wide stand with object table allows viewing of larger objects. The maximum object height is approximately 85 mm. The large working distance of 100 mm allows working with tools, e.g. for preparation or dissection, measuring or testing.

The instrument has LED lighting for illumination and transmitted illumination, which can be used separately or combined and each can be infinitely controlled. The illumination angle can be adjusted in a particularly user-friendly way. With interchangeable wide-angle eyepieces (WF 10x) and a 9x stereo zoom lens (0.7x - 6.3x), a continuous magnification range of 7x to 63x is achieved.

The coarse and fine focus enables precise focusing, especially at high magnifications and in photography.

The eye relief and diopter correction are individually adjustable. The trinocular microscope head can be rotated 360° and has two 45° inclined eyepiece tubes. Using an optional adapter, the trinocular tube can carry an SLR/system camera (APS-C or DX format) or a C-mount camera (sensor size up to 2.54 cm). The beam from an eyepiece is deflected towards the camera by means of a switch. This produces 50% light, more than a microscope with a permanent beam splitter.

An adapter (Bresser part number 5942100) and a camera-specific T2 ring are required to connect an SLR/system camera. A C-mount camera is connected with an adapter (Bresser part number 5942101).
