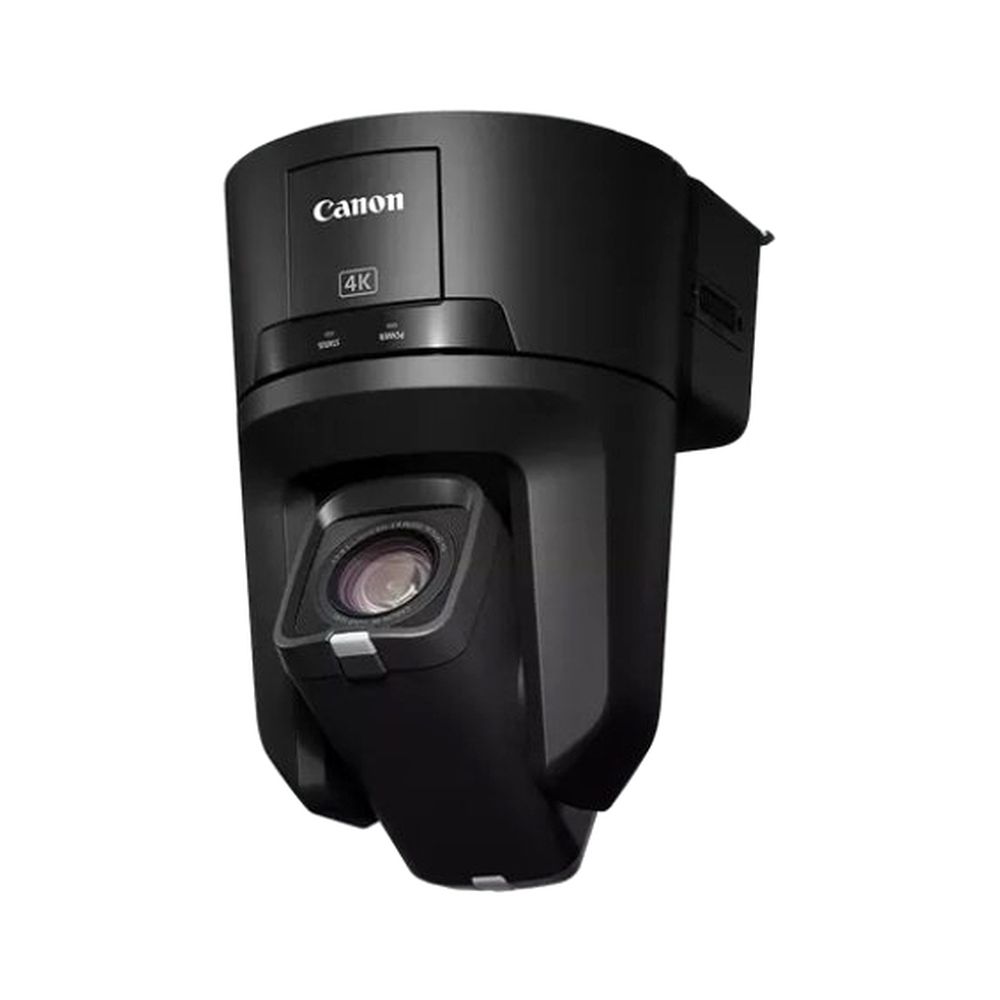

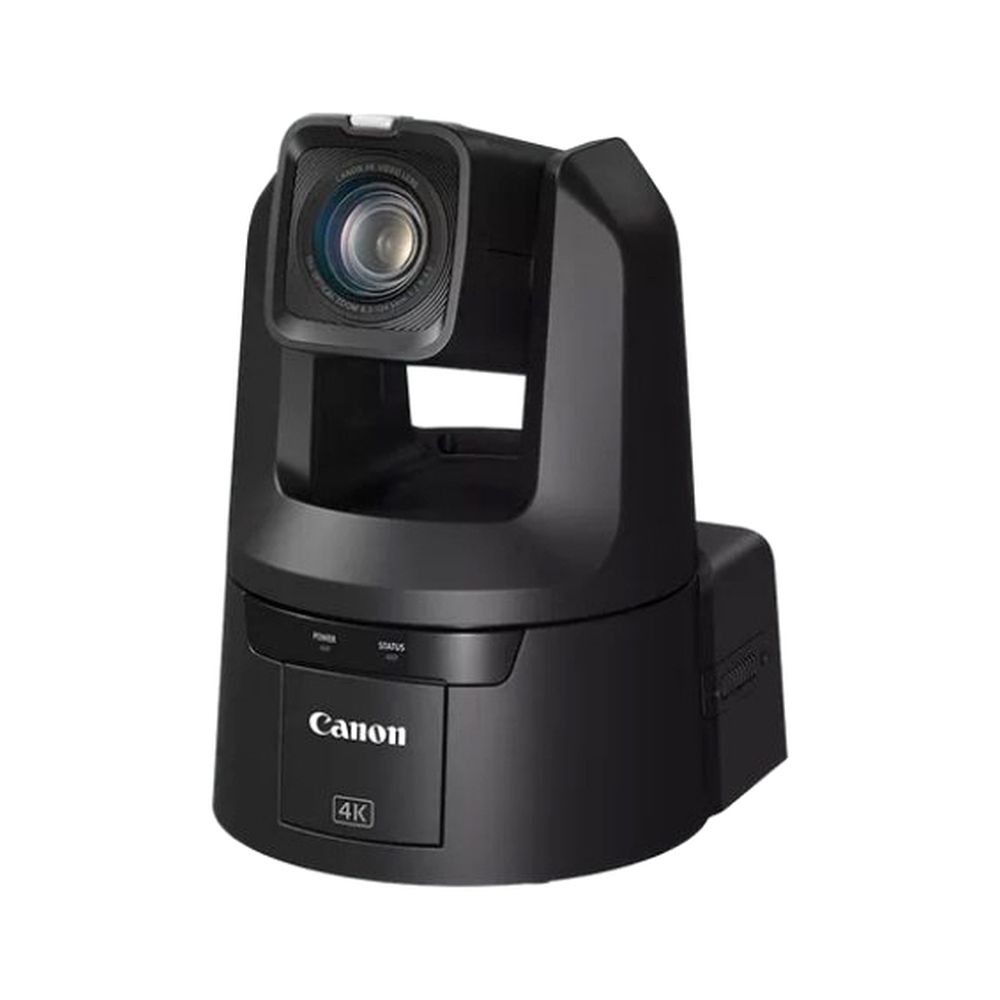

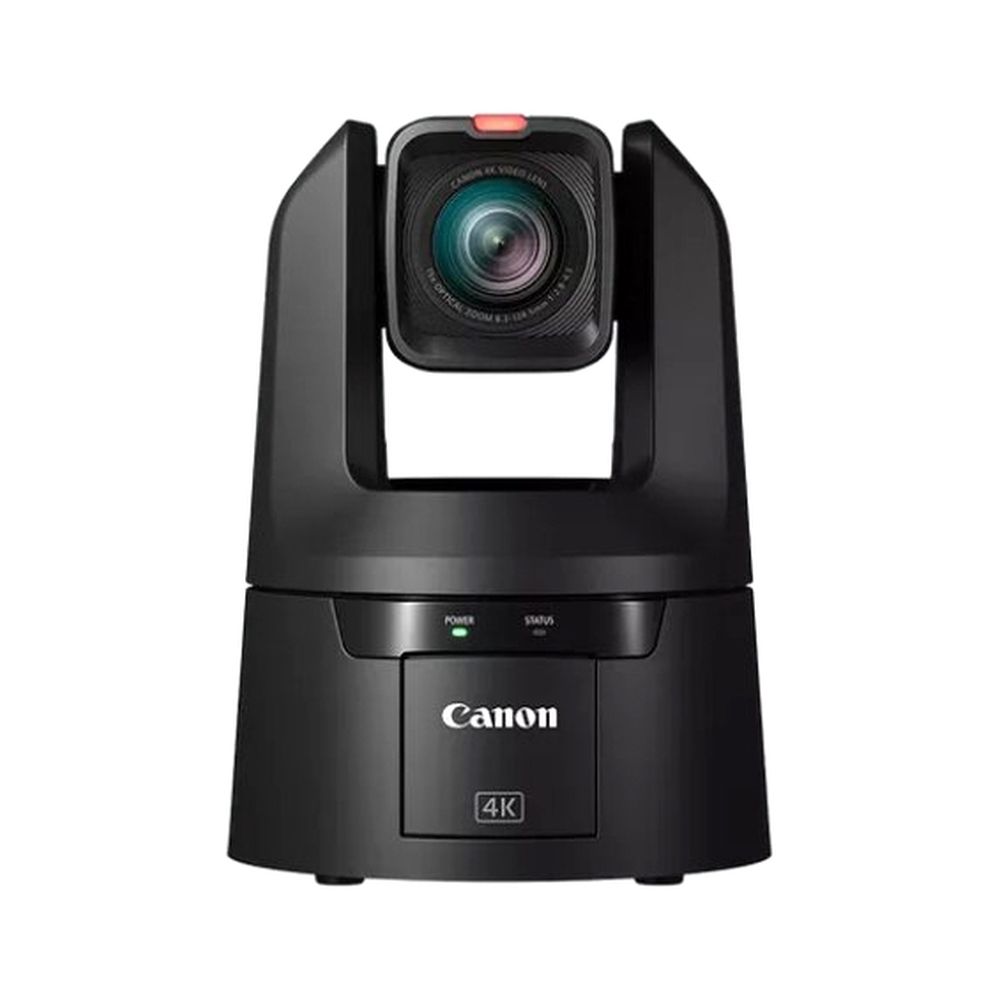

Canon CR-N500 (BK) PTZ camera with AT
With 15x optical zoom and 4K UHD recording capabilities with built-in intelligent Auto Tracking (AT), the Canon CR-N500 (BK) PTZ camera with AT offers precise control and seamless IP streaming, even in low-light conditions.
A dynamic PTZ camera for productions and video streaming, the CR-N500 features a 1.0-type 4K UHD sensor and Dual Pixel CMOS AF, plus 15x optical zoom, smooth panning and tilting features as well as image stabilisation to capture content with beautiful detail and the ability to automate your productions with Auto Tracking\* and Auto Loop
features Download the latest firmware and get the free Auto Tracking app RA-AT001(Lite). A paid version (RA-AT001) offers additional versatility.
(\*Free*Auto Tracking app RA-AT001(Lite) available via new FW, 1.5.0 or higher. Paid licence is required for full auto tracking functionality*)*.*
Powerful 4K images
The 1.0-type CMOS sensor and DIGIC DV6 processor work together for outstanding 4K UHD image quality up to 30p and upscaled Full HD images up to 60p thanks to oversampled HD image processing.

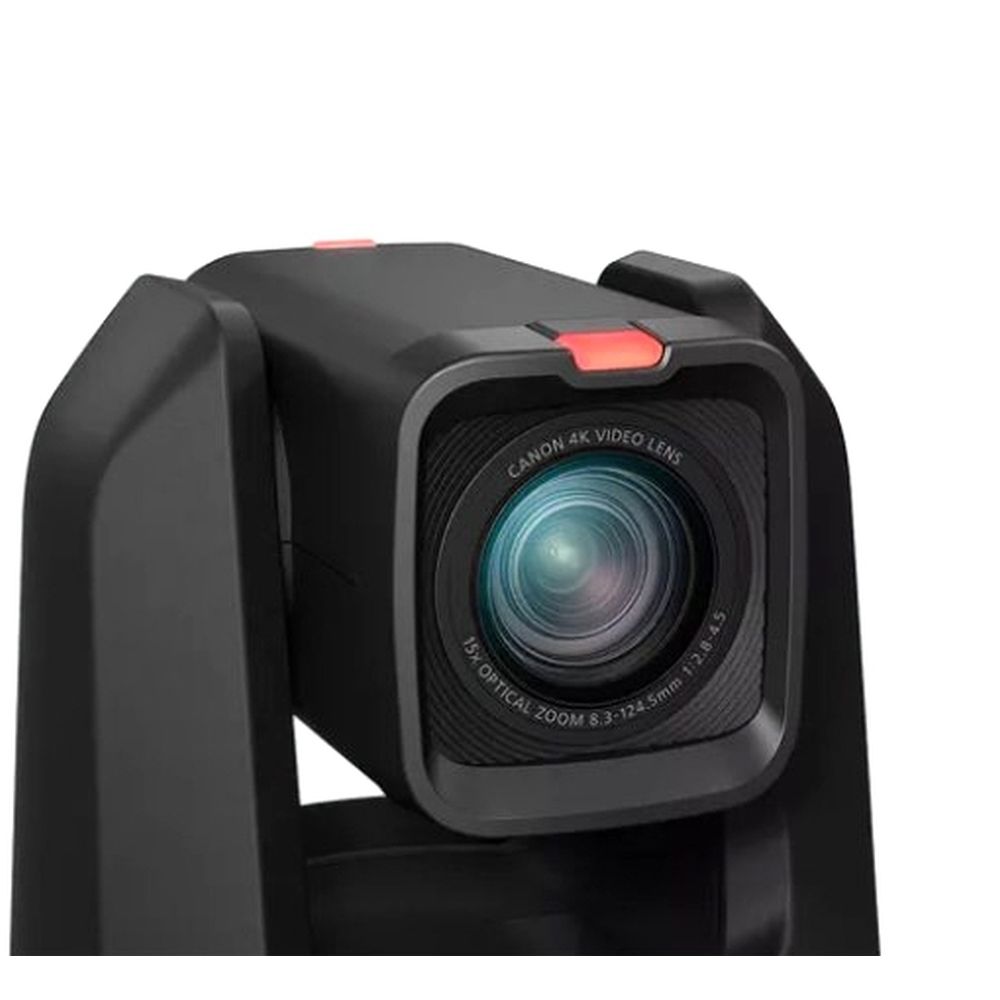

Stabilised 15x optical zoom to get closer
Canon's advanced 4K optics ensure that even more detail is captured and offer flexibility with the 15x optical zoom (25.5-382.5mm 35-mm equivalent) for a wide-angle to telephoto angle of view. Canon's advanced four-axis image stabilisation system ensures high-quality image quality.
IP streaming and control to transform your production
A comprehensive range of IP control and streaming protocols up to 4K UHD 30p has been added (such as NDI|HX, RTMP, RTP/ RTSP, RTMPS, SRT, FreeD and Canon's XC protocol). This makes the CR-N500 the ideal solution for both new and existing systems.
Excellent low-light images
The CR-N500 produces high-quality images with low noise, even at a minimum illumination of 1.5 lux. Its large 1.0-type CMOS sensor and DIGIC DV6 processor ensure reliable image quality even in the most challenging lighting conditions. IP streaming and control to transform your production
Dual Pixel CMOS AF keeps it sharp
The CR-N500 features Canon's renowned Dual Pixel CMOS Auto Focus system that offers extremely fast and accurate focusing through several modes.
Focus Assist
Indicates via a visual display whether the subject is in focus when the focus is operated manually.
Face Priority/Face Only AF
Automatically detects faces and tracks focus on the selected subject.
Touch AF
Using remote camera control application software, users can select a subject to focus on specifically.
Precise Auto Tracking in 4K
Take advantage of face/head detection to automatically track the main speaker as they move across the stage. With multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more, you can easily set the ideal tracking.
Intelligent Auto Loop\*\*
Program repeated pan, tilt and zoom movements of the camera to track repeating live actions consistently and accurately thanks to Canon's advanced control mechanism. Experience the flexibility to programme movements with the ability to initialise a loop forward and backward, eliminating the need for camera control. Five automatic motion loops can be registered, which can be easily created or modified thanks to a user-friendly interface. (\*\*Paid licence required)
Comprehensive connectors for ease of use
The CR-N500 offers a host of connectivity options to ensure ultimate flexibility in workflows, including 3G-SDI video output, a full-sized HDMI port (supporting 4K UHD 30p at 4:2:2 10-bit), professional XLR audio input and a PoE LAN port for easy system integration.
Smooth and precise control
The CR-N500 is equipped with a high-precision drive mechanism that allows making minor adjustments to the Pan and Tilt movement as well as speed for the perfect shot. The CR-N500 is compatible not only with the RC-IP100 controller and remote camera control application controller, but also with a number of third-party controllers.
HDR images with versatile image quality adjustment capabilities
Capture breathtaking HDR images with Canon Log 3 and wide dynamic range support. Both technologies ensure the best possible HDR images for applications requiring post-processing or fast processing. Built-in image adjustment settings also provide flexibility and customisation to match colours across cameras.
Seamless high-quality 4K video streaming
The free\* webcam driver lets you enjoy seamless video streaming in up to 4K 30p with up to 5 selected Canon PTZ cameras via a simple Ethernet connection. This Windows OS software is compatible with most conferencing platforms and applications that require UVC. It is a virtual USB driver that allows easy integration of video streaming, ideal for video conferencing and online lectures.
