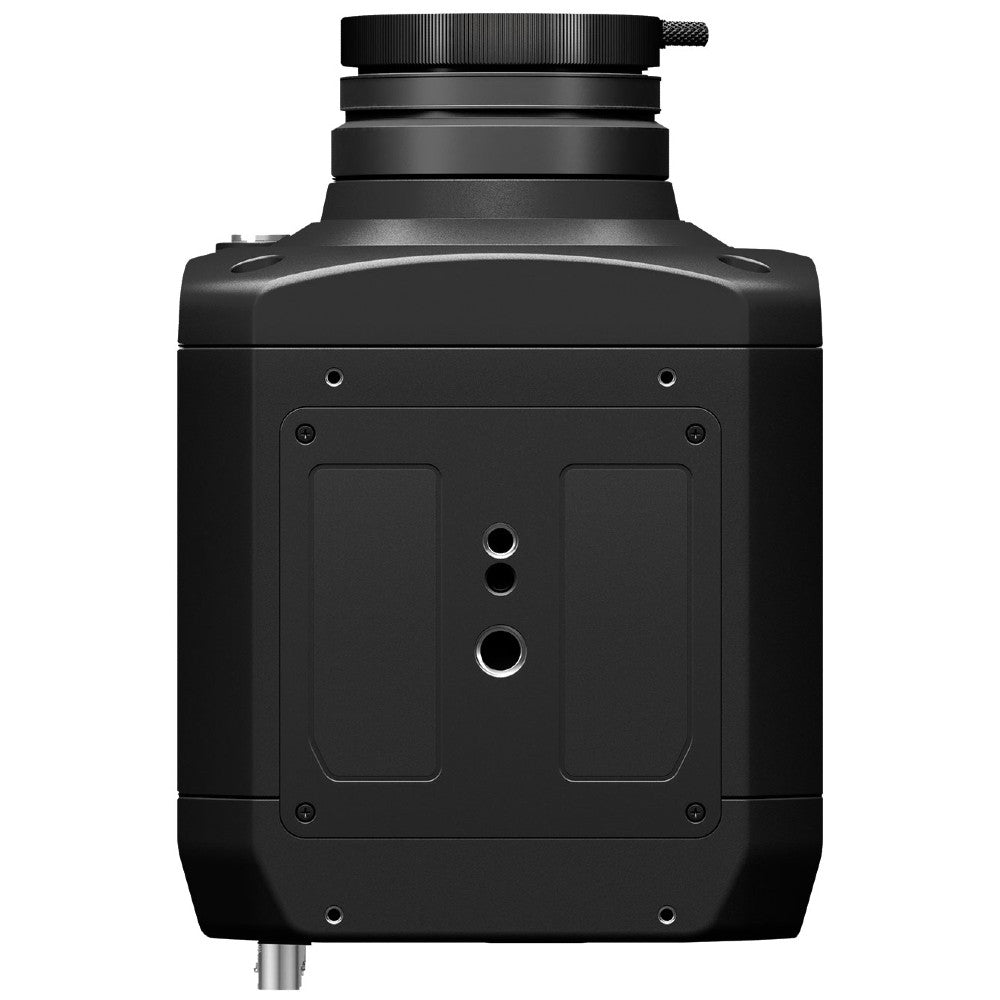

Canon ultra high Sensitivity Camera MS-500

Article number:

12464219

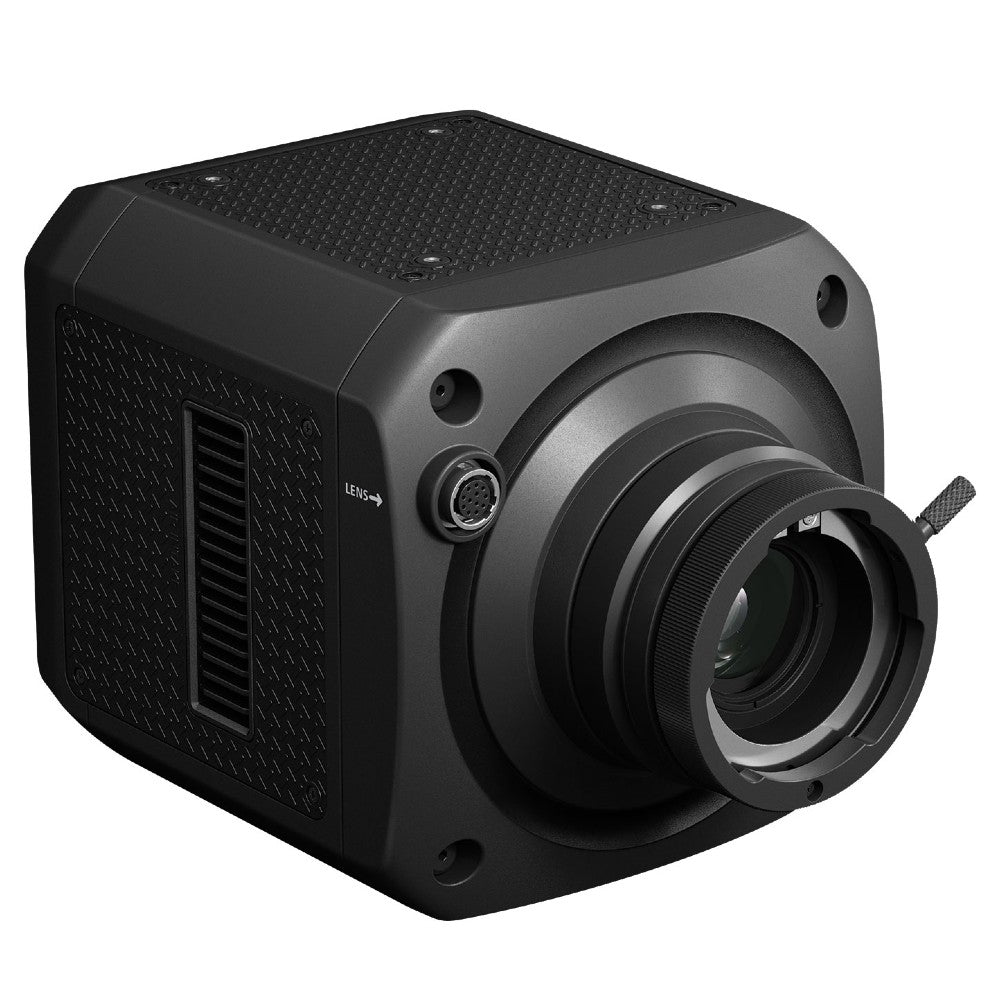

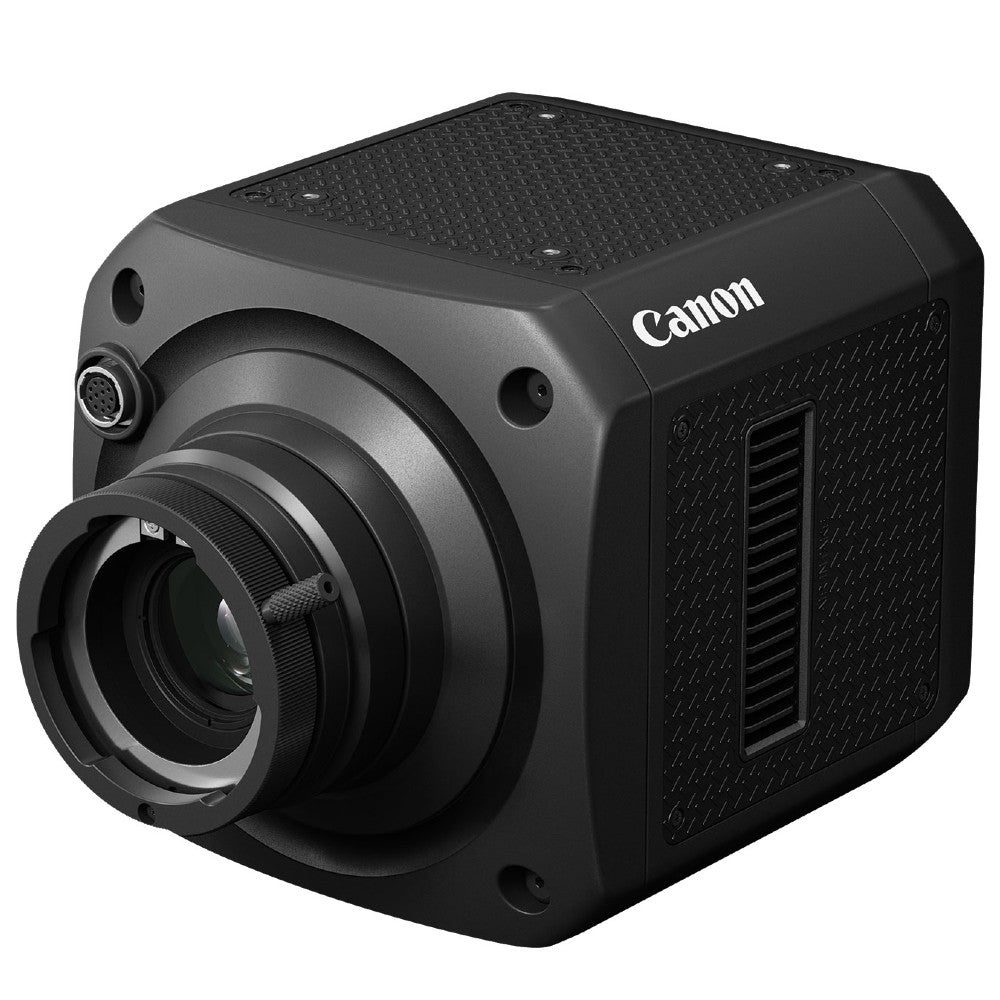

Canon Ultra-High Sensitivity Camera MS-500

The Canon MS-500 is an ultra-high sensitivity security camera that can capture images at great distances, in extremely low-light situations. Thanks to the bright 1-inch SPAD sensor, the camera produces Full HD colour images with little noise.

The camera contains several high-quality features. Haze compensation effectively reduces haze from fog or smog, while Smart Shade Control (SSC) provides more detail in dark areas and less saturation in strong daylight. The camera has both manual focus and One shot AF. Control the IR cut filter automatically or manually to use extra infrared light when shooting in the dark.

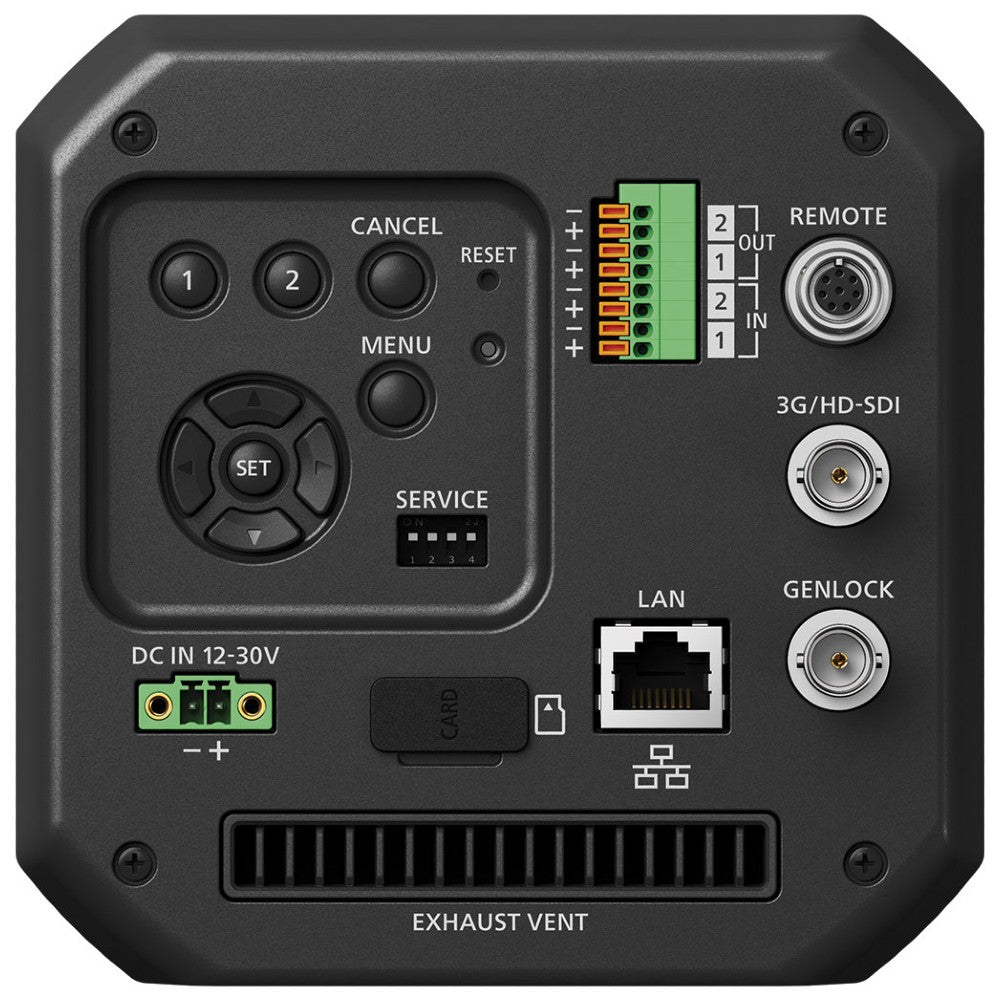

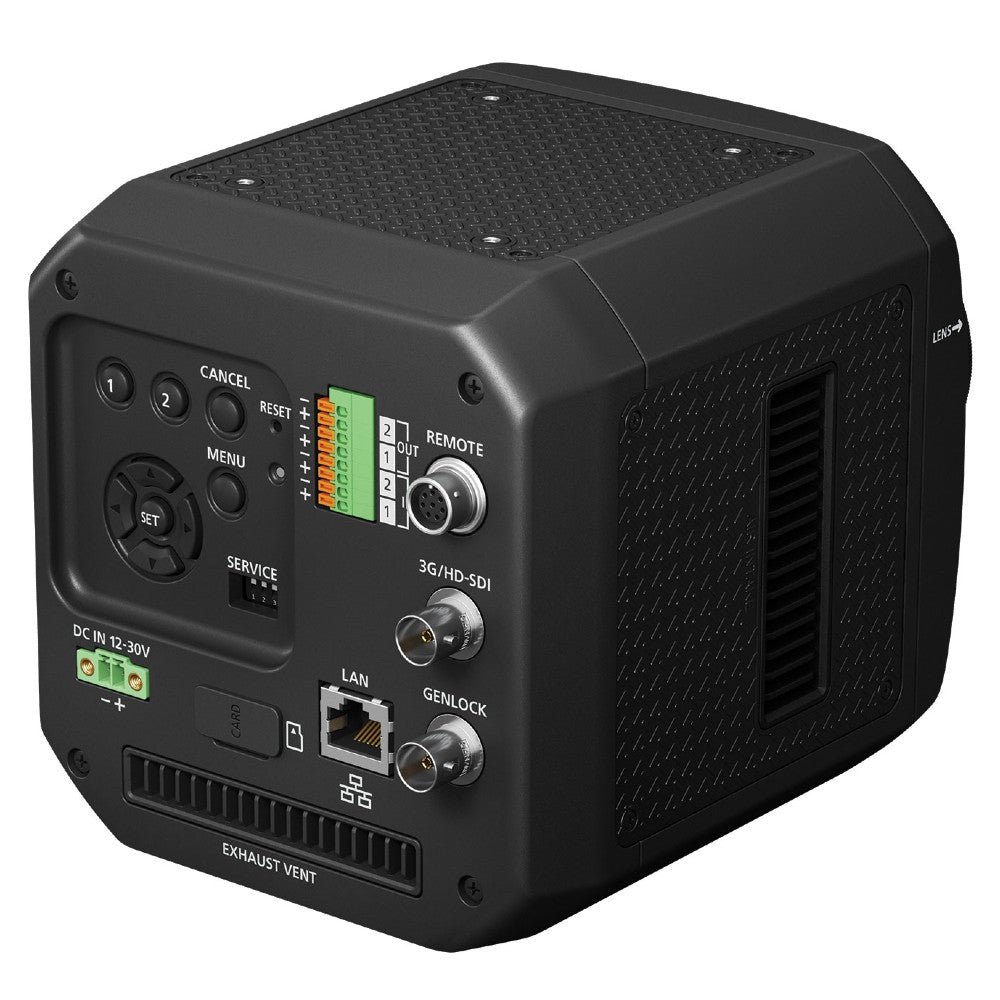

The MS-500 offers flexible connectivity. It supports the Pelco-D protocol or the Canon NU protocol, so you can easily operate it from a distance. The camera is equipped with 3G/HD-SDI, a 12-pin lens connection, Genlock and DC-IN (12-30 V). The camera has a B4 mount making it compatible with Canon's high-performance telebroadcast lenses. This makes it an attractive choice for longer distance surveillance.

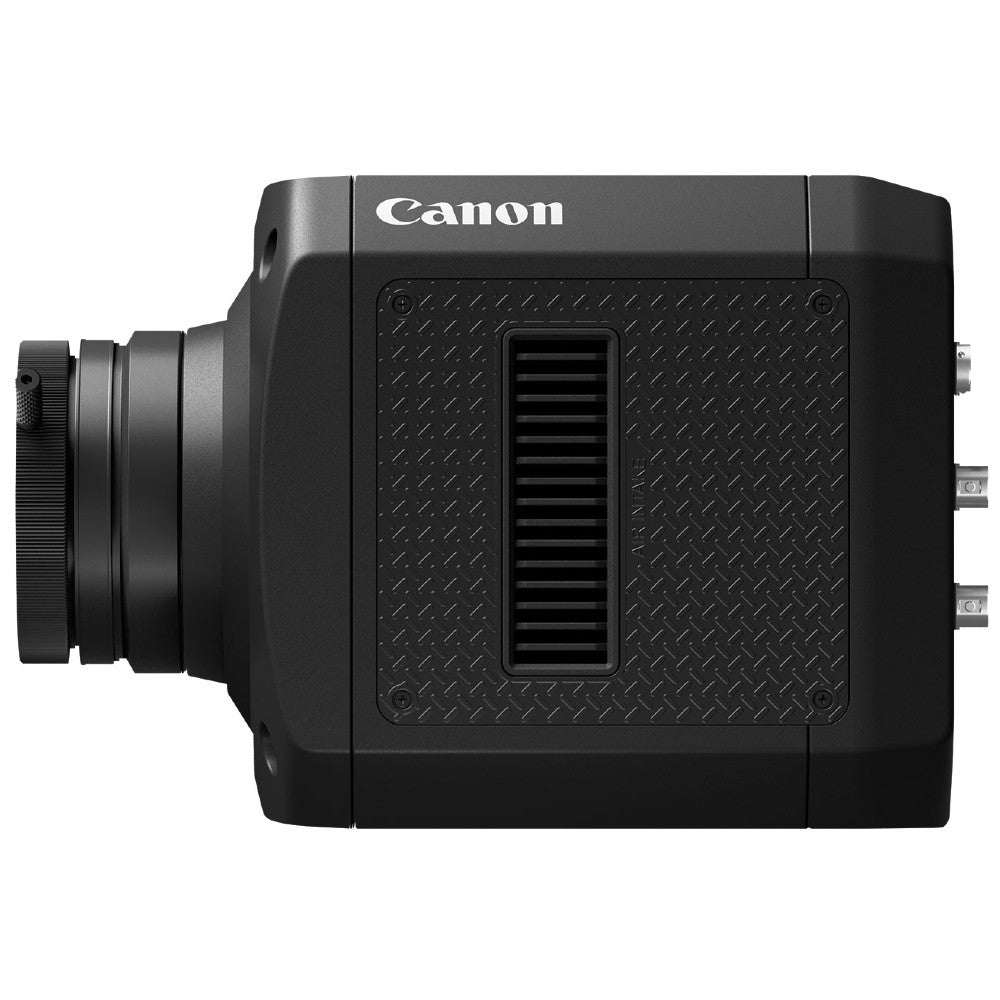

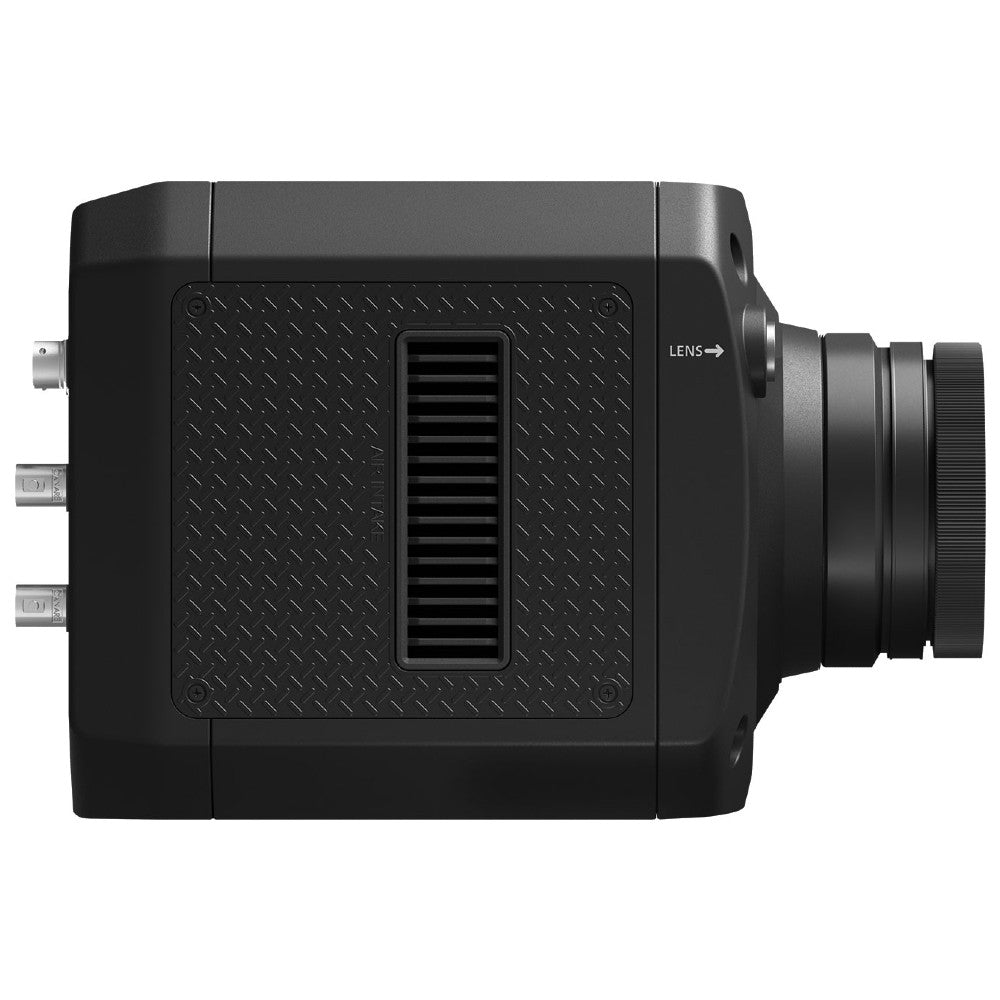

Thanks to the active cooling system, it continues to work optimally, even during prolonged use. The camera can be used between -20°C and 45°C. There is almost no situation in which he will not perform.

Information on the EU General Product Safety Regulation (GPSR)

Canon Europa B.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

Features of the Canon ultra high Sensitivity Camera MS-500

  • Ultra-high sensitivity security camera
  • Full HD colour images with low noise
  • 1.0-inch SPAD sensor
  • 2.1 effective megapixel
  • Minimum brightness (PAL): 0.001 lux (f/1.4 equivalent)
  • Haze compensation and Smart Shade Control (SSC)
  • Manual focus and One shot AF
  • IR cut filter to use extra infrared light

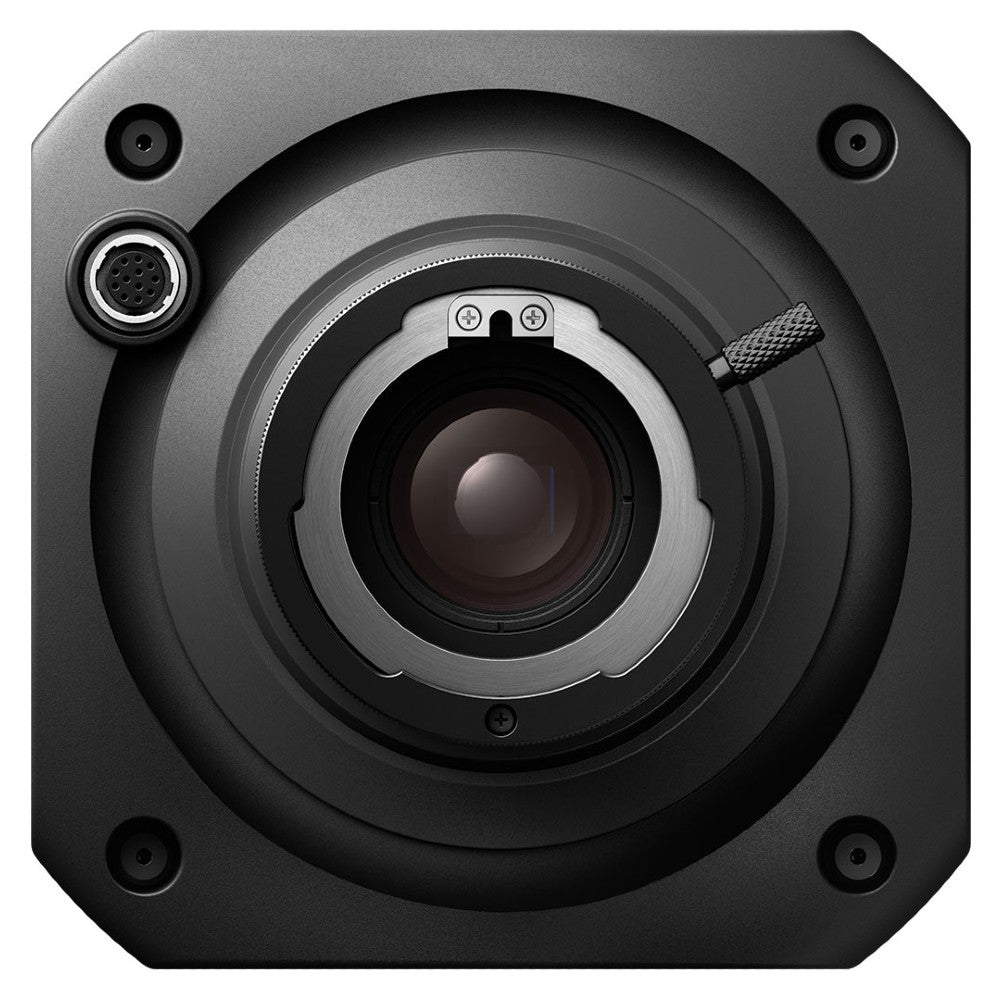

  • B4 Bayonet lens mount (for Canon's telebroadcast lenses)
  • Recording resolution: 1920 x 1080 (fps: 59.94, 50, 29.97, 25), 1280 x 720 (fps: 59.94, 50)
  • Remote control connection: circular 8-pin connection
  • Lens connection: circular 12-pin connection
  • Power supply: DC 12V to 30V
  • Power consumption: Max. 23.7W (camera only)
  • Temperature range at start-up: -10°C - 45°C
  • Operating temperature range: -20°C - 45°C
  • Dimensions: 128 x 128 x 184 mm (excluding protruding parts)
  • Weight: 2.2 kg (camera only)

In the Box

  • Canon ultra-high sensitivity camera MS-500
  • Camera cap
  • Manual
Connections & Connectivity
HDMI type None
NFC
SDI
12G-SDI
Dimensions & Weight
Length (mm) 184.0 mm
Weight (g) 2200.0 g
Width (mm) 128.0 mm
Height (mm) 128.0 mm
General
Color Black
Audio
Built-in microphone
Display & Viewing
Touchscreen
Included Accessories
Body cap
User manual
Recording & Codecs
10-bit recording
Built-in ND
Recording codecs H.264
Video resolution max Full HD
Sensor
Sensor format 1-inch
Compatibility
Lens mount Other
Camera Functions
Autofocus present
Live streaming
