Desview R7SIII 7-inch on camera montor SDI

Article number:

12475987

Desview R7SIII 7-inch on camera montor SDI
Desview R7SIII 7-inch on camera montor SDI
  • Desview R7SIII 7-inch on camera montor SDI
  • Desview R7SIII 7-inch on camera montor SDI
  • Desview R7SIII 7-inch on camera montor SDI
  • Desview R7SIII 7-inch on camera montor SDI
  • Desview R7SIII 7-inch on camera montor SDI
  • Desview R7SIII 7-inch on camera montor SDI
€489,99

Delivered within 3 to 4 working days.
Desview R7SIII 7-inch on camera montor SDI
Desview R7SIII 7-inch on camera montor SDI
€489,99

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period

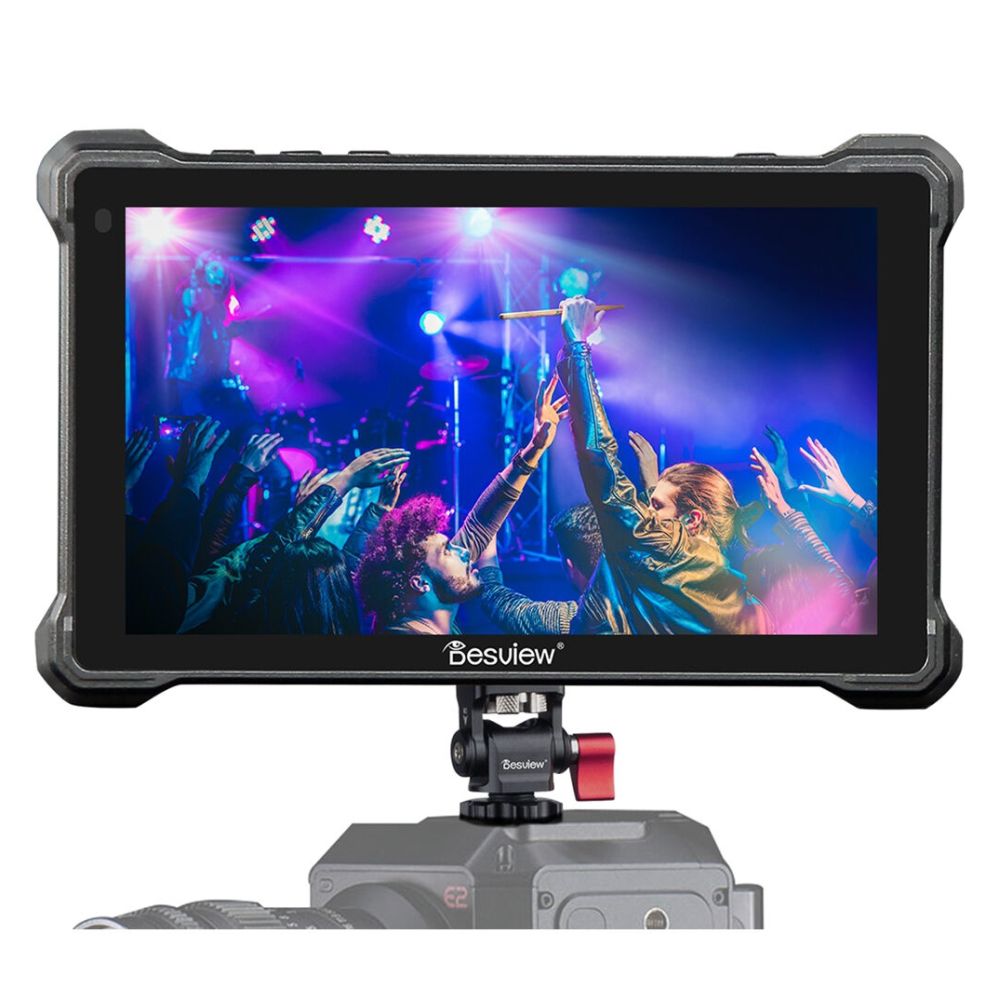

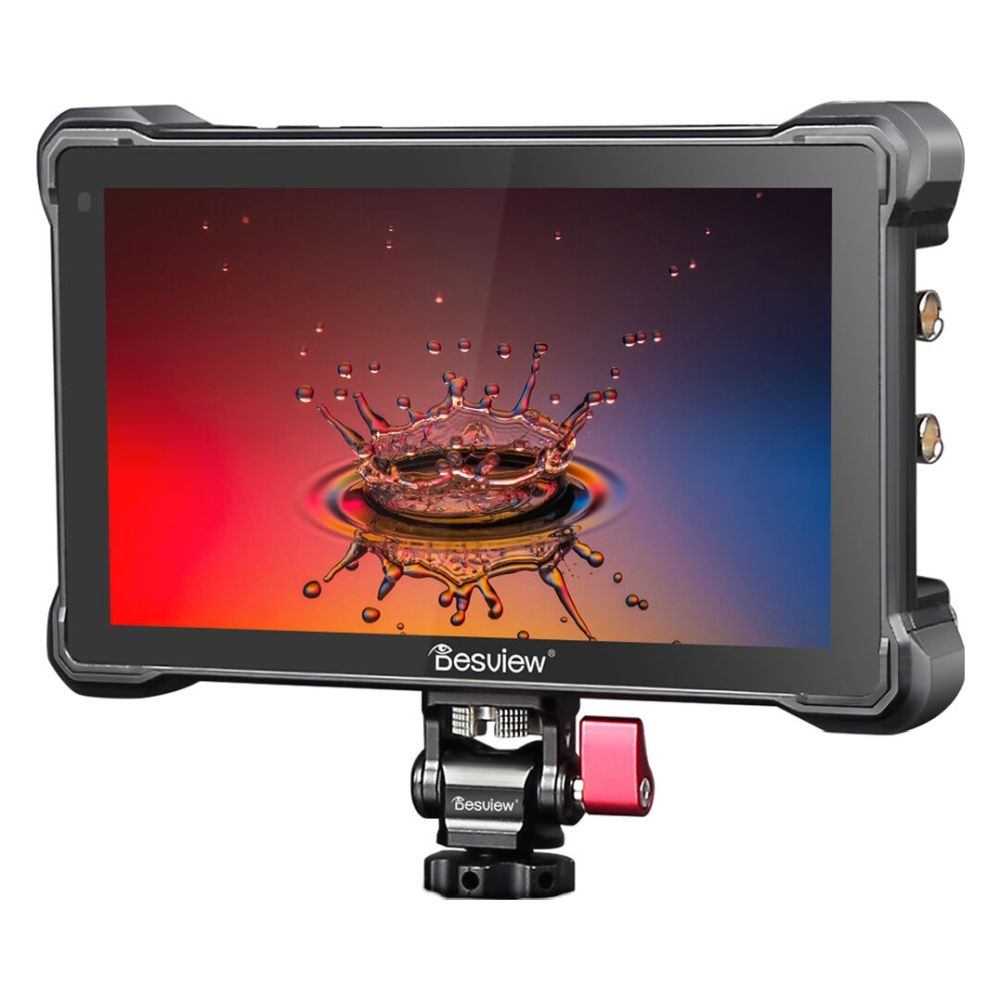

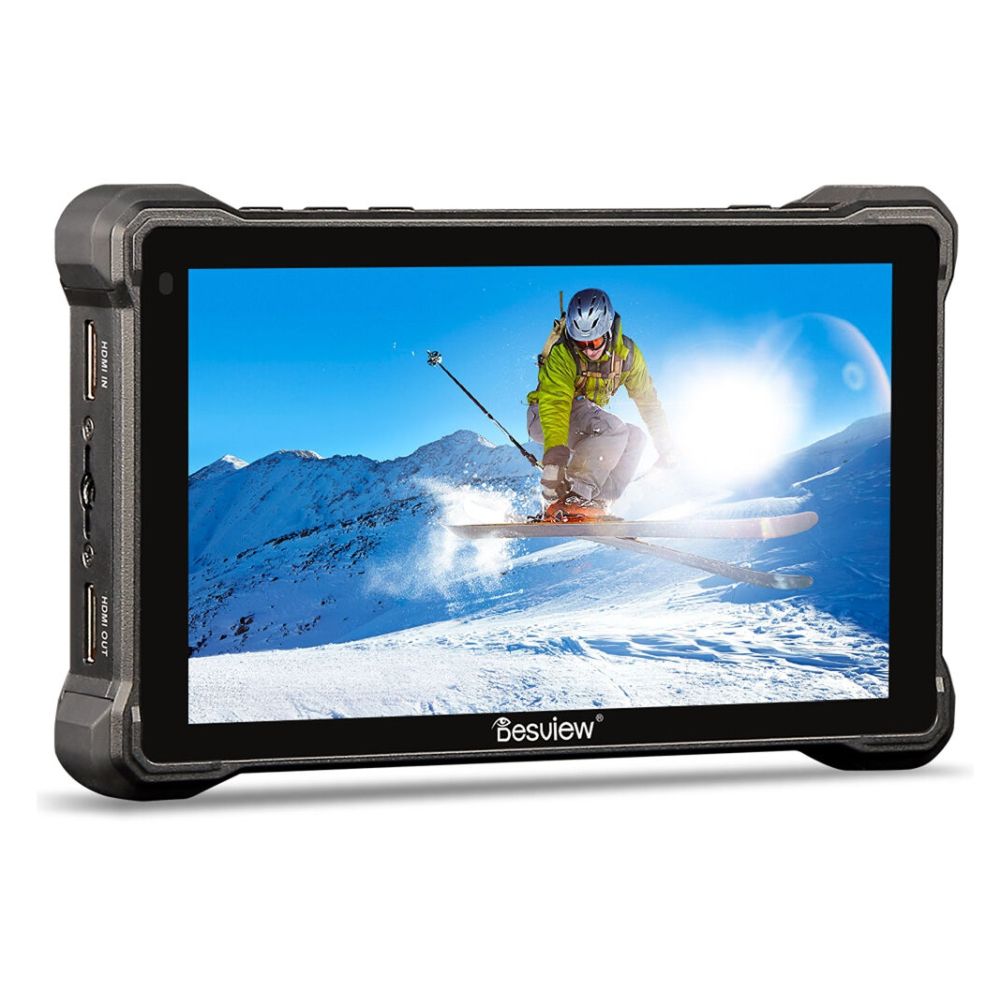

The Desview R7SIII 7-inch on camera montor SDI lets you view your video recording on a sharp 7-inch IPS LCD screen with 1920 x 1080 resolution, 2800 cd/m² brightness, 1000:1 contrast ratio, 10-bit colour and touchscreen controls.

Desview R7SIII 7 inch on camera montor SDI

The Desview R7SIII 7-inch on camera montor SDI lets you view your video recording on a sharp 7-inch IPS LCD screen with 1920 x 1080 resolution, 2800 cd/m² brightness, 1000:1 contrast ratio, 10-bit colour and touchscreen controls. Features include a viewing angle of 178°, HDMI 2.0 and 3G-SDI input and output, LUT import via the USB-A port, a 3.5mm headphone output and support for up to DCI 4K60 HDMI video input and output with built-in audio. Numerous imaging tools are built into the monitor, including vectorscope, waveform and zebra, and many others.

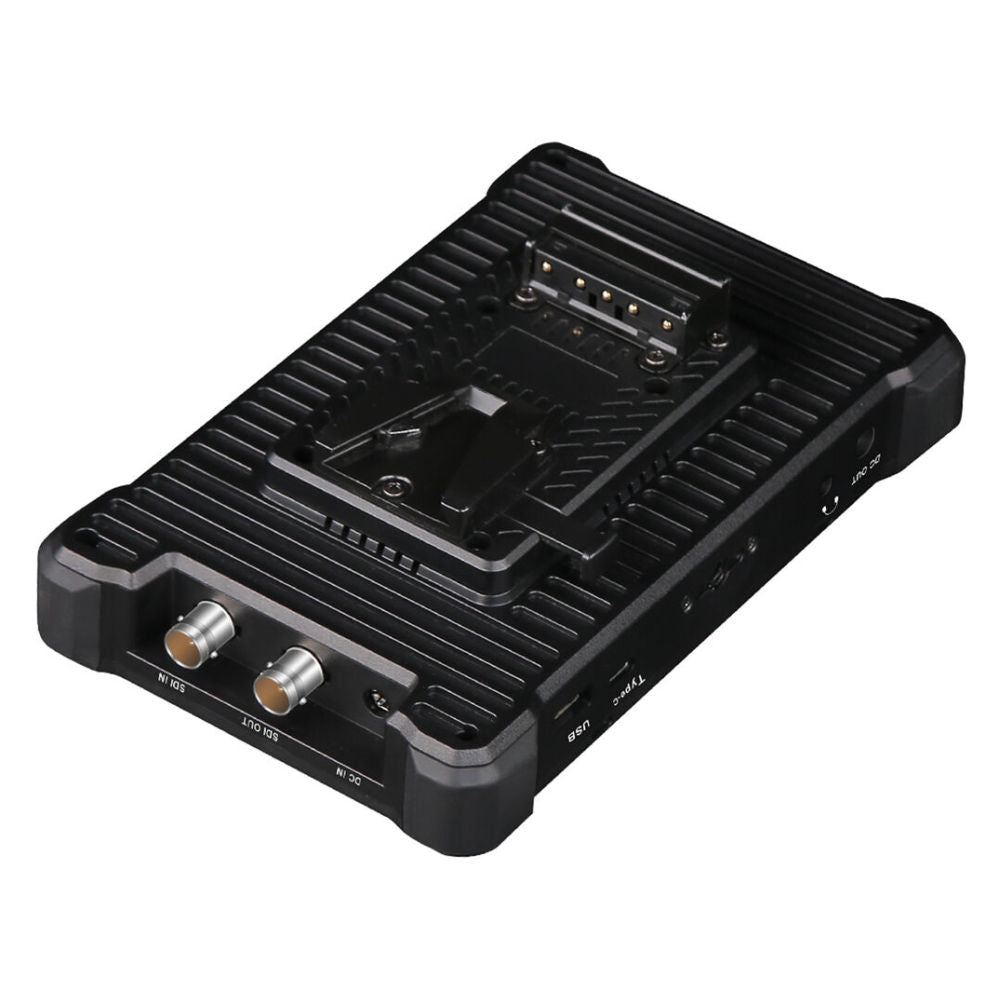

The R7SIII is powered via the integrated V-mount battery plate, via USB-C or via a separately available DC-barrel adapter. The monitor also features an 8 VDC barrel output to power the camera from camera batteries using a separately available dummy battery or cable. Mount the R7SIII on your rig using the 1/4"-20 thread on the bottom or side and a support arm or the included tilting monitor bracket.

Information on the EU General Product Safety Regulation (GPSR)

Zhou's Jade Start UG

Brunnenalle 11a 14478 Potsdam DE

jadestar.eu@gmail.com

Features of the Desview R7SIII 7-inch on camera montor SDI

  • 1920 x 1080 touchscreen display
  • Screen size: 7 inch (17.7 cm)
  • Brightness 2800 cd/m², 1000:1 contrast
  • HDMI 2.0 & 3G-SDI input and output
  • Supports up to DCI 4K60 HDMI video input
  • HDR and LUT support via USB-A
  • Pixel zoom, focus assist, peaking tools
  • Vectorscope, waveform and zebra tools
  • USB-C and DC power input/DC output
  • 3.5 mm headphone output, 1/4"-20 wires
  • V-mount battery plate
  • Dimensions: 190.2 x 117.7 x 52.3 mm
  • Weight: 500 grams

In the Box

  • Desview R7SIII 7-inch on camera montor SDI
  • Monitor bracket
  • A-A HDMI cable
  • A-A HDMI cable
  • Micro HDMI cable
  • U Disk
  • Cleaning cloth
  • Storage bag
  • Manual
Connections & Connectivity
12G-SDI
HDMI version HDMI 2.0
Inputs HDMI 2.0
SDI input
SDI output
Dimensions & Weight
Weight (g) 490.0 g
General
Color Black
Display & Viewing
Cross conversion
Brightness (nits) 2800.0 nits
Screen size (in) 7.0 in
Scopes (waveform/vectorscope)
Touchscreen
HDR support
Recording & Codecs
HDR standards PQ
LUT support
Sensor
Resolution Full HD
Power
Mains
Battery
