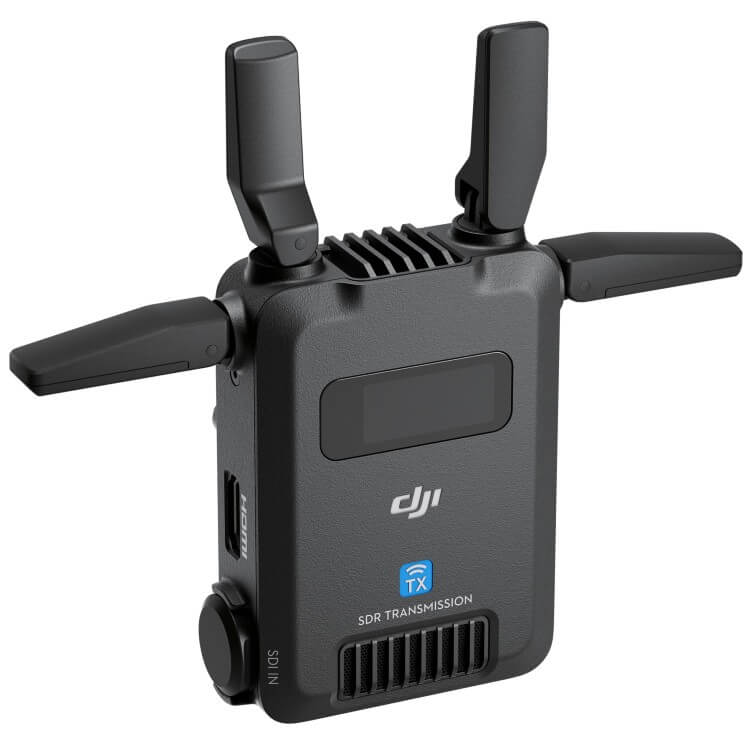

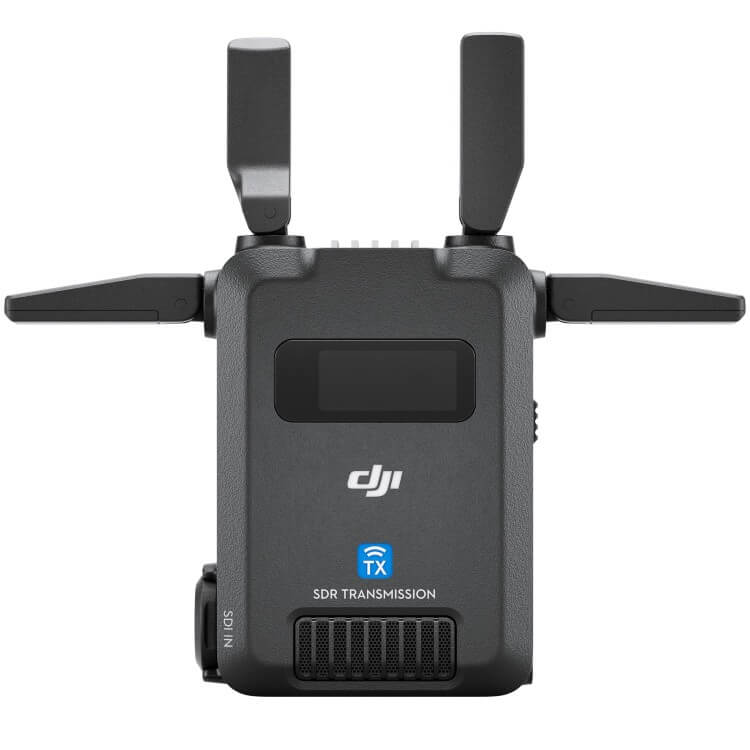

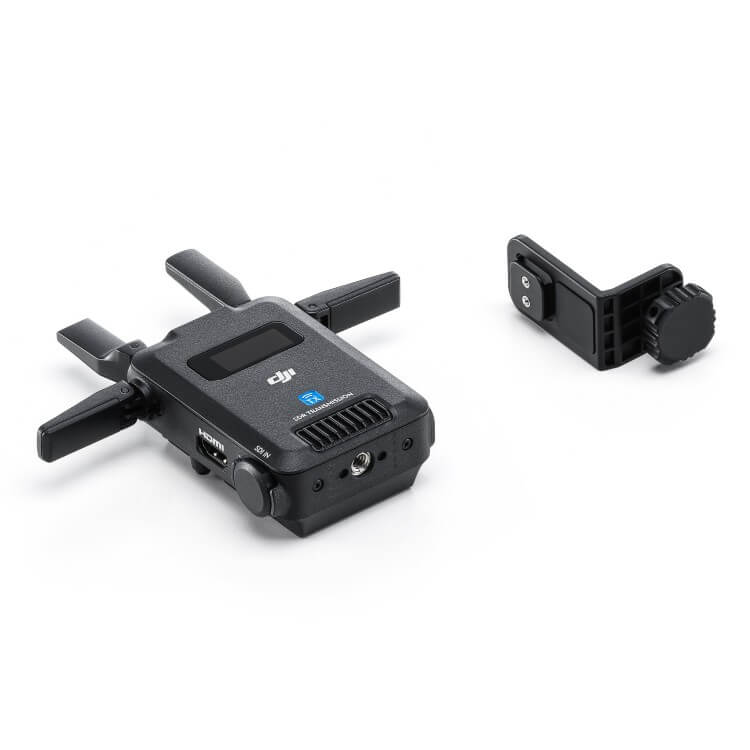

DJI SDR Transmission - Transmitter

DJI SDR Transmission - Transmitter

With the DJI SDR Transmission, you can now send video footage from your camera directly to a monitor. You connect this transmitter to your camera and the separately available receiver to your monitor. Do you have several receivers? Put the DJI SDR Transmission in Broadcast mode and the transmitter can connect to an unlimited number of receivers, so everyone with a connected receiver sees the same recording. Transmit can be done via SDR as well as Wi-Fi. Via Wi-Fi, this transmitter connects directly to your smartphone or tablet without receiver intervention.

The DJI SDR Transmission supports 1080p/60fps video specifications via SDI and HDMI with a bit rate of up to 20Mbps and a minimum latency of just 35ms. Thanks to a transmission radius of 3km, you can use this set in small setups as well as on (mid-)large sets.

The DJI SDR Transmission supports seamless, automatic frequency hopping across 2.4GHz, 5.8GHz and DFS frequency bands. In case of interference, it can automatically switch to the optimal channel, making complex environmental challenges effortless.

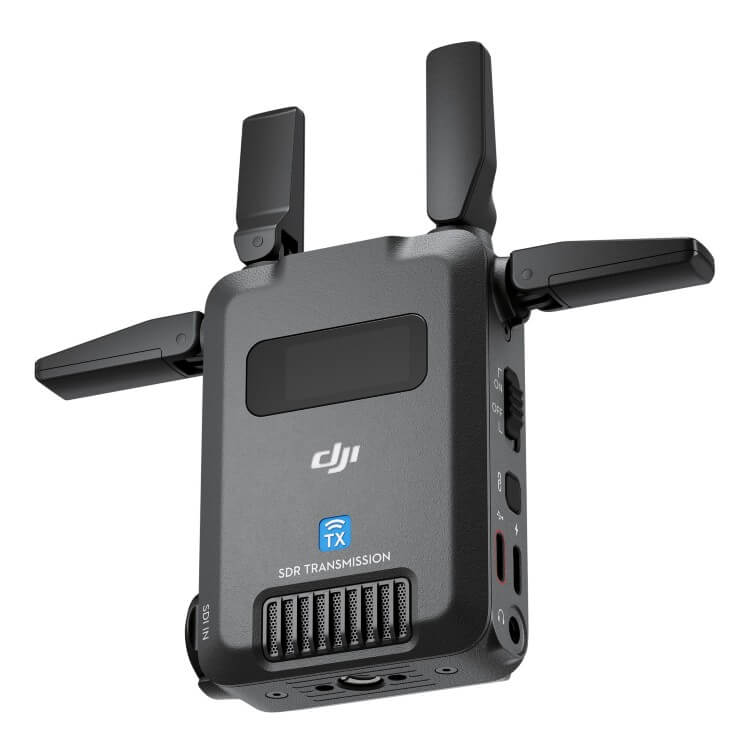

The DJI SDR Transmission supports metadata transfer from cinema cameras, such as ARRI and RED via SDI. This provides directors, cinematographers and DIT teams with quick access to detailed shooting information in real time. The DJI SDR Transmission also features a USB-C connection that allows you to easily connect the receiver to your smartphone or tablet, for example. Don't just use this equipment as a monitor, it also allows you to remotely control your camera, drone or gimbal.

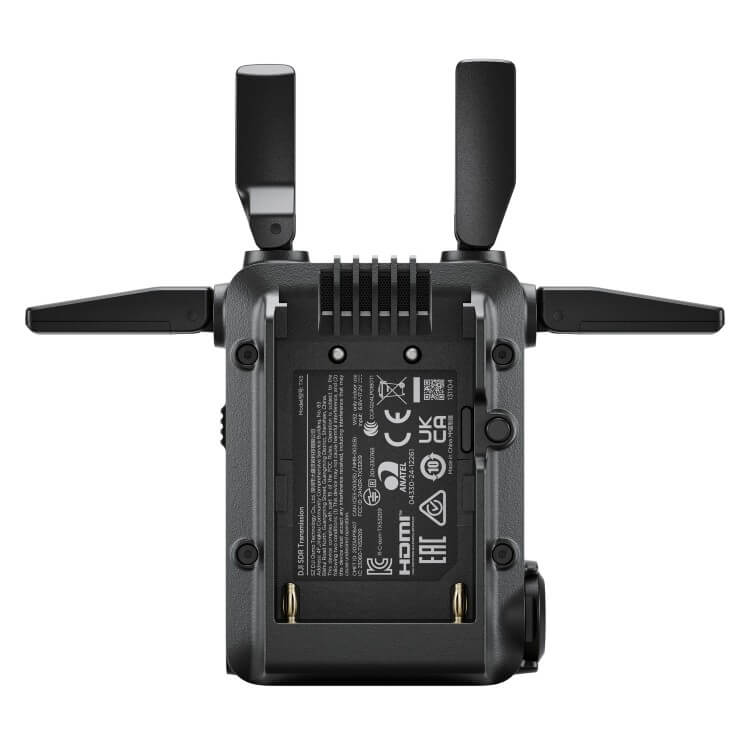

The DJI SDR Transmission can be used with an NP-F battery or via USB-C. It can also be powered by a DJI gimbal such as the DJI RS 3/4 (Pro).
