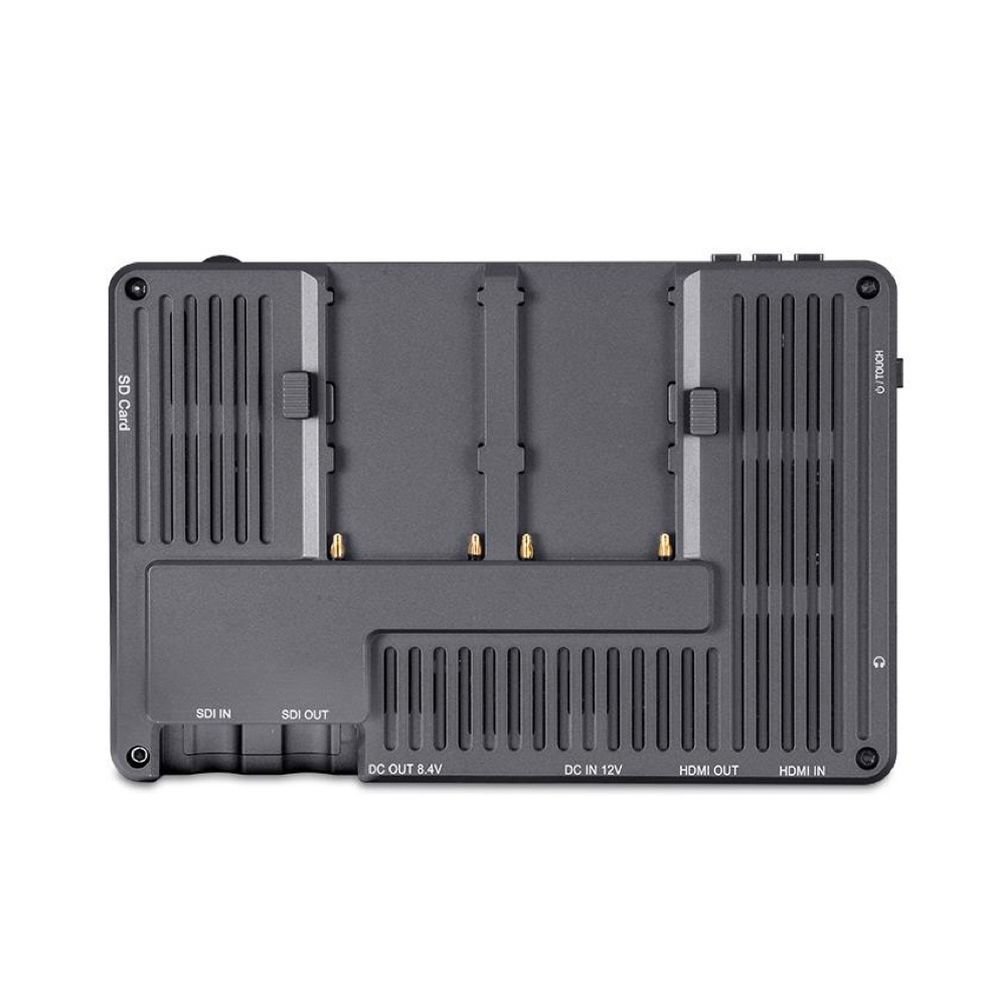

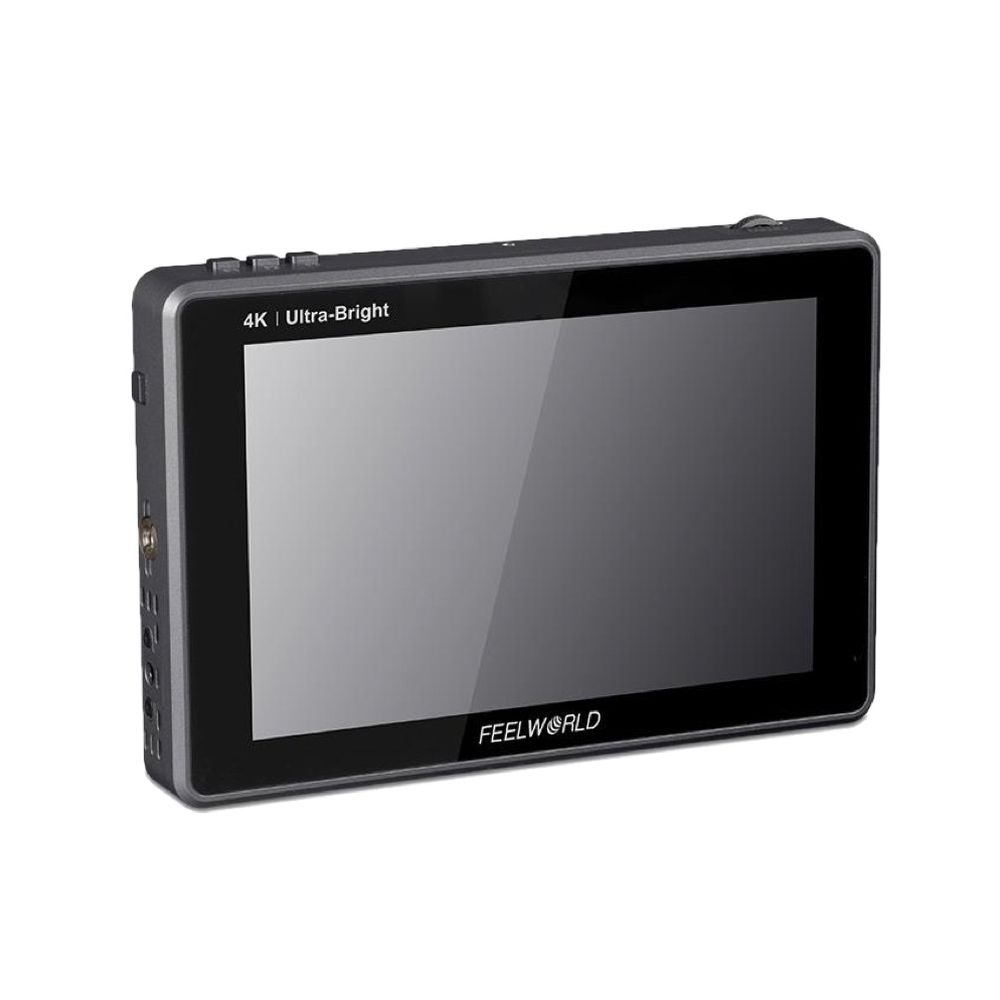

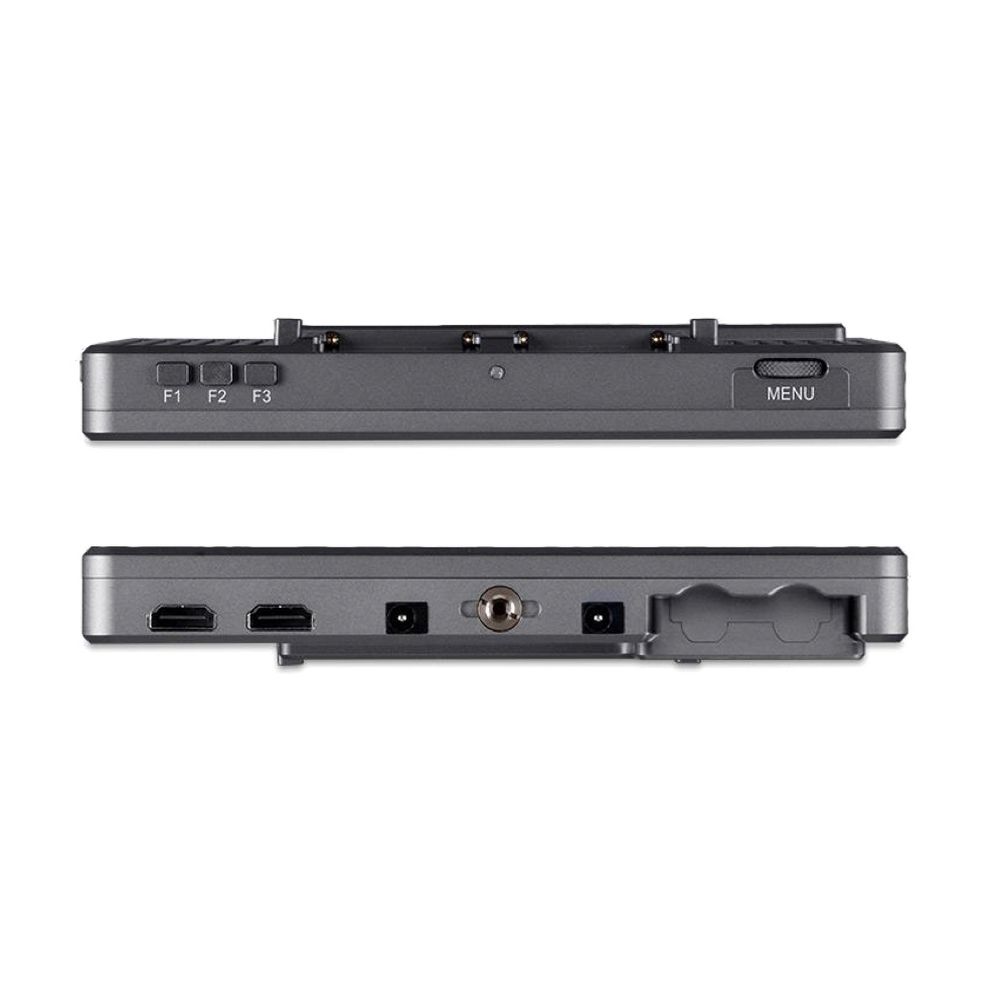

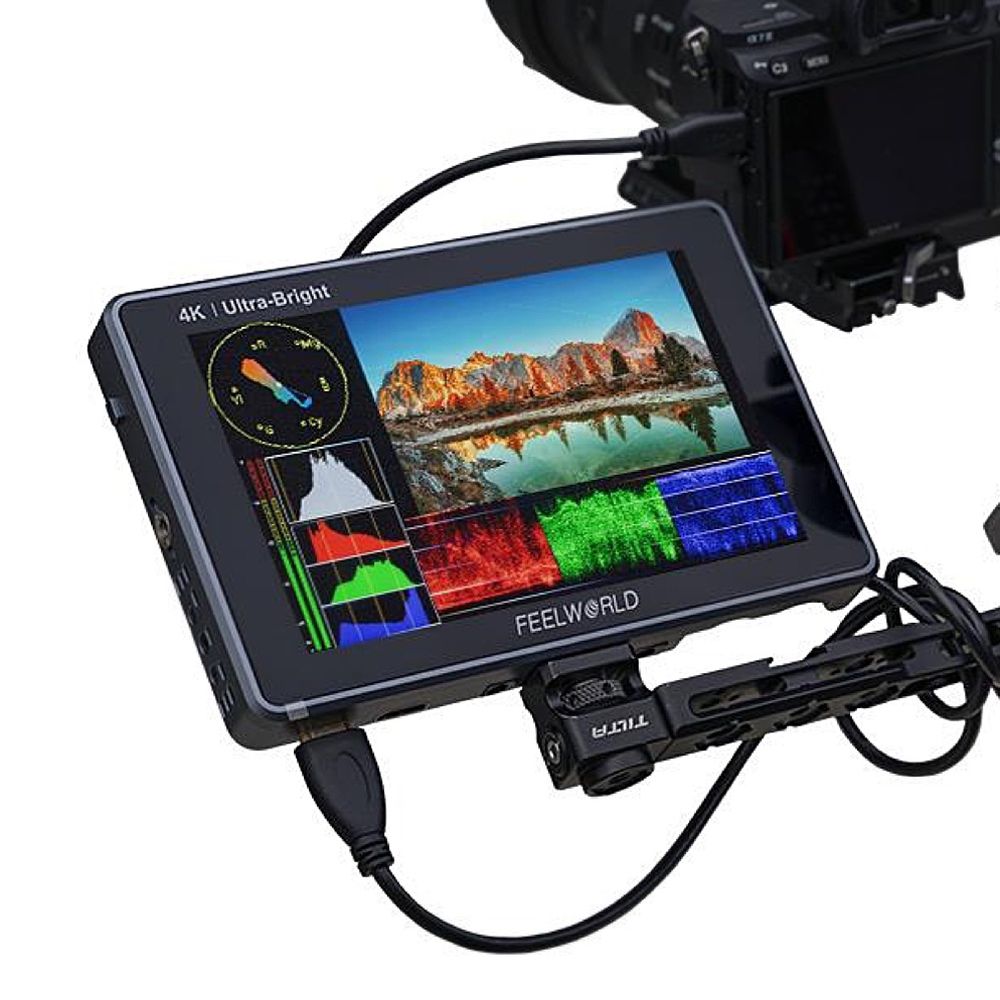

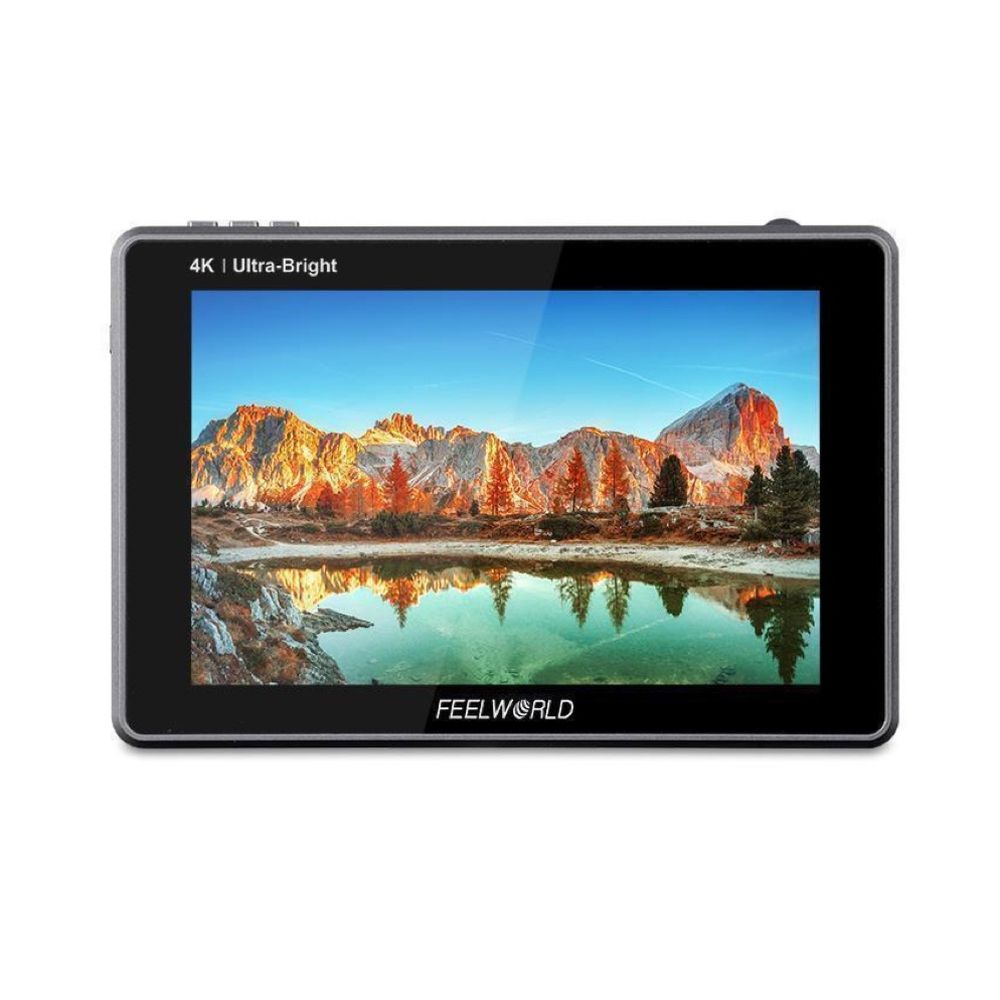

Feelworld 7" L7 2200 Nits Touchscreen

Article number:

12502916

Feelworld 7" L7 2200 Nits Touchscreen

The Feelworld 7" L7 2200 Nits Touchscreen is a powerful and versatile monitor perfect for professional photographers and videographers. With a wide range of features and capabilities, this monitor is capable of meeting most challenges.

With the ability to support 3D LUT Log to Rec.709, the Feelworld monitor can support a wide range of colour formats, making it a great choice for those working with different colour spaces. Moreover, users can upload their own 3D LUT files, giving them the flexibility to customise their colour output to suit their specific workflow.

The touchscreen menu makes operating the monitor intuitive and easy, and with a Full HD resolution of 1920x1200 and a contrast ratio of 1200:1, this monitor offers razor-sharp images with deep blacks and bright highlights. With a brightness of 2200 cd/m2, the monitor is also easy to read in daylight and there is a light sensor for automatic dimming, making it ideal for outdoor use.

The 160° viewing angle of the IPS panel ensures that you will always see the brightest and most vivid colours, no matter what angle you look at it from. With the ability to supply additional power to the camera, the monitor ensures you always have enough power for long recording sessions.

Note: When turning off the monitor, you have to press the power button, and you can't pull out the power cable directly.

Information on the EU General Product Safety Regulation (GPSR)

Disnet B.V.

Bathoorn 4b, 9411 SE Beilen, The Netherlands

Features of the Feelworld 7" L7 2200 Nits Touchscreen

  • Screen size: 7" IPS
  • Resolution: 1920x1200 pixels
  • Pixel spacing (HxW: 0.07875 x 0.07875 mm
  • Aspect ratio: 16:10
  • Brightness: 2200 cd/m² (light sensor)
  • Contrast ratio: 1200:1
  • Backlight: LED
  • Viewing angle: 80°/80°(L/R) 80°/80°(U/D)
  • Input: 1x HDMI
  • Output: 1x HDMI
  • 1x DC: Barrel (5.5mm outside, 2.1mm inside) barrel output for powering cameras via camera-specific adapter
  • Audio: 3.5mm stereo headphones
  • HDMI input/output support format: 480i/576i/480p/576p1080i (60/59.94/50)720p (60/59.94/50/30/29.97/25/24/23.98)1080p (60/59.94/50/30/29.97/25/24/23.98) 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
  • Input voltage: DC7~24V
  • Power consumption: ≤16
  • Operating temperature -20°C ~ 50°C
  • Storage temperature -30°C ~ 60°C
  • Installation method: 1/4"-20 threaded socket (left, right, bottom)
  • Battery plate: double F970 battery plate

In the Box

  • 1x Feelworld 7" L7 2200 cd/m² touchscreen monitor
  • 1x Micro HDMI cable
  • 1x Mini hot shoe mount + Allen key
  • 1x Manual
Connections & Connectivity
12G-SDI
HDMI version HDMI 1.4
Inputs HDMI
SDI input
SDI output
Dimensions & Weight
Length (mm) 27.0 mm
Weight (g) 460.0 g
Width (mm) 190.0 mm
Height (mm) 126.0 mm
General
Color Black
Display & Viewing
Cross conversion
Brightness (nits) 2200.0 nits
Screen size (in) 7.0 in
Scopes (waveform/vectorscope)
Touchscreen
Recording & Codecs
LUT support
Sensor
Resolution Full HD
Power
Mains
Battery
