Fortinge PRO215-Q Quad Broadcast Monitor 22 inch

Fortinge PRO215-Q Quad Broadcast Monitor 22 inch

The Fortinge PRO215-Q is a versatile broadcast monitor designed for professional filmmakers, broadcast engineers, and directors who need to monitor multiple sources simultaneously. The 21.5-inch Full HD screen delivers a clear and accurate image with a brightness of 500 cd/m² and an 89° viewing angle in all directions.

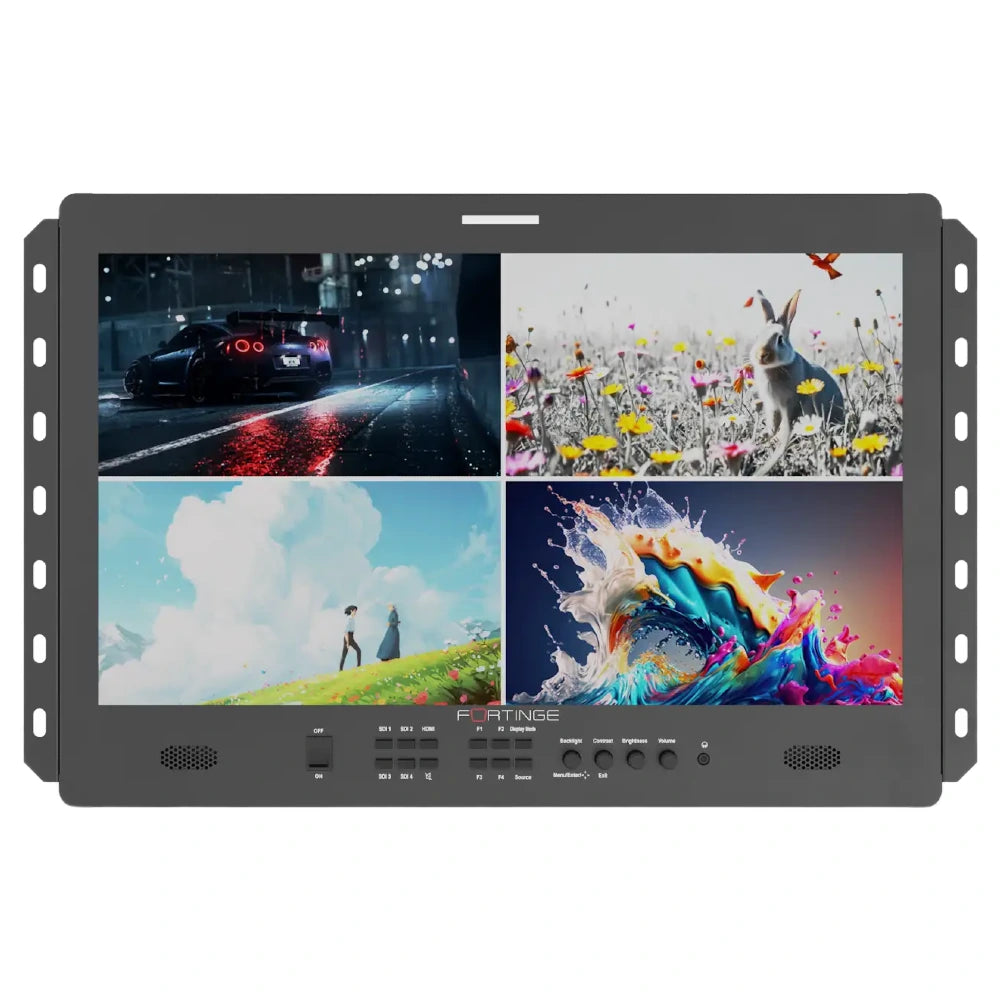

The quad display mode is the greatest asset of this model: you can view four camera sources simultaneously on one screen, ideal for multi-camera productions and live broadcasts. In addition to quad view, the monitor also supports picture-in-picture and full-screen modes, allowing you to switch quickly depending on your workflow.

For color accuracy, the PRO215-Q offers support for 3D LUT Log-to-REC.709 conversion and the ability to upload up to 36 of your own 3D LUTs via USB. Built-in scopes, waveform, vectorscope, and RGB histogram provide instant signal evaluation on set, while focus assist in five adjustable colors ensures precise focusing. Connectivity is fully covered with four 3G-SDI inputs and outputs, HDMI, RS485, and GPI. The monitor is powered via 12V DC or a V-Mount battery and comes in a sturdy aluminum carrying case.

Key Features of the Fortinge PRO215-Q Quad Broadcast Monitor 22 inch:

• Quad display mode: four sources simultaneously on one screen

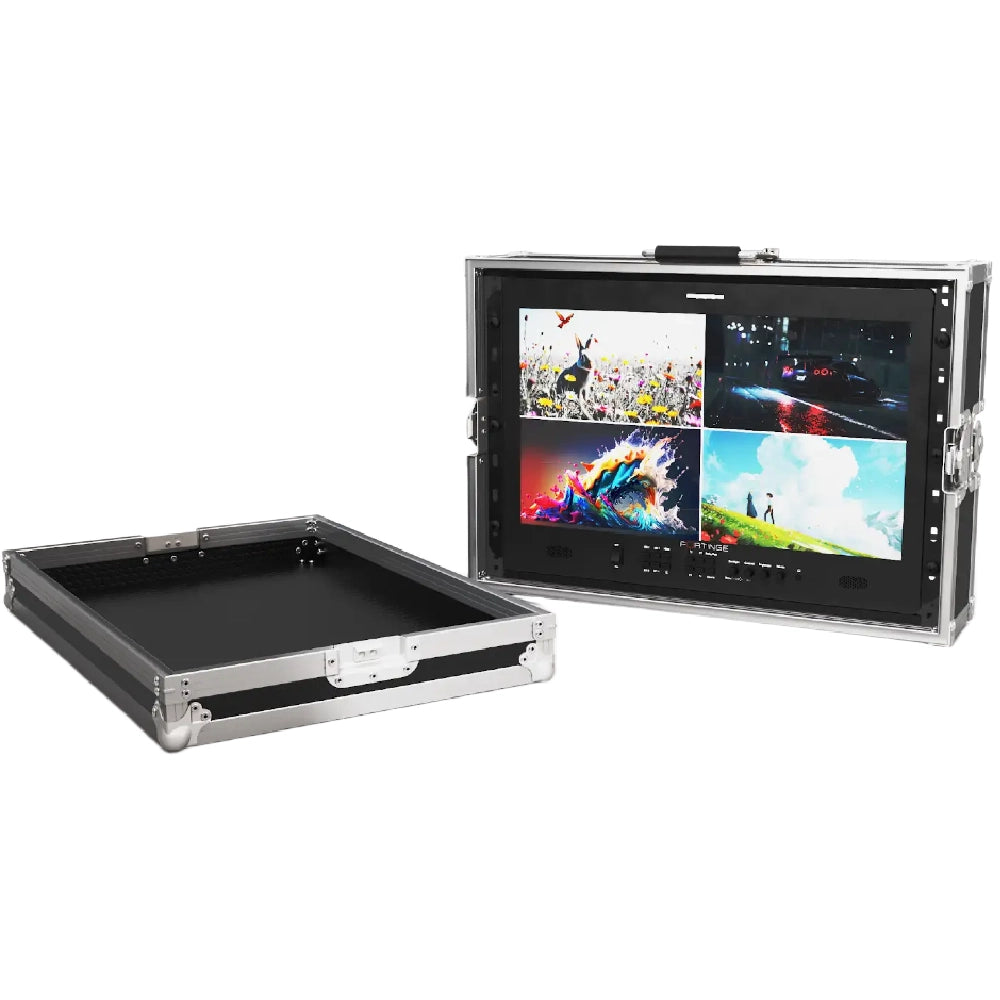

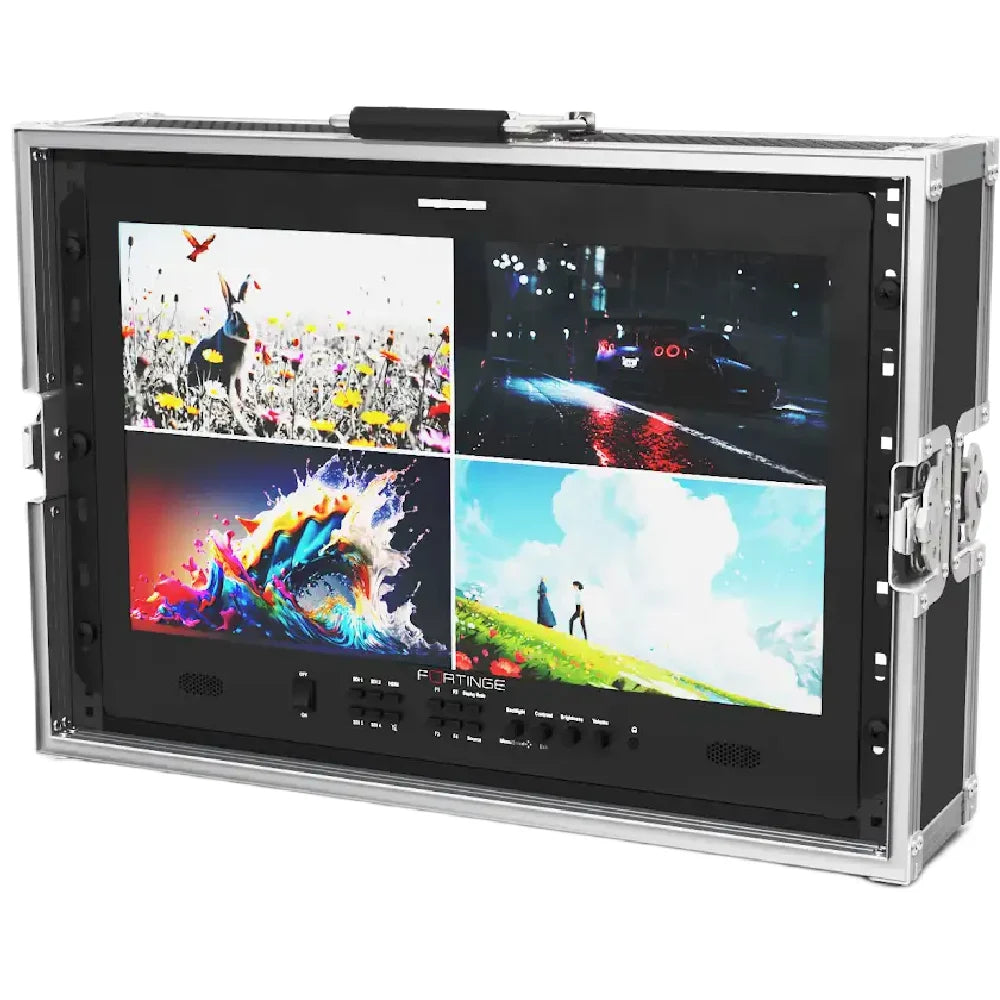

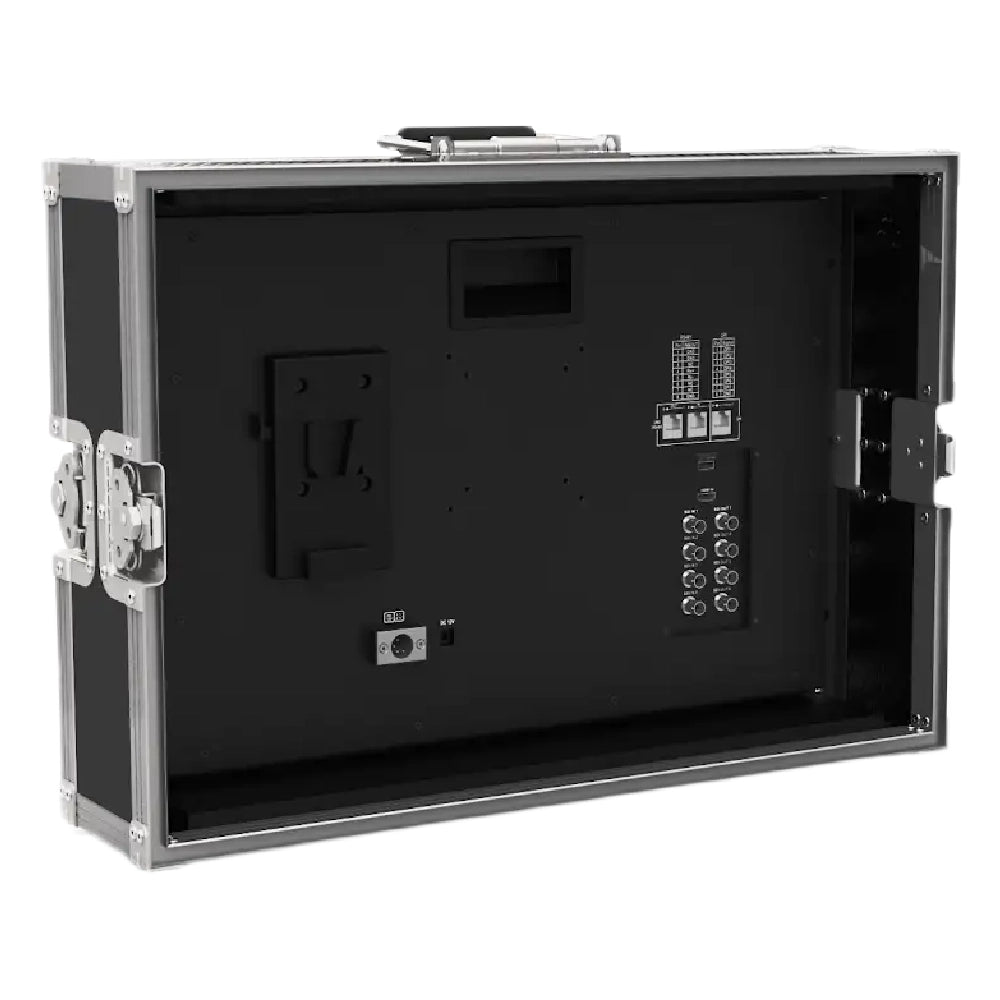

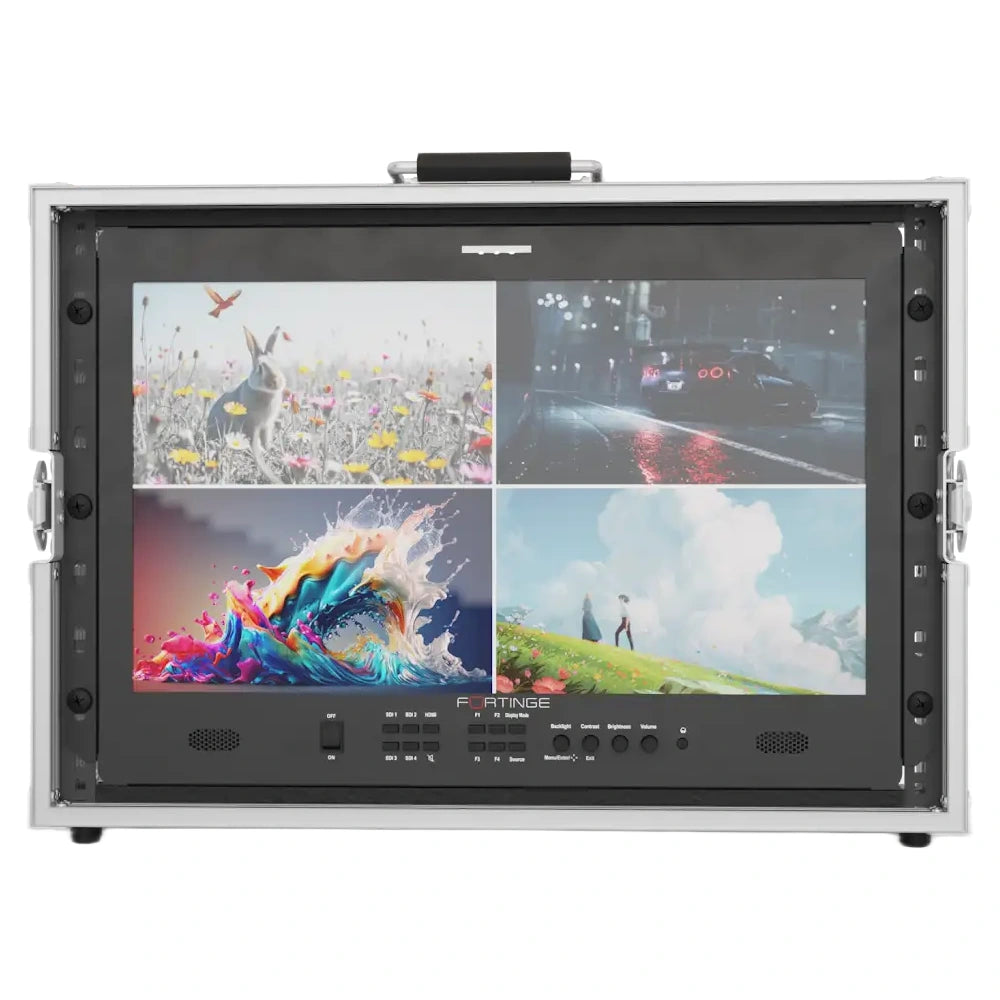

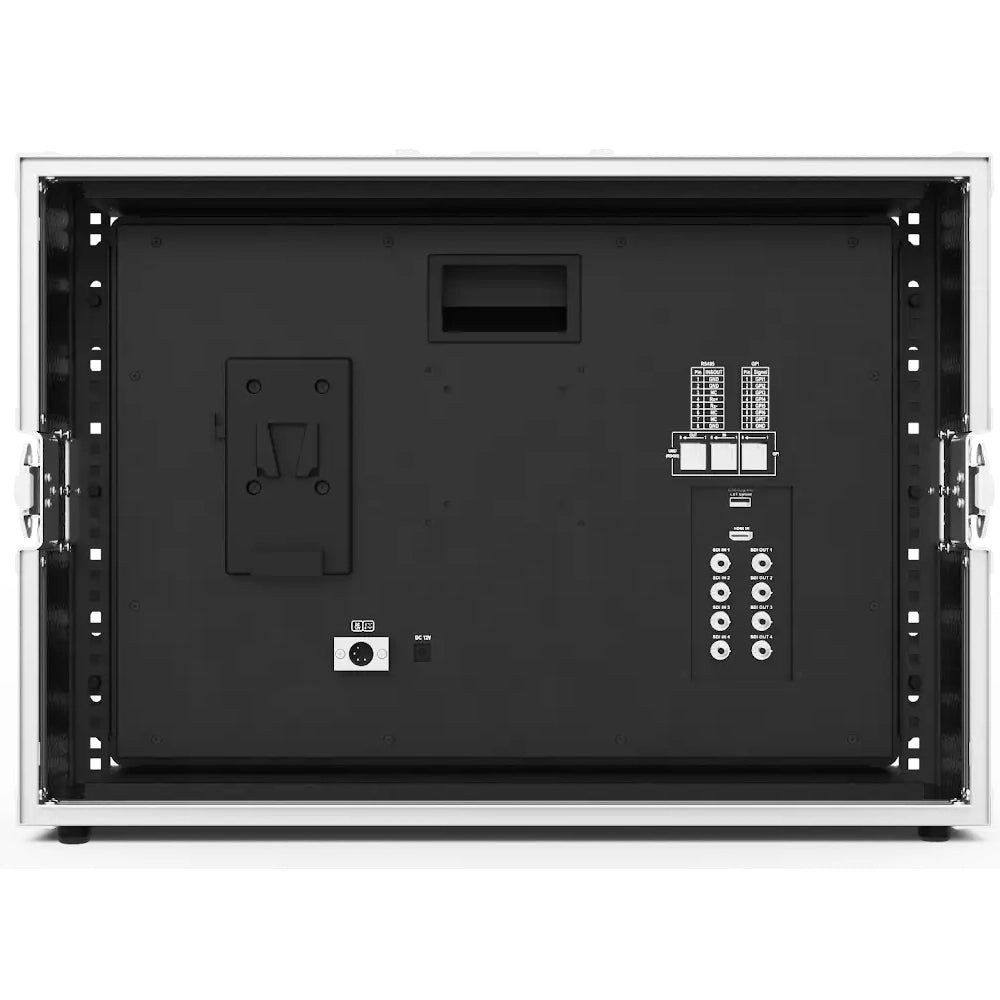

• Included aluminum carrying case for safe transport on location
• 3D LUT support: Log to REC.709, upload up to 36 custom LUTs via USB
• Focus assist in 5 colors (yellow, red, green, blue, white)
• Display modes: quad view, picture-in-picture, full screen
• Screen size: 21.5 inches, 1920x1080 resolution, 500 cd/m² brightness
• Viewing angle: 89° horizontal and vertical
• Scopes: waveform, vectorscope, RGB histogram (All Waves, Parade, YUV)
• HDR support, false color, zebra (70/80/90 IRE)
• Anamorphic mode: 1.25x, 1.33x, 1.5x, 2.0x | zoom: 4x, 9x, 16x

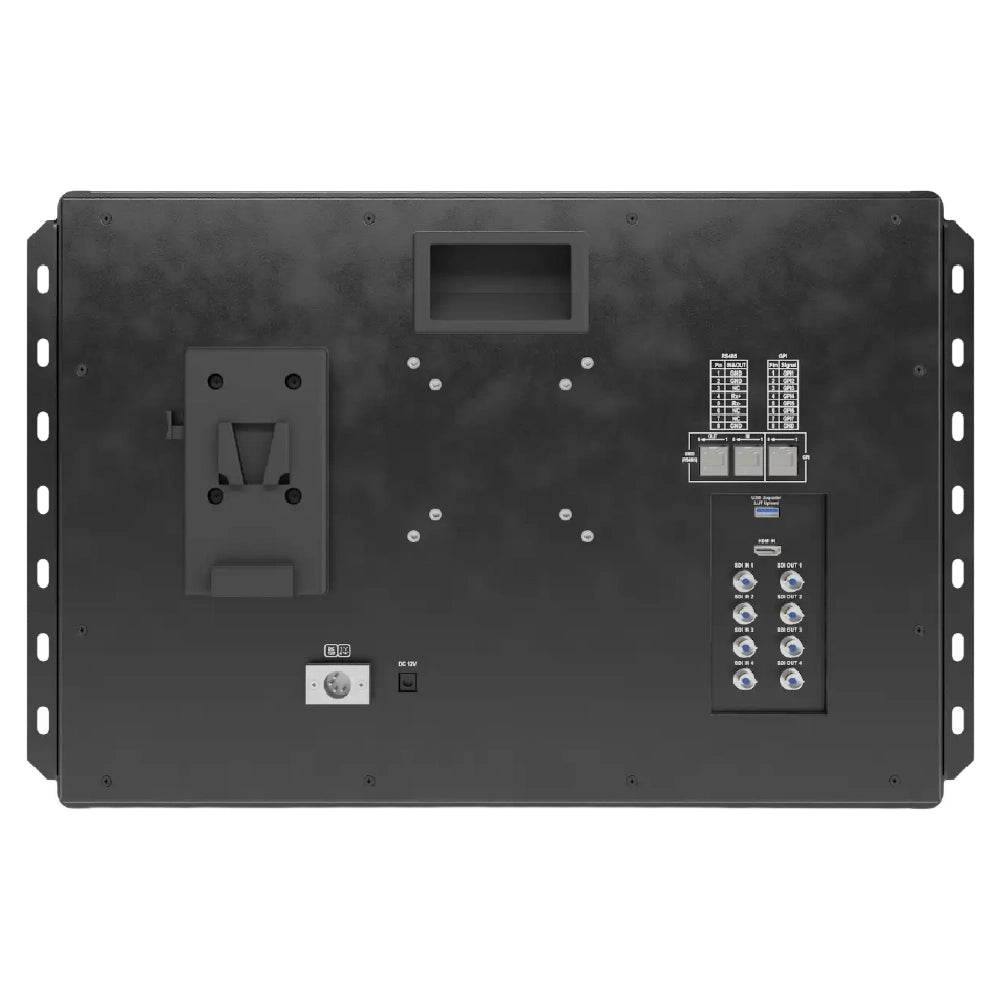

• Inputs: 4x 3G-SDI (2K), 1x HDMI (1080p), 1x RS485, 1x GPI, 1x USB
• Outputs: 4x 3G-SDI, 1x RS485
• Audio: stereo headphone output and built-in speaker, 16-channel audio meter
• TALLY support, TSL 3.1/4.0 and IMD protocols
• Power supply: 12V DC, V-Mount battery plate, max. consumption 36W
• Dimensions: 3.72 x 36.5 x 52.35 cm, weight 4.7 kg
• Operating temperature: -10°C to 50°C

Package Contents:

• Fortinge PRO215-Q Quad Broadcast Monitor
• Aluminum carrying case
