Panasonic AW-UB50E - Box-style 4K Multipurpose Camera

Article number:

12522025

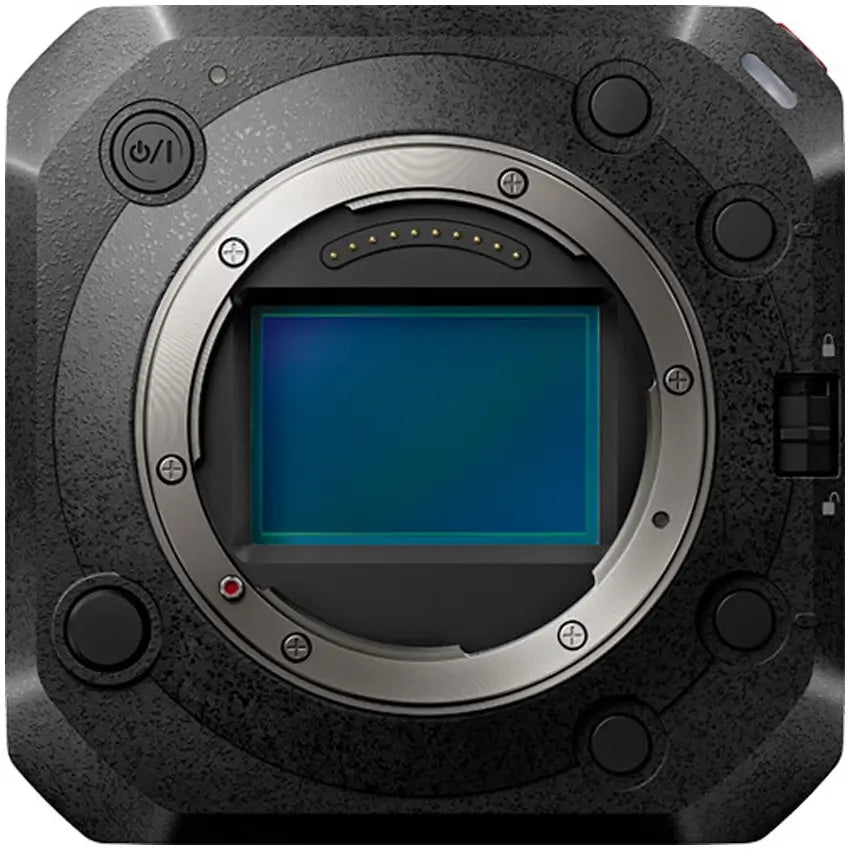

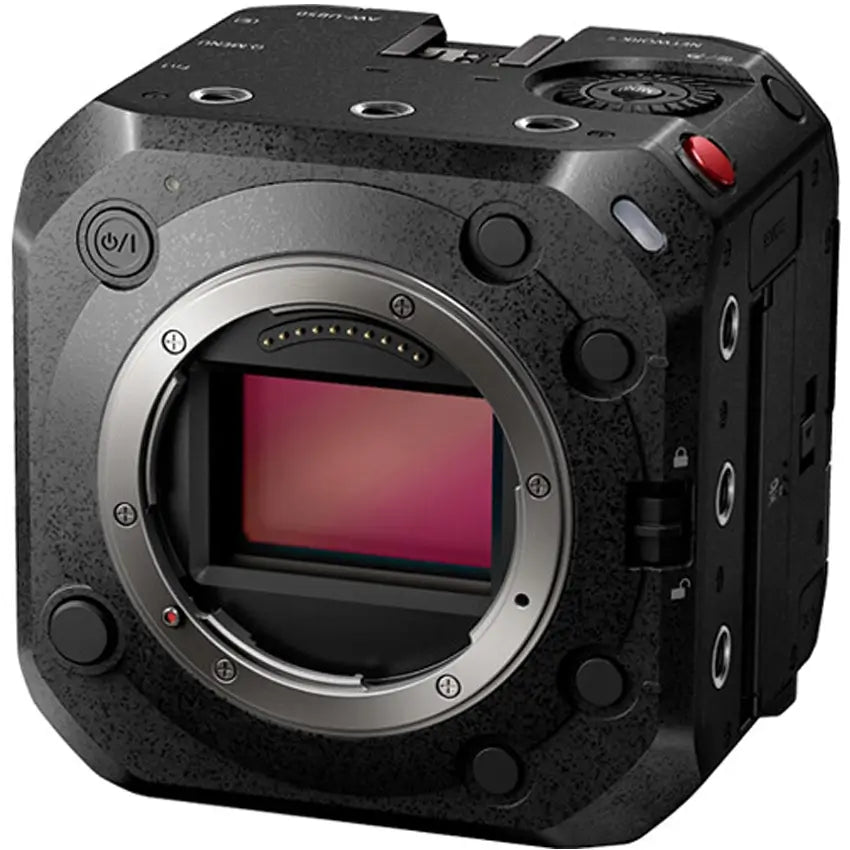

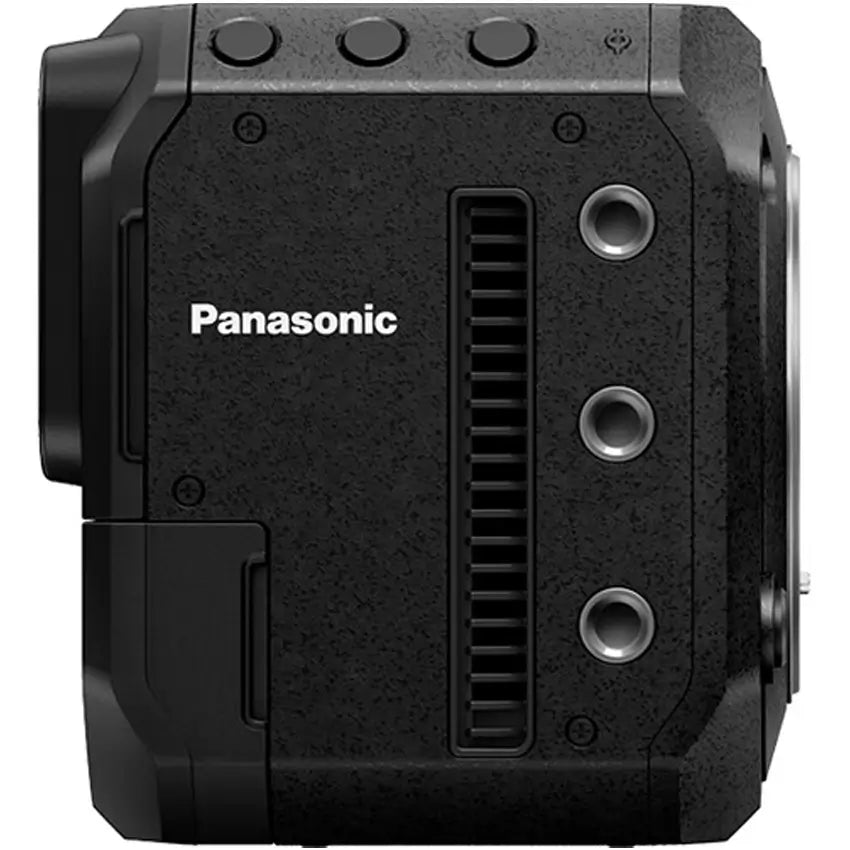

Panasonic AW-UB50E - Box-style 4K Multipurpose Camera

The Panasonic AW-UB50E is a compact box camera that delivers cine-style recording, ideal for broadcasting, livestreaming and vlogging. Thanks to its small size and versatility, it works seamlessly with Panasonic PTZ cameras and supports NDI HX2. It features fast and accurate real-time autofocus and performs excellently in low-light situations thanks to its 14-stop dynamic range.

The AW-UB10E is equipped with a 24.2-megapixel full-frame sensor and uses Dual Native ISO. This reduces noise and allows shooting at a maximum sensitivity of ISO 51,200. The camera also offers an ISO Auto mode, adjusting ISO sensitivity in real time. With a dynamic range of 14 stops, you get optimum image quality even in low light.

The camera works excellently with Panasonic PTZ cameras via IP protocols. This allows you to control the cameras via a Remote Operation Panel, Remote Camera Controller or live switcher. Moreover, you can easily set up multi-camera systems using the Media Product Suite software platform.

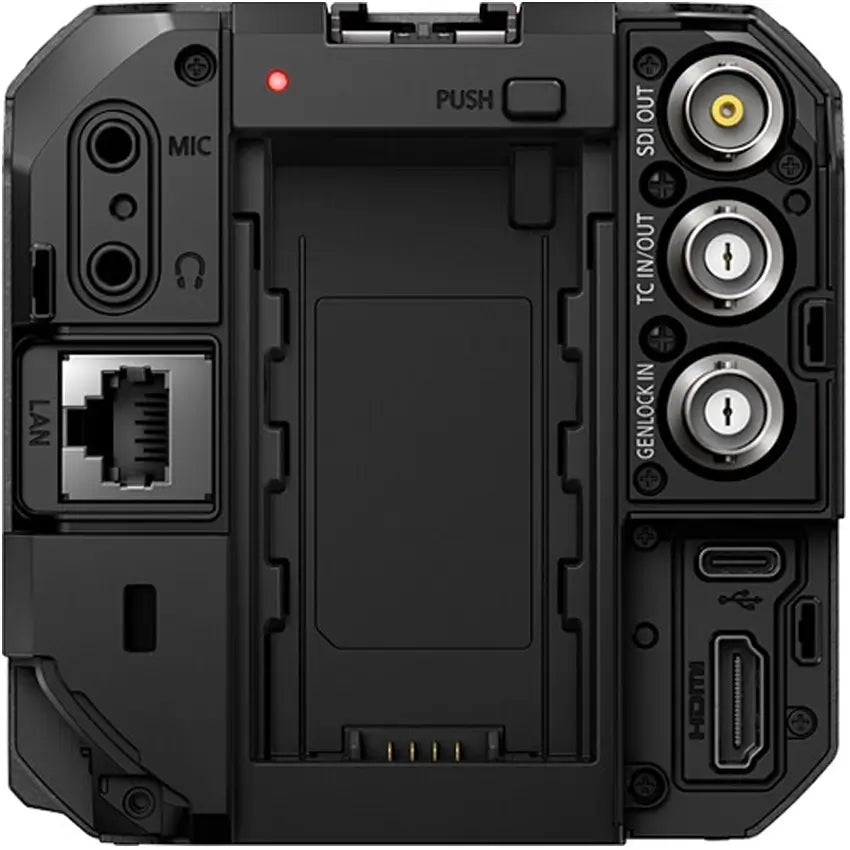

The AW-UB10E is compact and lightweight, making it ideal for reportage in various conditions. Thanks to its built-in LAN port, which supports Power over Ethernet (PoE), you can control video transmission, control and power over a single cable. The camera is further equipped with a timecode connector, genlock input and SDI slot, meeting live broadcast quality requirements.

Information on the EU General Product Safety Regulation (GPSR)

Panasonic Deutschland eine Division der Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Features of the Panasonic AW-UB50E - Box-style 4K Multipurpose Camera

  • 24.2 megapixel full-frame sensor
  • L-mount lens mount
  • Dual Native ISO technology and ISO Auto Mode
  • 14-stop dynamic range with V-Log
  • 3G-SDI, HDMI output, PoE+ LAN, USB-C
  • Face, Eye and Body autofocus
  • Recording in 4K MP4, MOV H.264/H.265/HEVC
  • Seamless cooperation with Panasonic PTZ cameras
  • Timecode and Genlock
  • Two SD memory card slots
  • Compact and lightweight

In the Box

  • Panasonic AW-UB50E - Box-style 4K Multipurpose Camera
  • AC adapter
Connections & Connectivity
HDMI type Full-size (type A)
Headphone output
Livestream protocols RTP / RTSP
NFC
SDI
Timecode in/out
Wi‑Fi
XLR audio
USB-C
12G-SDI
Dimensions & Weight
Length (mm) 78.8 mm
Weight (g) 585.0 g
Width (mm) 93.0 mm
Height (mm) 93.0 mm
General
Color Black
Recording media SD
Audio
Number of XLR inputs (Units) 2.0 Units
Phantom power (48V)
Microphone input (3.5mm)
Number of audio channels (channels) 2.0 channels
Built-in microphone
Microphone (mono/stereo) Stereo
Display & Viewing
Touchscreen
Included Accessories
Battery
AC adapter
Storage & Media
Card slots (Units) 2.0 Units
Recording & Codecs
10-bit recording
HDR (HLG/PQ)
Built-in ND
Recording codecs H.264/MPEG-4 AVC
Relay/backup recording
Video resolution max 4K
Max. bitrate (Mbps) 400.0 Mbps
Slow motion
Sensor
Sensor format Full Frame
ISO lower limit (ISO) 100.0 ISO
Compatibility
Lens mount Leica L
Focus & Stabilization
Image stabilisation
Camera Functions
Autofocus present
Exposure compensation 1/3 EV
Live streaming
