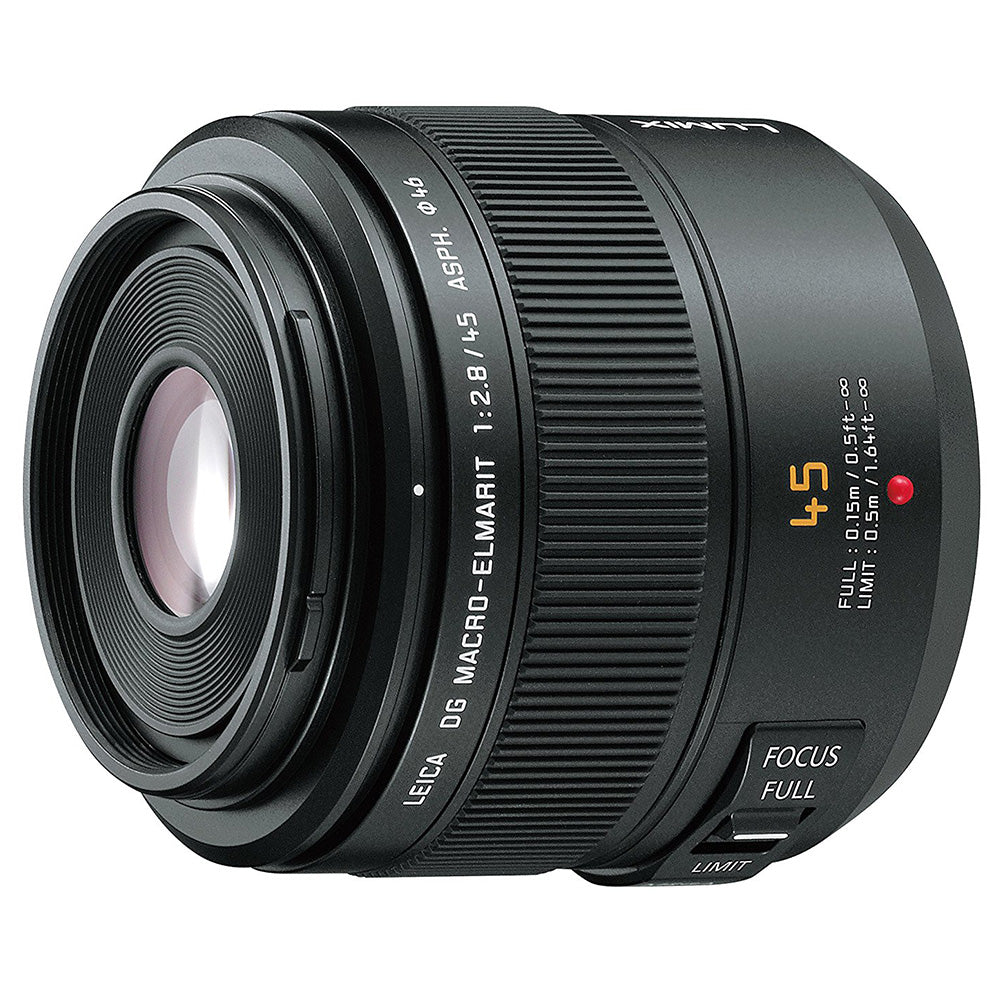

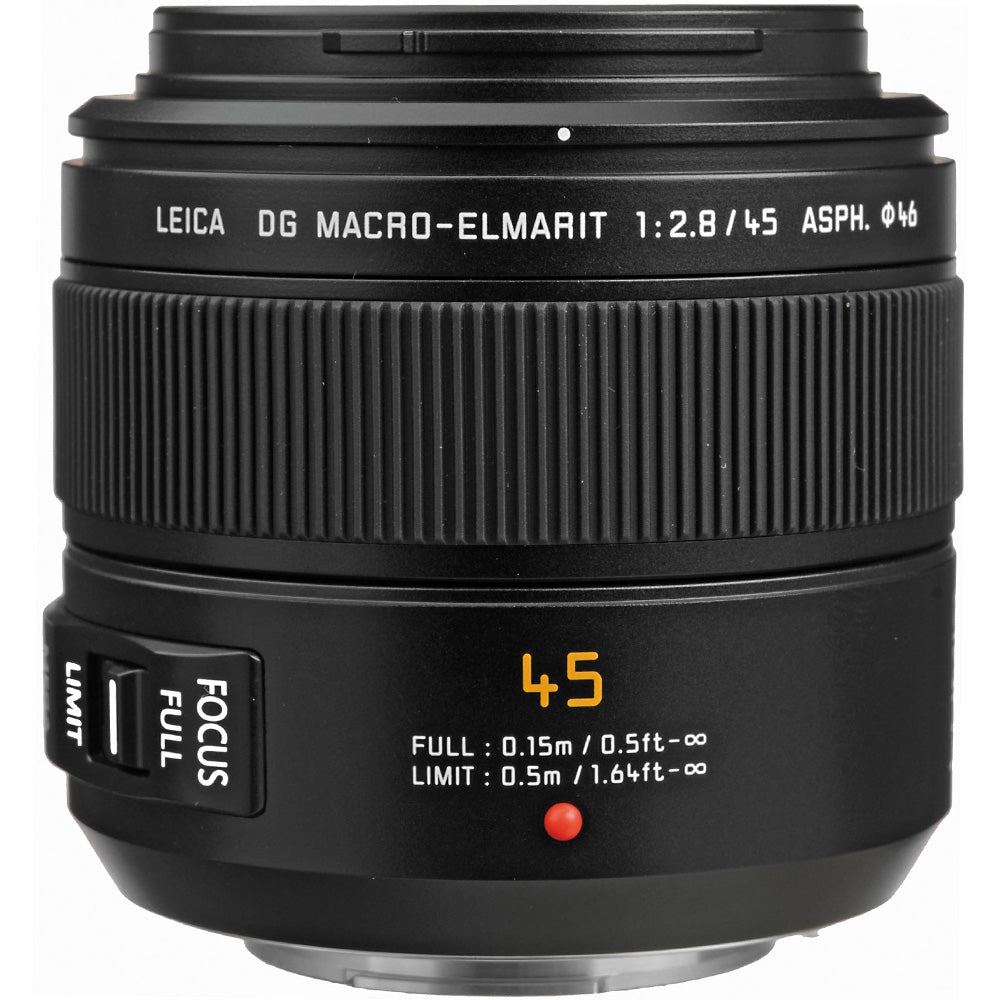

Panasonic LEICA DG Macro-Elmarit 45mm

Article number:

12169460

The Panasonic LEICA DG Macro-Elmarit 45mm boasts a superb image quality with minimum distortion, chromatic aberrations as well as ghosts and flares that passes a stringent Leica standard to goes beyond their expectations. This lens system uses both an aspherical lens and an ED lens in its 14 lenses in 10 groups to realize outstanding compactness, taking advantage of the Micro Four Thirds standard to achieve dramatic downsizing while minimizing distortion and chromatic aberration.

Panasonic's MEGA O.I.S. (Optical Image Stabilizer) suppresses the blurring that is commonly caused by hand-shake, making it easy to shoot clear shots for sharply focused macro shot or in dimly lit places without using a tripod.

It incorporates an inner focus direct-drive linear motor with 3 groups of floating structure for focusing, which enables excellent resolution and contrast without changing its overall length from full life-size magnification to infinity. The inclusion of stepping motor makes the focusing action smooth and quiet\* for use in both photo and movie recording (\* Some noise may be recorded in motion picture mode, subject to recording environment). The closest focusing distance can be instantly changed to 15 cm or 50 cm (0.5 ft to 1.64 ft) with the switch on the lens barrel according to the shooting opportunity.

When mounted on the LUMIX G Micro System Camera, this lens allows use of the advanced contrast AF system, which includes a Face Recognition function, for more convenient, more enjoyable shooting.

Seven blades give the aperture a rounded shape that produces an attractively smooth effect in out-of-focus areas when shooting at larger aperture settings. The LEICA DG MACRO-ELMARIT 45mm / F2.8 ASPH. / MEGA O.I.S. lens also features a highly reliable metal mount, and uses multi-coated lens elements that minimize ghosts and flare to further enhance its optical performance.

Information on the EU General Product Safety Regulation (GPSR)

Panasonic Deutschland eine Division der Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Features of the Panasonic LEICA DG Macro-Elmarit 45mm

  • Lens Construction: 14 elements in 10 groups (1 Aspherical lens, 1 ED lens)
  • Mount: Micro Four Thirds mount
  • Optical Image Stabilizer: YES
  • Focal Length: f=45mm (35mm camera equivalent 90mm)
  • Aperture Type: 7 diaphragm blades / Circular aperture diaphragm
  • Aperture Range: F2.8
  • Minimum Aperture: F22
  • Closest Focusing Distance: FULL: 0.15m / 0.5ft, LIMIT: 0.5m / 1.64ft
  • Maximum magnification: Approx. 1.0x / 2.0x (35mm camera equivalent)
  • Diagonal Angle of View: 27°
  • Filter Size: f46mm
  • Max.Diameter: f63mm
  • Overall Length: Approx. 62.5mm (from the tip of the lens to the base side of the lens mount)
  • Weight [g]: 225.0

In the Box

  • Panasonic Leica DG Macro-Elmarit 45mm f/2.8 Mega OIS

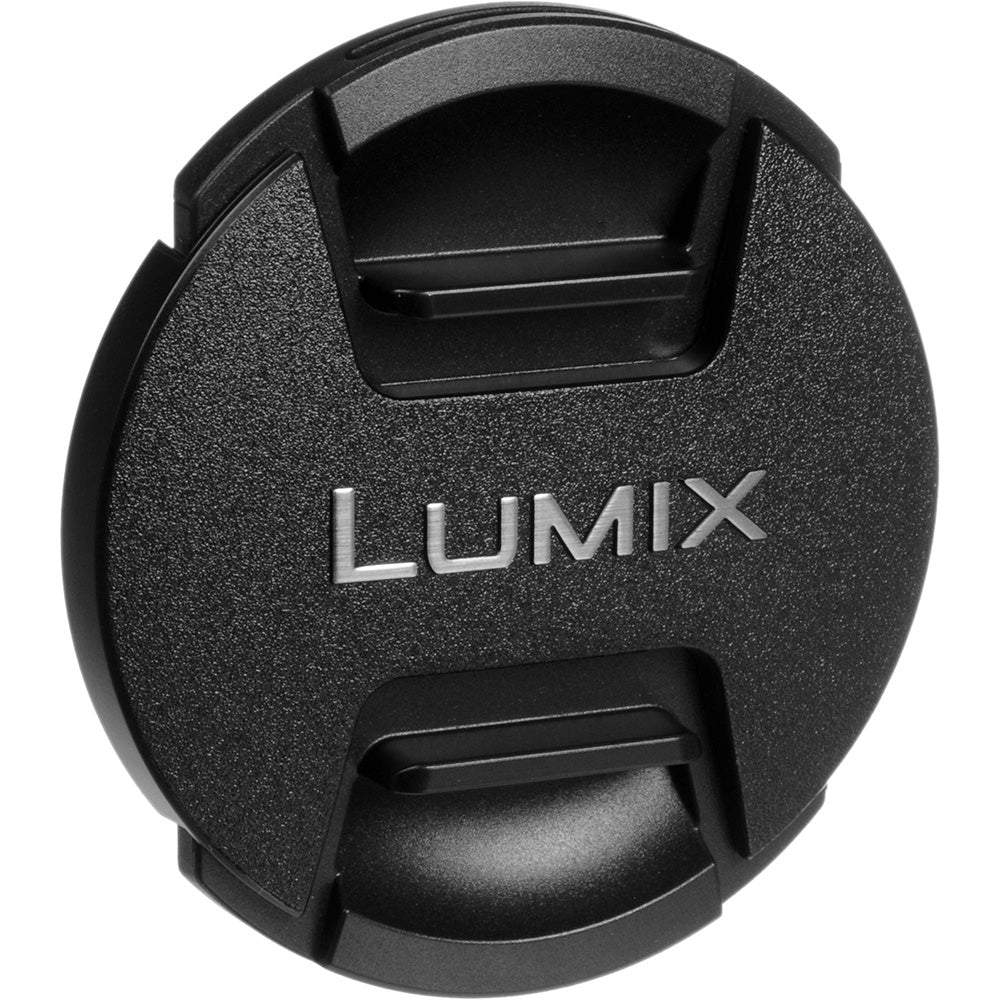

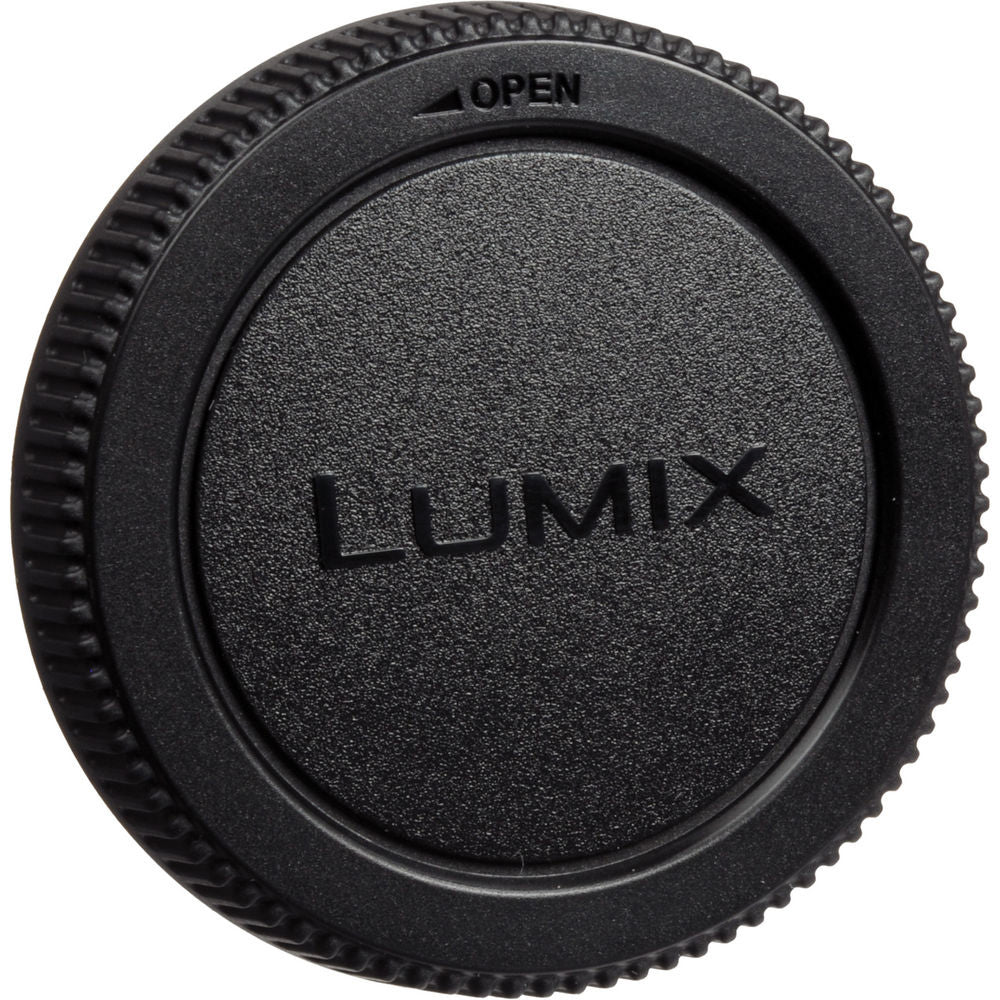

  • Lens caps

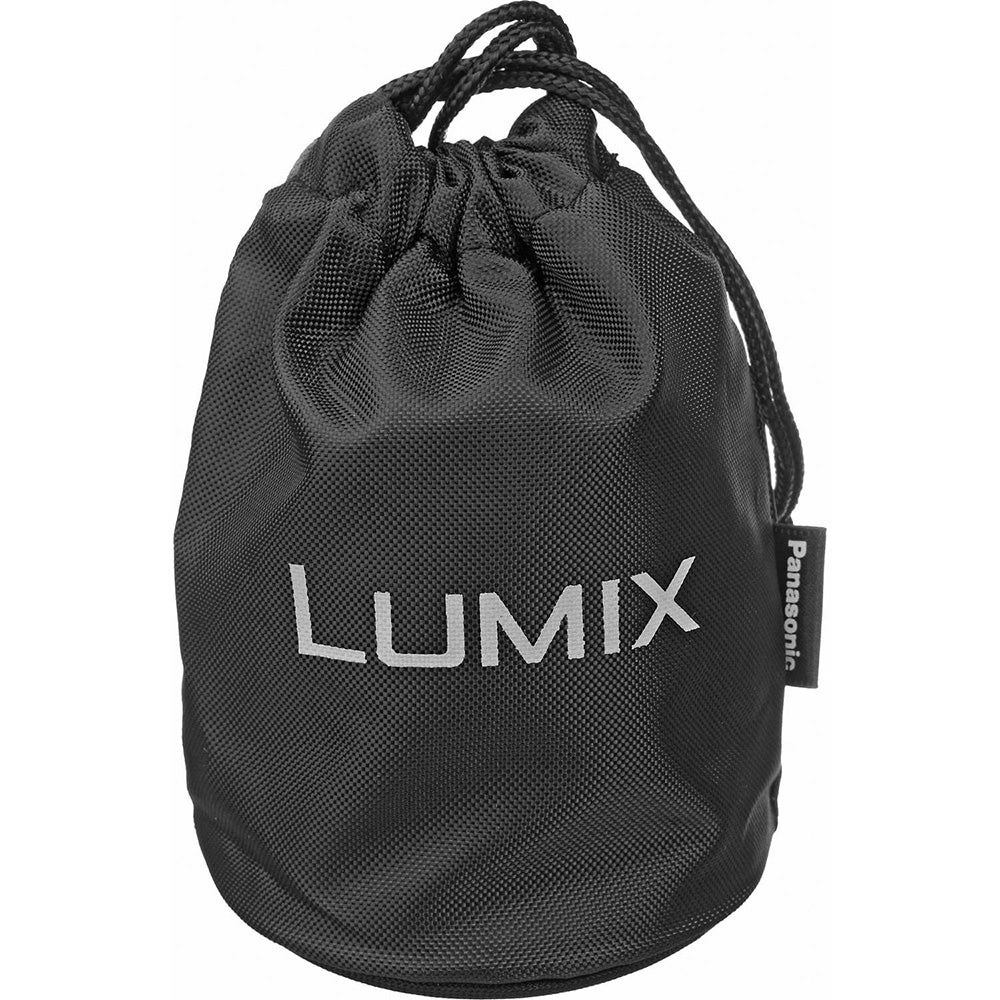

  • Lens pouch
Dimensions & Weight
Length (mm) 62.5 mm
Weight (g) 225.0 g
General
Type of photography Macro
Material & Protection
Material Metal and plastic
Focus & Stabilization
Image stabilisation
Autofocus
Focus limiter
Min. focusing distance (cm) 15.0 cm
Included Accessories

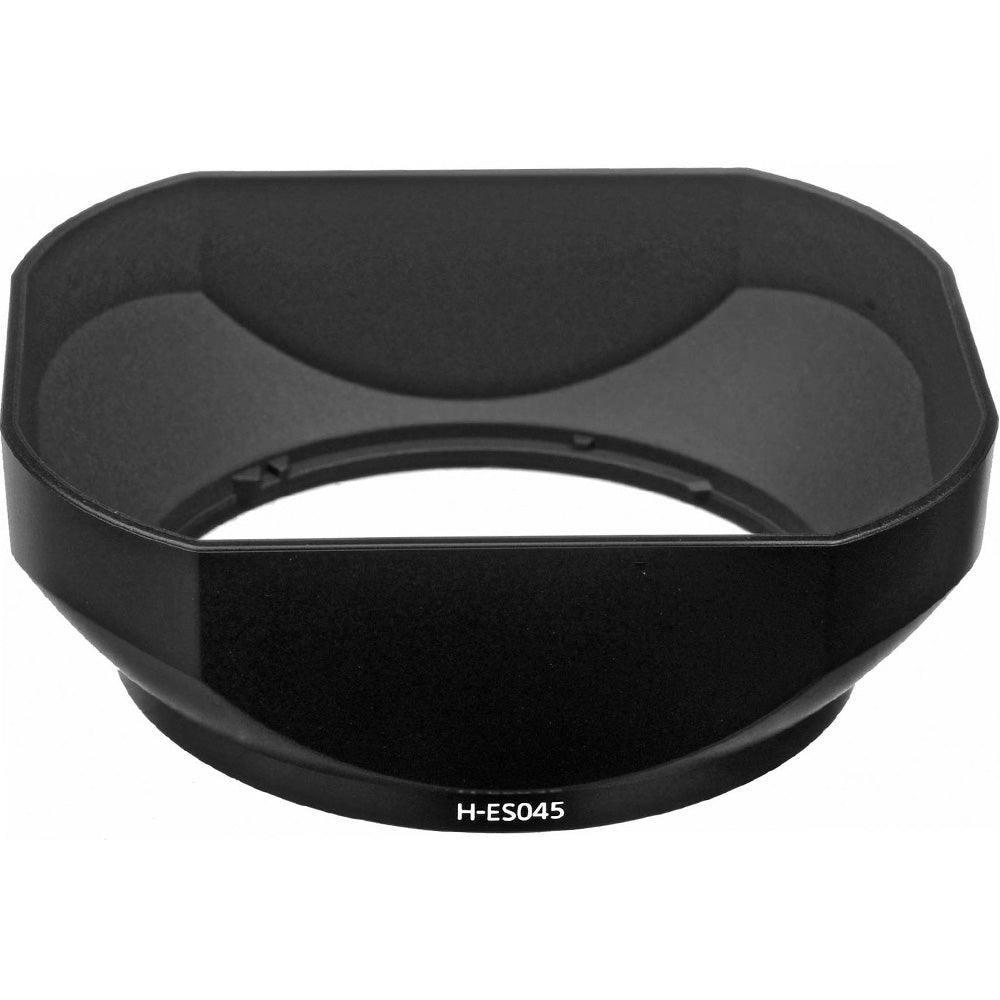

Lens hood
Construction & Coating
Filter diameter (mm) 46.0 mm
Lens construction (elements/groups) 14 elements in 10 groups
Number of aspherical elements (Units) 1.0 Units
Focal length (max) (mm) 45.0 mm
Focal length (min) (mm) 45.0 mm
Aperture blades (Units) 7.0 Units
Fast (f/2.8 or faster)
Max. aperture (f/) 2.8 f/
Maximum magnification (x) 1.0 x
Min. aperture (f/) 22.0 f/
Compatibility
Full Frame
Lens mount Micro Four Thirds
APS-C
Micro Four Thirds
Medium Format
