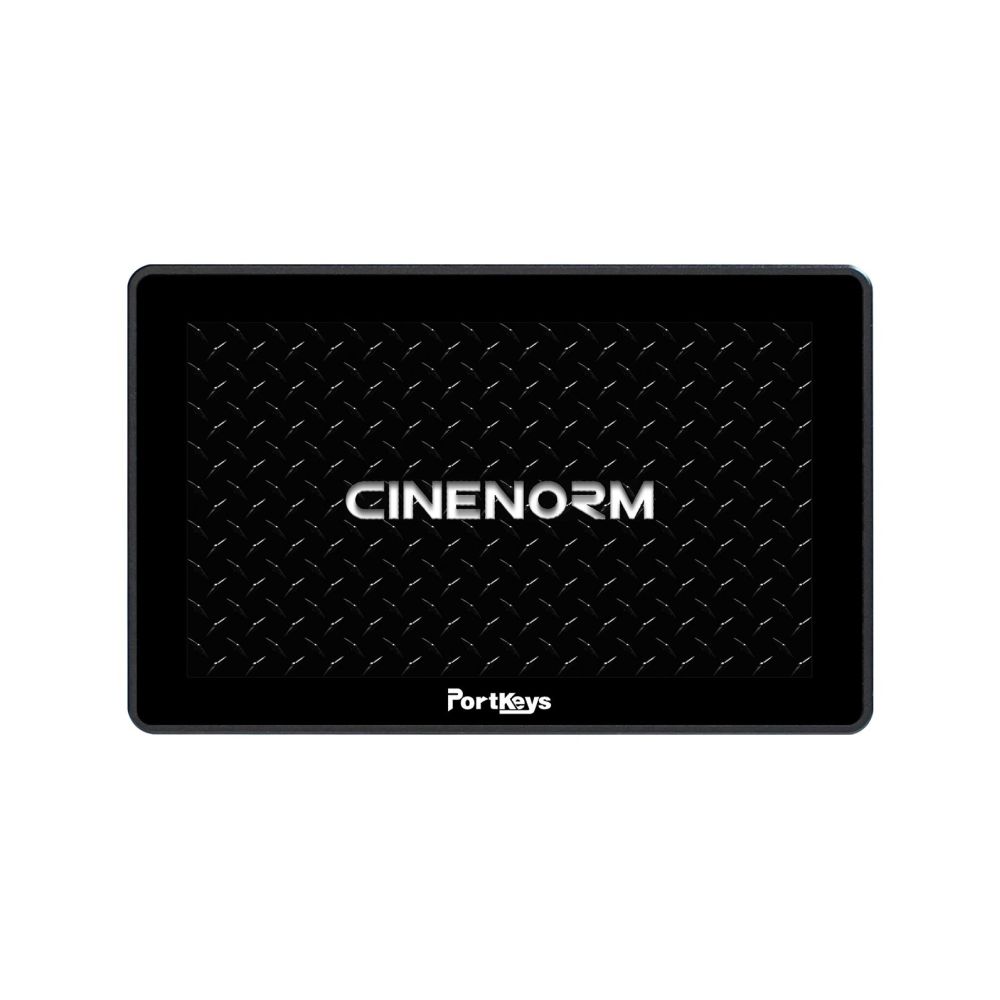

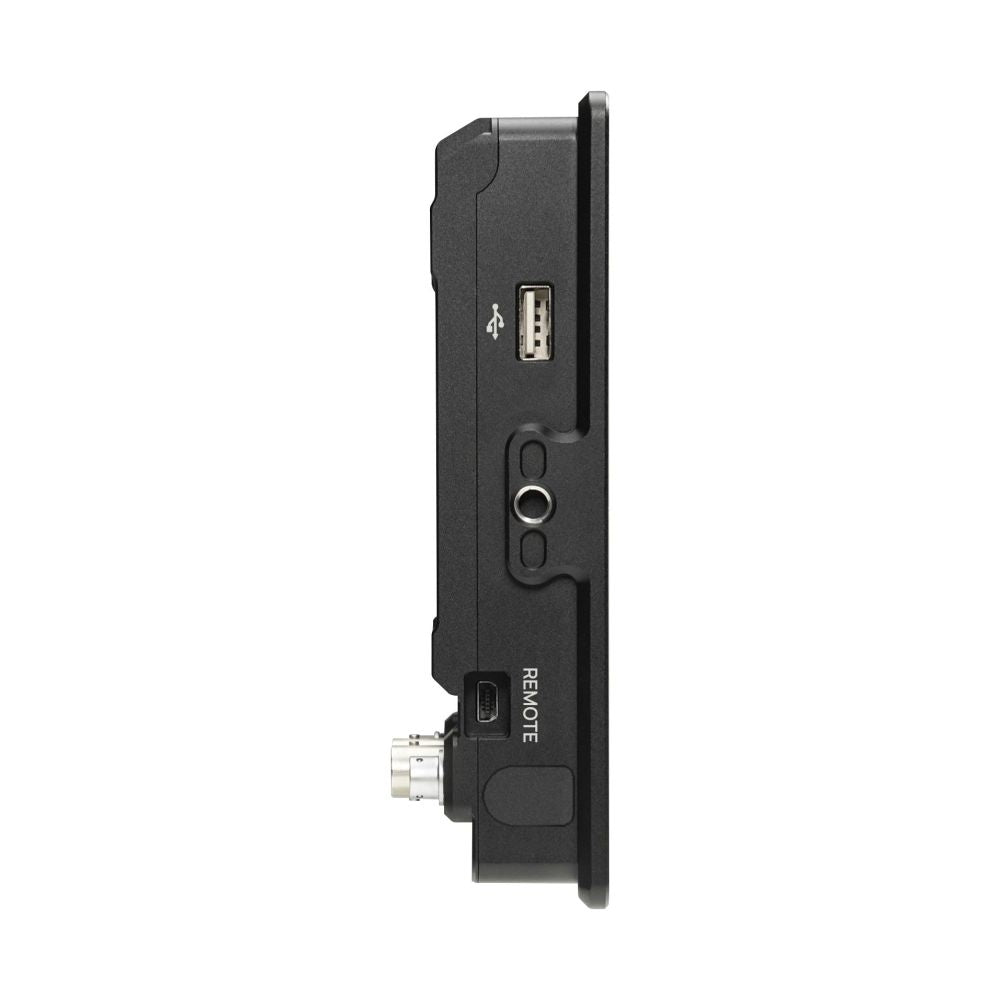

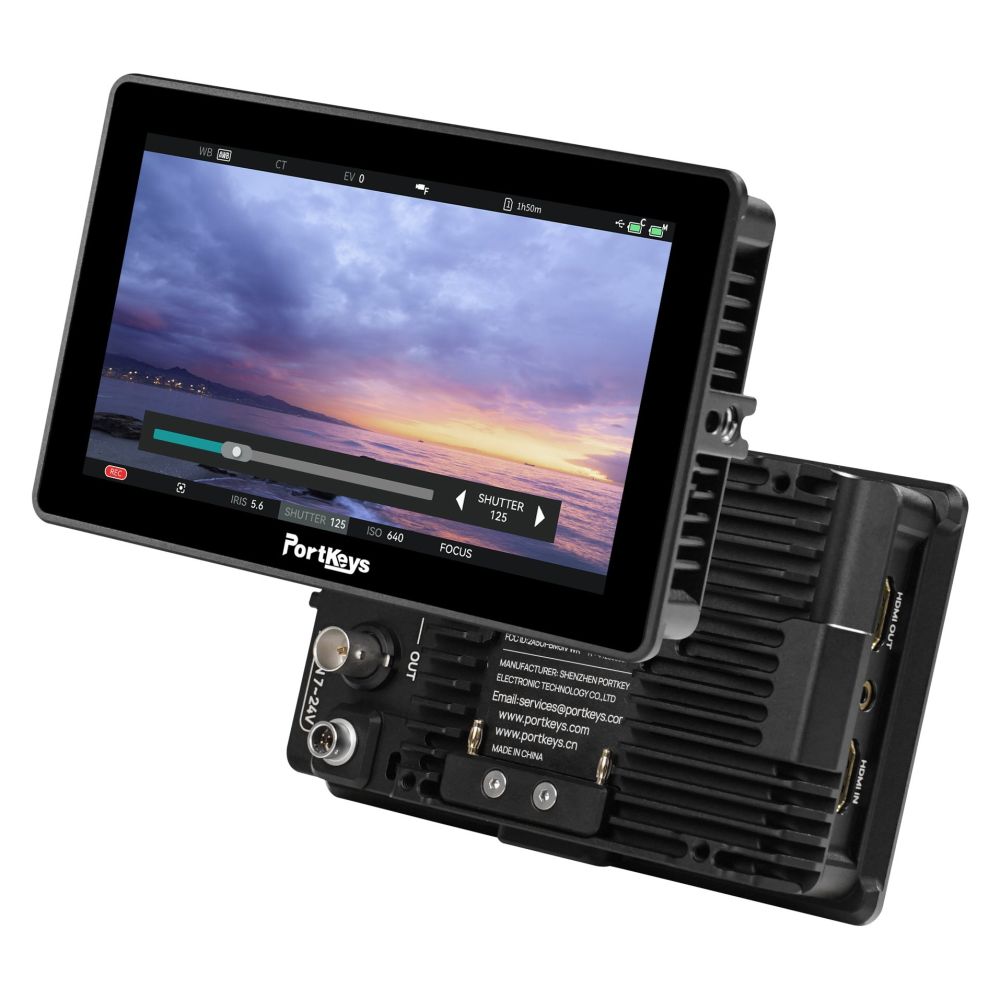

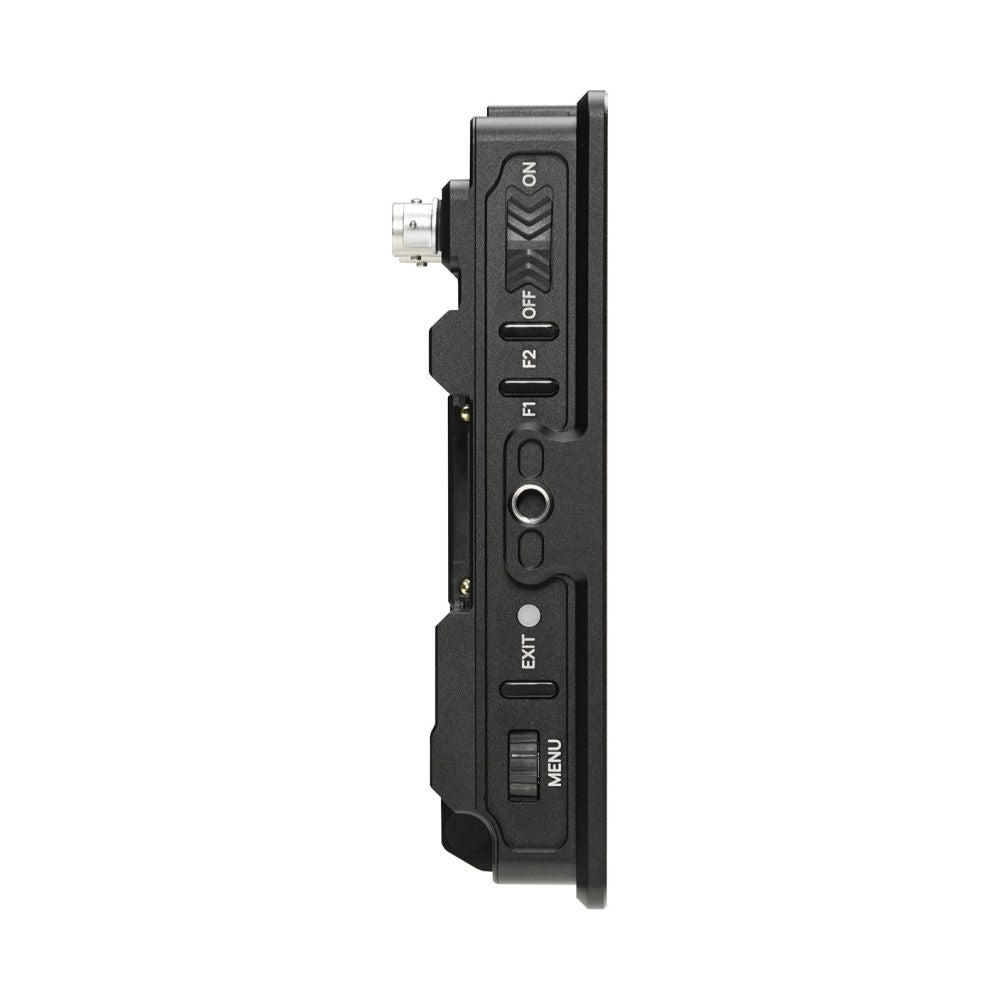

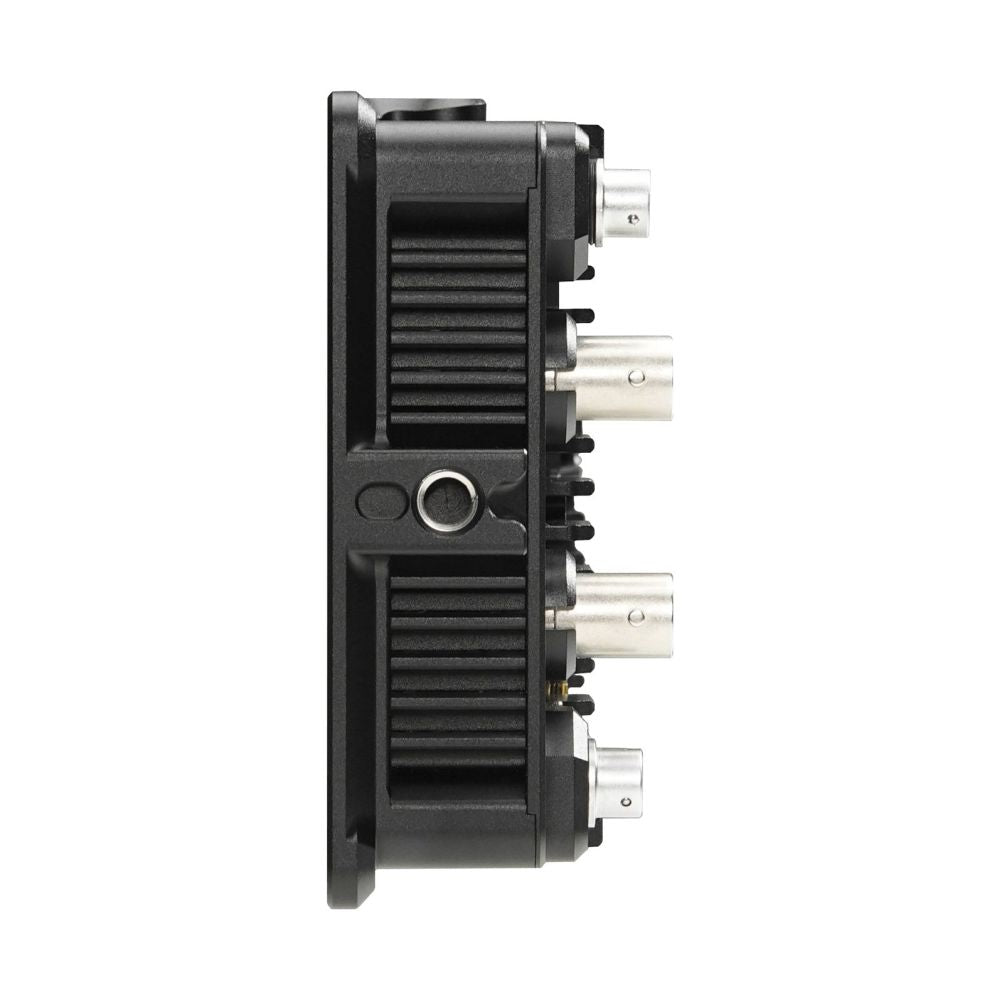

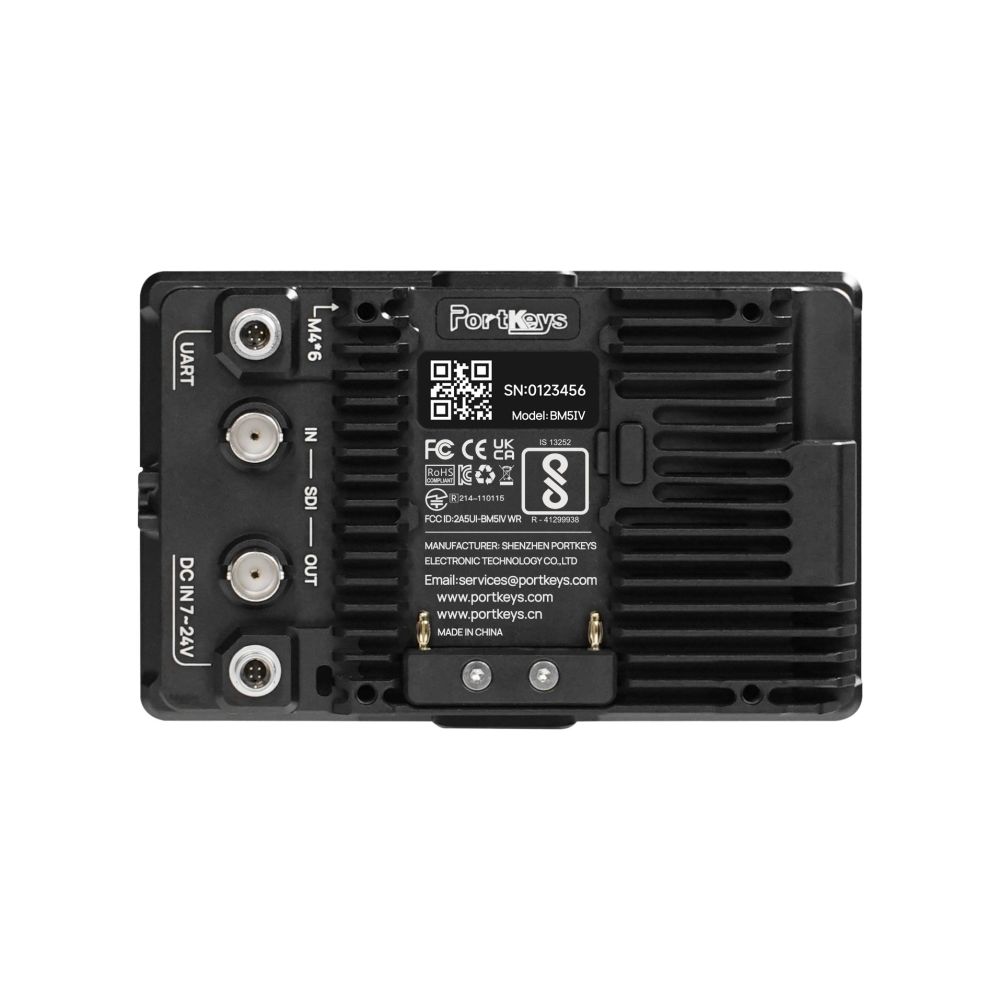

The Portkeys BM5 IV is the 4th iteration of Portkeys' 5.5-inch, high-bright camera monitor. The BM5 IV retains the robust design of previous generations, but gets several new hardware and software updates.

Portkeys BM5 IV

The Portkeys BM5 IV is the 4th iteration of Portkeys' 5.5-inch, high-bright camera monitor. The BM5 IV retains the robust design of previous generations, but gets several new hardware and software updates. These include an HDMI output port, the new CINENORM OS software with custom pages, a stop-based false colour exposure tool, panel calibration, camera control for ARRI and Nikon cameras and more.

The new Portkeys BM5 IV has the same 5.5-inch panel as the previous generation, with 1920x1080 resolution and a maximum brightness of 2000 cd/m². The panel is protected by an all-aluminium chassis that now houses an upgraded CPU, allowing the BM5 IV to run the new CINENORM OS.

Features of the Portkeys BM5 IV

  • 5.5" 2000Nits 4K60P HDMI& 3G-SDI Wide Color Gamut Camera Control Monitor
  • Built-in CINENORM OS, brand new user interface & user experience
  • Custom pages, support for custom up to 7 pages, adapt to different shooting scenes and roles
  • False colour, ARRI false colour, user false colour and LOG false colour
  • User calibration, user can import two sets of custom colour calibration files, no need to send the monitor back to the factory for calibration
  • Split-screen monitoring, freely switch between PBP, PIP and H2V crop mode
  • Save and load user configuration, monitor settings can be saved to a USB stick and imported into the same model monitor
  • Professional monitoring features, such as Peaking, Zebra, Luma Waveform, Luma Histogram and more
  • Contrast ratio: 1000:1
  • Resolution: 1920 x 1080
  • Dimensions: 145.4 x 91.4 x 39.6 mm
  • Weight: 350 grams

In the Box

  • 1x Portkeys BM5 IV monitor
Connections & Connectivity
12G-SDI
HDMI version HDMI 2.0
Inputs HDMI
SDI input
SDI output
Dimensions & Weight
Length (mm) 145.4 mm
Weight (g) 358.0 g
Width (mm) 91.4 mm
Height (mm) 39.6 mm
General
Color Black
Display & Viewing
Cross conversion
Brightness (nits) 2000.0 nits
Quadview/PiP
Screen size (in) 5.5 in
Scopes (waveform/vectorscope)
Touchscreen
HDR support
Recording & Codecs
HDR standards HLG
LUT support
Sensor
Resolution Full HD
Power
Mains
Battery
