Portkeys BM7 II DS 7-inch monitor with wireless camera control

Portkeys BM7 II DS 7-inch monitor with wireless camera control

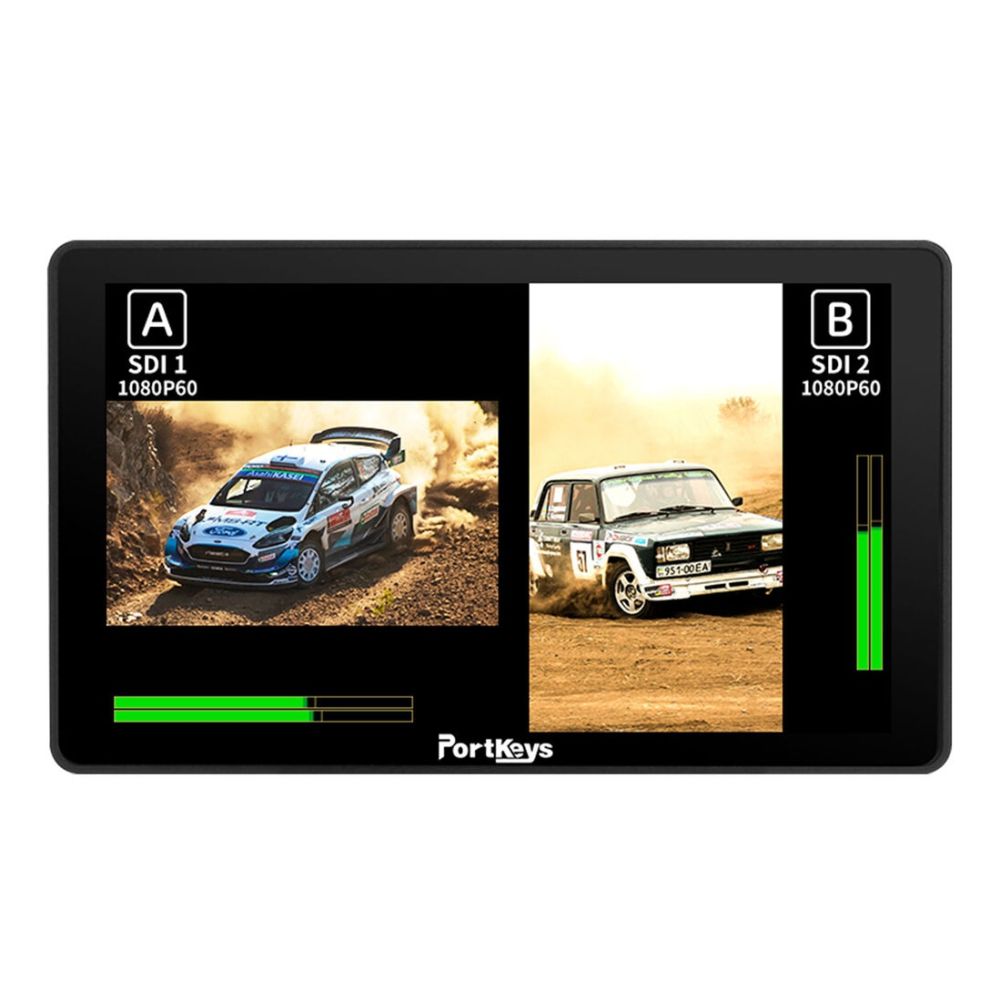

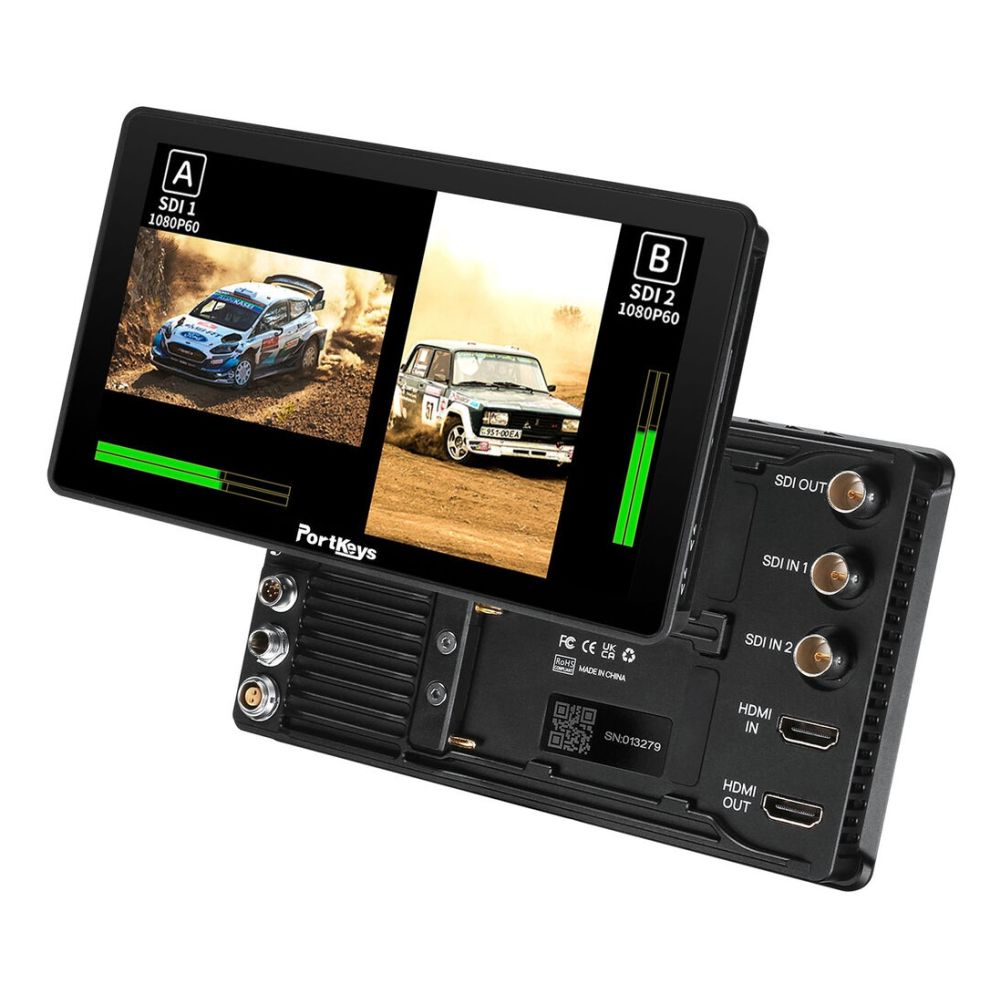

Bright enough for outdoor use, the Portkeys BM7 II DS 7-inch monitor with wireless camera control is a 1920 x 1080 display with support for video at up to 1080p resolution. The BM7 II DS has a maximum brightness of 2200 cd/m², a contrast ratio of 1000:1 and a durable aluminium frame. The monitor's main feature is the ability to remotely control your camera via WiFi, Bluetooth or using an optional control cable, depending on your camera model. It can also be used to control lens motors, such as Tilta's Nucleus M/N.

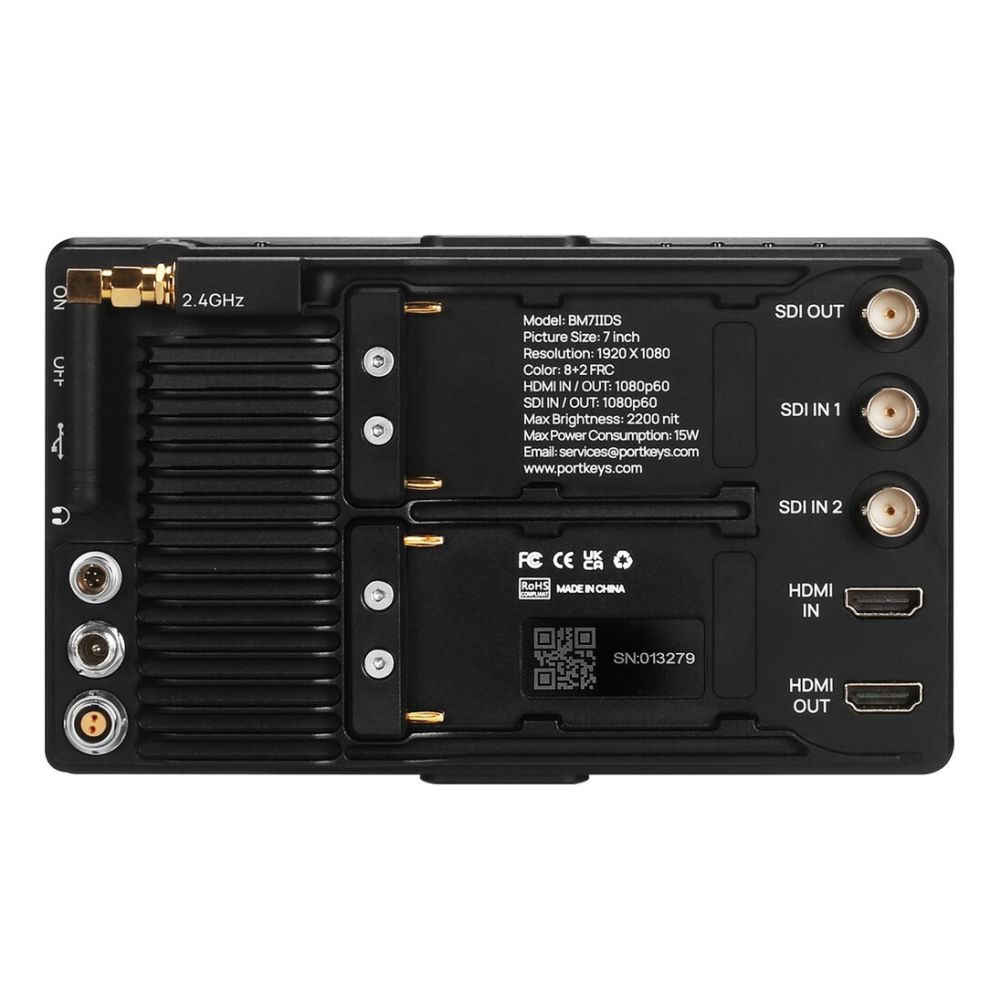

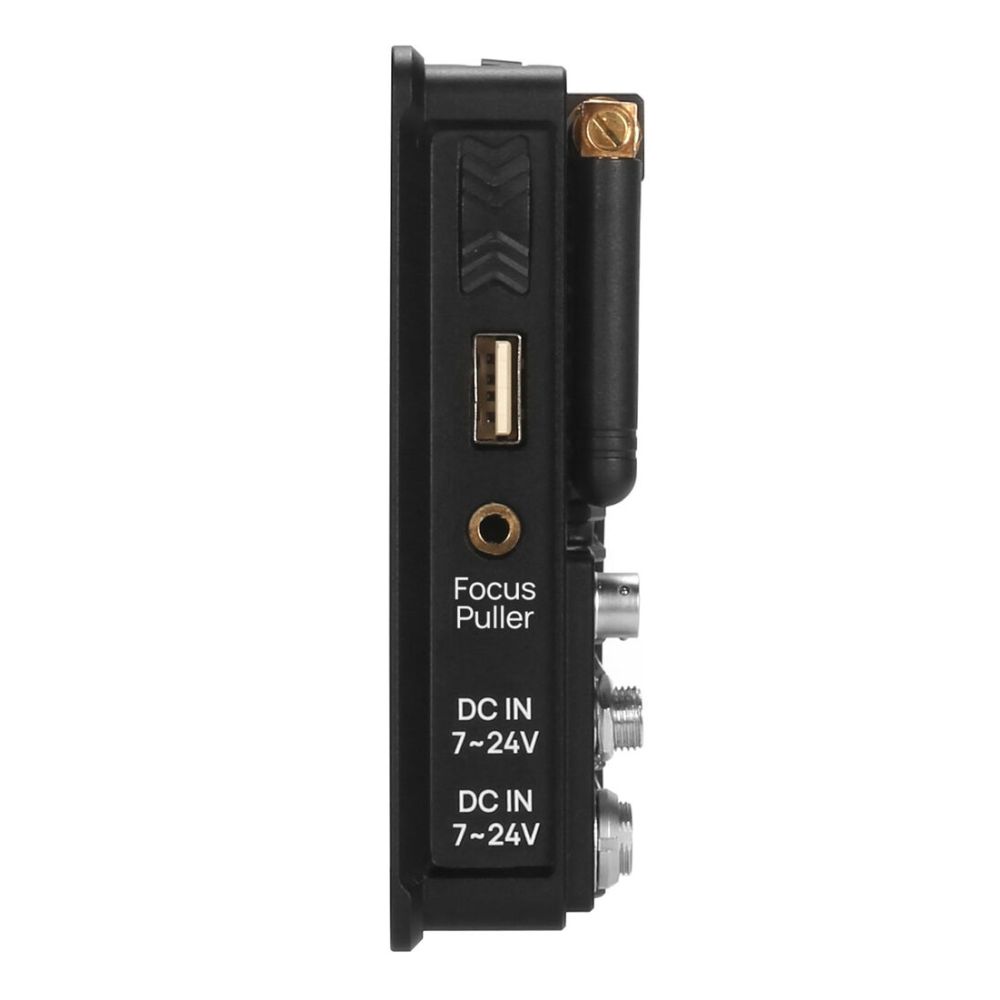

Thanks to support for 3D LUTs, you can view your log images in your chosen colour space or palette. This monitor features one 3G-SDI input, one 3G-SDI output, one HDMI input, one HDMI output, a 3.5mm headphone audio output and a USB-A port used to load 3D LUTs or upgrade firmware. A viewing angle of 170° allows off-axis viewing without colour and contrast shifts.

Integrated image display tools include a waveform, histogram, focus peaking, false colours, 3G-SDI-to-HDMI cross conversion, image inversion and selectable aspect ratios. You can power this super-bright monitor via the dual Sony L-series battery plate or via a D-Tap power source using the included DC cable. Four 1/4"-20 screw threads allow you to support the monitor from whichever side works best for any setup.
