SmallHD Ultra 5 Bolt 6 RX 750 Kit

SmallHD Ultra 5 Bolt 6 RX 750 Kit

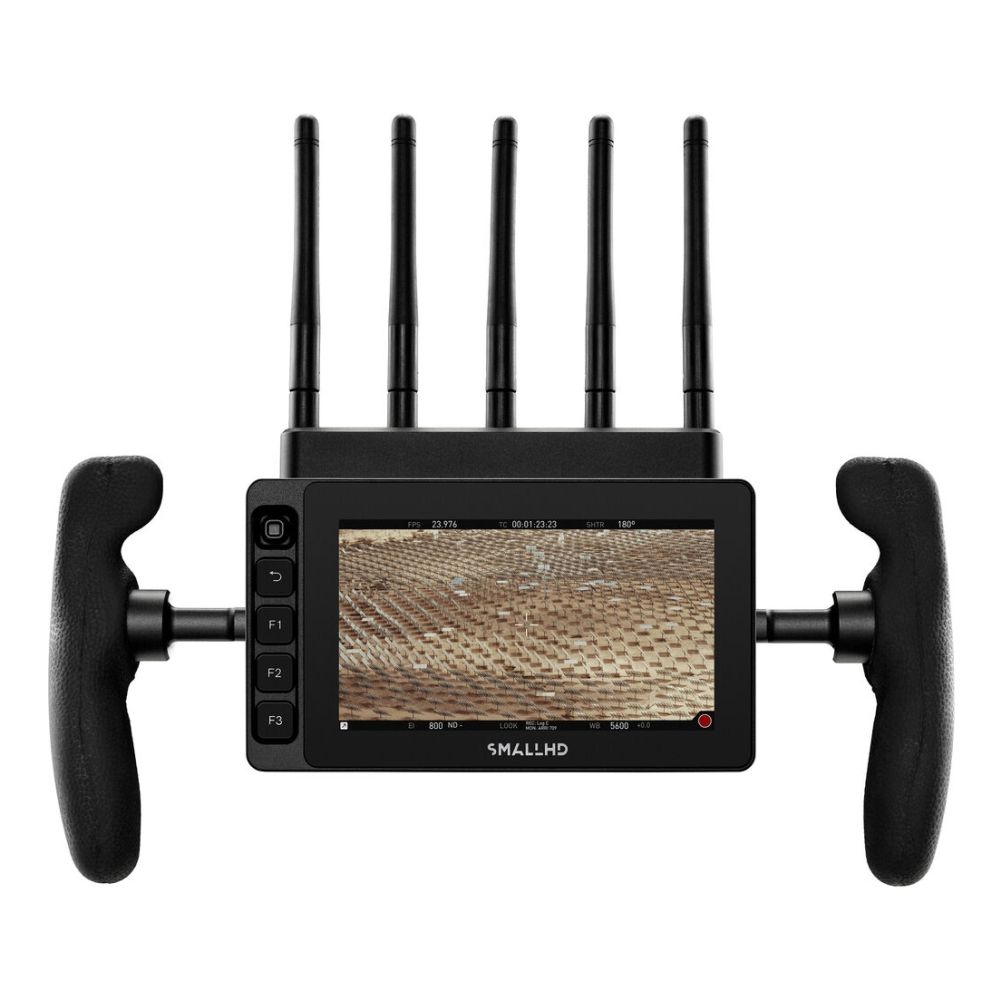

Add an ultra-bright monitor with wireless control to your production setup with the SmallHD Ultra 5 Bolt 6 RX 750 Kit. The kit includes an Ultra 5 5" on-camera monitor and a Bolt 6 TX monitor module from Teradek. The monitor has a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options and 10-bit 4:2:2 Rec.709 colour processing.

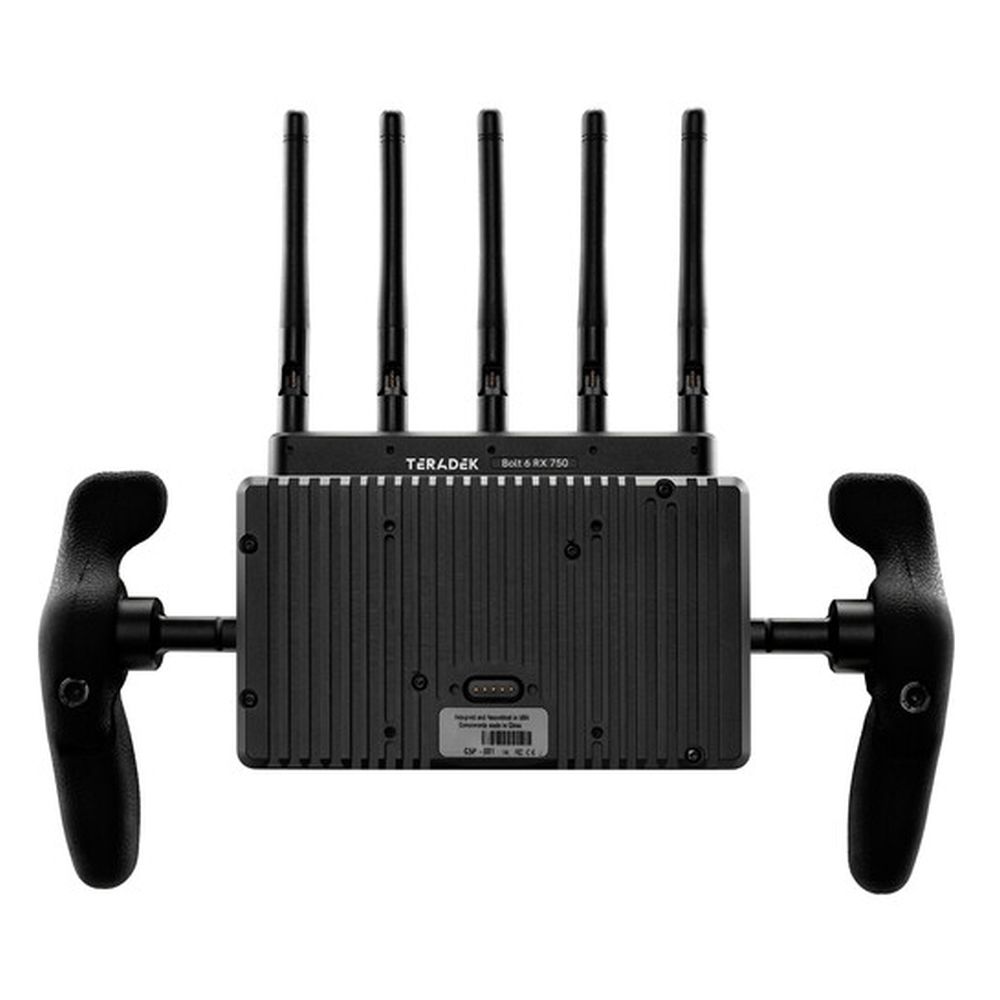

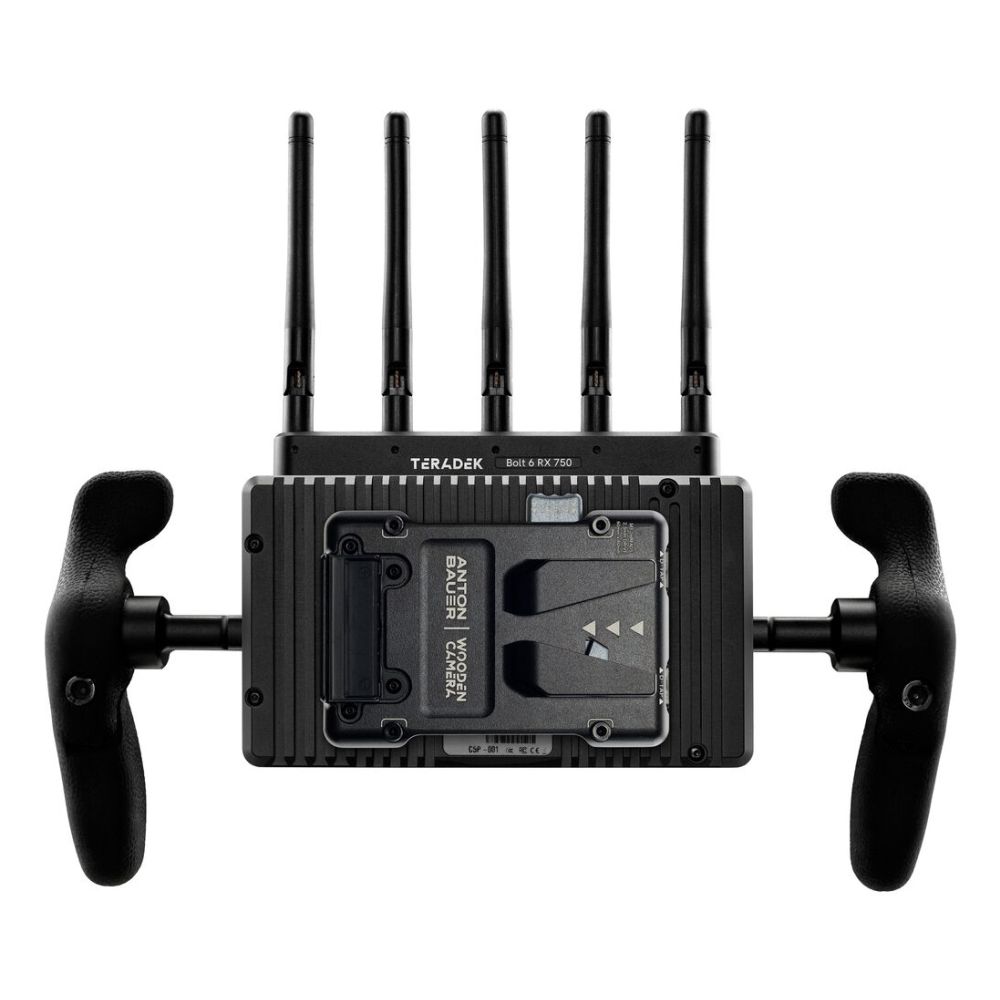

The monitor module is installed on the back of the monitor and supplies power to the monitor via a V-mount battery, and receives wireless video transmissions of up to 750'. The RX module can receive via the 6 GHz band from Teradek Bolt 6 series transmitters, as well as from 5 GHz transmitters such as the Teradek Bolt 4K series.

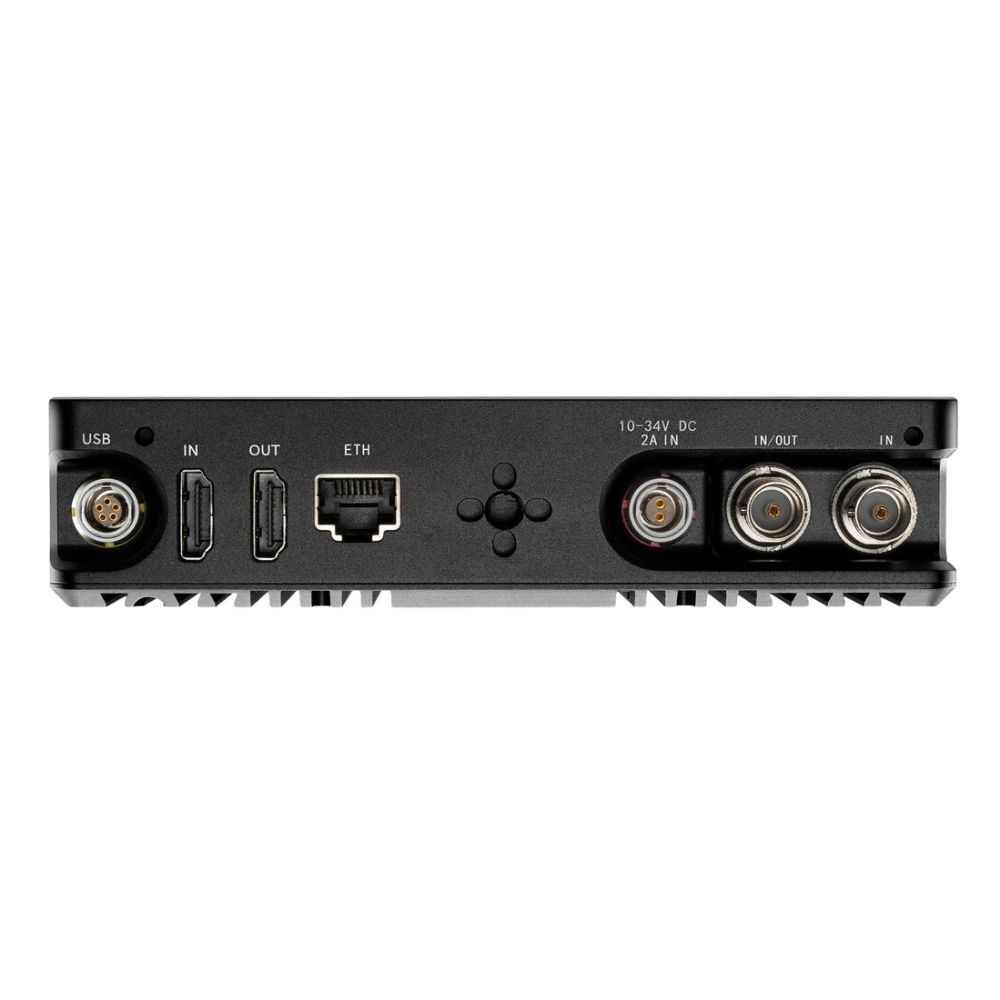

The Ultra 5 features HDMI and 3G-SDI inputs and outputs, and also has physical buttons for use in conditions where gloves may be required. It can also be used to control the camera, and it has a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the monitor's functionality is available through PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.

The Teradek Bolt 6 RX 750 monitor module for Smart 7 Series (V-Mount) can transmit simultaneously to up to six receivers. It features improved metadata, range and compatibility over its predecessors. Built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise reduction keeps the video clean no matter how many devices use the wireless spectrum. The Bolt 6 system also supports the transmission of time code and start/stop triggers from the camera.

The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that can easily connect via Bluetooth, both of which provide spectrum analyser, channel selection tools and remote configuration.
