SmallRig 4194 Rosette Arm

Article number:

12471934

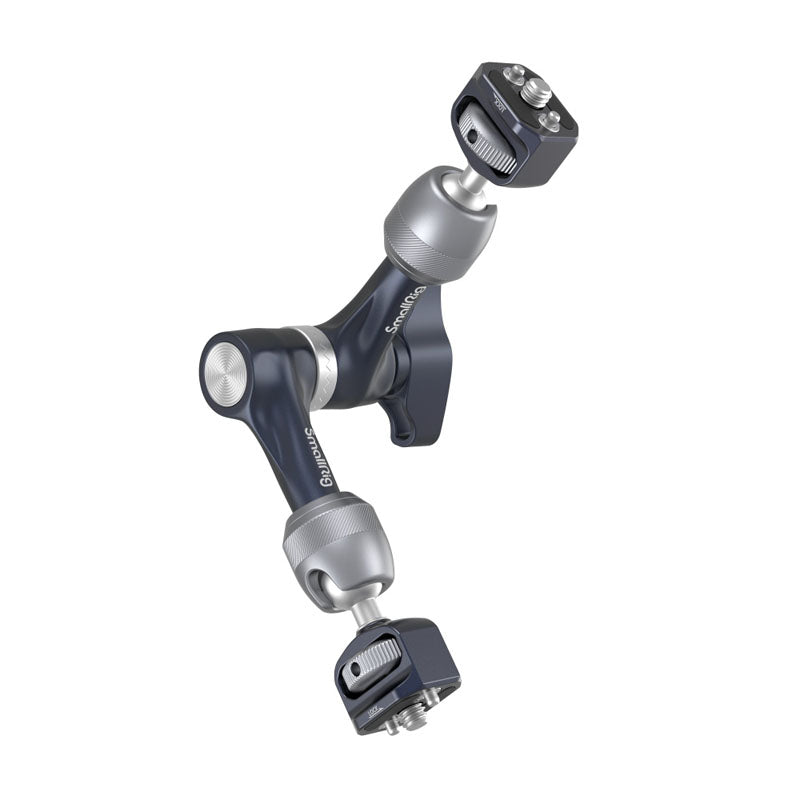

SmallRig 4194 Rosette Arm

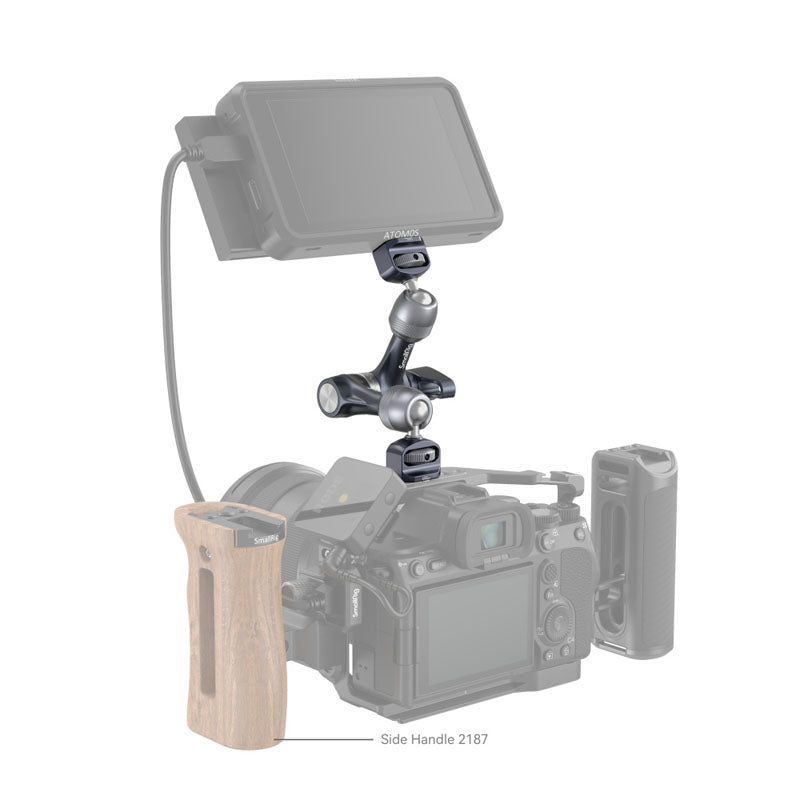

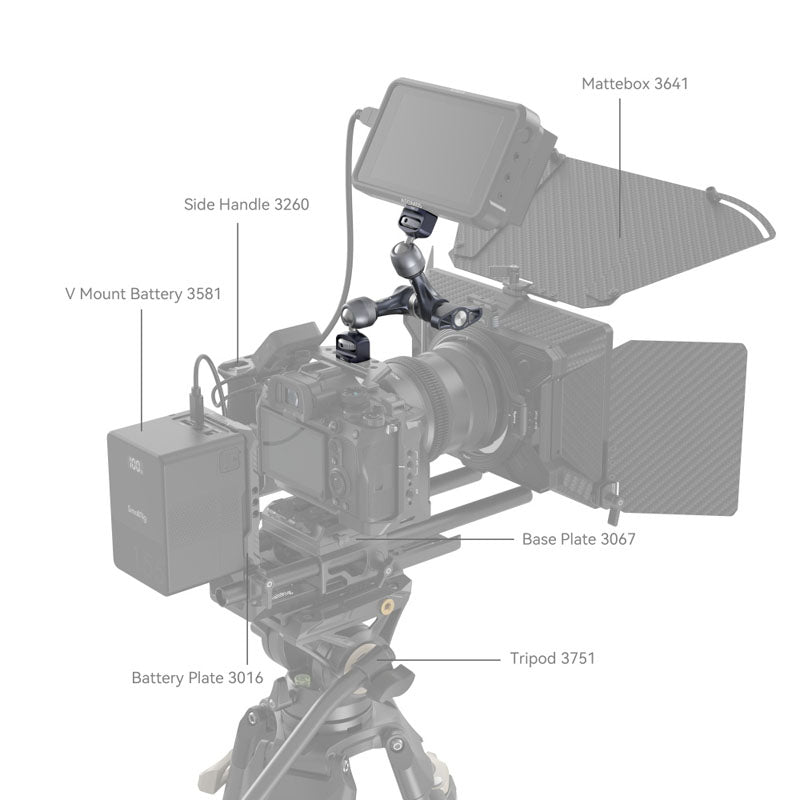

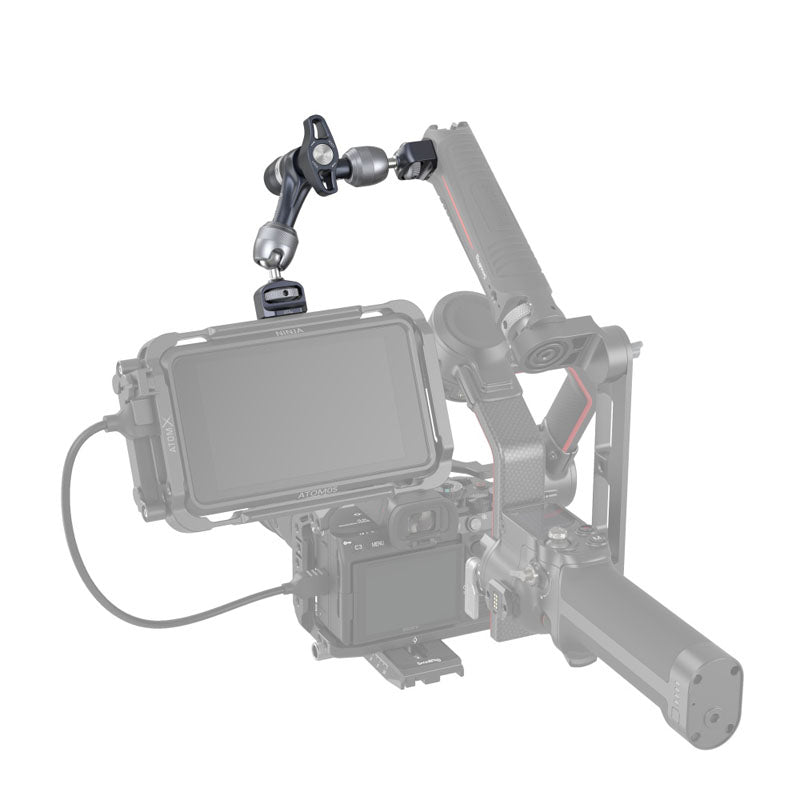

The SmallRig 4194 Rosette Arm , made of aircraft aluminium and stainless steel, has 1/4"-20 screws and stretch pins at both ends for securely attaching accessories, especially with anti-twist holes, such as monitors, LED video lights, microphones, mobile phones, iPads, action cameras.

The thumb screw helps lock accessories and has holes for hex spanners for further tightening and the ball heads, which are adjustable 360 degrees, have a spiral pattern to increase friction and can support up to 3 kg of load. There is a spring on the stainless steel rosette joint for easier angle adjustment. An ergonomically designed anti-slip thumb lever, with a built-in pressure ball bearing, feels smooth and comfortable and locks the arm and ball heads quickly in a second.

Features of the SmallRig 4194 Rosette Arm

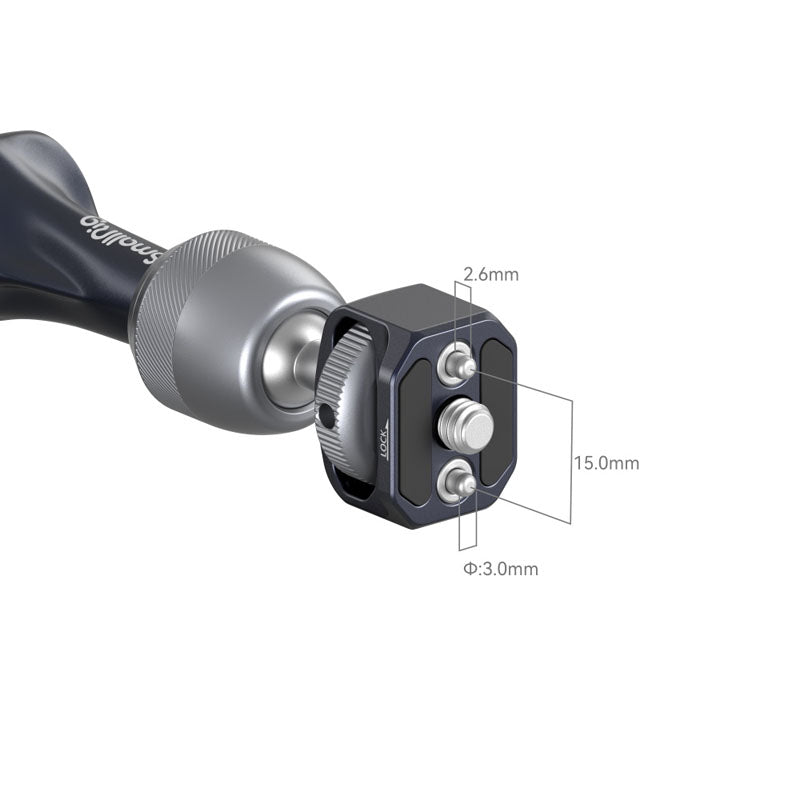

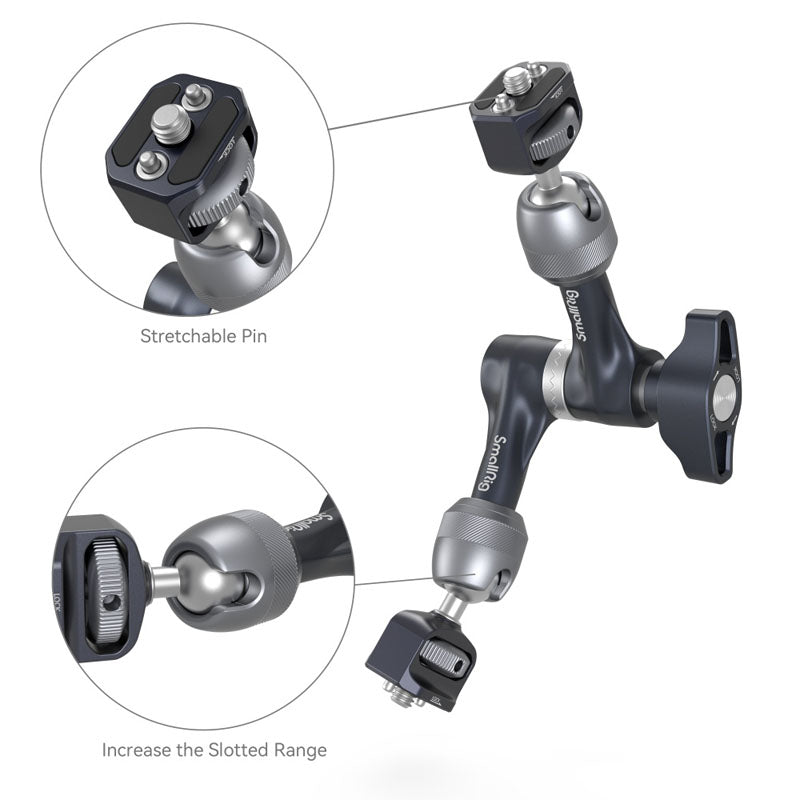

  • Stretchable pins and 1/4"-20 screws prevent twisting and ensure safety
  • Ball heads increase friction and can support up to 3 kg
  • Locking structure at rosette joint for smoother angle adjustment
  • Made of tough, durable aircraft-grade aluminium alloy and stainless steel

In the Box

  • SmallRig 4194 Rosette Arm

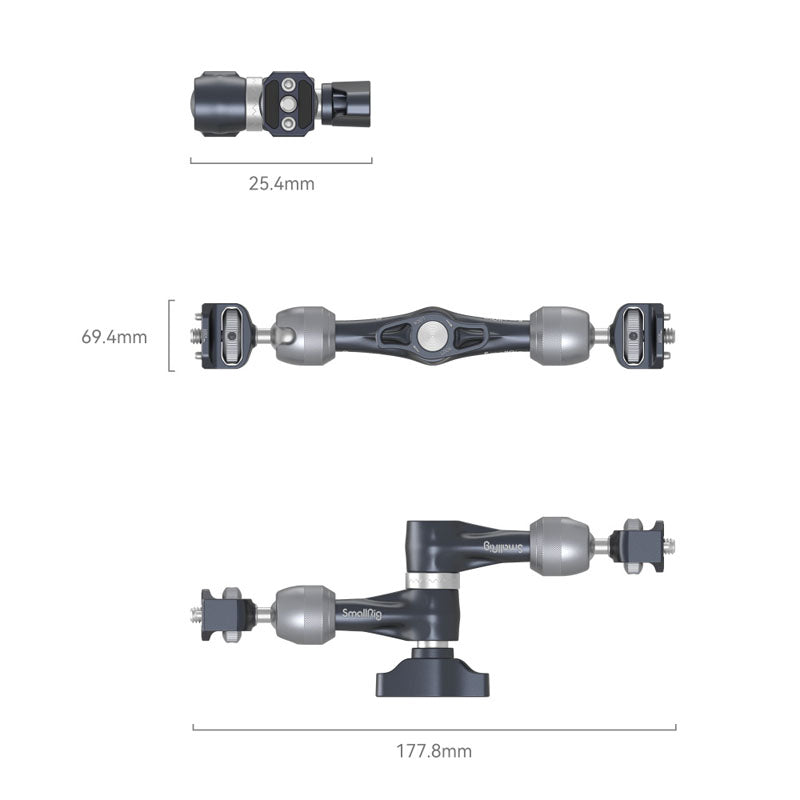

Dimensions & Weight
Length (mm) 178.0 mm
Weight (g) 214.0 g
Width (mm) 69.0 mm
Height (mm) 25.5 mm
Tripod Head & Quick-release
Mount points 1/4"-20 screws on both ends
Rig type Bracket/Arm
Maximum load (kg) 3.5 kg
Material & Protection
Material Aluminium
