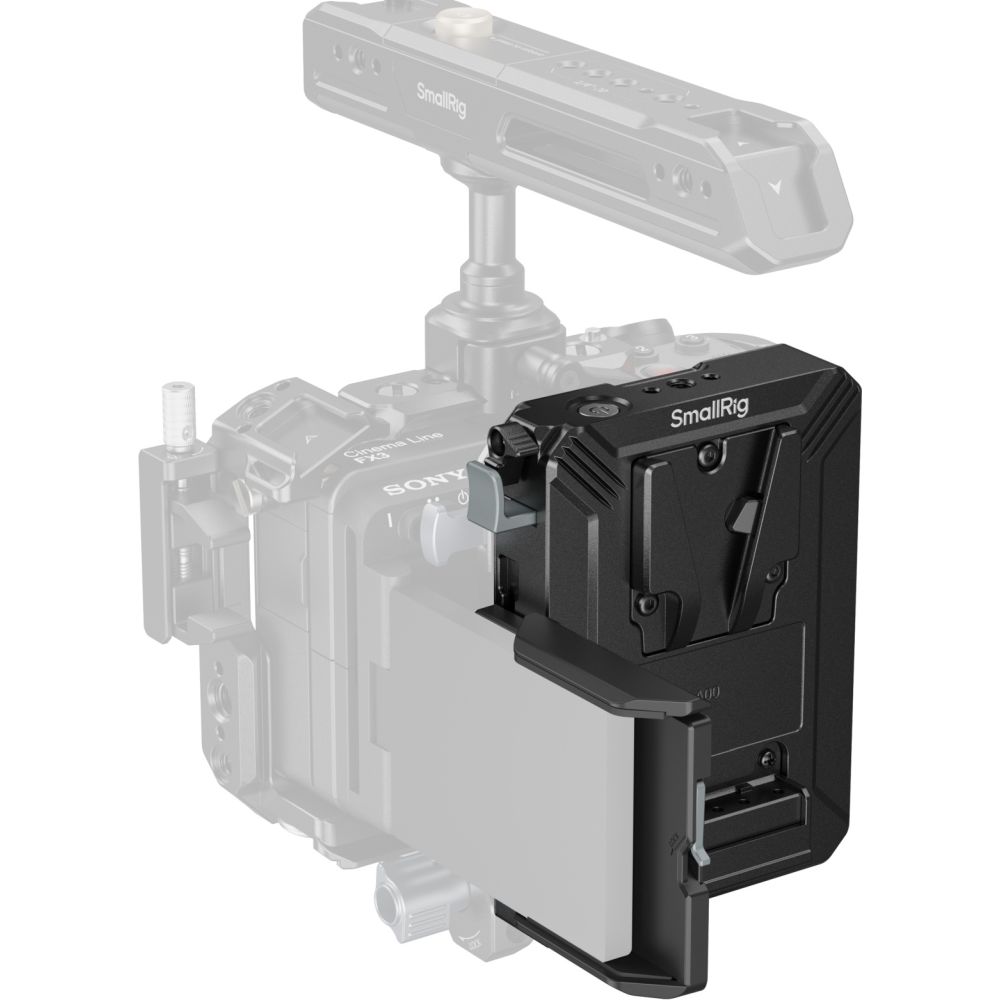

The SmallRig 5228 V-mount Battery Mount Plate is designed for V-mount systems without built-in power, such as the SmallRig models 4505 / 4064B / 4063B, and enables power distribution to multiple devices and quick battery changes.

SmallRig 5228 V-mount Battery Mount Plate

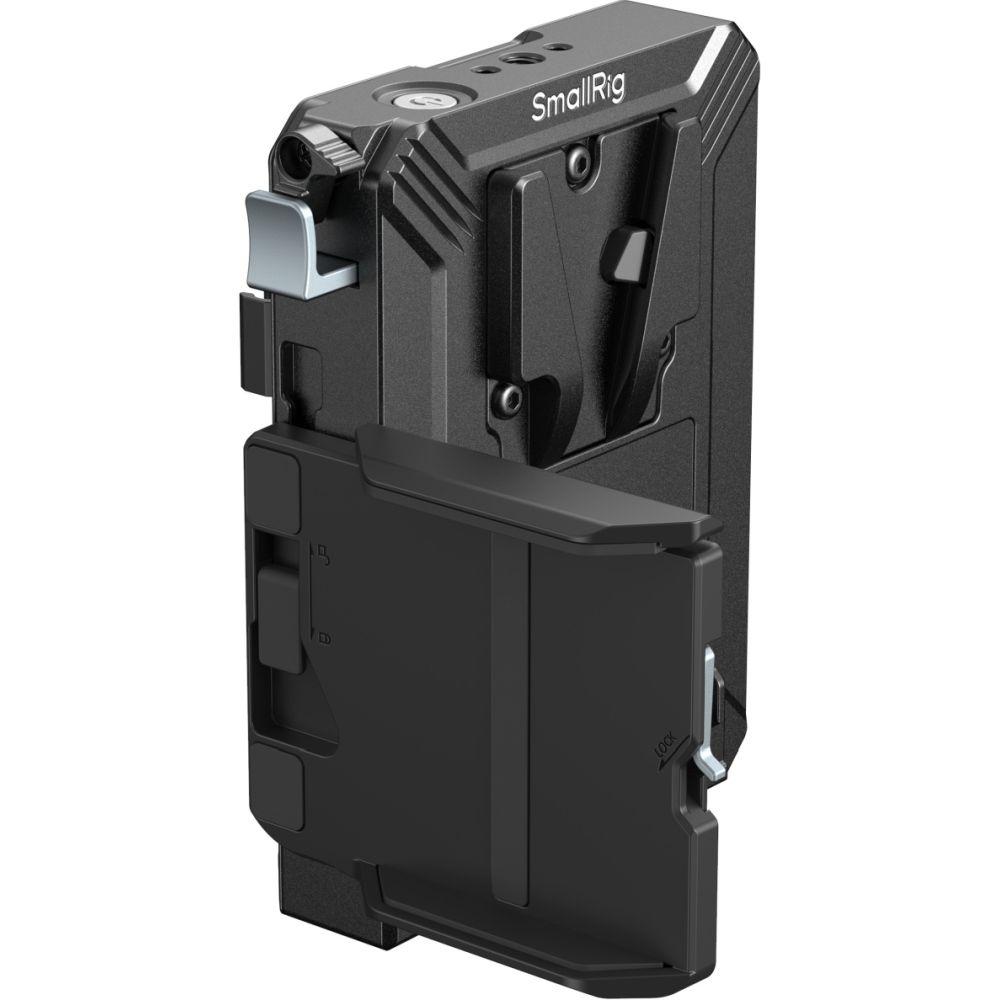

The SmallRig 5228 V-mount Battery Mount Plate is designed for systems with V-mount plates without power supply, such as the SmallRig models 4505 / 4064B / 4063B, and enables power distribution to multiple devices as well as quick battery swaps. The kit includes a V-mount battery plate and an LCD screen protector. The system can be quickly mounted on any V-mount compatible system using a V-mount adapter plate, allowing the V-mount battery to be connected effortlessly for seamless power delivery.

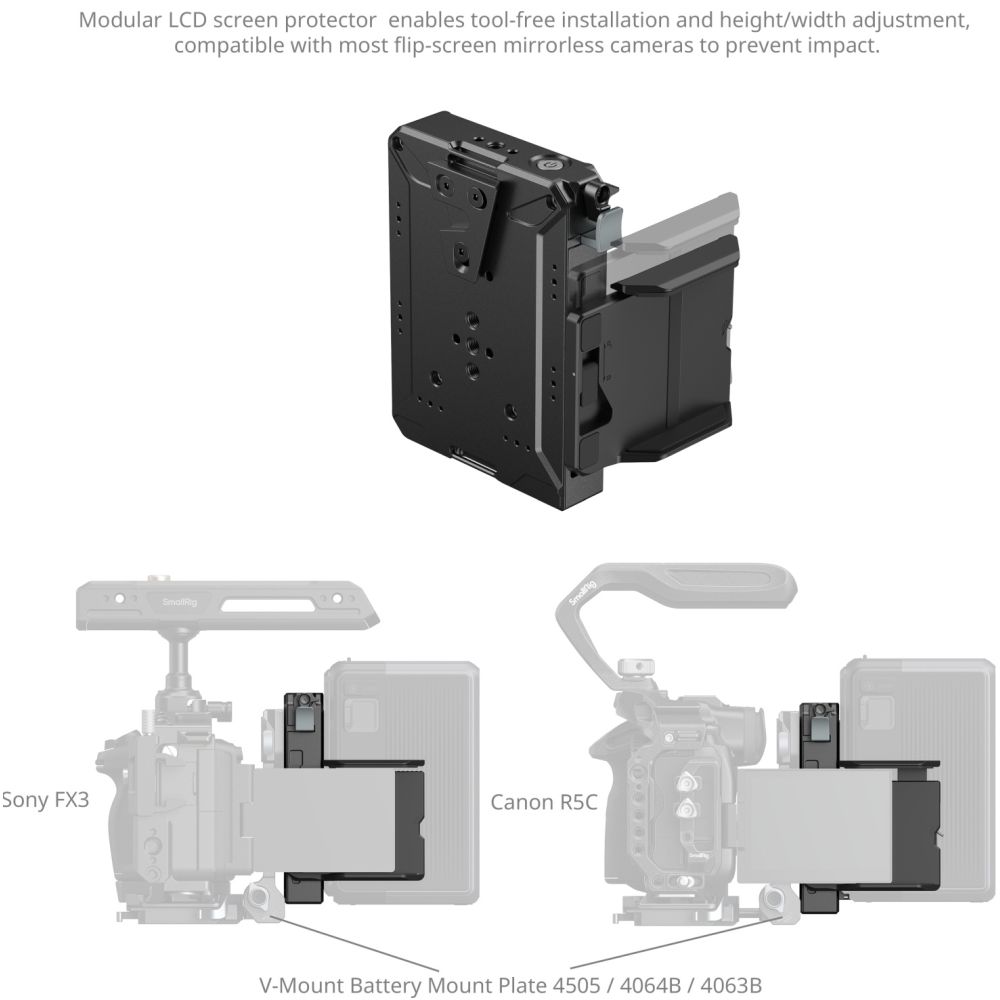

Strategically positioned power outputs on the V-mount battery plate, including D-Tap and USB-C, enable simultaneous power supply to multiple devices without interfering with camera or handle operation. The USB-C port supports PD input of up to 65 W, allowing it to function as a V-mount battery charger. The modular LCD screen protector is tool-lessly adjustable in height and width, fits most mirrorless cameras with a tilting screen, and protects against impacts.

The battery release button features a safety lever with adjustable activation, preventing accidental disconnection and ensuring safe operation. In addition, the V-mount plate is equipped with multiple 1/4"-20 threaded and positioning holes, making it easier to attach accessories such as magic arms (SmallRig ID 3238B / 3873) for wireless transmitters and professional setups.

Features of the SmallRig 5228 V-Mount Battery Mount Plate

  • V-mount adapter plate: Enables quick mounting on any V-mount-compatible installation
  • Multi-Port Power Hub: Built-in D-Tap and USB-C ports power multiple devices simultaneously
  • Modular LCD screen protector: With tool-free height and width adjustment to effectively protect screens against impact
  • External V-mount battery voltage: 11.0 V–16.8 V
  • Recommended battery nominal capacity: 3500 mAh–20,000 mAh / 14.8 V (nominal)
  • D-Tap (output only): 11.2 V–16.8 V / 8 A (max.) / (Per D-Tap port: max. 8 A; three ports combined: max. 18 A)
  • Discharge cut-off voltage: 11.2 V (prioritise the battery's own cut-off voltage for overheat protection) (over-discharge)
  • Operating temperature: charging: 0°C – 45°C
  • Operating temperature: discharging: –15°C – 60°C
  • Material: aluminium alloy, stainless steel, silicone, PC + fibreglass
  • Dimensions: 112.0 x 95.5 x 79.5 mm
  • Weight: 266 g

In the Box

  • 1x V-mount battery mounting plate
  • 1x LCD screen protector
  • 1x User manual
Dimensions & Weight
Length (mm) 112.0 mm
Weight (g) 266.0 g
Width (mm) 97.0 mm
Height (mm) 79.0 mm
General
Color Black
Compatibility
Compatible with brand/series Ontworpen voor rigs met niet-gevoede V-mount plates zoals SmallRig 4505 / 4064B / 4063B; maakt stroomverdeling naar meerdere apparaten en snelle accuwissels mogelijk op elk V-mount-compatibel rig.
