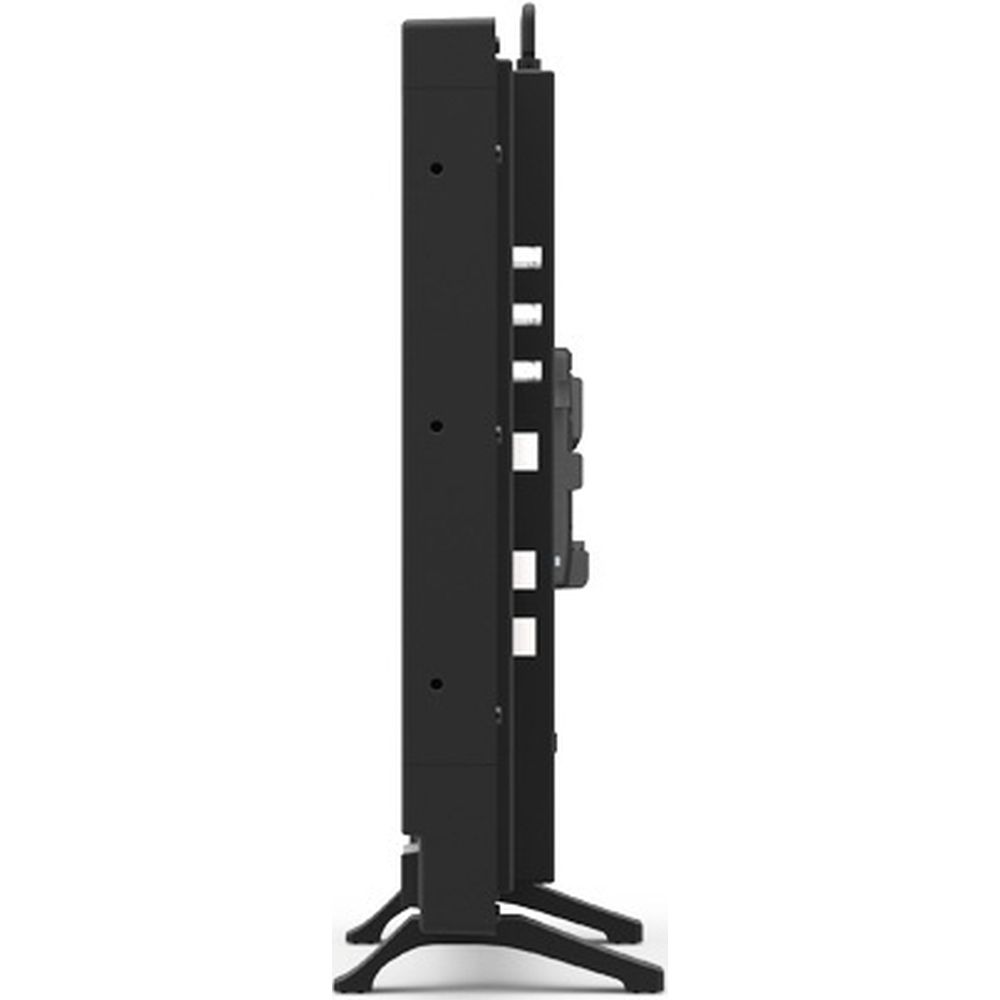

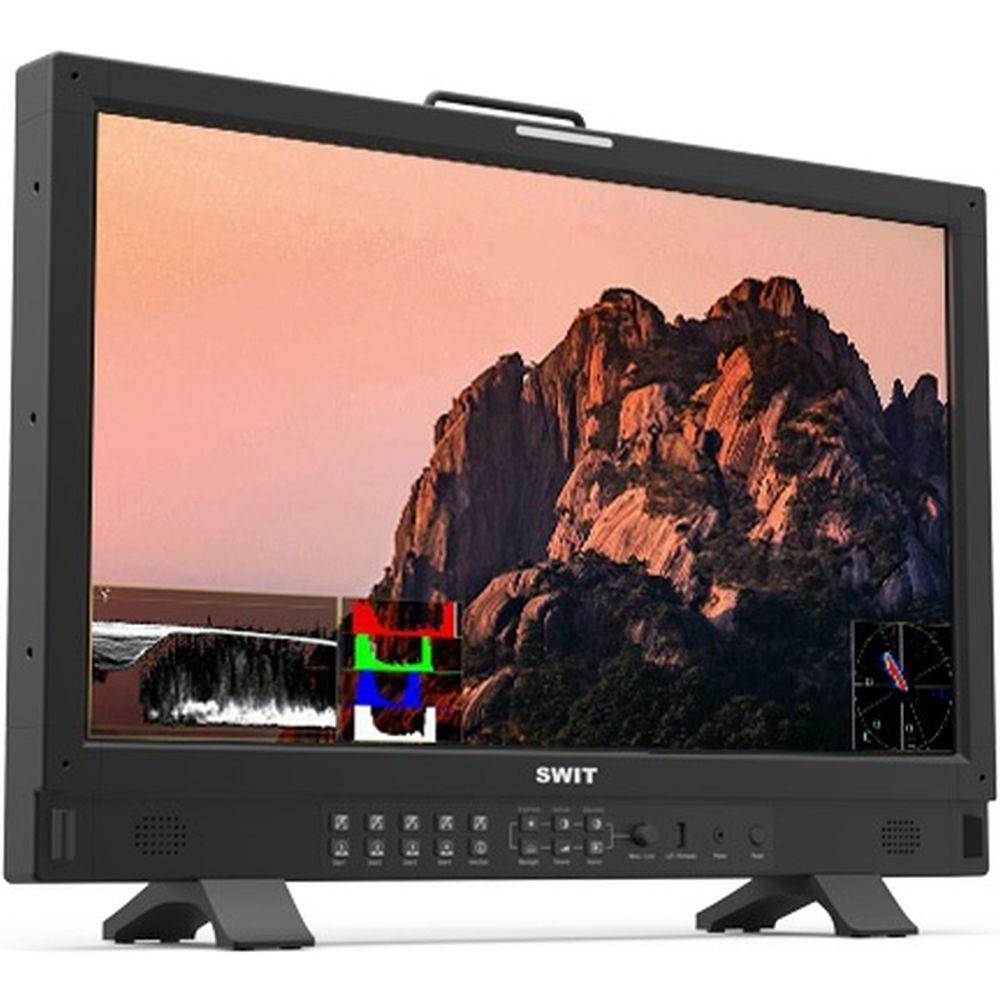

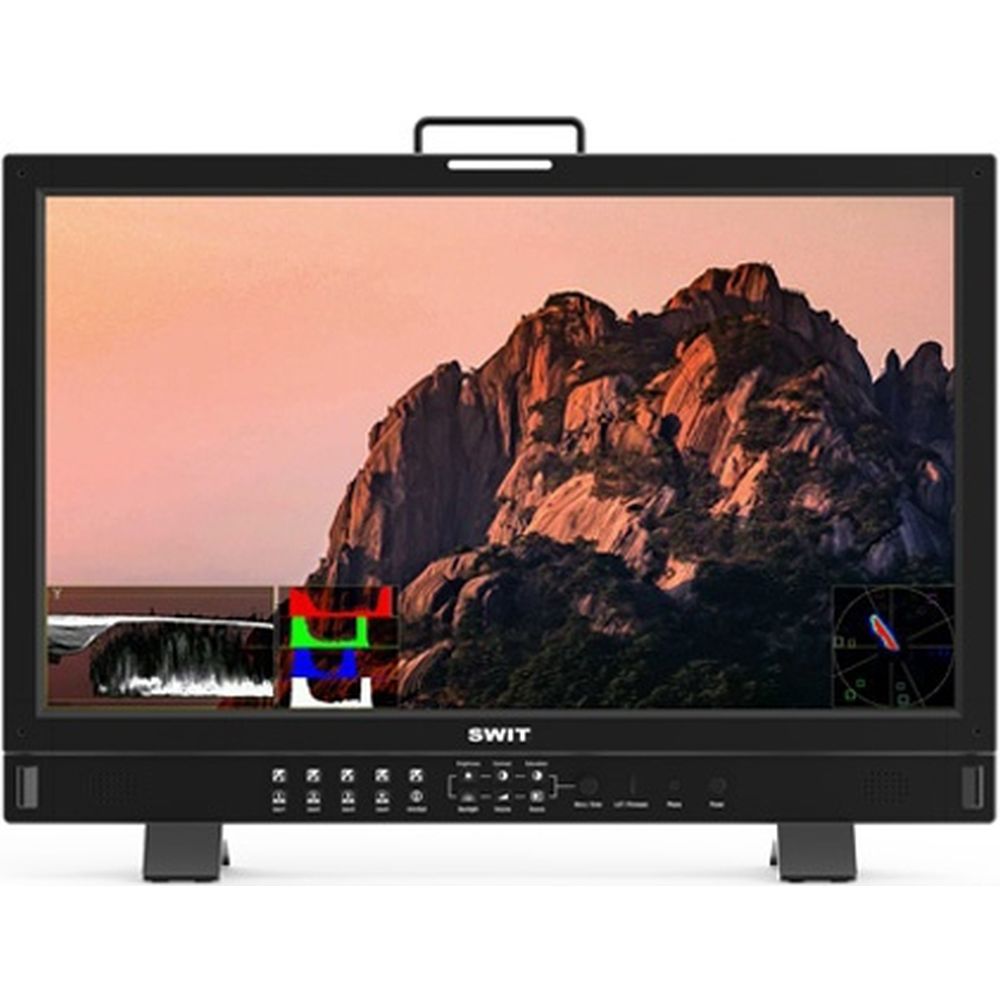

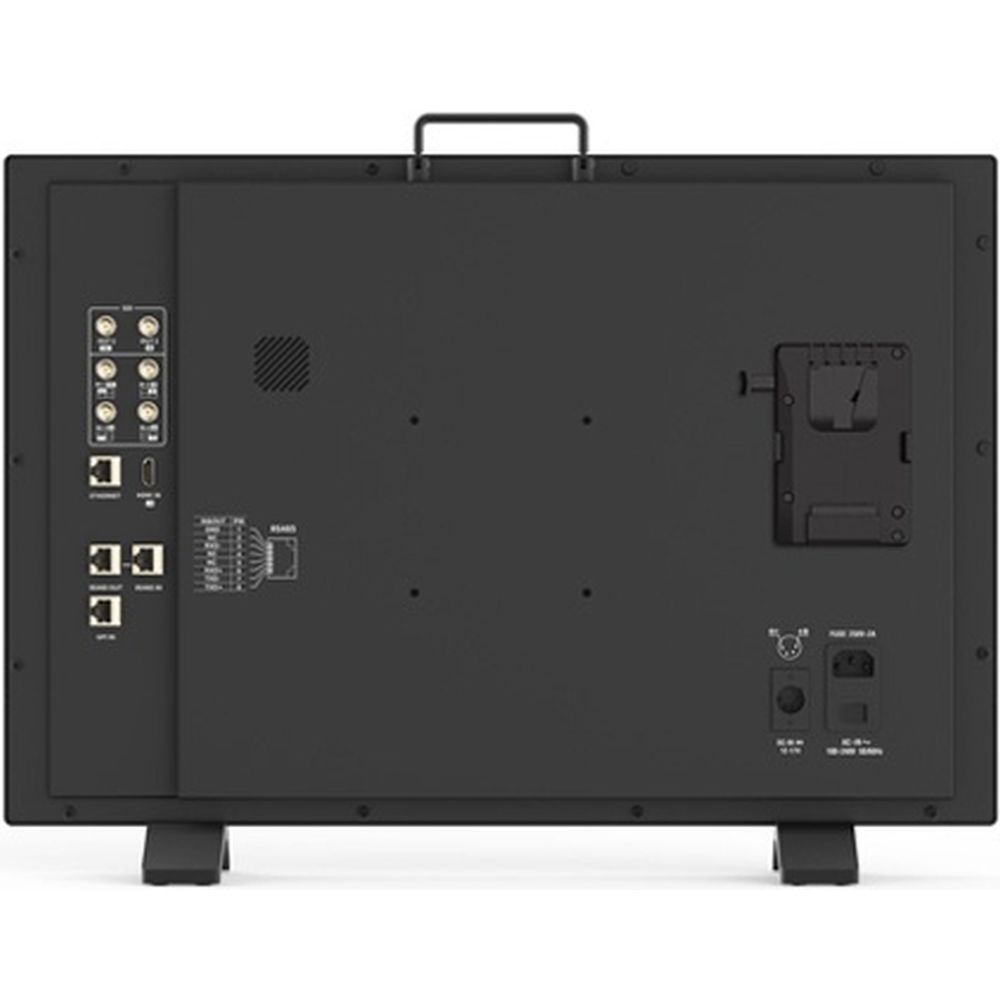

SWIT BM-H245 23.8 inch 12G-SDI 4K QD-LED HDR professional FHD Monitor

SWIT BM-H245 23.8 inch 12G-SDI 4K QD-LED HDR professional FHD Monitor

The BM-H245 offers 4 SDI inputs and 2 SDI loop outputs and supports multiple 4K inputs, including: 12GSDI Single Link 4K / 4x3GSDI Quadlink 4K (SQD and 2SI) / HDMI 2.0 (4K60P). Supports pixel-per-pixel zoom of the 4K signal to an FHD panel.

Supports Single Link 4K input, including 12GSDI, HDMI 2.0 and Quad Link 4x 3GSDI 4K inputs. You can also input 4 independent sources for multiview, or 2 sources for Pic-by-Pic or Pic-in-Pic display. Supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats, as well as waveform, vectorscope and audio meters, EOTF and colour gamut selection for each input.

The BM-H245 QLED panel features a Quantum Dot layer between the LCD screen and the LED backlight. This layer transforms the LED spectrum to reduce blue light and balance the R/G/B peaks, stimulating the cone cells in the eyes evenly and effectively reducing visual fatigue.

The VICO test (Visual Health and Comfort) achieves a score of 1.97, Class A, protecting your eyes during extended video editing sessions or broadcast studio productions.

The BM-H245 offers HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, as well as colour gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.

Supports identification of the Payload ID of the input video. The monitor automatically sets the HDR/SDR EOTFs, colour gamut, input range, colour space and colour depth based on the Payload ID information.

Supports copying a single input source to four windows and simultaneously displaying different HDR/SDR values and colour gamuts. This gives you an accurate reference when combining HDR and SDR content.
