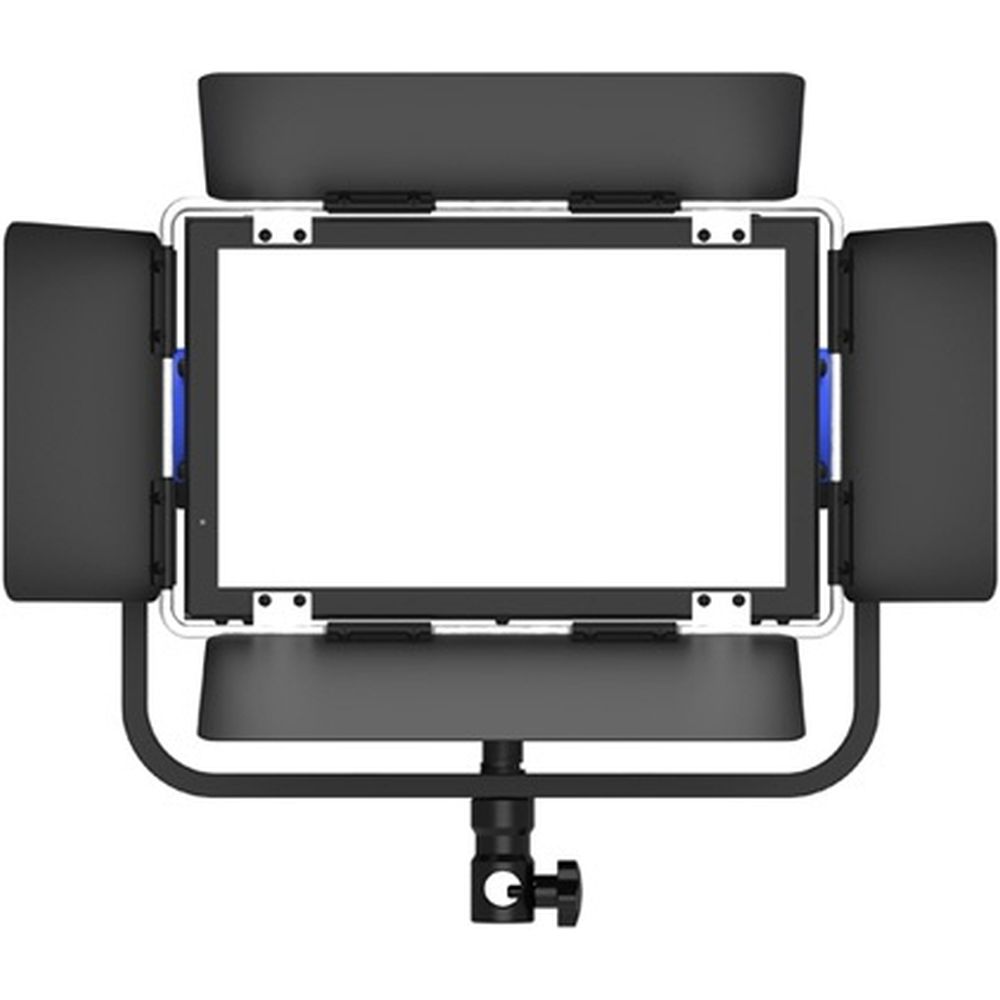

SWIT CL-M100C Mini size bright RGBW Panel Light

SWIT CL-M100C Mini size bright RGBW Panel Light

With 170 RGB LEDs and 340 white LEDs, the CL-M100C delivers a light output of 100W, an illuminance of 3,000 lux at 1 metre, a wide beam angle of 62° (half-peak), stepless colour temperature control from 2,800K to 10,000K, and support for G/M ±1.00. Digital PWM dimming from 0 to 100% ensures smooth, flicker-free light output.

Standard RGB panels offer high brightness in CCT mode but significantly lower brightness in RGB colour mode. This is because in a conventional RGB light, the RGB colour LEDs and the white LEDs share a fixed proportion of the total power — when producing coloured light, the RGB LEDs use only one third of that power. Thanks to SWIT's unique Time Division Drive technology, the full power of the light can be allocated to the RGB colour LEDs, substantially increasing colour light intensity. The colour light intensity of the 100W CL-M100C is equivalent to that of a conventional 300W RGB colour light.

The light has been tested and certified as "Exempt – No photobiological hazard" in accordance with IEC 62471:2008, with no risk of ultraviolet radiation, high-energy blue light, or flicker. In specific locations such as churches, museums, and historic buildings, using this fixture can effectively prevent the fading and flaking of murals, helping to protect cultural heritage.

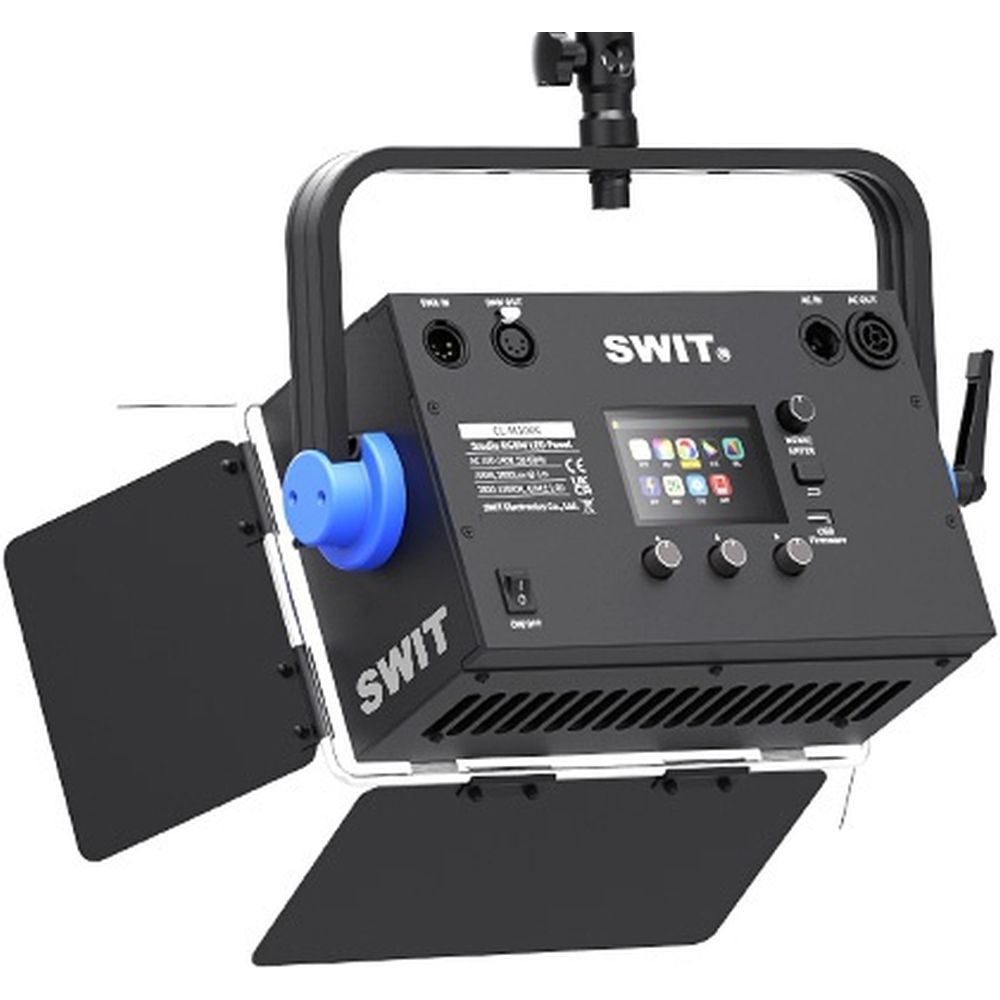

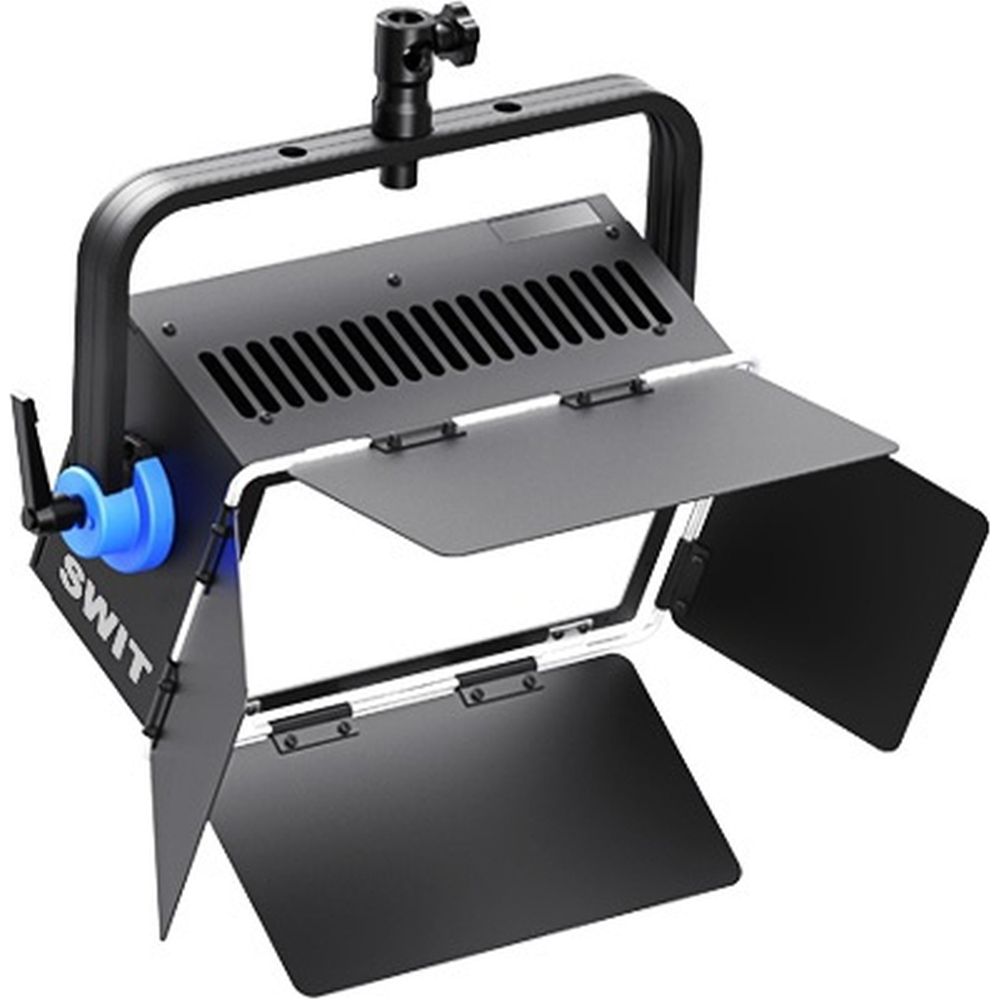

The large heat-dissipation fins in the CL-M100C enable a high light output of 100W in a compact housing — with no fan and therefore no noise — creating a quiet video production environment.

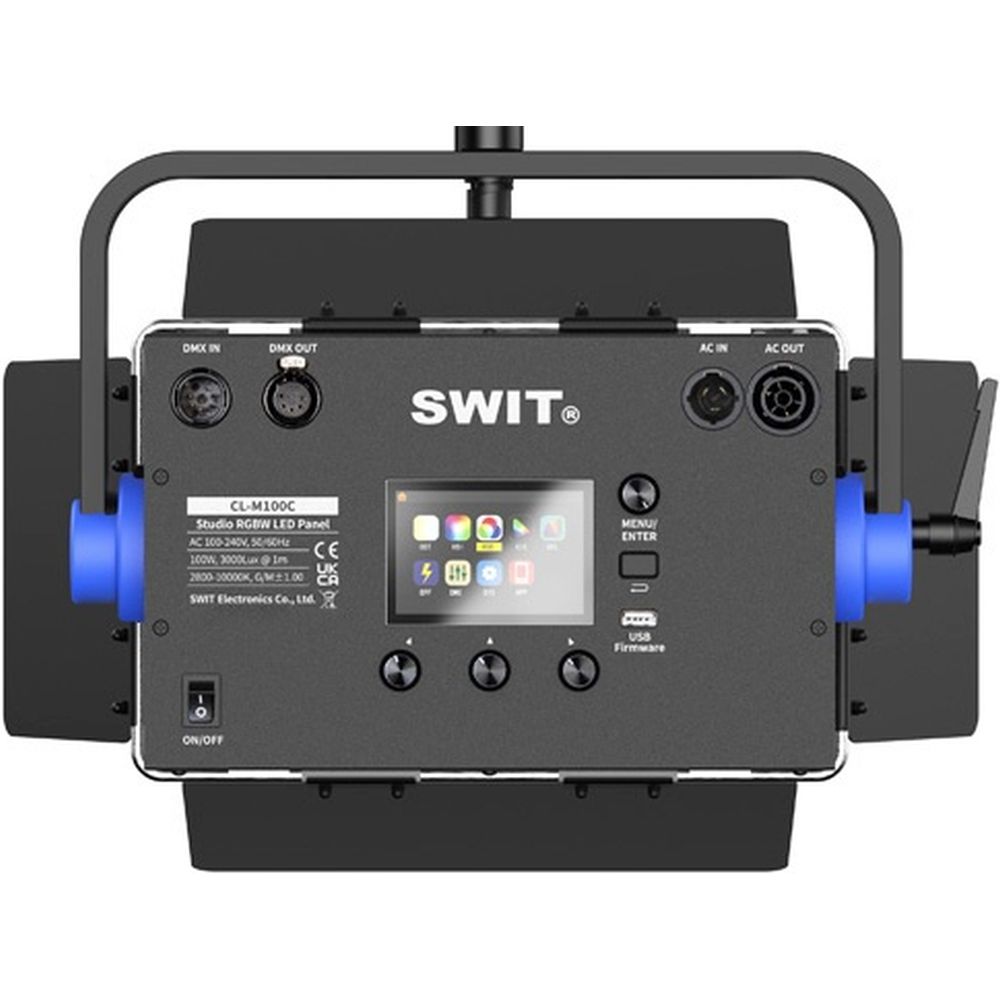

The control panel on the rear of the CL-M100C supports 5-pin DMX in and out, and features a large colour display with a menu and shortcut keys for easy colour selection. The USB-A port is intended for firmware updates, uploading custom colour profiles, and powering a wireless DMX receiver.

Download the SWIT Console app from the iOS App Store or Google Play to connect and control CL-M100C lights via Bluetooth.
