SWIT FLOW2000 600m new generation professional Wireless FHD Video Transmission

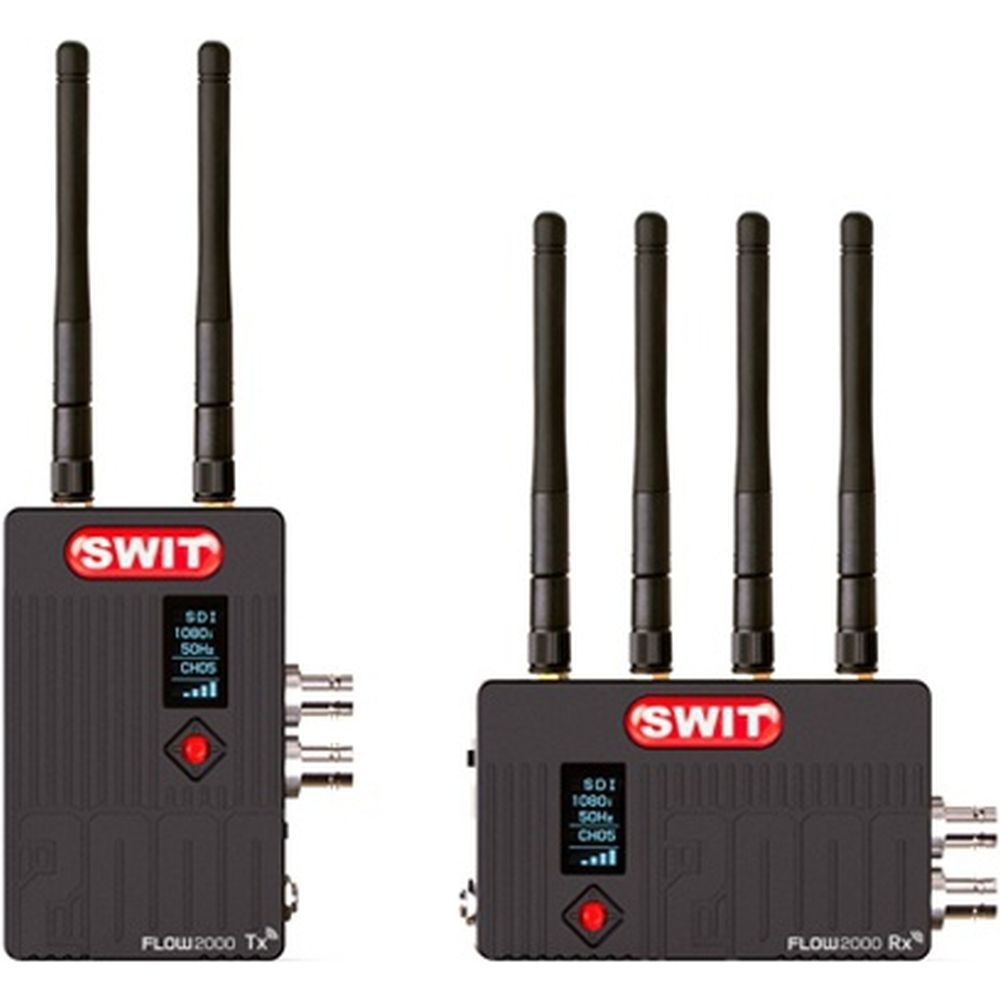

The system is entirely based on hardware connections, plug-and-play, and is widely used for director monitoring, drones, cable cam, steadicams, etc. The transmitter (Tx) has 2 omnidirectional antennas and supports:

• 1x 3G/HD-SDI input
• 1x 3G/HD-SDI loop output
• 1x HDMI 1.3 input

The receiver (Rx) has 4 omnidirectional antennas and supports:

• 2x 3G/HD-SDI output
• 1x HDMI 1.3 output

SDI and HDMI formats:

• 1080p60, 1080p59.94, 1080p50
• 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30
• 1080p/23.98, 1080p/24
• 1080i60, 1080i59.94, 1080i50
• 720p60, 720p59.94, 720p50

The FLOW2000 wireless transmitter supports reliable wireless transmission over 600 metres (line of sight) and delivers improved performance through walls thanks to both RF optimisation and image quality optimisation. This keeps video transmission stable, without data loss or interference, unlike standard 5GHz wireless transmitters. (\* Supports SDI and HDMI® audio transmission (CH1&2).)

The FLOW wireless connection operates on 5 GHz and features a built-in wireless scanner that detects the wireless status of all frequencies. The device automatically switches to the best wireless channel for a reliable connection and transmission, and complies with the DFS standard. You can also manually switch between the 7 non-DFS-restricted channels.

Both the transmitter and receiver feature an OLED display showing the signal format, wireless channel number, and signal strength. Supports 1 transmitter to an unlimited number of receivers in reliable multicast mode. The transmitter and receivers are paired and double-encrypted with a private transmission protocol and AES128 to protect your data.

The FLOW series uses professional KUWI 5 GHz wireless technology and can maintain a connection in any complex wireless environment, such as sports stadiums, concert halls, or public squares filled with people, electronic devices, or Wi-Fi routers. To guarantee the quality of black levels, signal noise, and colour rendering of the wirelessly received signal, the FLOW series wireless receiver supports synchronisation and accurate colour rendering.

The FLOW series wireless receiver features a Micro USB port and supports OTG USB firmware updates for future expansion of functionality. Power consumption of both the transmitter and receiver is less than 8W. Both the transmitter and receiver are equipped with an NP-F DV battery plate and a lockable DC input of 7–34V.
