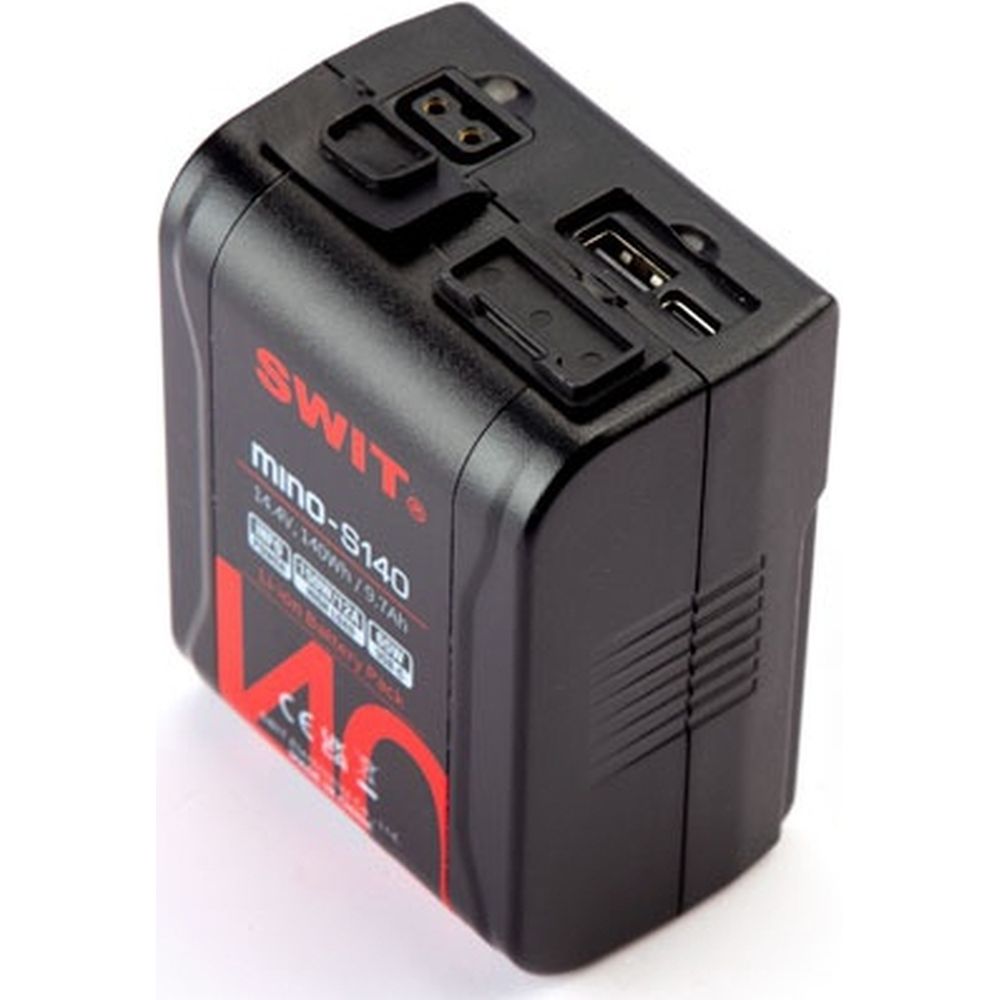

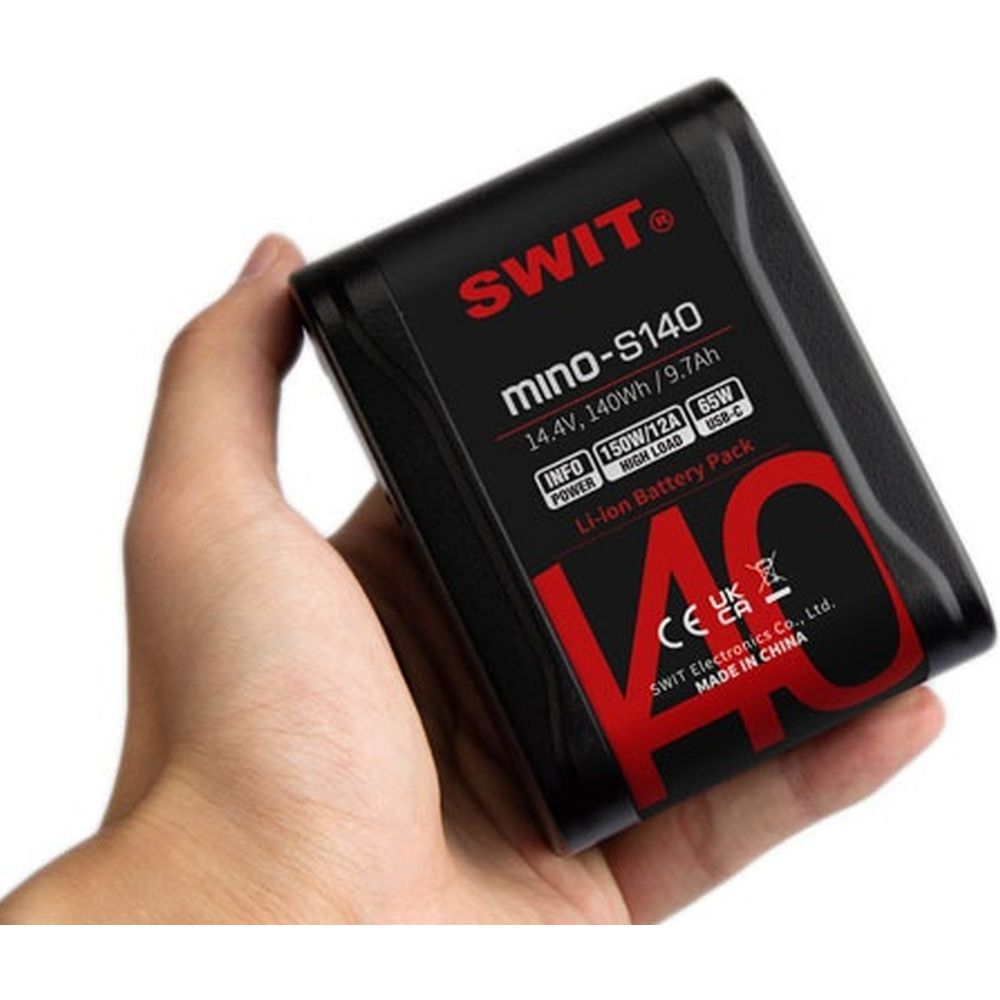

SWIT Mino-S140 140Wh Pocket V-mount Battery Pack

Article number:

12546255

SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
  • SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
  • SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
  • SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
  • SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
List price €422,-
€261,-

Delivered within 3 to 4 working days.
SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
€261,-

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period
The SWIT Mino-S140 140Wh Pocket V-mount Battery Pack is the smallest 140Wh V-mount battery you've ever seen! The Mino-S140 is a compact battery with large capacity and a 65W USB-C connection, suitable for cameras, monitors, accessories, tablets, laptops and all kinds of devices on the film set.

SWIT Mino-S140 140Wh Pocket V-mount Battery Pack

The SWIT Mino-S140 140Wh Pocket V-mount Battery Pack is the smallest 140Wh V-mount battery you've ever seen! The Mino-S140 is a compact battery with a large capacity and a 65W USB-C port, suitable for cameras, monitors, accessories, tablets, laptops and all kinds of devices on the film set.

The Mino-S140 consists of 8 high-capacity cells, with a capacity of 140Wh/9.7Ah, and supports a constant high load of at least 150W/12A, for powerful cinema cameras and lights. Compared to the popular SWIT 98Wh Pocket V-mount battery, the new Mino-S140 offers 43% more capacity, while still being compact and easy to carry.

The compact Mino-S140 has made no compromises on DC connections:

D-tap x1 - 120W/10A high load (supports charge input)

USB-A x1 - 5V/2A output

USB-C x1 - 65W output and 48W charge input

The Mino-S140 battery can be charged with a separately available USB-C charger and supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and up to 20V 2.4A, meaning you can fully charge the 140Wh battery within 3.5 hours.

You can power your laptop via USB-C with the Mino-S140 battery on the film set. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and up to 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP and multiple protocols. (For MacBook Air/13, MacBook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

The Mino-S140 features innovative "wireless" internal technology. All cells, D-tap, USB-A, USB-C and power indicators are soldered directly onto the circuit board, without connecting wires. This effectively reduces internal resistance and ensures a stable, safe and reliable circuit.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT Mino-S140 140Wh Pocket V-mount Battery Pack

  • Compact V-mount battery, fits in trouser pocket
  • Compatible with RED V-Raptor installation
  • Capacity: 140 Wh/9.7 Ah
  • 150 W/12 A constant high load
  • 1x D-tap output & charging input
  • 1x USB-A 5 V/2 A output
  • 1x USB-C 48 W input & 65 W output
  • 4-step LED power indicator
  • Power information for both Sony and RED
  • Wireless internal technology
  • Strong drop resistance up to 1.2 metres
  • Multiple circuit protections
  • Nominal voltage: 14.4 V
  • Charging temperature: 0 - 40°C
  • Discharging temperature: -20°C - 50°C (capacity and maximum load may decrease when used below 0°C)
  • Dimensions: 105 x 79.6 x 55.5 mm (fits RED Raptor)
  • Weight: 710 grams

In the Box

  • 1x SWIT Mino-S140 140Wh Pocket V-mount Battery Pack
Connections & Connectivity
USB-A ports (Units) 1.0 Units
USB-C ports (Units) 1.0 Units
Outputs 1x D-Tap (150W/12A)
Dimensions & Weight
Length (mm) 105.0 mm
Weight (g) 713.0 g
Width (mm) 79.0 mm
Height (mm) 55.5 mm
General
Color Black
Max. current (A) 12.0 A
Power
Capacity (Wh) 140.0 Wh
Chemistry Li‑ion
D-Tap ports (Units) 1.0 Units
LED indicator
Max. output (W) 150.0 W
Charging via D‑Tap
Voltage (V) 14.4 V
USB‑C Power Delivery
