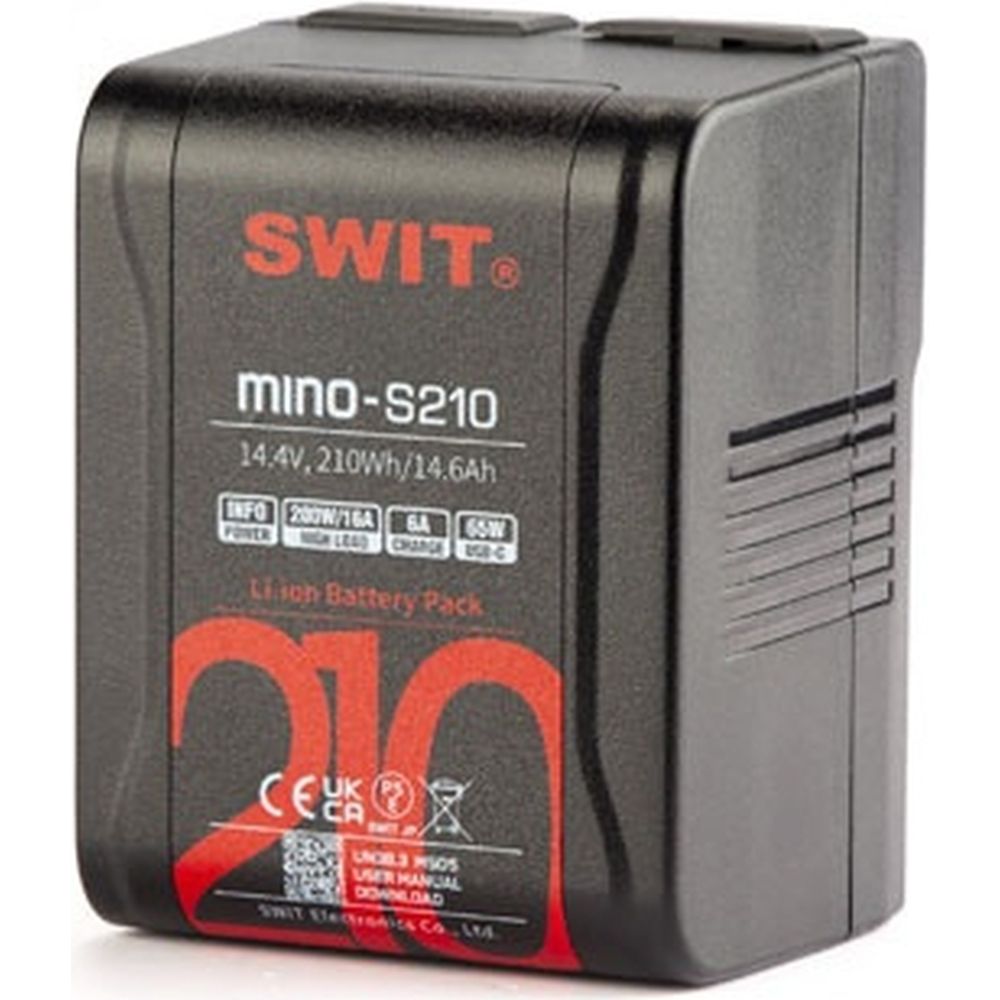

SWIT Mino-S210 210Wh Pocket V-mount Battery Pack

SWIT Mino-S210 210Wh Pocket V-mount Battery Pack

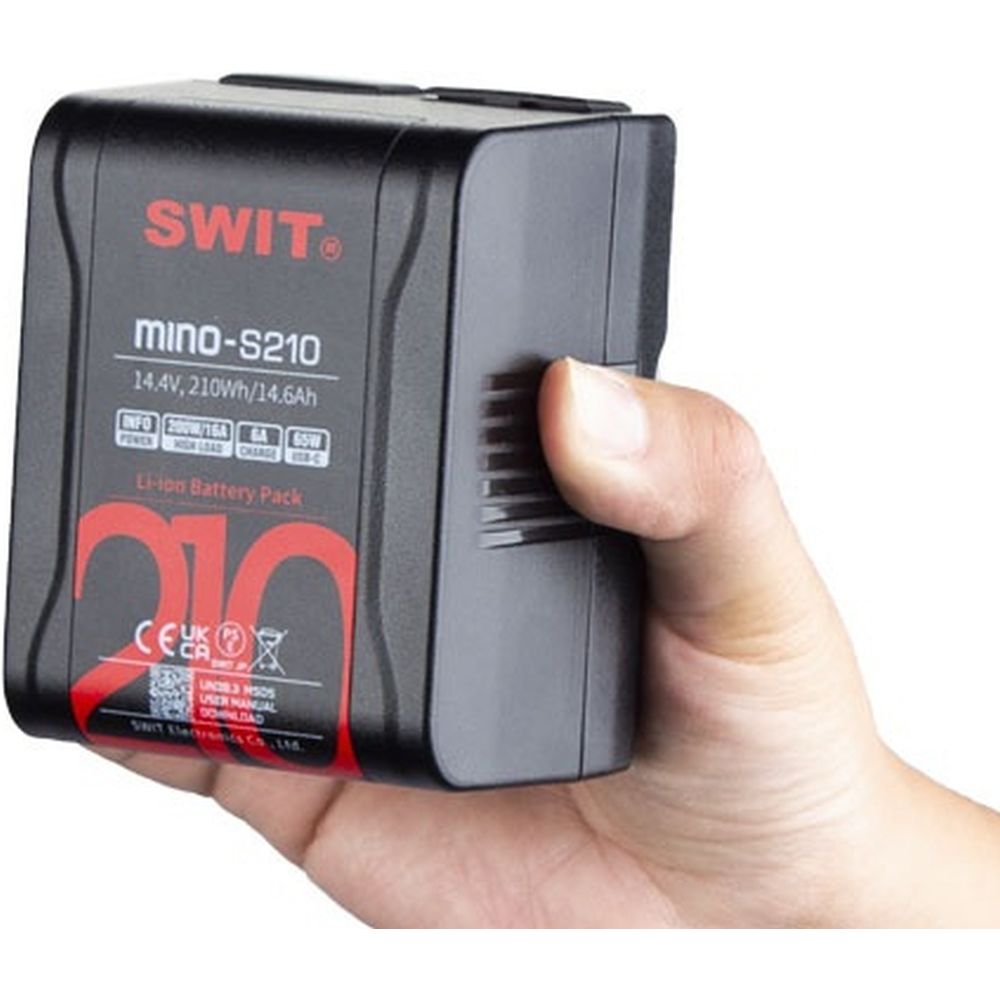

The SWIT Mino-S210 210Wh Pocket V-mount Battery Pack is a high-capacity V-mount battery small enough to fit in your pocket. Compatible with cinema cameras, lights, and a wide range of film equipment. It's compact enough to mount on the RED V-Raptor and can power the camera for a minimum of 3 hours.

As a high-capacity 210 Wh battery, the MINO-S210 has a compact form factor of 105 x 79.6 x 73.8 mm and weighs just 1.02 kg — small enough to slip into your pocket. The MINO-S210 features 12 high-capacity cells delivering 210 Wh/14.6 Ah and supports a sustained high load of at least 200 W/16 A, making it suitable for powerful cinema cameras and lights.

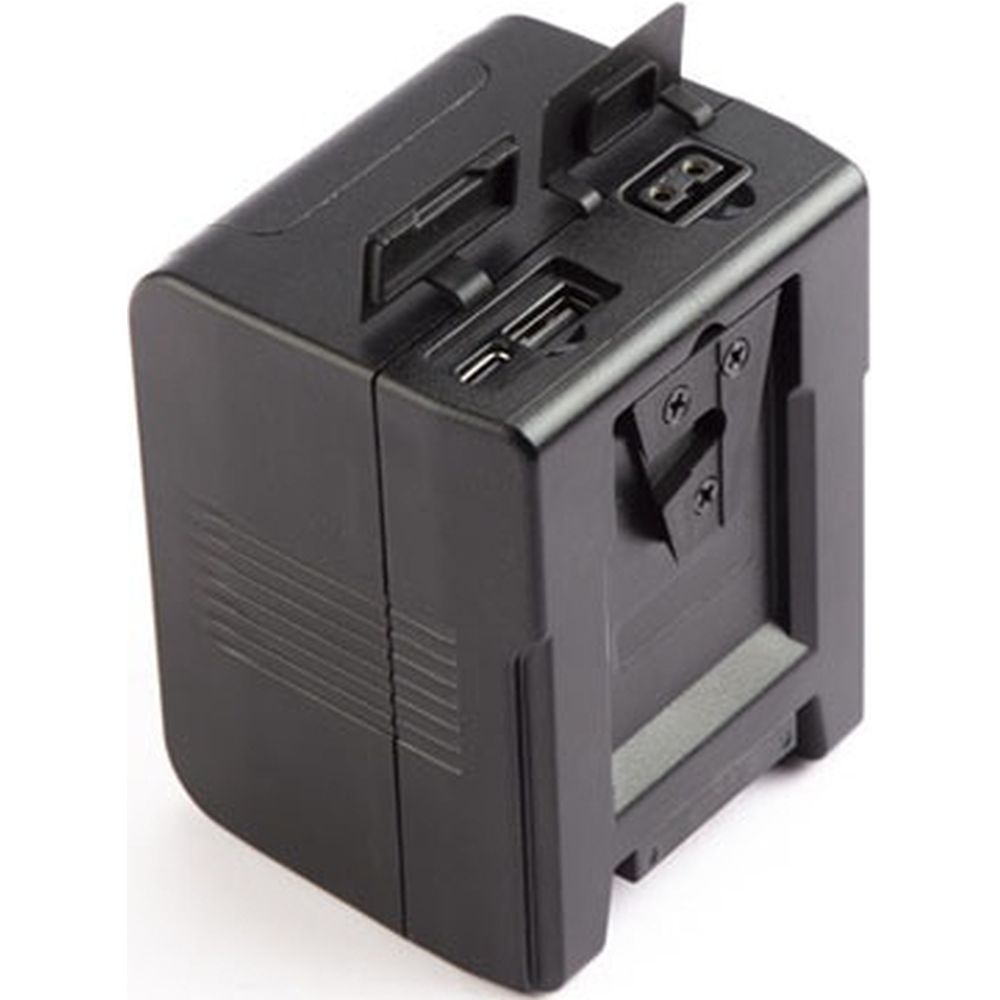

The MINO-S210 is equipped with multiple DC outputs:

D-tap x1 – 120 W/10 A load (supports charging input)

USB-A x1 – 5 V/2 A output

USB-C x1 – 65 W output and 48 W charging input

The MINO-S210 battery can be charged using a separately available USB-C charger and supports PD 5 V/9 V/12 V/15 V/20 V (max.) 2.4 A, 48 W charging input, meaning you can fully charge the 210 Wh battery within 5 hours.

You can power your laptop via USB-C using the MINO-S210 battery on set. It supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and up to 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP and multiple protocols. (Compatible with MacBook Air/13, MacBook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and virtually all laptops with USB-C ports.)

The MINO-S210 features innovative "wireless" internal technology. All cells, D-tap, USB-A, USB-C and power indicators are soldered directly onto the PCB with no connecting wires. This effectively reduces internal resistance, resulting in a stable, safe, and reliable circuit.
