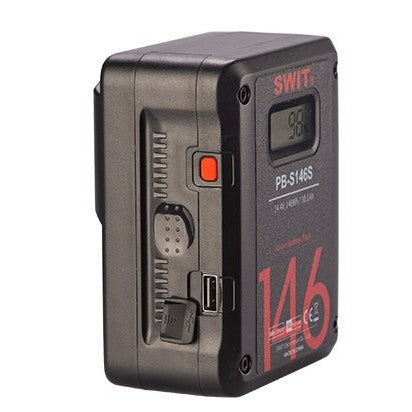

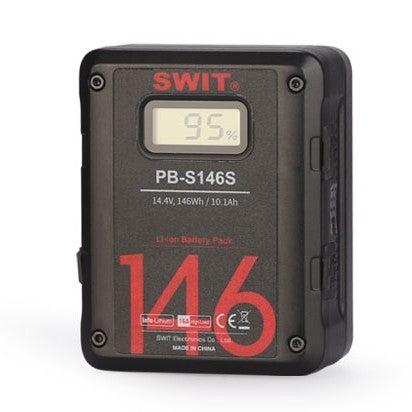

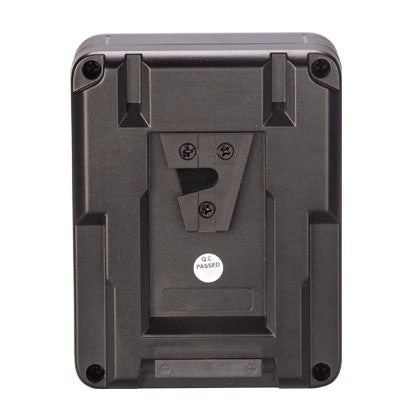

The Swit PB-S146S 146Wh Multi-sockets Square Digital Battery Pack is designed to power Cine cameras for longer. Thanks to the compact design, the battery is suitable for most Cine Cameras.

Swit PB-S146S 146Wh Multi-sockets Square Digital Battery Pack

The Swit PB-S146S 146Wh Multi-sockets Square Digital Battery Pack is designed to power Cine cameras for longer. Thanks to the compact design, the battery is suitable for most Cine Cameras.

The V-mount battery features 18650 battery cells, has a nominal voltage of 14.4V and achieves 146Wh / 10.1Ah larger capacity. The battery delivers at least 200W/16A high load, even at 1% capacity. With the battery you can shoot images for about 5 hours with standard 30W cameras.

The battery features two D-tap output connectors with 10A/120W load and one USB 5V/2A socket to power other on-camera devices together. You can read the remaining energy percentage and remaining run time on the integrated LCD display. The battery also gives a warning in the event of over/under charging. The LCD screen supports the display of viewfinder information on both SONY and RED cameras.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the Swit PB-S146S 146Wh Multi-sockets Square Digital Battery Pack

  • V mount battery
  • Provides 5 hours of power to standard 30W cameras
  • 18650 battery cells
  • 14.4V / 10.1Ah
  • 200W/16A high load even at 1% capacity
  • 2x D-tap output connections with 10A/120W load
  • 1x USB 5V/2A socket
  • Integrated LCD display

In the Box

  • Swit PB-S146S 146Wh Multi-sockets Square Digital Battery Pack
Connections & Connectivity
USB-A ports (Units) 1.0 Units
Outputs 2x D-Tap
Dimensions & Weight
Length (mm) 121.0 mm
Weight (g) 878.0 g
Width (mm) 95.0 mm
Height (mm) 59.0 mm
General
Color Black
Max. current (A) 16.0 A
Power
Capacity (Wh) 146.0 Wh
Chemistry Li‑ion
D-Tap ports (Units) 2.0 Units
LED indicator
Max. output (W) 200.0 W
Charging via D‑Tap
Voltage (V) 14.4 V
USB‑C Power Delivery
