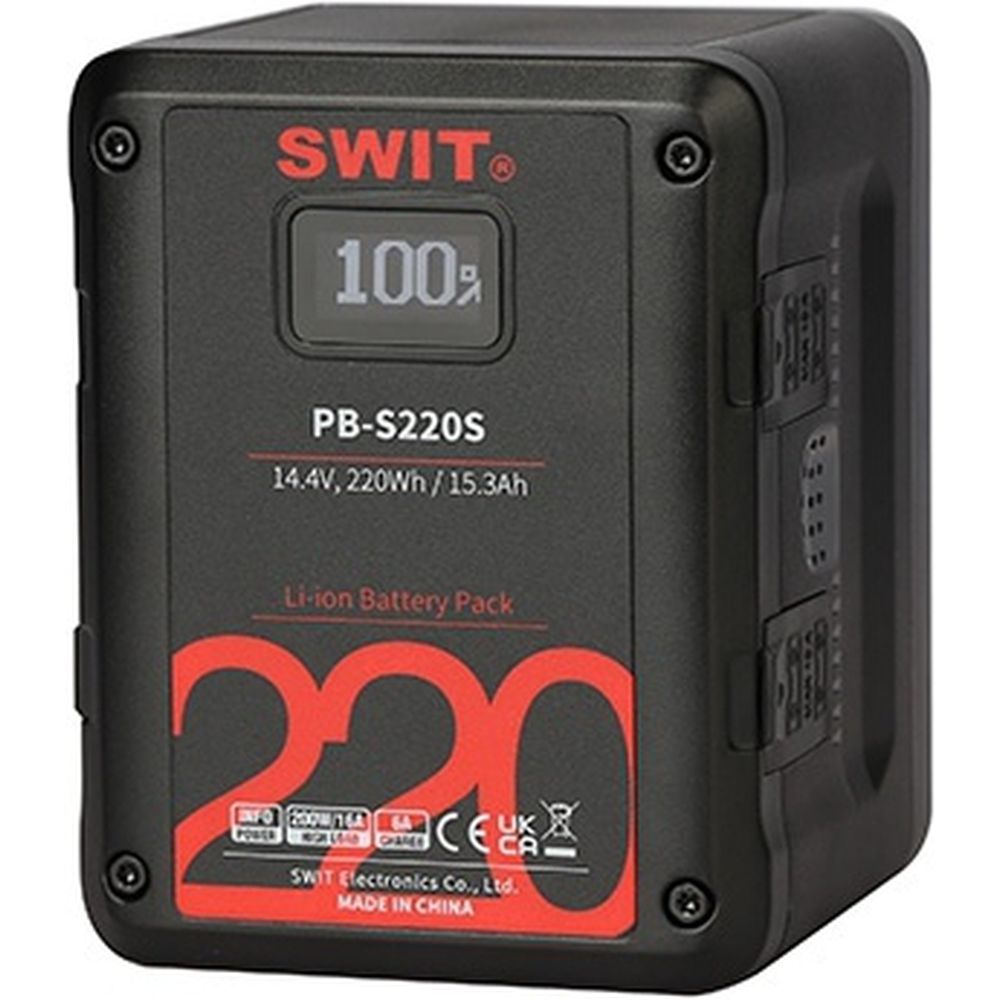

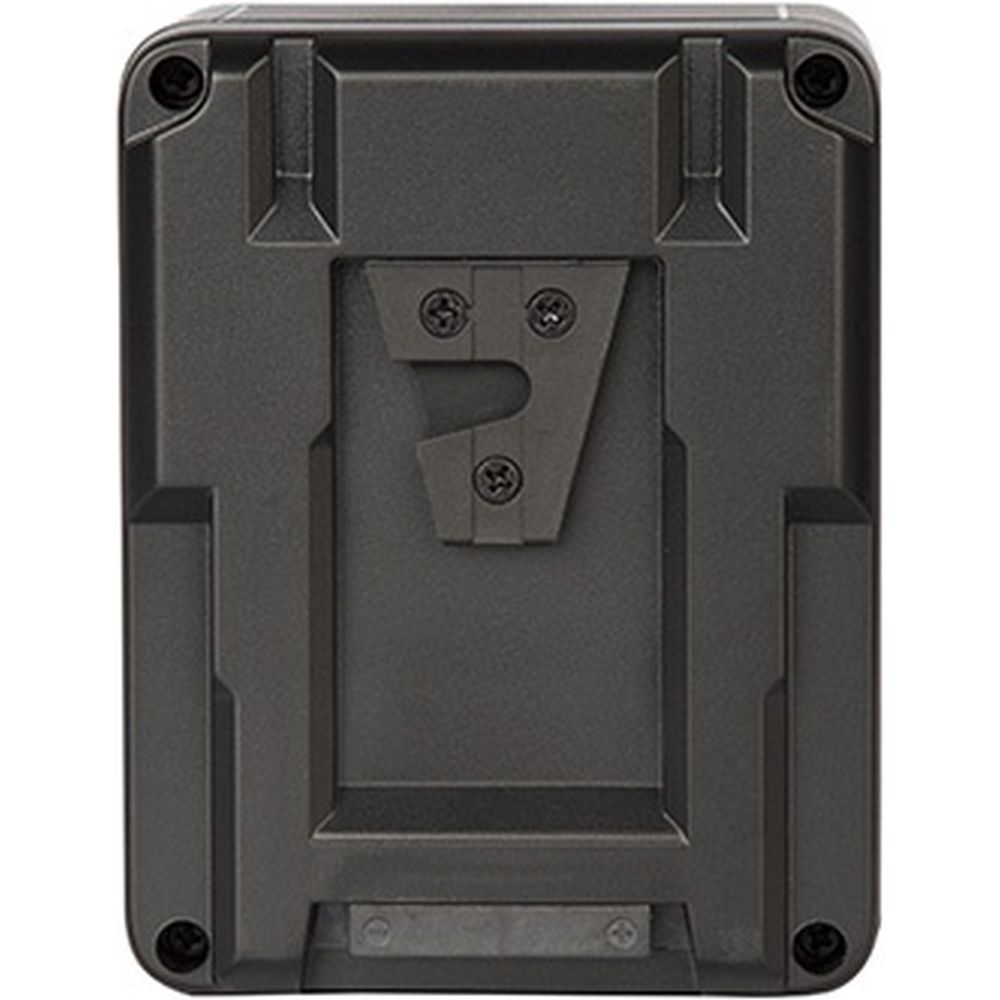

SWIT PB-S220S 220WH V-mount battery

SWIT PB-S220S 220WH V-mount battery

The SWIT PB-S220S 220WH V-mount battery features a compact design, shorter than standard V/Gold batteries, and fits perfectly with most cinema cameras. It consists of 24 high-quality 18650 battery cells, with a nominal voltage of 14.4 V and a high capacity of 220 Wh / 15.3 Ah. The battery can run for approximately 7 hours with standard ENG cameras and around 2.5 hours with the ARRI ALEXA.

The PB-S220S delivers a high load of at least 200 W / 16 A, even at 1% capacity, to power demanding cinema cameras and on-camera devices simultaneously. The high-load cells also ensure the battery lasts longer than standard-load batteries, even under prolonged full load.

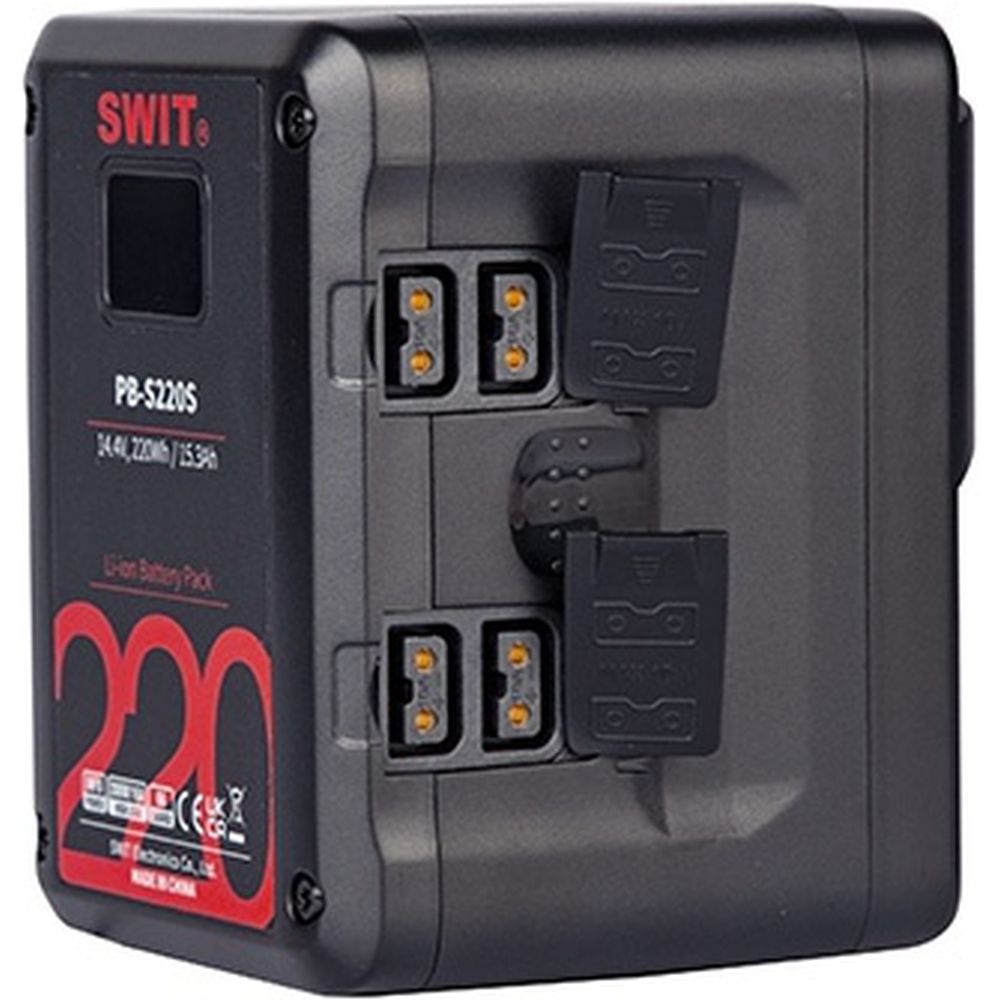

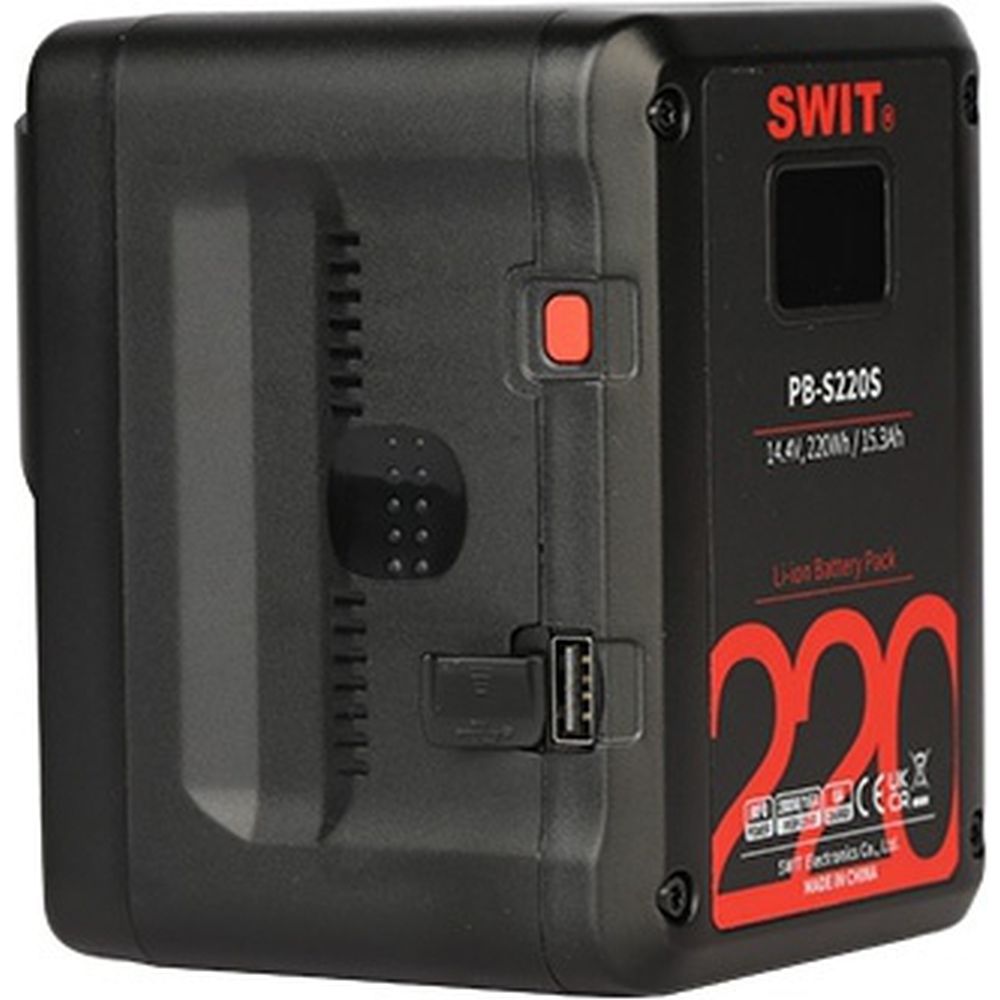

The PB-S220S features 4 D-tap outputs with a 10A/120W load rating, all of which support charging inputs. The USB port delivers 5V/2A.

The PB-S220S supports fast charging at 6A via the separately available SWIT PC-P461S or S-3812S fast charger, saving more than 50% of charging time. The 220Wh PB-S220S battery can be charged from 0 to 80% in 2.3 hours and fully charged in 3.5 hours.

The built-in OLED display shows the remaining power percentage, remaining runtime, and battery cycle count, and supports viewfinder information display on both Sony and RED cameras.

When overload, overcharging, short circuit, or high/low temperatures are detected, the battery protects itself and displays safety information. You can take action to reactivate the battery to ensure optimal battery condition and extend its lifespan.
