ViewSonic LED touch monitor TD2223 22"

Article number:

12479960

ViewSonic LED touch monitor TD2223 22"

The ViewSonic LED touch monitor TD2223 22" is an IR touch screen designed for intuitive multi-touch use. Infrared (IR) touch screen can detect up to 10 contact points compared to optical touch screens and can be operated with a stylus, fingers and gloved hands. Multi-touch input is more accurate and display is faster. Combined with an adjustable tilt, you can easily interact with the TD2223 in an ideal position. This monitor has Full HD resolution to give you clear images and is built with a scratch-resistant 7H hardness screen to prevent surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectors.

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, gentle press and swipe. This monitor supports the major operating systems: Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

This monitor can be operated with a stylus\* and gloves on, which improves hygiene and is effective for selecting, dragging and drawing. Moreover, a holder for a magnetic pen is built-in. (\*The stylus is an optional accessory. The minimum diameter of the tip of the stylus pen must be at least 6 mm or more).

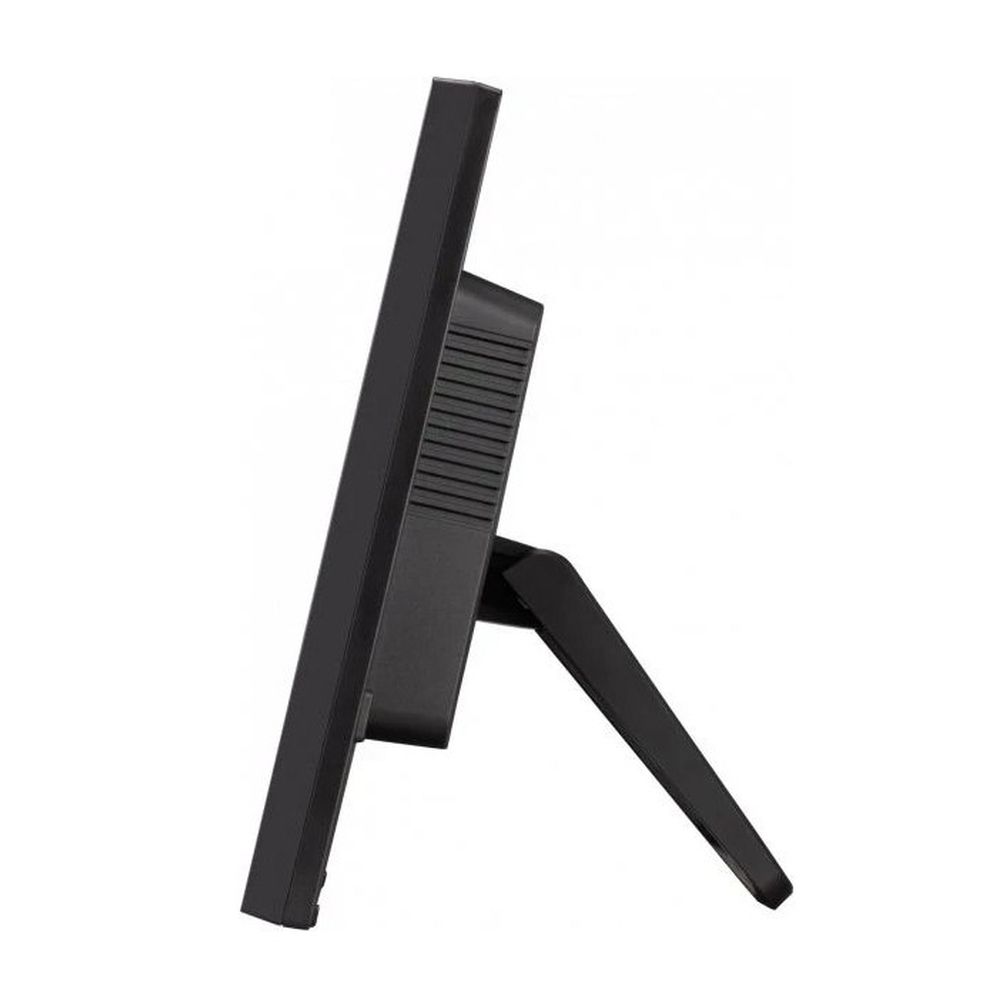

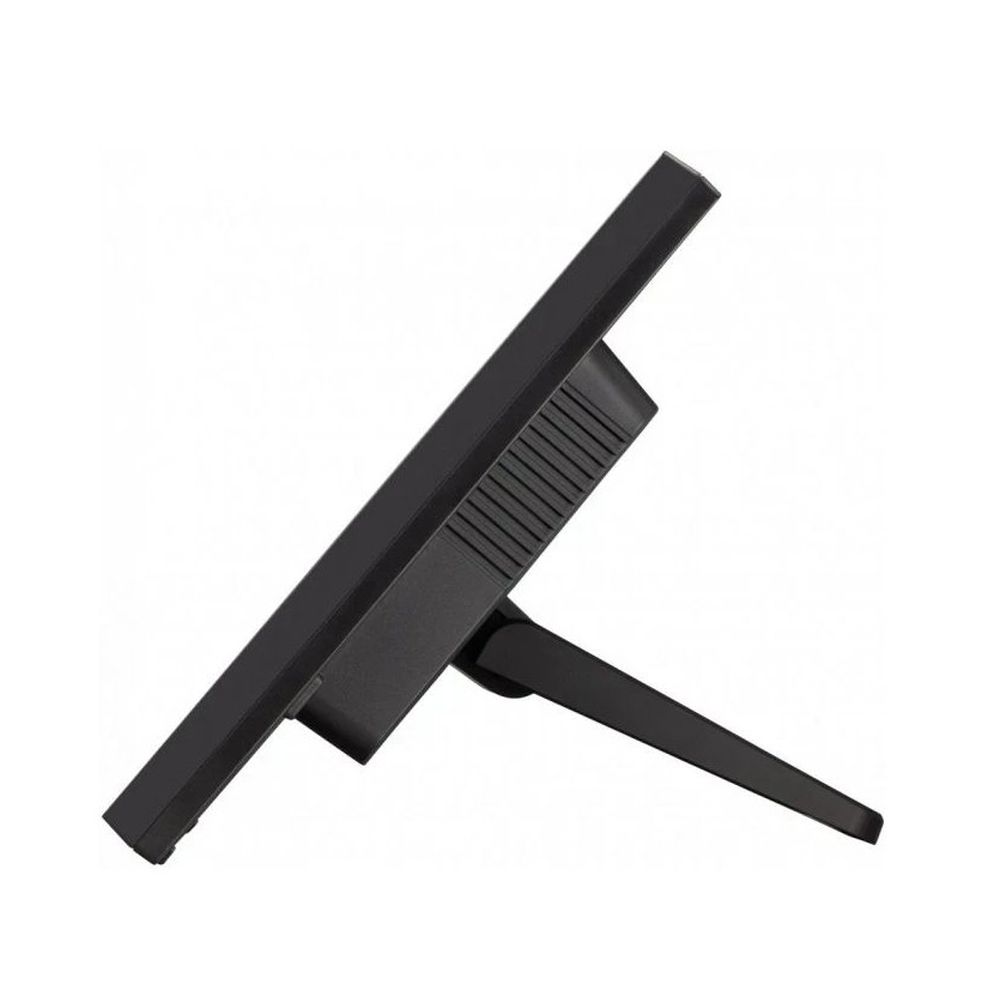

With a built-in screen with a hardness of 7H, it is resistant to surface damage caused by sharp objects. This monitor has an adjustable tilt, allowing you to easily tilt back up to 40 degrees, making it suitable for everyone.

Information on the EU General Product Safety Regulation (GPSR)

ViewSonic Europe Limited

Miles Street 10 SW8 1GX London

vsbnl@viewsonic.com

06-82428620

Features of the ViewSonic LED touch monitor TD2223 22"

  • Intuitive 10-point touchscreen
  • Compatible with finger, stylus and glove
  • Magnetic pen holder
  • Adjustable back up to 40 degrees
  • Scratch-resistant 7H hardness screen
  • Screen size: 22 inches
  • Panel type: TN Technology
  • Resolution: 1920 x 1080
  • Resolution type: Full HD
  • Static contrast ratio: 1000:1 (typ)
  • Dynamic contrast ratio: 20M:1
  • Brightness: 250 cd/m² (typ)
  • Aspect ratio: 16:9
  • Response time (Typical GTG): 5ms
  • Response time (GTG w/OD): 5ms
  • Viewing angles: 170º horizontally, 160º vertically
  • Curvature: flat
  • Refresh rate: 75Hz
  • Touchscreen: IR, 10-point touchscreen
  • Dimensions with stand (WxHxD): 521 x 334 x 101 mm
  • Dimensions without stand (WxHxD): 521 x 318 x 61 mm
  • Weight with stand: 4.5 kg
  • Weight without stand: 3.9 kg

In the Box

  • ViewSonic LED touch monitor TD2223 22"
  • 3-pin plug (IEC C13 / CEE22)
  • HDMI cable (v1.4; Male-Male)
  • USB A/B cable (v2.0; Male-Male)
  • Audio cable (Male-Male)
  • Quick start guide
Connections & Connectivity
HDMI 1.4
DisplayPort 1.4
DisplayPort 2.1
USB-C (DP Alt)
Thunderbolt 3
Thunderbolt 4
Audio 3.5mm
Ethernet
Other (connection) VGA
Dimensions & Weight
Length (mm) 101.0 mm
Weight (g) 3700.0 g
Width (mm) 519.0 mm
Height (mm) 329.0 mm
General
Color Black
VESA standard 100x100
Display & Viewing
Panel type TN
Screen size (in) 22.0 in
Resolution Full HD
Refresh rate (Hz) 75.0 Hz
Aspect ratio 16:9
Contrast ratio 1000:1
Built-in speakers
Touchscreen
Shape (flat/curved) Flat
