The Atomos Ninja TX combines SDI and HDMI inputs and outputs, Apple ProRes/RAW recording to ultrafast CFexpress or external USB media, with a complete suite of professional monitoring tools.

Atomos Ninja TX

The Atomos Ninja TX combines SDI and HDMI inputs and outputs, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a complete set of professional monitoring tools. It features built-in camera-to-cloud functionality with a free ATOMOSphere membership, supports NDI 6 streaming, and runs on the lightning-fast AtomOS Linux platform. No other monitor-recorder combines this much performance and compatibility in such a compact, connected device.

Information on the EU General Product Safety Regulation (GPSR)

Mafico BV

Dorsvloerweg 897, 2661 MN Bergschenhoek, The Netherlands

Features of the Atomos Ninja TX

  • Record in Apple ProRes, Avid DNx or H.265/H.264
  • Record to CFexpress Type B or USB-C storage
  • Ultra-bright 5-inch touchscreen at 1500 cd/m²

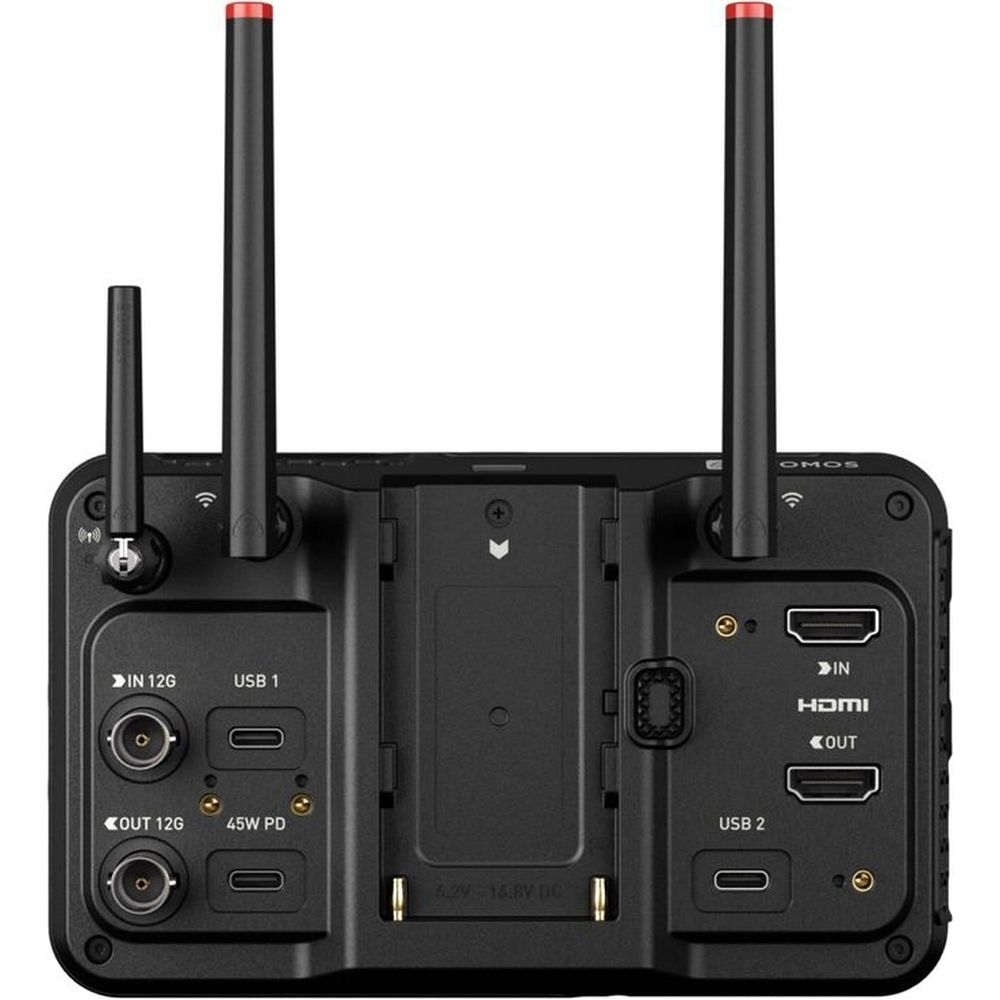

  • HDMI 2.0, 12G-SDI and WiFi 6E input and output
  • Direct upload to ATOMOSphere, Frame.io, Dropbox
  • Timecode synchronisation via RF or Bluetooth
  • Powered by USB-C, NP-F battery or mains adapter
  • Input voltage: 6.2 V to 16.8 V DC
  • Operating power: Up to 30 W
  • Multi-function button: Power on/off / lock screen
  • Continuous power: Via NP-F battery or USB-C PD power
  • DC input: Via battery eliminator (optional)
  • D-TAP: Up to 13 W
  • USB PD input: Suitable for 45 W, power supply required
  • USB PD output: Up to 13 W
  • Screen: 5.2 inch
  • Resolution: 1920 x 1080
  • Backlight type: Edge-lit
  • Brightness: 1500 cd/m²
  • Aspect ratio: 16:9
  • Colour gamut: Rec. 709
  • Dimensions: 151 x 92 x 36 mm
  • Weight: 400 grams

In the Box

  • 1x Ninja TX device
  • 1x USB-C locking cable adapter
  • 1x USB-C locking cable (45 cm)
  • 1x HDMI locking cable adapter
  • 1x Wi-Fi antenna + antenna caps
  • 1x AirGlu antenna + antenna caps
  • 1x Quick start guide
Connections & Connectivity
HDMI 1.4
HDMI 2.0
HDMI 2.1
DisplayPort 1.4
DisplayPort 2.1
USB-C (DP Alt)
Thunderbolt 3
Thunderbolt 4
Audio 3.5mm
Ethernet
Other (connection) 12G-SDI in/out
Dimensions & Weight
Length (mm) 75.0 mm
Weight (g) 665.0 g
Width (mm) 190.0 mm
Height (mm) 130.0 mm
General
Color Black
VESA standard None
Display & Viewing
Hardware calibration
Color gamut (coverage) Rec.709
Panel type IPS
Screen size (in) 5.2 in
HDR support
Resolution Full HD
Aspect ratio 16:9
Touchscreen
Shape (flat/curved) Flat
