Blackmagic Ethernet Switch 820

Article number:

12573726

Blackmagic Ethernet Switch 820
Blackmagic Ethernet Switch 820
  • Blackmagic Ethernet Switch 820
  • Blackmagic Ethernet Switch 820
  • Blackmagic Ethernet Switch 820
€2504,-
On order
Blackmagic Ethernet Switch 820
Blackmagic Ethernet Switch 820
€2504,-

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period

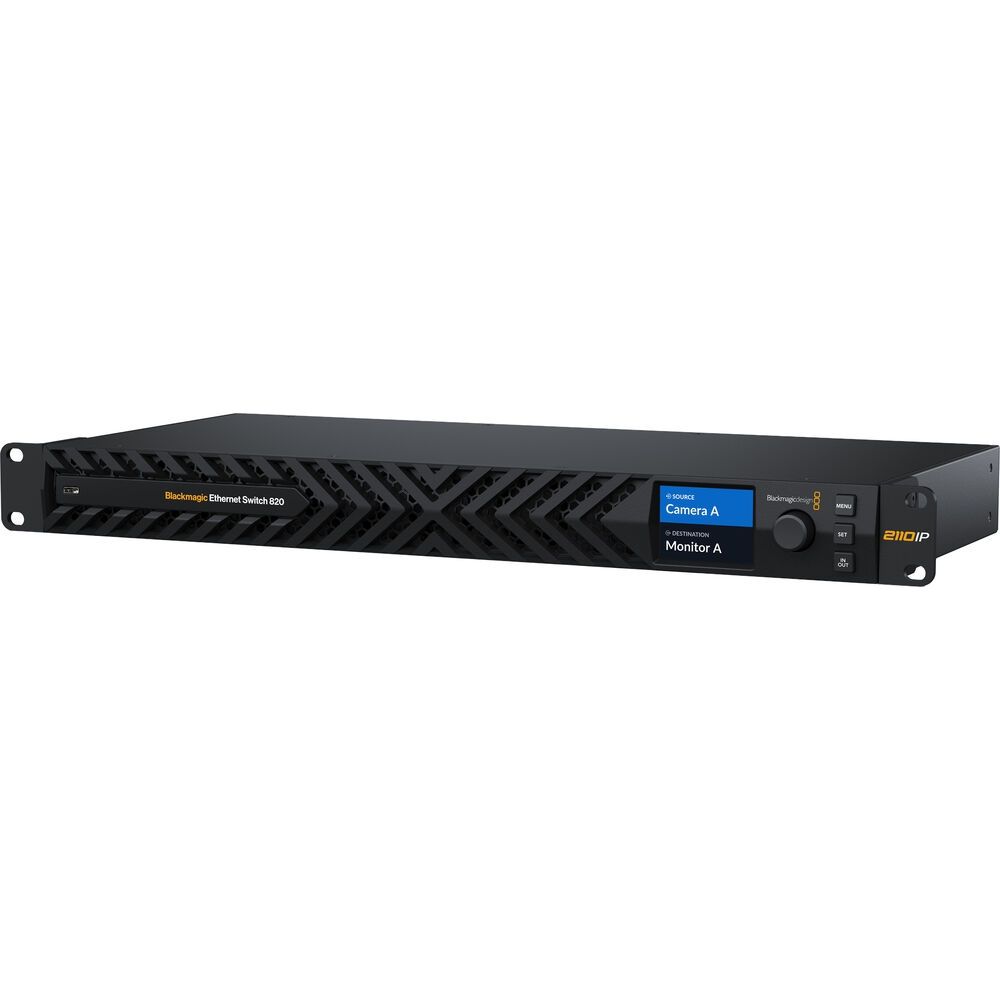

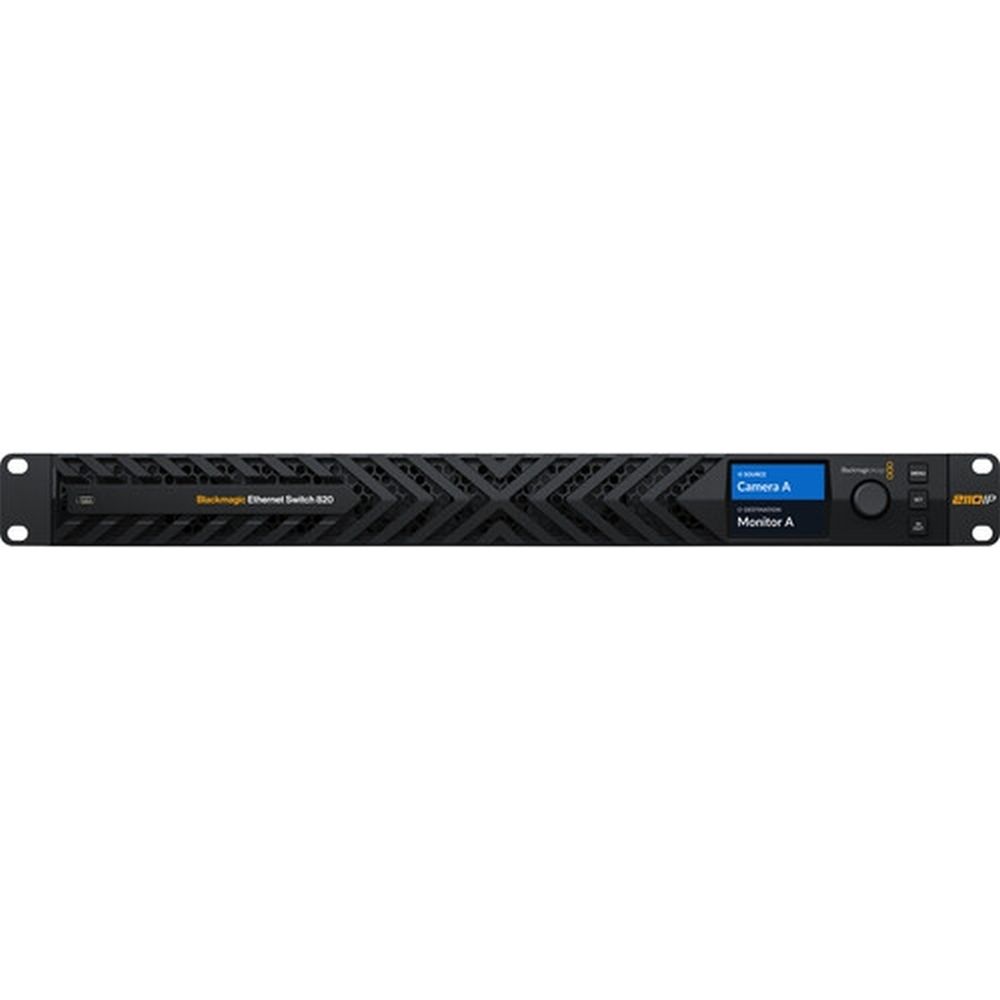

The Blackmagic Ethernet Switch 820 is designed for SMPTE 2110 video, a widely used technology in the film and television industry, and delivers extremely high performance with eight fast 100G Ethernet QSFP ports. The device features a ventilated design at the front and rear with redundant power supply and is equipped with two fast 10G Ethernet ports, two PTP clock ports, a 1G control port and a 1G management port.

Blackmagic Ethernet Switch 820

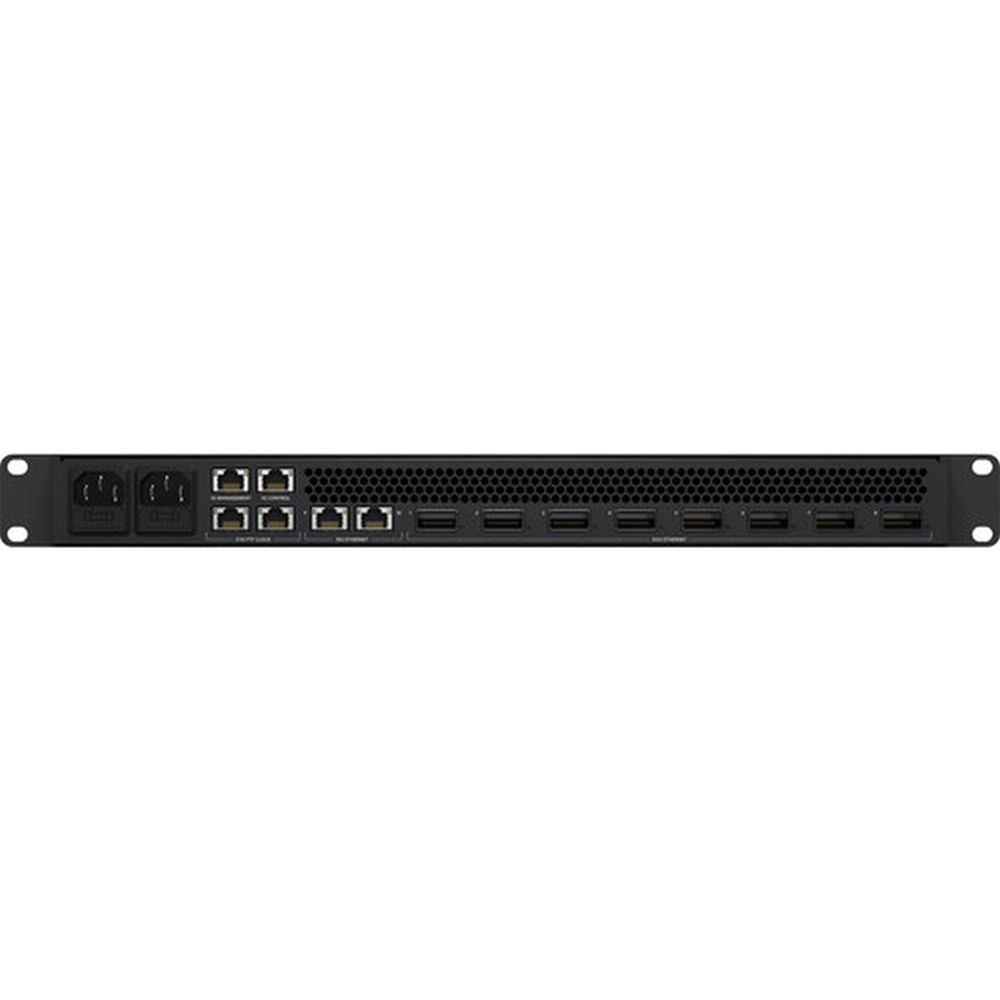

All ports are conveniently located at the rear of the unit for easy cabling, making it ideal for use in mobile kits and small broadcast vehicles. You can now build small 2110 IP systems, such as mobile kits or small broadcast vehicles. The 2110 multicast settings are configured via a simple router panel, meaning no IT technician is required and there are no complex multicast settings to deal with.

You get 10G Ethernet ports for connecting HyperDeck ISO recorders and DaVinci Resolve workstations. You can then connect a Blackmagic Cloud Store Ultra to the extremely fast 100G Ethernet ports.

The dedicated management port makes it possible to use the Blackmagic Ethernet Switch Utility software for status monitoring and software updates. This port is isolated from the control, video, and audio networks, so it does not interfere with operations. Download Blackmagic Ethernet Utility free of charge for macOS or Windows.

Two redundant PTP clock Ethernet ports ensure accurate SMPTE 2110 time synchronisation. If one connection fails, the second port seamlessly maintains the timing signal. You can also connect two separate grandmaster clocks for added reliability in the event of equipment failures or cable breaks.

Information on the EU General Product Safety Regulation (GPSR)

Blackmagic Design

Runcorn WA7 1ST, Christleton Court 5-B, United Kingdom

Features of the Blackmagic Ethernet Switch 820

  • Designed for SMPTE 2110 video
  • 8 x 100G and 2 x 10G Ethernet ports
  • Ventilated design on front and rear
  • Rear ports for easier cabling
  • 1G control, 1G management
  • 2 x PTP clock ports
  • Redundant power supply
  • Dimensions: 48.3 x 21.6 x 4.42 cm

In the Box

  • 1x Blackmagic Ethernet Switch 820

Not included: Power cable
General
Color Black
Compatibility
Compatible with brand/series SMPTE-2110 IP-videosystemen; NMOS-besturing en PTP-referentieklok
