Blackmagic URSA Studio Viewfinder G2

Article number:

12491627

Blackmagic URSA Studio Viewfinder G2
Blackmagic URSA Studio Viewfinder G2
  • Blackmagic URSA Studio Viewfinder G2
  • Blackmagic URSA Studio Viewfinder G2
  • Blackmagic URSA Studio Viewfinder G2
  • Blackmagic URSA Studio Viewfinder G2
€1628,-

Delivered within 3 to 4 working days.
Blackmagic URSA Studio Viewfinder G2
Blackmagic URSA Studio Viewfinder G2
€1628,-

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,287 photographers

    Not happy? 14-day return period
Add the Blackmagic URSA studio viewfinder G2 to your URSA studio G2 or URSA nini camera for high-resolution monitoring. The 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD screen.

Blackmagic URSA Studio Viewfinder G2

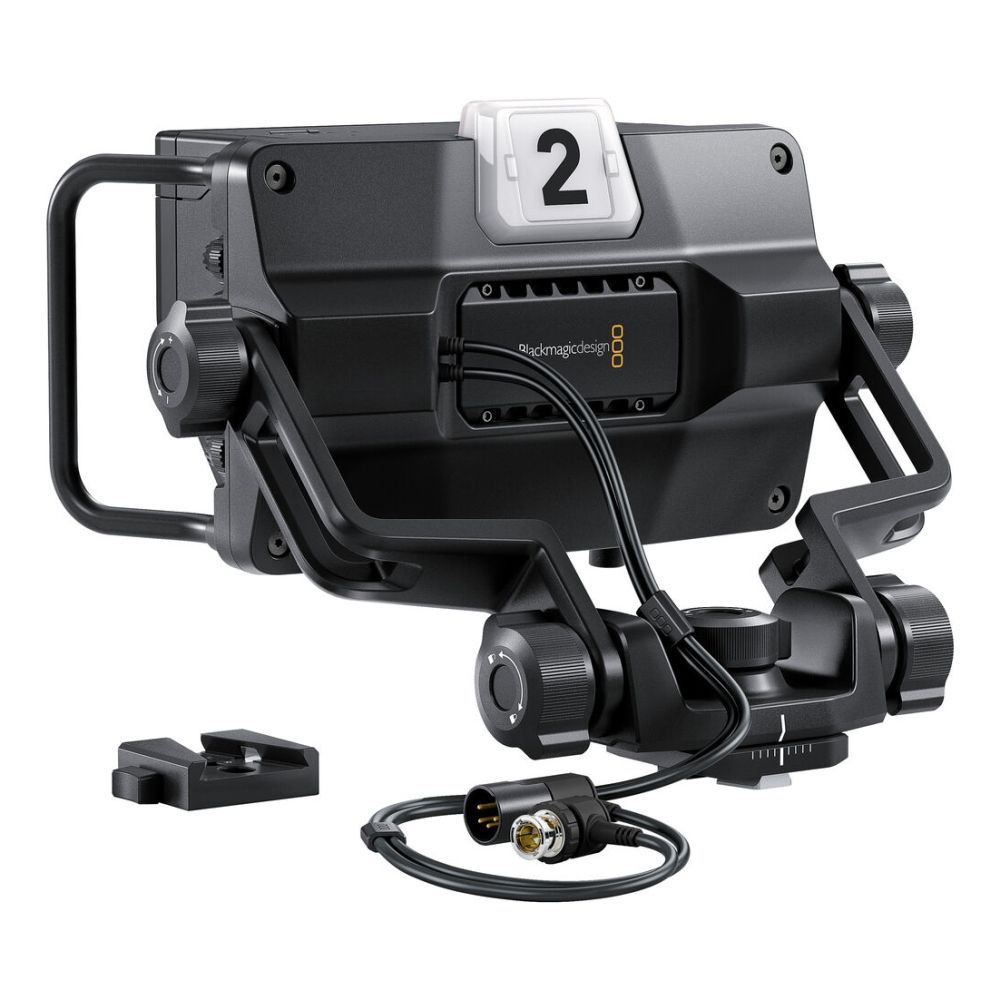

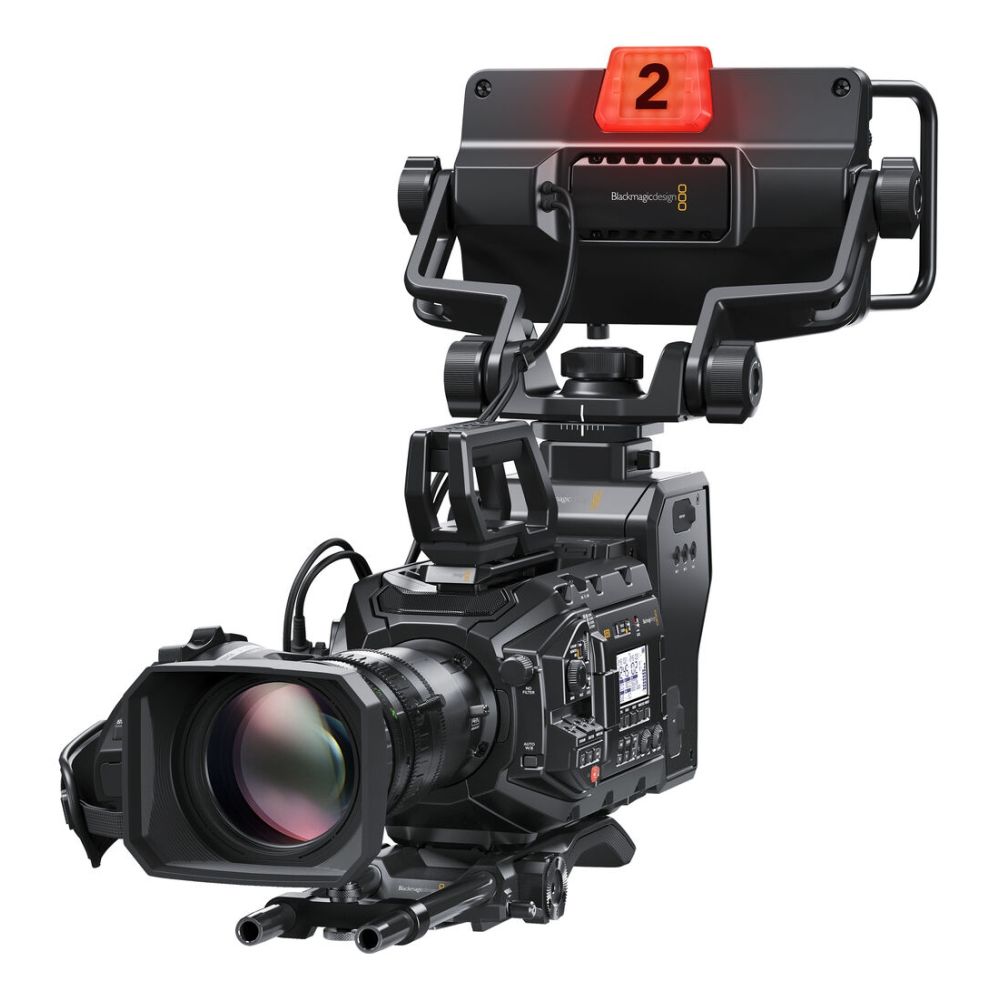

Add the Blackmagic URSA Studio Viewfinder G2 to your URSA Studio G2 or URSA Mini camera for high-resolution monitoring. The 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD screen and is equipped with a removable lens hood to prevent glare. Large side grips allow you to adjust the angle and it mounts to the top of the URSA Mini top handle using the lower V-lock mount.

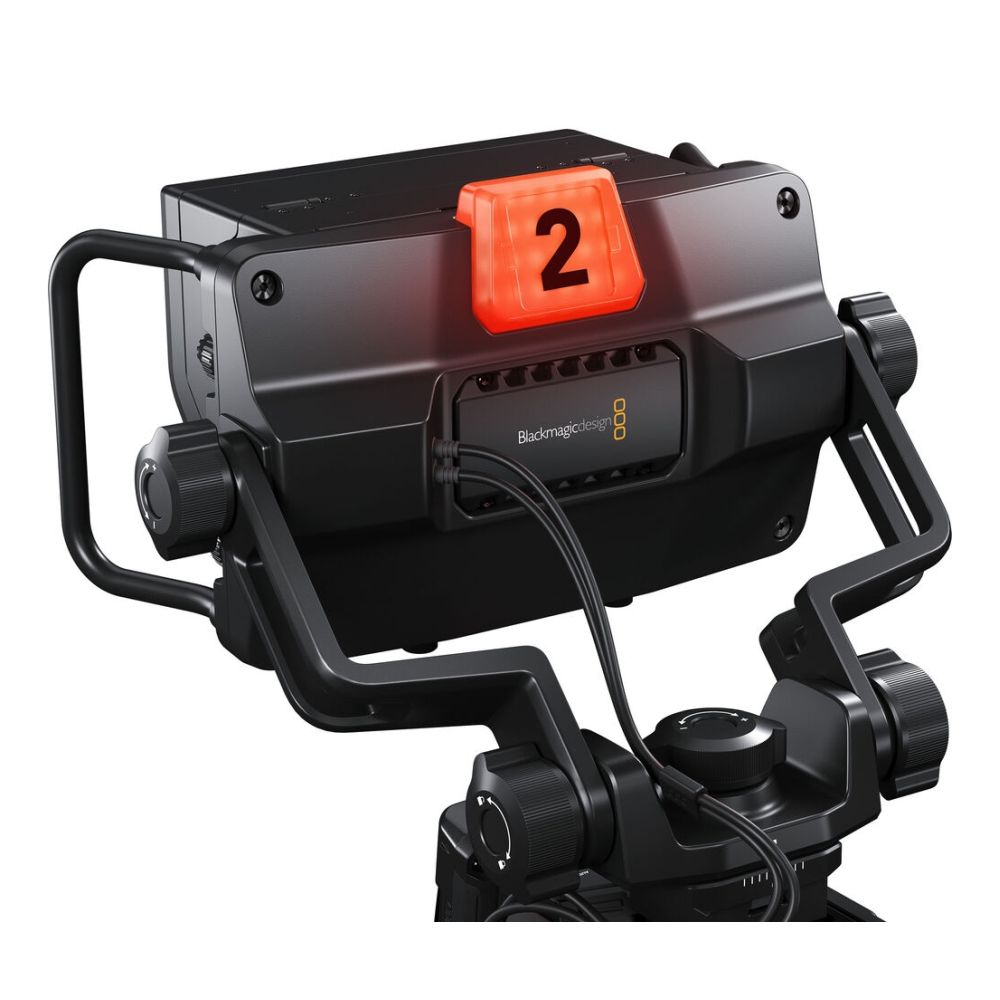

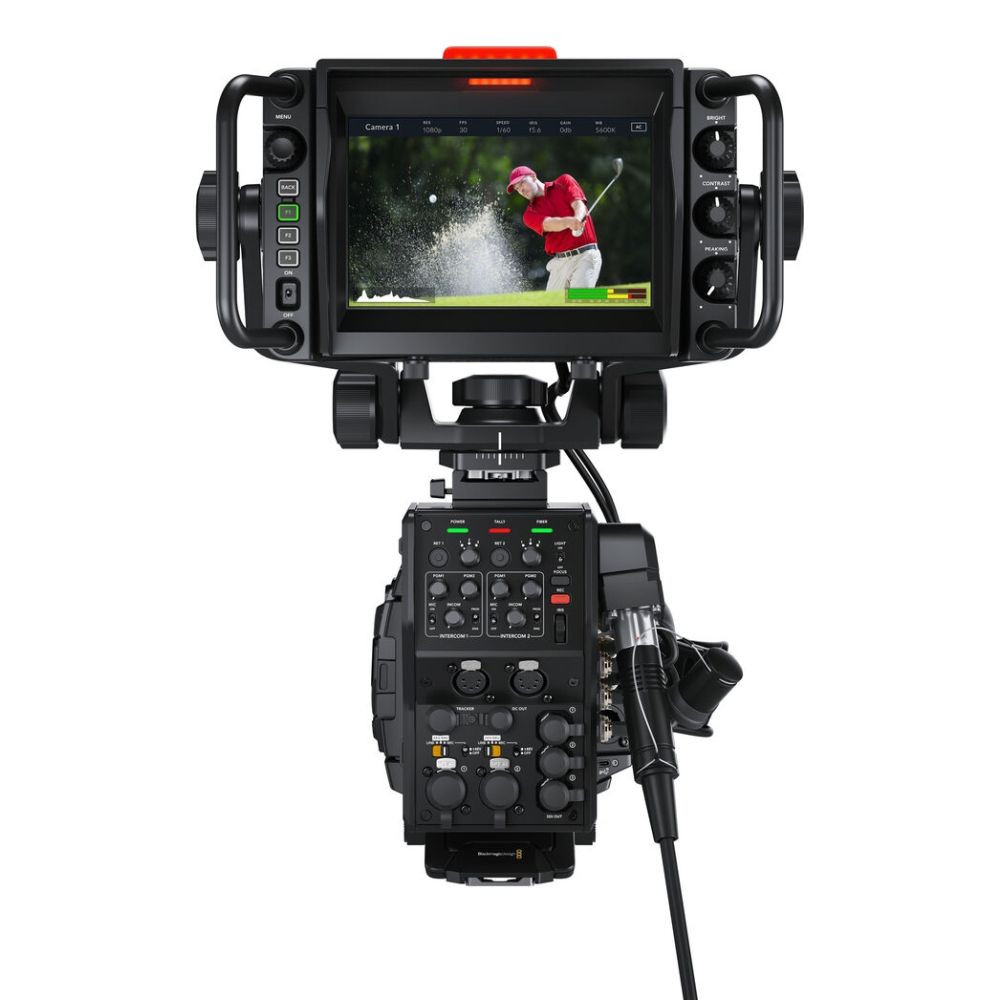

The viewfinder connects to the camera via a 3G-SDI BNC input and features a brightness of 2000 cd/m², allowing you to view images clearly both indoors and outdoors. Multiple dials and buttons allow you to navigate and adjust settings, and an LED light provides tally information. The status display provides camera metadata including frame guides, status, and peaking, and also shows fps, battery level, shutter speed, gain, and more. Power is supplied via the 4-pin XLR power input, which can be used directly with the output power of your URSA camera. It also features a USB Type-C input for installation and firmware updates.

Information on the EU General Product Safety Regulation (GPSR)

Blackmagic Design

Runcorn WA7 1ST, Christleton Court 5-B, United Kingdom

Features of the Blackmagic URSA Studio Viewfinder G2

  • Designed for URSA G2/URSA Mini Cameras
  • 7" 1920 x 1200 TFT LCD Screen
  • 3G-SDI Connector to Camera
  • Brightness: 2000 cd/m²
  • 4-pin XLR Power, V-Lock mount
  • Dial Knobs, Customizable Buttons
  • Detachable Lens Hood
  • Colour/Monochrome: Colour
  • Screen Size: 7.0" / 17.8 cm
  • Image Controls: False Colour, Focus Assist, Focus Peaking, Screen Markers
  • Video I/O: 1x BNC input (3G-SDI)
  • Power I/O: 1x XLR 4-pin (12 VDC) input
  • Other I/O: 1x USB-C 2.0 input
  • Video format: SDI (10-bit 4:2:2 YUV) / 1080p: 60/59.94/50/30/29.97/25/24/23.98 / 1080i: 60/59.94/50 / 720p: 60/59.94/50
  • Input power: 12V DC
  • Operating temperature: 0 to 40°C
  • Storage temperature: -20 to 60°C
  • Dimensions: 33.1 x 30.4 cm
  • Weight: 2.69 kg
  • (Comes without camera etc.)

In the Box

  • Blackmagic URSA studio viewfinder G2
  • Lens hood
Compatibility
Compatible with brand/series Blackmagic URSA
