Desview OL7

Article number:

12540663

Desview OL7

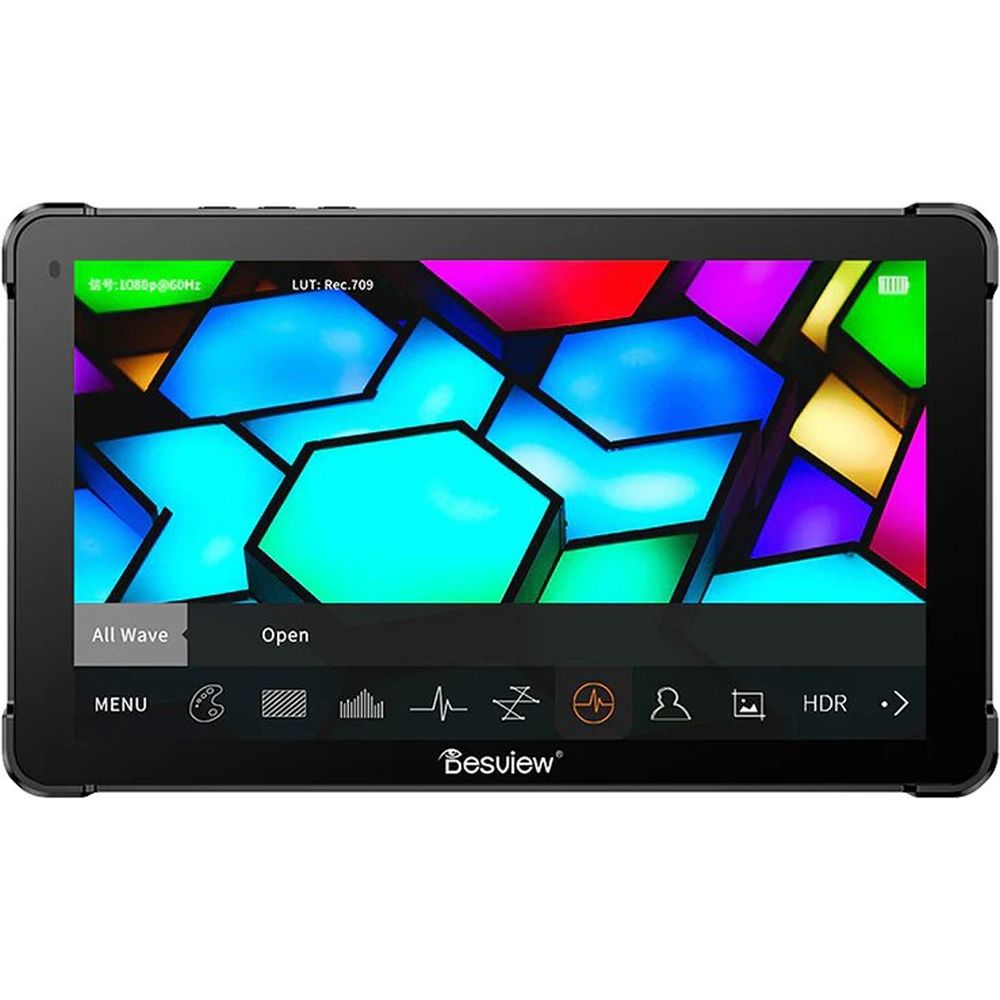

The ultra-thin Desview OL7 7" OLED High-Bright touchscreen HDMI on-camera monitor delivers a bright image with 1200 cd/m² brightness, a contrast ratio of 100,000:1, 10-bit colour, and assignable shortcut keys. The monitor features HDMI 2.0 input and output, customisable LUTs, and support for HDMI video up to DCI 4K60.

The OL7's OLED panel offers faster pixel response times, resulting in smoother, lag-free motion in fast-paced scenes. The 1200 cd/m² brightness ensures a clear, vivid image even when shooting outdoors.

With customisable shortcut keys, you can quickly access your most-used functions. Comprehensive image assist features include waveform, vectorscope, audio meters, HDR, aspect ratio, histogram, colour temperature, focus peaking, false colour, distortion, zebra, freeze frame, and more.

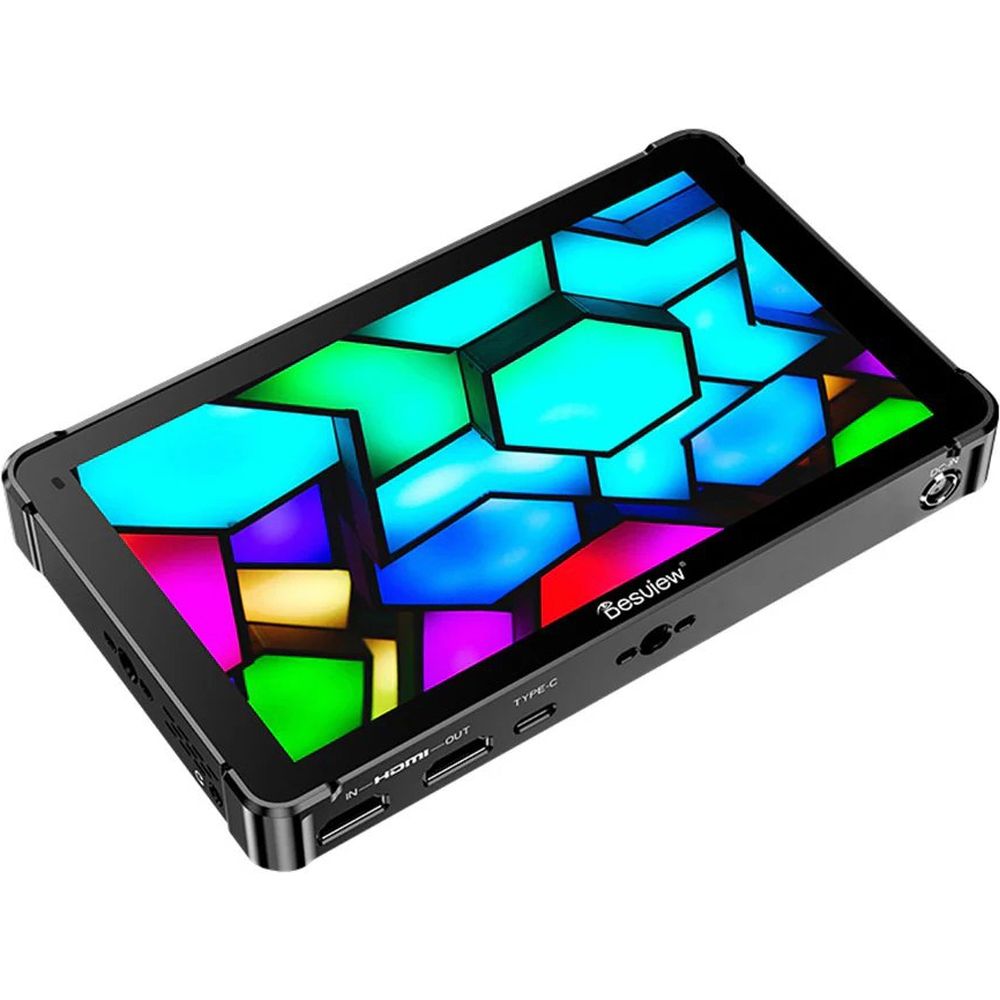

The improved panel supports up to 4K60 input and loop output for accurate reproduction of HDR footage at high frame rates. The monitor features HDMI in and out, a 3.5mm headphone output, USB-C PD power, and a DC barrel input.

The OL7 7" OLED monitor is housed in an ultra-thin aluminium alloy body with advanced heat dissipation.

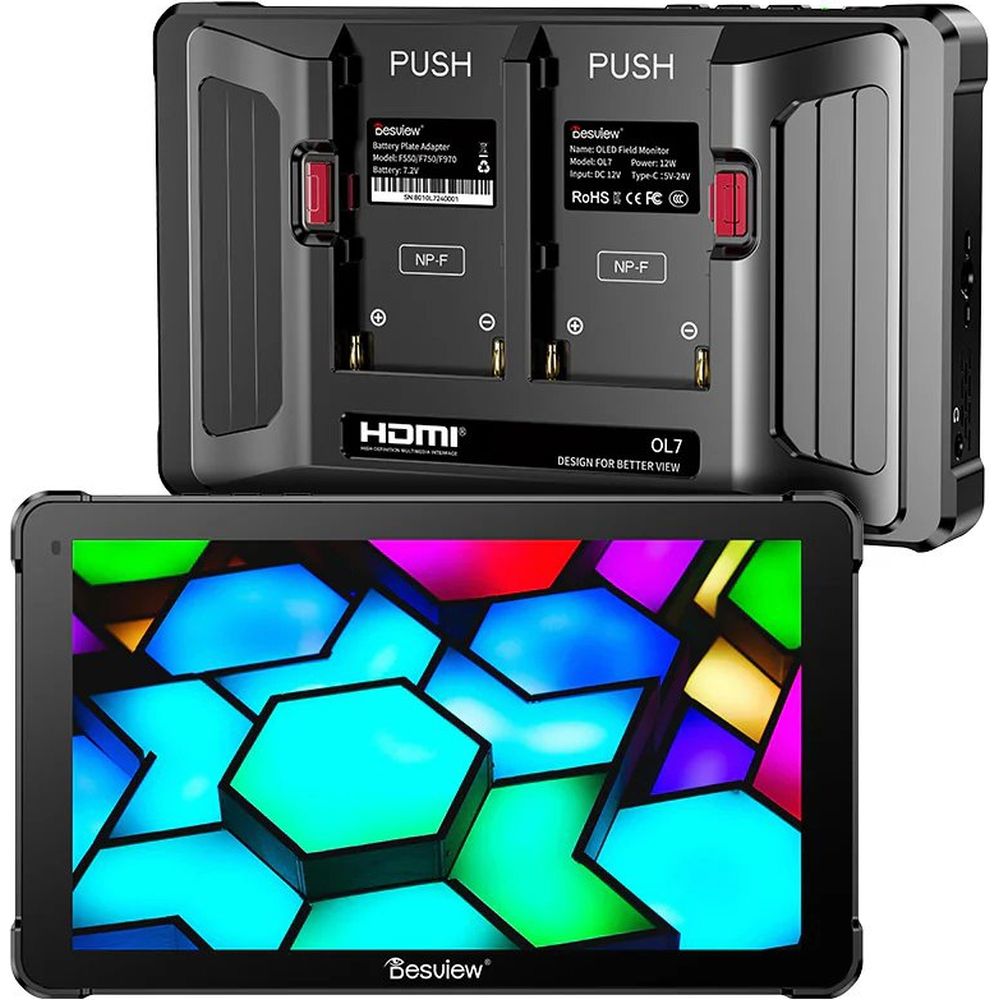

The dual L-series battery plate supports hot-swap power using two Sony L-series/NP-F batteries. You can also power the monitor via USB-C PD or DC barrel input.

Information on the EU General Product Safety Regulation (GPSR)

Zhou's Jade Start UG

Brunnenalle 11a 14478 Potsdam DE

jadestar.eu@gmail.com

Features of the Desview OL7

  • 7" 1920 x 1080 OLED touchscreen
  • HDMI 2.0 in/out up to DCI 4K60
  • 1200 cd/m² brightness
  • 100,000:1 contrast, 10-bit colour
  • HDR & LUT support, focus and peaking tools
  • Customisable LUTs, custom keyboard shortcuts
  • Vectorscope, waveform and zebra tools
  • USB-C PD, 2-pin LEMO power
  • Hot-swappable L-series battery power
  • Ultra-thin aluminium alloy
  • Dimensions: 179 x 106 x 26 mm
  • Weight: 500 grams

In the Box

  • 1x Desview OL7 monitor
Connections & Connectivity
12G-SDI
HDMI version HDMI 2.0
Inputs HDMI 2.0 in/uit
SDI input
SDI output
Dimensions & Weight
Length (mm) 26.0 mm
Weight (g) 500.0 g
Width (mm) 179.0 mm
Height (mm) 106.0 mm
General
Color Black
Display & Viewing
Cross conversion
Brightness (nits) 1200.0 nits
Screen size (in) 7.0 in
Scopes (waveform/vectorscope)
Touchscreen
HDR support
Recording & Codecs
LUT support
Sensor
Resolution Full HD
Power
Battery
