DJI Matrice 4 Obstacle Sensing Module Overseas

Article number:

12563940

DJI Matrice 4 Obstacle Sensing Module Overseas
DJI Matrice 4 Obstacle Sensing Module Overseas
  • DJI Matrice 4 Obstacle Sensing Module Overseas
  • DJI Matrice 4 Obstacle Sensing Module Overseas
  • DJI Matrice 4 Obstacle Sensing Module Overseas
  • DJI Matrice 4 Obstacle Sensing Module Overseas
€1499,-
On order
DJI Matrice 4 Obstacle Sensing Module Overseas
DJI Matrice 4 Obstacle Sensing Module Overseas
€1499,-

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period

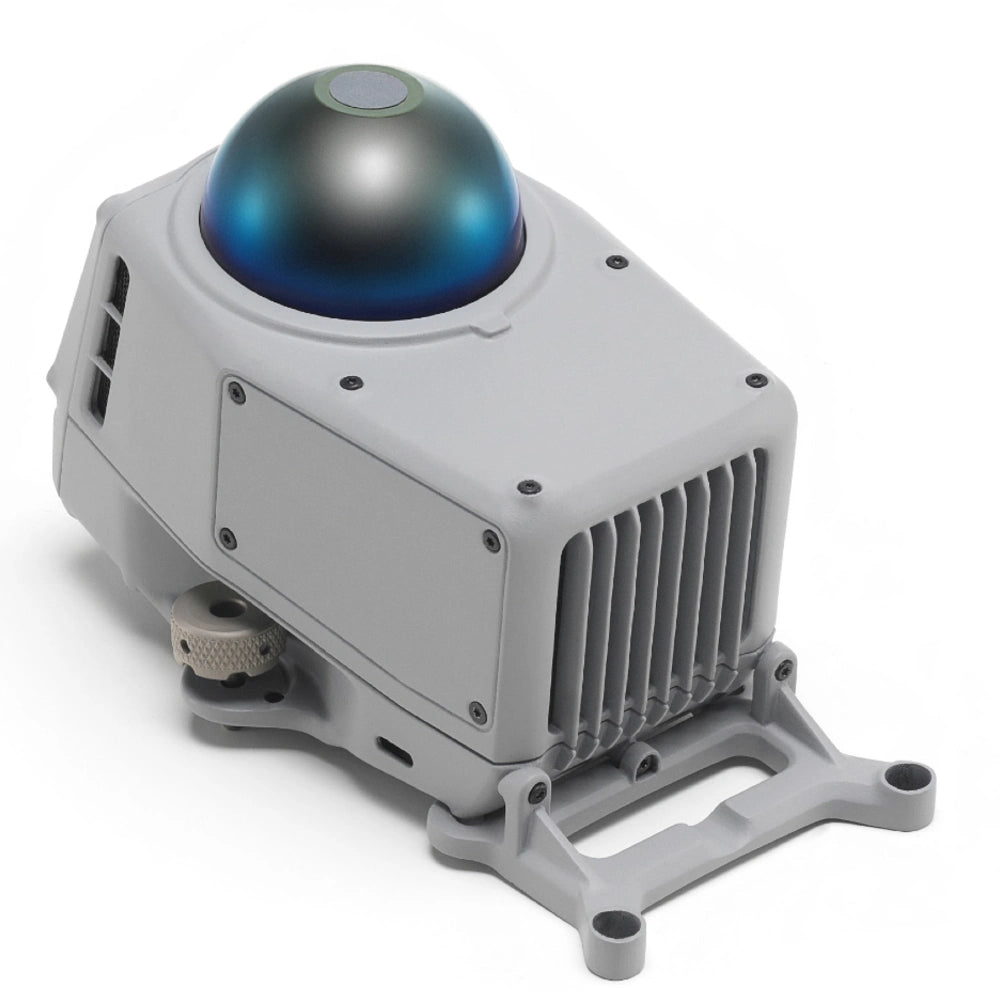

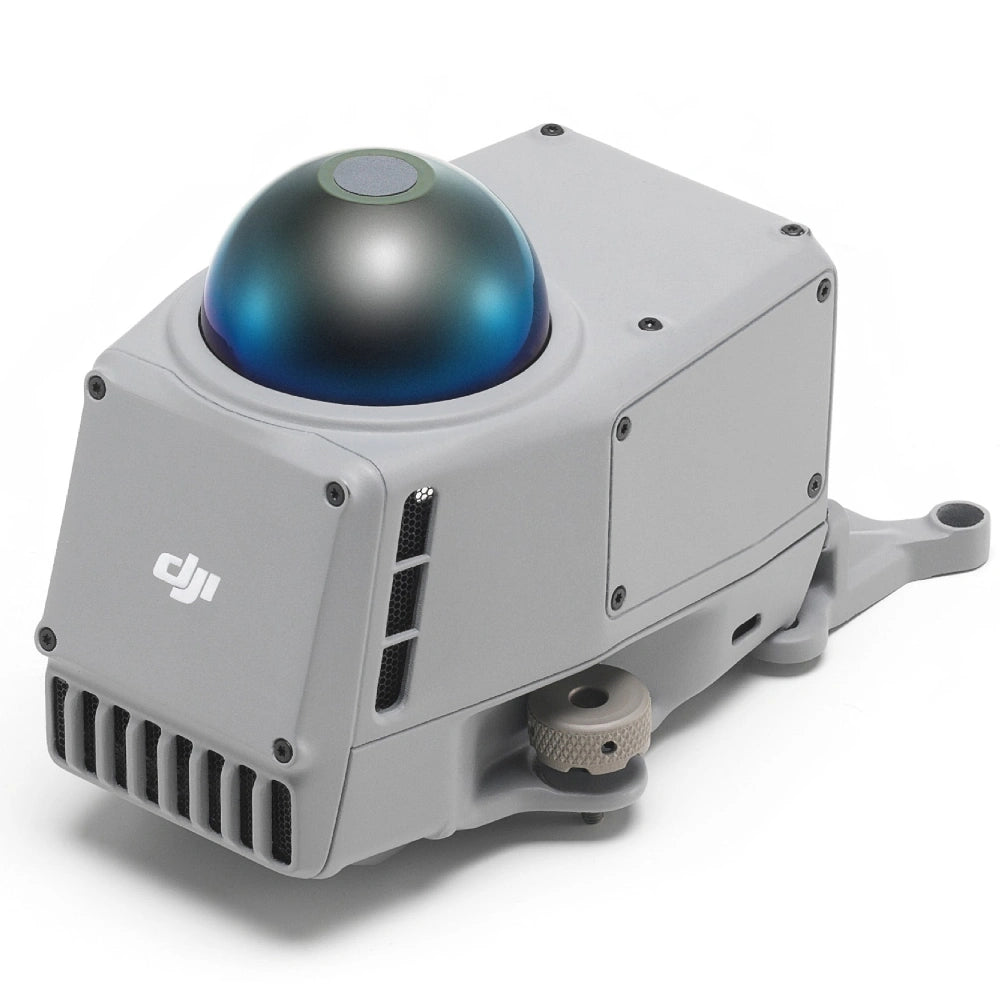

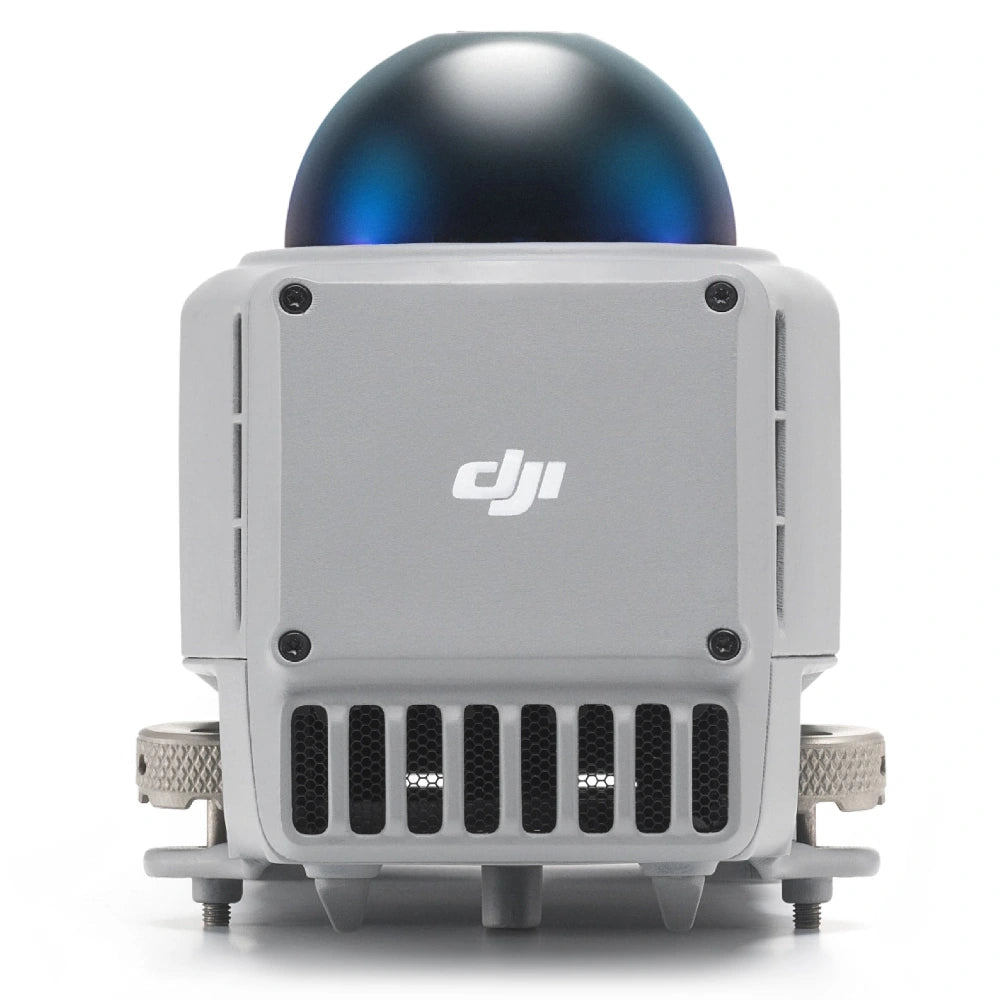

The DJI Matrice 4 Obstacle Sensing Module is an advanced detection module designed to enhance flight safety for the DJI Matrice 4 series, especially in low-light environments and areas with complex structures.

DJI Matrice 4 Obstacle Sensing Module Overseas

The DJI Matrice 4 Obstacle Sensing Module is an advanced detection module designed to enhance flight safety for the DJI Matrice 4 series, especially in low-light environments and areas with complex structures. By combining rotating LiDAR with millimeter-wave radar, this module delivers highly accurate obstacle detection and positioning, even where visual sensors reach their limits.

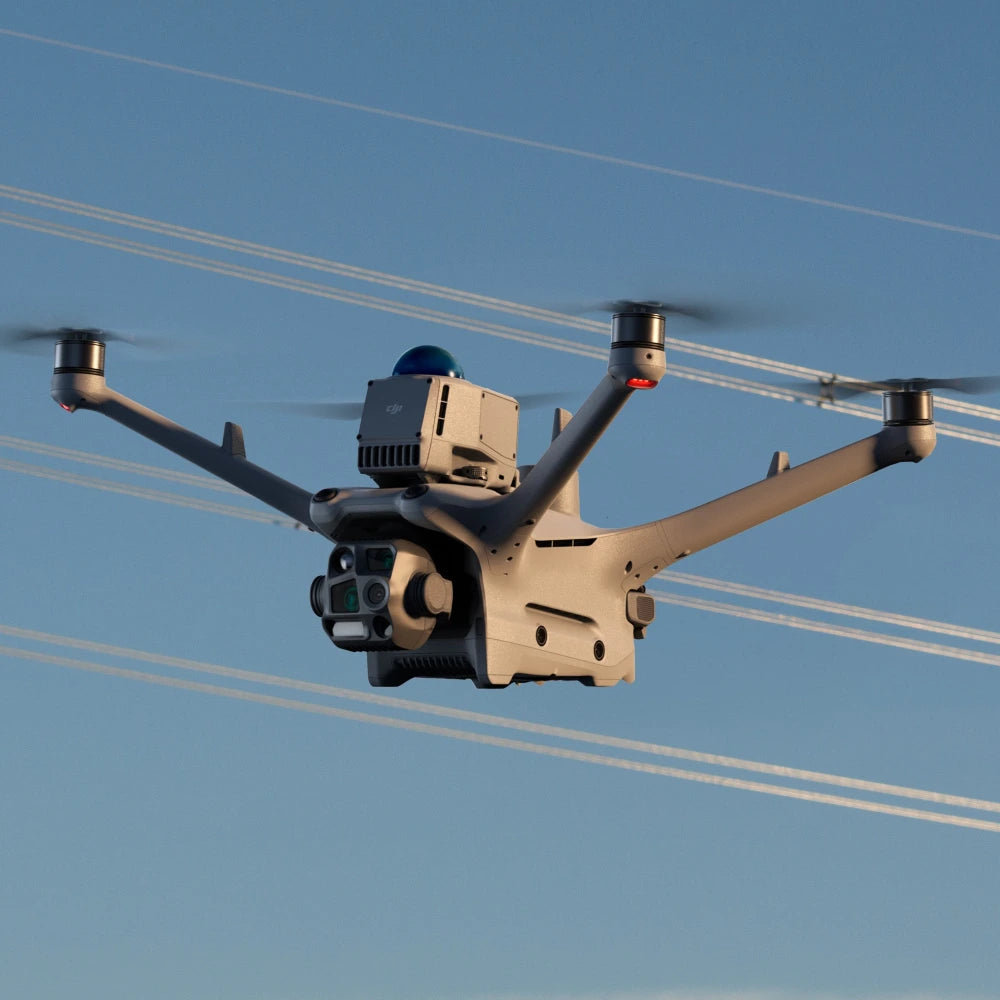

Thanks to this technology, the drone remains reliable in challenging scenarios such as inspections of high-voltage power lines, distribution networks and substations with a high density of objects. Multi-directional detection helps prevent collisions and supports stable and safe flight during critical professional missions.

The module is built for intensive use and, when combined with the Matrice 4D series, offers an IP55 rating, making it resistant to dust and water. With its wide operating temperature range, it can be deployed in various weather conditions and operational environments.

Information on the EU General Product Safety Regulation (GPSR)

A&C Systems

Hogeweg 37C, 5301 LJ Zaltbommel, The Netherlands

Features of the DJI Matrice 4 Obstacle Sensing Module Overseas

  • Combination of rotating LiDAR and millimeter-wave radar for precise obstacle detection
  • Enhanced positioning and safety in low-light conditions
  • Five-directional detection for comprehensive environmental awareness
  • Ideal for complex industrial environments such as high-voltage grids and substations
  • Robust design with IP55 protection (when used with Matrice 4D series)
  • Designed for professional and operational use
  • Model: LR-01
  • Weight: approx. 225 g
  • Dimensions: 103.3 × 64 × 85.8 mm (L × W × H)
  • Operating temperature: -20 °C to 50 °C
  • Detection system: rotating LiDAR + millimeter-wave radar (5 directions)
  • Compatibility:
  • DJI Matrice 4D Series
  • DJI Matrice 4 Series\*

\* Support for the DJI Matrice 4 Series requires a firmware update.

In the Box

  • 1× DJI Matrice 4 Obstacle Sensing Module (Overseas)
  • 1× User manual
Dimensions & Weight
Length (mm) 103.3 mm
Weight (g) 225.0 g
Width (mm) 64.0 mm
Height (mm) 85.8 mm
Compatibility
Compatible with brand/series DJI Matrice 4 Series / DJI Matrice 4D Series
