DJI Ronin Image Transmission System

Article number:

12350499

DJI Ronin Image Transmission System
DJI Ronin Image Transmission System
  • DJI Ronin Image Transmission System
  • DJI Ronin Image Transmission System
  • DJI Ronin Image Transmission System
  • DJI Ronin Image Transmission System
  • DJI Ronin Image Transmission System
€159,-

Delivered within 3 to 4 working days.
DJI Ronin Image Transmission System
DJI Ronin Image Transmission System
€159,-

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period
The DJI Ronin Image Transmitter enables live view and ActiveTrack 3.0.

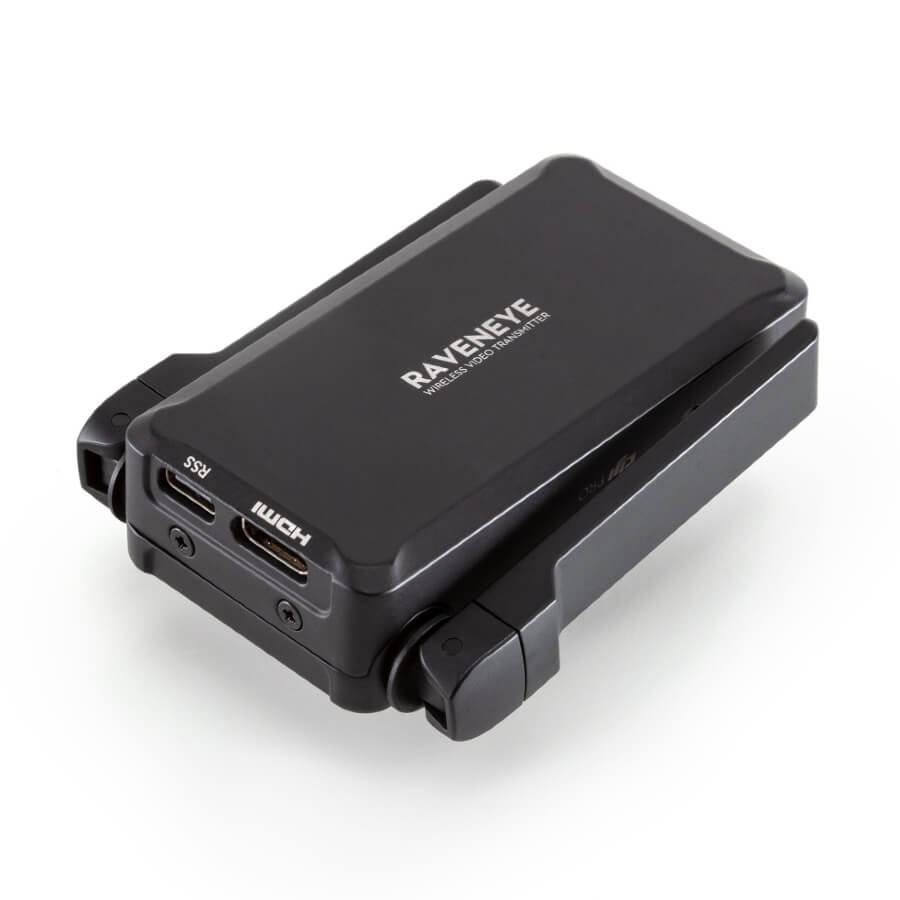

DJI Ronin Image Transmitter

The DJI Ronin Image Transmitter is a true must-have for your DJI Ronin S, Ronin SC, RS 2, RSC 2, RS 3, and RS 3 Pro. With the transmitter, you can monitor footage live on your smartphone via the Ronin app. Because you can watch along in real time through the app, ActiveTrack 3.0 is also supported. This allows you to track your subject even more precisely. You can also control the stabilisation system remotely.

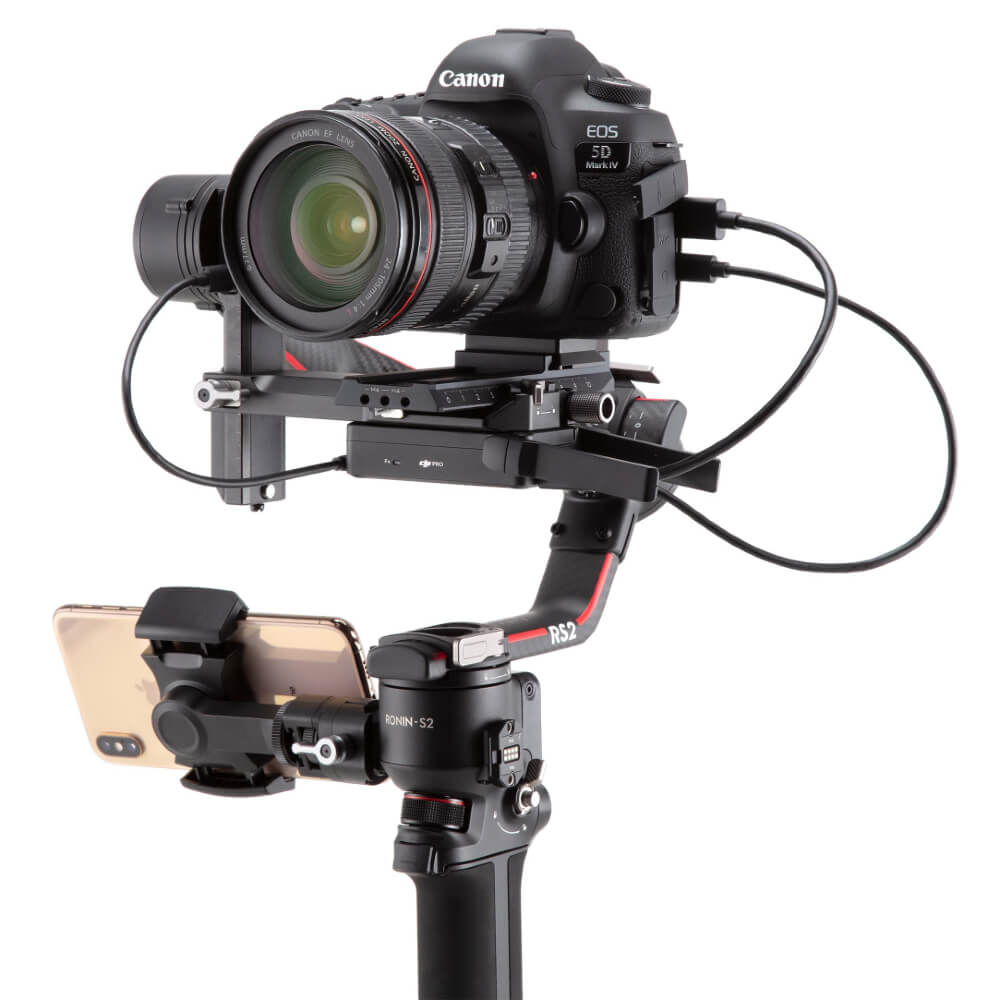

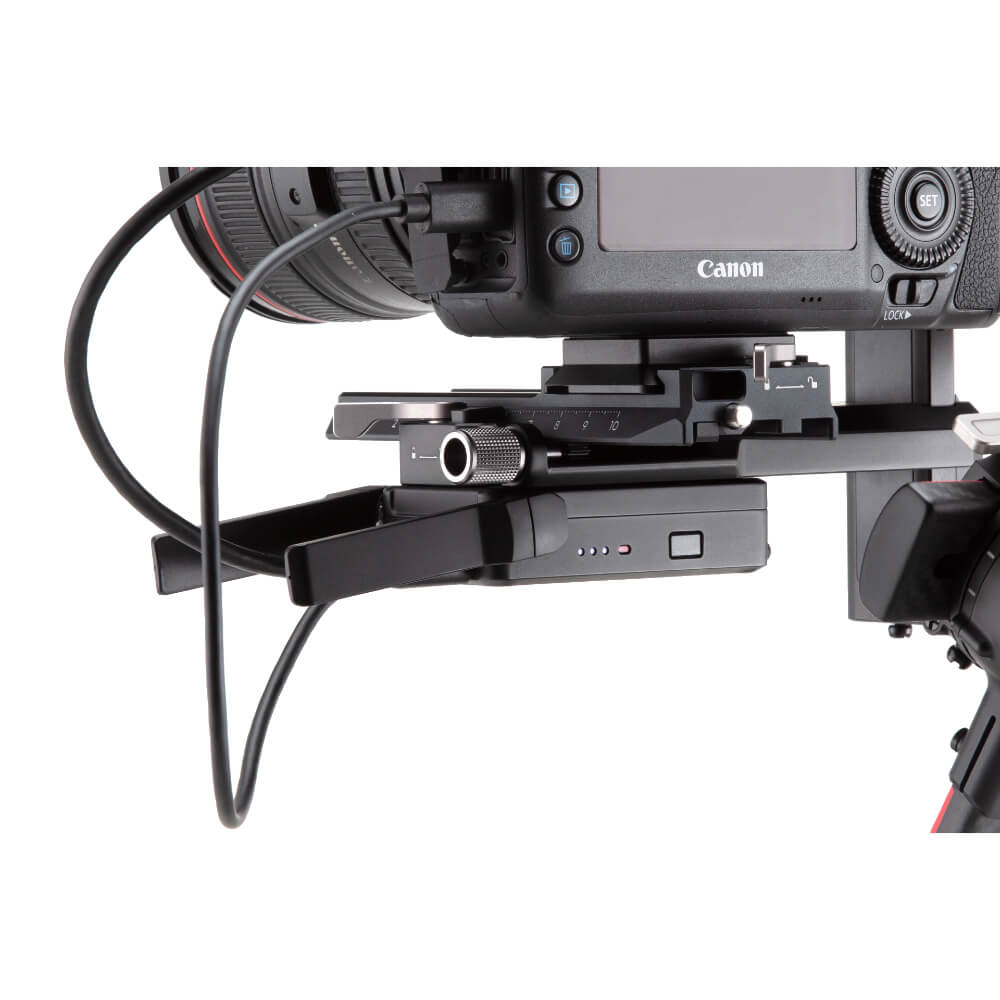

Simply mount the transmitter to the gimbal, then connect it to your camera via an HDMI cable. Connect your camera to the Ronin app on your smartphone via Wi-Fi.

Compatible with

  • DJI Ronin S
  • DJI Ronin SC
  • DJI RS 2
  • DJI RSC 2
  • DJI RS 3
  • DJI RS 3 Pro

Information on the EU General Product Safety Regulation (GPSR)

A&C Systems

Hogeweg 37C, 5301 LJ Zaltbommel, The Netherlands

Features of the DJI Ronin Image Transmission System

  • Enables live view and ActiveTrack 3.0
  • Frequency: 2,400-2,4835 GHz, 5,725-5,850 GHz
  • Transmission power: 14 dBm and 20 dBm
  • Dimensions: 8.2 x 6.3 x 2.4 centimetres
  • Weight: 126 grams

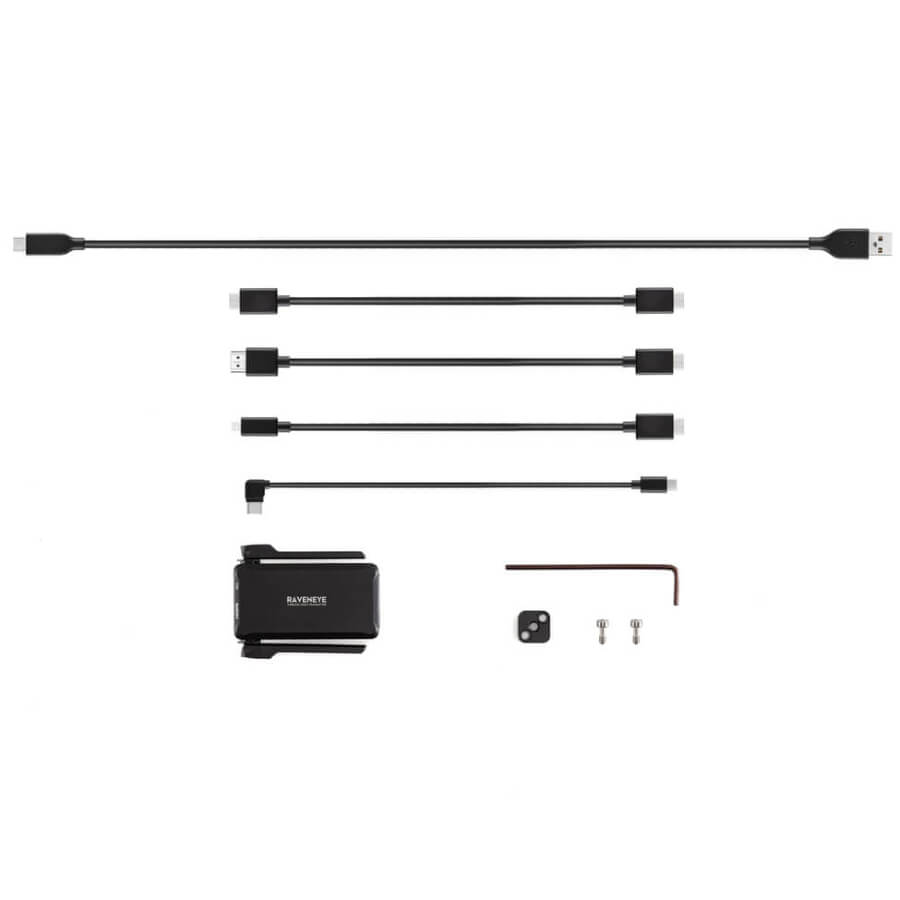

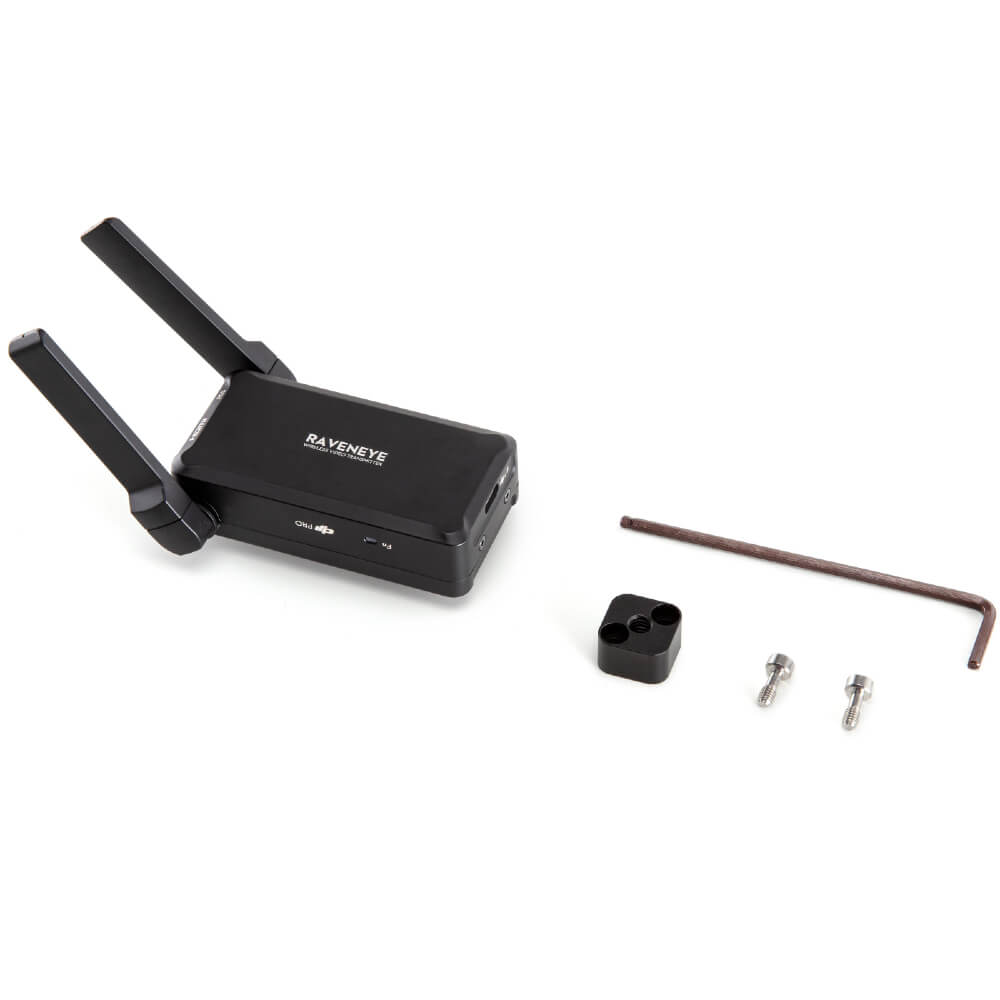

In the Box

  • 1x Image Transmitter
  • 1x Cold Shoe to 1/4" Adapter
  • 1x USB-C cable (40cm)
  • 1x USB-C cable (20cm)
  • 1x Mini-HDMI to HDMI cable (20cm)
  • 1x Mini-HDMI to Mini-HDMI cable (20cm)
  • 1x Mini-HDMI to Micro-HDMI cable (20cm)
  • 2x M4 screw
  • 1x Allen key (3mm)
Connections & Connectivity
Inputs HDMI (Mini-HDMI)
SDI input
Range (m) 6000.0 m
Dimensions & Weight
Length (mm) 82.0 mm
Weight (g) 126.0 g
Width (mm) 63.0 mm
Height (mm) 24.0 mm
General
Latency 68.0
Type Transmitter
Recording & Codecs
Max. resolution 1080p
Power
Battery
