DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)

Article number:

12539775

DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
  • DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
  • DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
  • DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
  • DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
  • DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
  • DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
  • DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
List price €7041,-
€5867,-
On order
DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)
€5867,-

Get notified

    Free delivery on orders over €100

    Always the best price, backed by our expertise
    Rated 4.35 by 34,050 photographers

    Your photo and video specialist since 1995
With a field of view of 100° to 73°, the DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (metre) offers innovative close-up capabilities for your productions.
Actie-icoon prijsactie

DZOFilm Deals

Extra competitive prices on selected DZOFilm cine lenses and lens kits.

Service-icoon 5 jaar garantie

Free 5-Year Warranty

We automatically extend the warranty on this product to 5 years, at no extra cost.

DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)

With a field of view ranging from 100° to 73°, the DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter) offers innovative close-up possibilities for your productions. This compact zoom probe lens features detachable 0°, 90°, and 360° tubes for maximum flexibility. It measures just 41.4 cm in length with a front external diameter of less than 3 cm, making it ideal for setups in tight spaces. It boasts a relatively fast maximum aperture of T8, a maximum magnification of 2.1:1, and a minimum focus distance of 0.6 cm.

This 18-28mm zoom covers an ultra-wide to mid-wide angle range, suitable for the most common focal lengths. The wide field of view of 100 to 73 degrees supports flexible shooting options.

This "probe" includes detachable 0°, 90°, and 360° options for creative positioning. A rotating ring provides even greater flexibility.

The relatively fast maximum aperture of T8 is maintained across the entire zoom range. Anti-reflective multi-layer coatings ensure sharp, clear images, even at fully open aperture.

The focus, iris (aperture), and zoom functions all feature 0.8-module cinema-style gears for compatibility with follow-focus systems and lens motors. A lightweight yet rear-heavy design helps reduce vibrations during shooting. The focus ring offers a wide rotation of 300° for precise focusing. This probe lens is water- and dust-resistant, as well as scratch- and condensation-free. Focus distances are indicated in metres.

Information on the EU General Product Safety Regulation (GPSR)

TSE Imaging BV

Argonweg 135, 1362 AD Almere NL

info@tse-imaging.nl

036-5346967

Features of the DZOFilm X-tract 18-28mm 0/90/360 degrees One R-Unit Black Case 3pcs PL mount (meter)

  • Maximum aperture: T8
  • Minimum aperture: T22
  • Lens mount: ARRI PL
  • Interchangeable mount: No
  • Lens format range: Full-frame
  • Angle of view: Full-frame Horizontal: 100 to 73°
  • Optical design: 25 elements in 18 groups | 26 elements in 19 groups
  • Zoom ratio: 1.56x
  • Minimum focus distance: From front of lens: 6 mm
  • Magnification: Macro reproduction ratio 2.1:1 | Magnification: 0.47x
  • Aperture/iris blades: 10
  • Image stabilisation: No
  • Lens mount:
  • 1x 1/4"-20 (via supplied foot mount)
  • 3x 3/8"-16 (via supplied foot mount)
  • Standard equipment: Focus, iris, zoom: 0.8 MOD
  • Gear rotation:
  • Focus: 300°
  • Iris: 72°
  • Zoom: 100°
  • Diameter: Front: 30 mm
  • Length: 41.5 cm / 42.1 cm | 42.1 cm
  • Weight: 1.1 kg / 1.09 kg | 1.32 kg

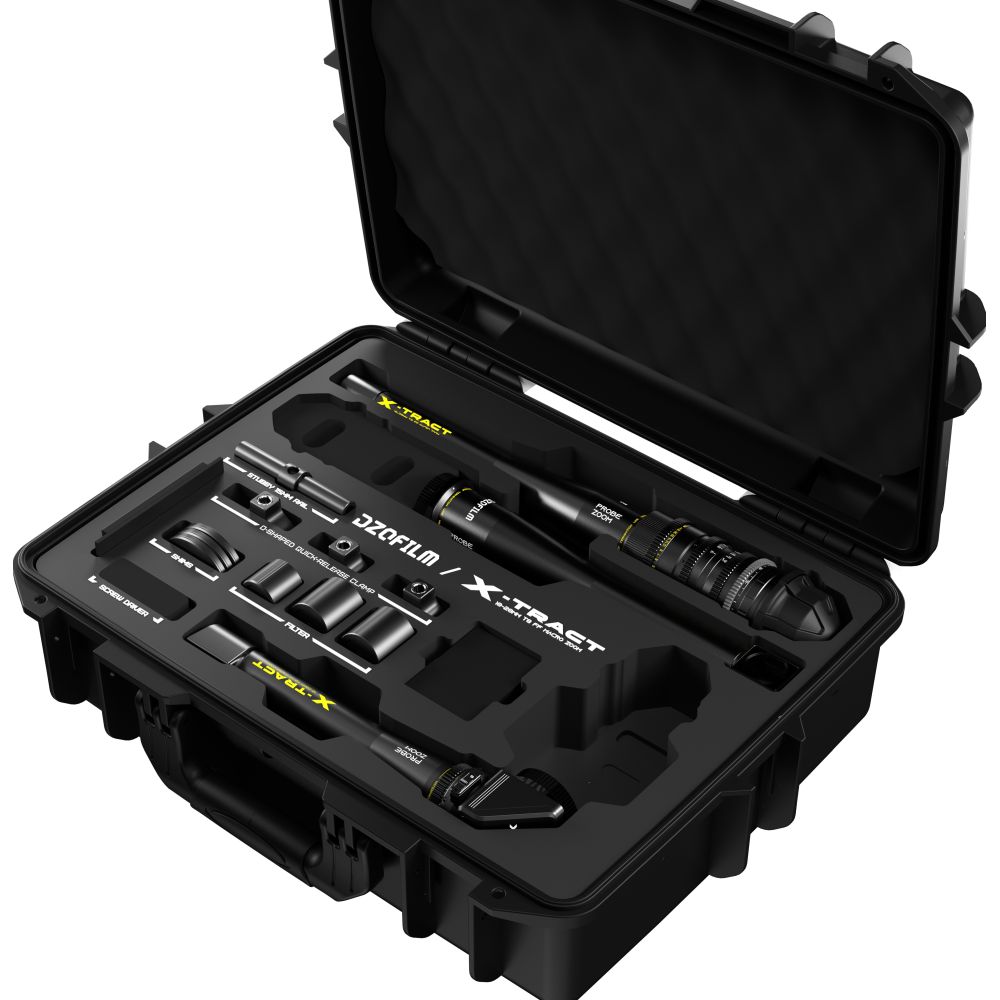

In the Box

  • 1x One R-Unit Rotating Body
  • 1x 0° Optical Module
  • 1x 90° Optical Module
  • 1x 360° Optical Module
  • 1x Trolley
Dimensions & Weight
Length (mm) 415.0 mm
Weight (g) 1090.0 g
General
Type of photography Macro
Clickless aperture (cine)
Material & Protection
Weather-resistant
Material Metal
Focus & Stabilization
Image stabilisation
Autofocus
Focus breathing control
Min. focusing distance (cm) 0.6 cm
Manual focus (MF)
Silent AF (video)
Focal length (max) (mm) 28.0 mm
Focal length (min) (mm) 18.0 mm
Constant aperture
Fast (f/2.8 or faster)
Max. angle of view (°) 100.0 °
Optical zoom (x) 1.56 x
Maximum magnification (x) 2.1 x
Compatibility
Full Frame
Lens mount PL-Mount
APS-C
Micro Four Thirds
Medium Format
