Magewell Pro Capture HDMI 4K

Article number:

12245851

Magewell Pro Capture HDMI 4K
Magewell Pro Capture HDMI 4K
  • Magewell Pro Capture HDMI 4K
  • Magewell Pro Capture HDMI 4K
  • Magewell Pro Capture HDMI 4K
List price €580,-
€460,28

Delivered within 3 to 4 working days.
Magewell Pro Capture HDMI 4K
Magewell Pro Capture HDMI 4K
€460,28

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,287 photographers

    Not happy? 14-day return period

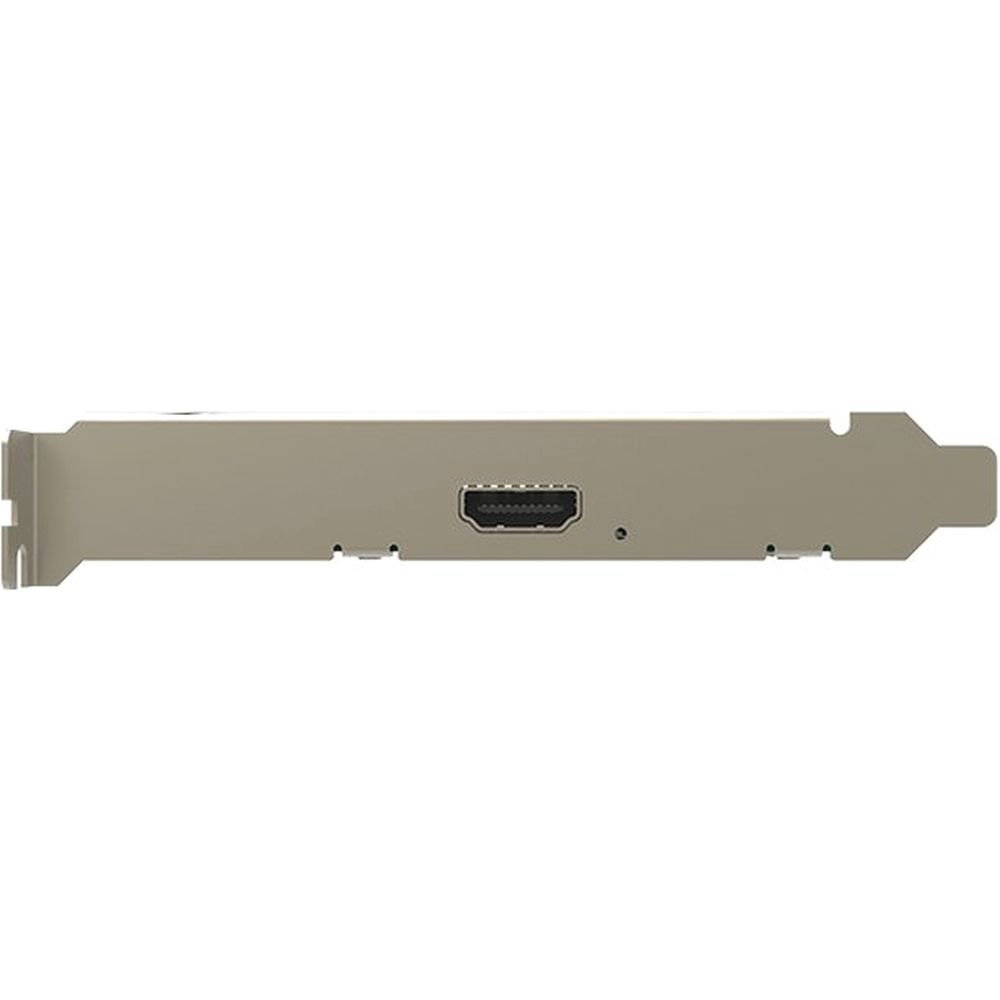

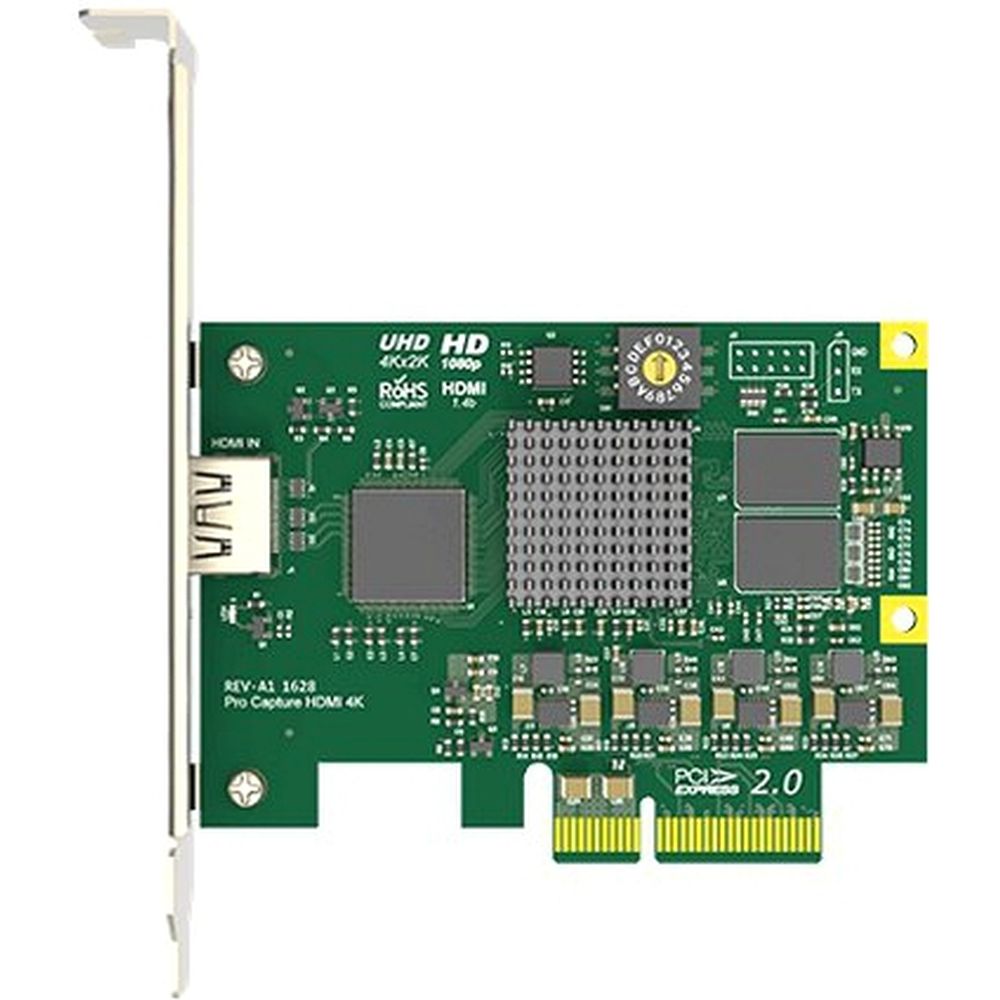

The Magewell Pro Capture HDMI 4K is a compact PCIe x4 card that allows you to capture one HDMI channel with embedded audio.

Magewell Pro Capture HDMI 4K

The Magewell Pro Capture HDMI 4K is a compact PCIe x4 card that captures a single HDMI channel with embedded audio. The card supports extraction of audio format information and channel status data, video timing information, 3D format information, and Sony/Canon DSLR timecode. It can also perform a range of video processing functions, including cropping, scaling, de-interlacing, aspect ratio conversion, colour format conversion, video frame rate conversion, and OSD compositing.

Information on the EU General Product Safety Regulation (GPSR)

Streaming Valley B.V

Morsestraat 6, 6716 AH Ede Nederland

info@streamingvalley.com

+31 317 210 310

Features of the Magewell Pro Capture HDMI 4K

  • Recommended operating systems: Windows 10/11/Server 2016/Server 2019/Server 2022/Server 2025 (x86 & x64) and higher / Linux x86, x64 & ARM architecture, version 2.6.35 and higher / Mac OS X 10.9 and higher / macOS 10.12 and higher
  • Supported APIs: Windows: DirectShow / DirectKS / Wave API/DirectSound/WASAPI / Linux: V4L2 / ALSA / macOS: AVCaptureSession / AudioUnit
  • Supported software: VLC / VirtualDub / OBS / XSplit / vMix / VidBlaster / Wirecast / Microsoft Media Encoder / Adobe Flash Media Encoder / All other DirectShow/V4L2/AVCaptureSession encoding/streaming software
  • Input interfaces: HDMI / DVI-D 1.0 / HDMI 1.4
  • Host interface: PCIe Gen2 x4
  • Operating temperature: 0 to 60 °C
  • Storage temperature: –20 to 70 °C

In the Box

  • 1x Magewell Pro Capture HDMI 4K card
Dimensions & Weight
Length (mm) 92.76 mm
Height (mm) 68.88 mm
General
Type Capture card
