SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount

Article number:

12546260

SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
  • SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
  • SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
  • SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
  • SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
€1209,-

Delivered within 3 to 4 working days.
SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
€1209,-

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,287 photographers

    Not happy? 14-day return period

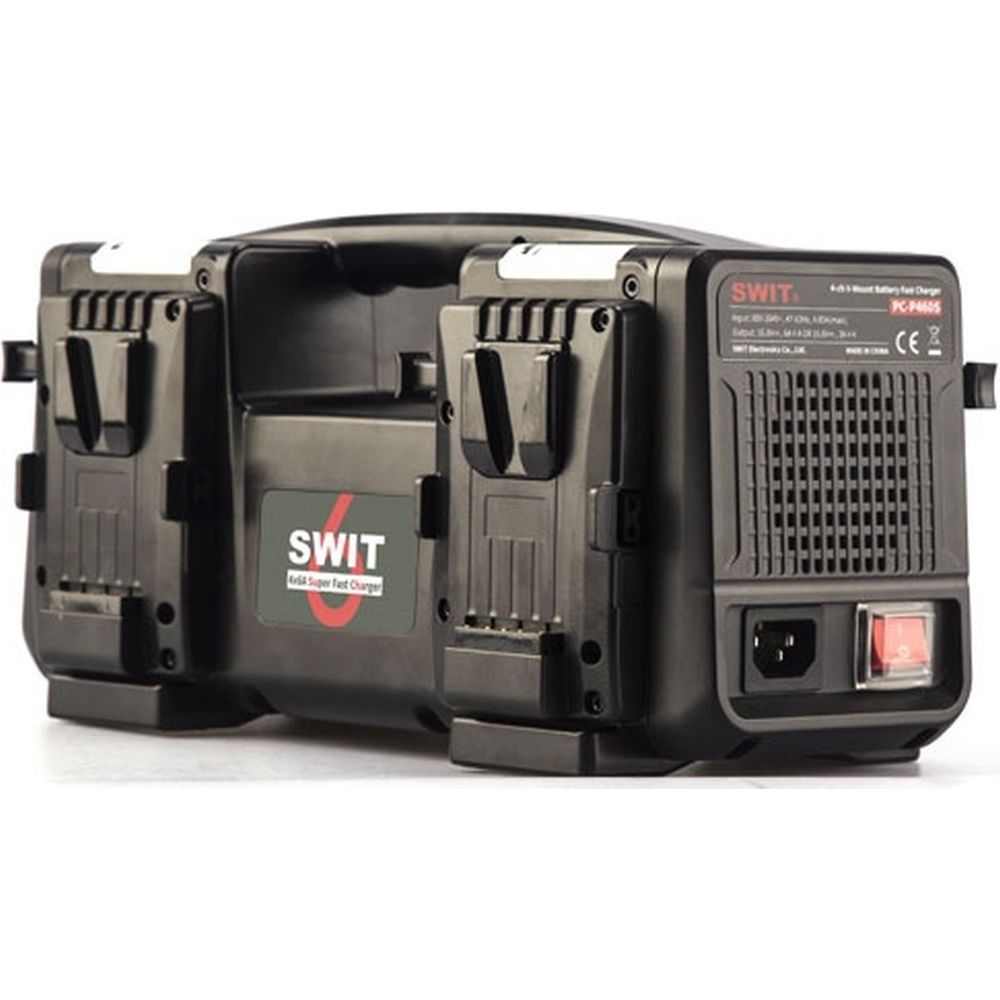

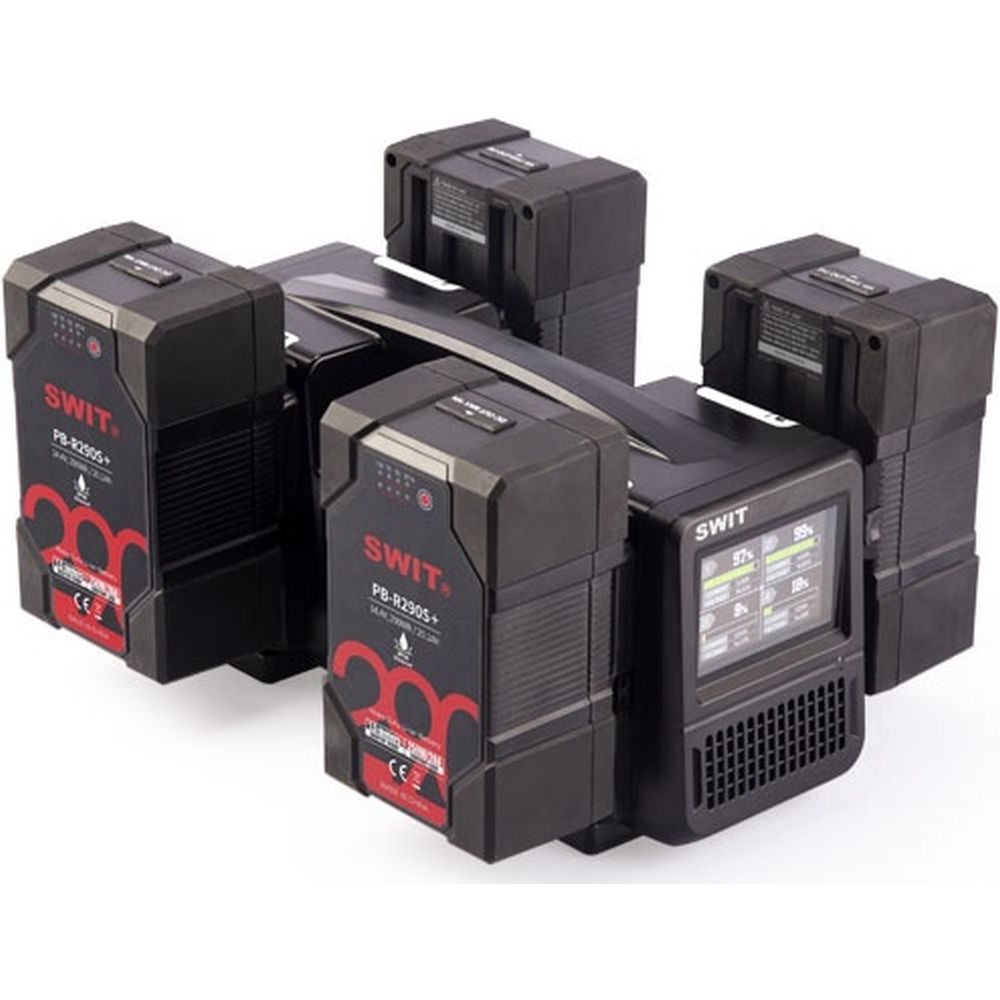

The SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount can charge 4 V-mount batteries simultaneously and supports both batteries with a nominal voltage of 14.4 V and 28.8 V.

SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount

The SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount can charge 4 V-mount batteries simultaneously and supports both batteries with a nominal voltage of 14.4 V and 28.8 V. Ultra-fast charging: 100 W/6 A for 14.4 V batteries and 100 W/3 A for 28.8 V batteries. This saves up to 60% charging time compared to standard chargers.

SWIT ≥160 Wh batteries support fast charging at 100 W. For batteries with a lower capacity or batteries from other brands, the charging current is limited to 50 W/3 A.

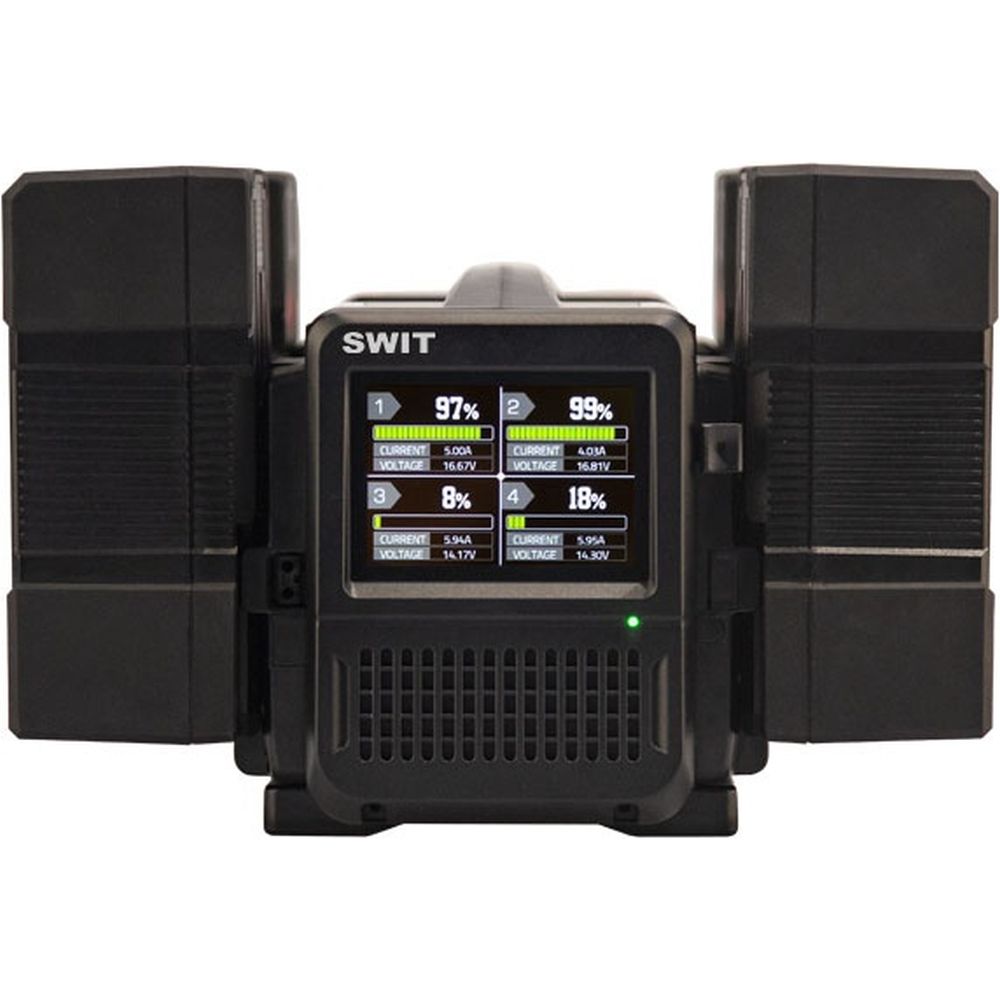

The PC-P461S features a 3.5-inch LCD colour screen to display charging progress, charging current, and voltage. For batteries with SMBUS information, the battery capacity and charge cycle count are also displayed in real time.

In addition to the information on the LCD screen, you can check the charging status at a glance via the 4 large indicators on top of the charger.

Red on: 0–80%

Green flashing: 81%–99%

Green on: 100% fully charged

Red flashing: Charging error, check the LCD information

The 4-channel fast charger PC-P461S is compact and lightweight, and the new handle design makes the charger sturdy and easy to carry.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount

  • 4-channel simultaneous fast charging
  • Charges both 14.4V and 28.8V V-mount batteries
  • 100W/6A for SWIT 14.4V & ≥160Wh batteries
  • 100W/3A for SWIT 28.8V & ≥160Wh batteries
  • 50W/3A for other batteries
  • 3.5-inch LCD colour display
  • Battery cycle display
  • Large charging indicators on top
  • Power: maximum 450 W
  • Input power: AC 100 V–240 V 50/60 Hz
  • Output power: DC 16.8 V, 6 A x 4 (SWIT 14.4 V & ≥ 160 Wh batteries) / DC 33.6 V, 3 A x 4 (SWIT 28.8 V & ≥ 160 Wh batteries) / DC 16.8 V, 3 A x 4 (Other batteries)
  • Compatible battery: V-mount battery
  • Dimensions: 330 x 153 x 162 mm
  • Weight: 2.43 kg
  • (Supplied without batteries)

In the Box

  • 1x SWIT 4ch x max 6A Top Fast Simultaneous 14V/28V Charger V-mount
Connections & Connectivity
Outputs V-mount (4x)
Dimensions & Weight
Length (mm) 330.0 mm
Weight (g) 2430.0 g
Width (mm) 153.0 mm
Height (mm) 162.0 mm
Power
Number of charging slots (Units) 4.0 Units
Capacity (A) 6.0 A
Max. output (W) 450.0 W
Fast charging
USB‑C Power Delivery
