SWIT VANGO-100L 8:1 RGBW Panel Light professional 100W SMD-LED, V-Mount

SWIT VANGO-100L 8:1 RGBW Panel Light professional 100W SMD-LED, V-Mount

Thanks to SWIT's unique Edge Mounted SMD technology and highly efficient 90° light guide technology, the VANGO-100L features an ultra-thin profile of just 21 mm and spreads soft light to illuminate the entire surrounding area.

Regular RGB panels deliver high brightness in CCT mode, but significantly lower brightness in RGB colour mode. This is because in a standard RGB light, the RGB colour LEDs and white LEDs share a fixed ratio of the total power, meaning the RGB LEDs only use 1/3 of the power in colour mode. Thanks to SWIT's unique Time Division Drive technology, the full power of the light can be allocated to the RGB colour LEDs, substantially increasing colour light intensity. The colour light intensity of the 100W VANGO-100L is equivalent to that of a standard 300W RGB colour light.

The light has been tested and certified as "Exempt – No photobiological hazard" in accordance with the IEC 62471:2008 standard, with no risk of ultraviolet radiation, high-energy blue light, or flicker. In specific environments such as churches, museums, and historic buildings, the use of this fixture can effectively prevent the fading and flaking of murals, helping to protect cultural heritage.

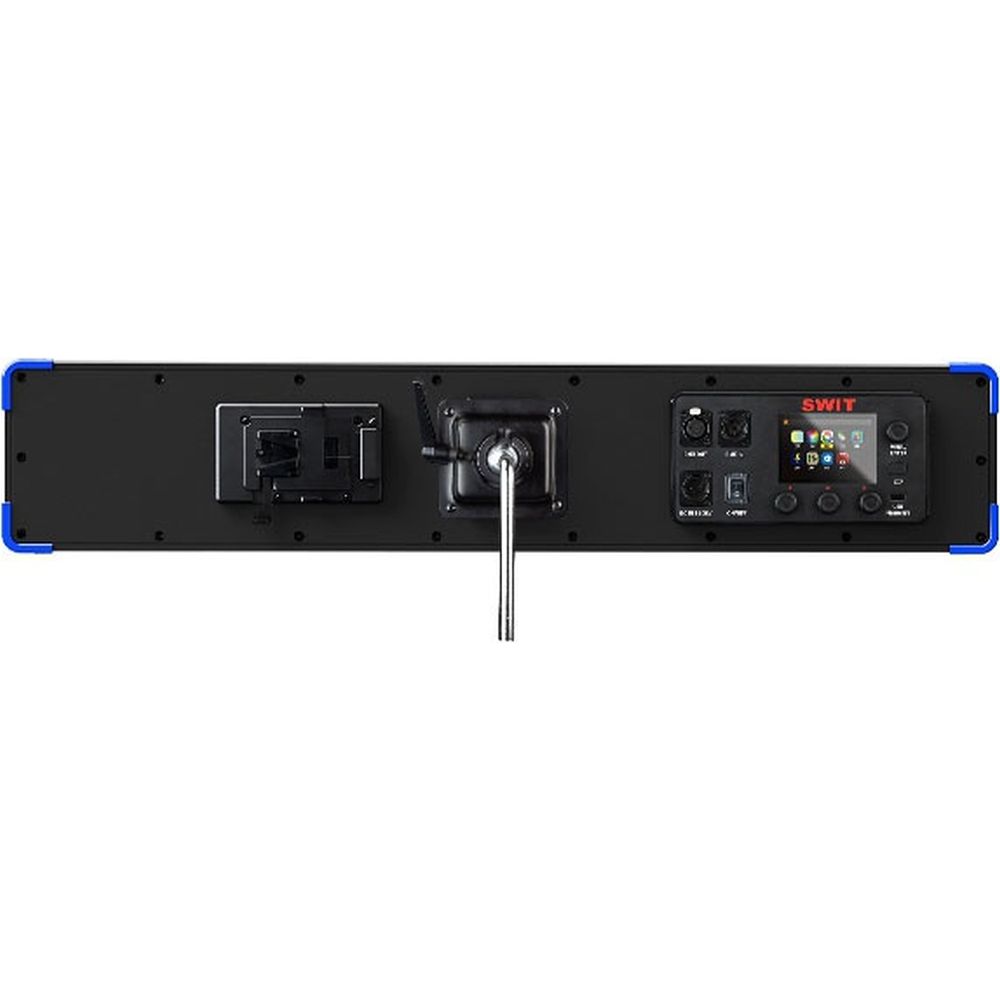

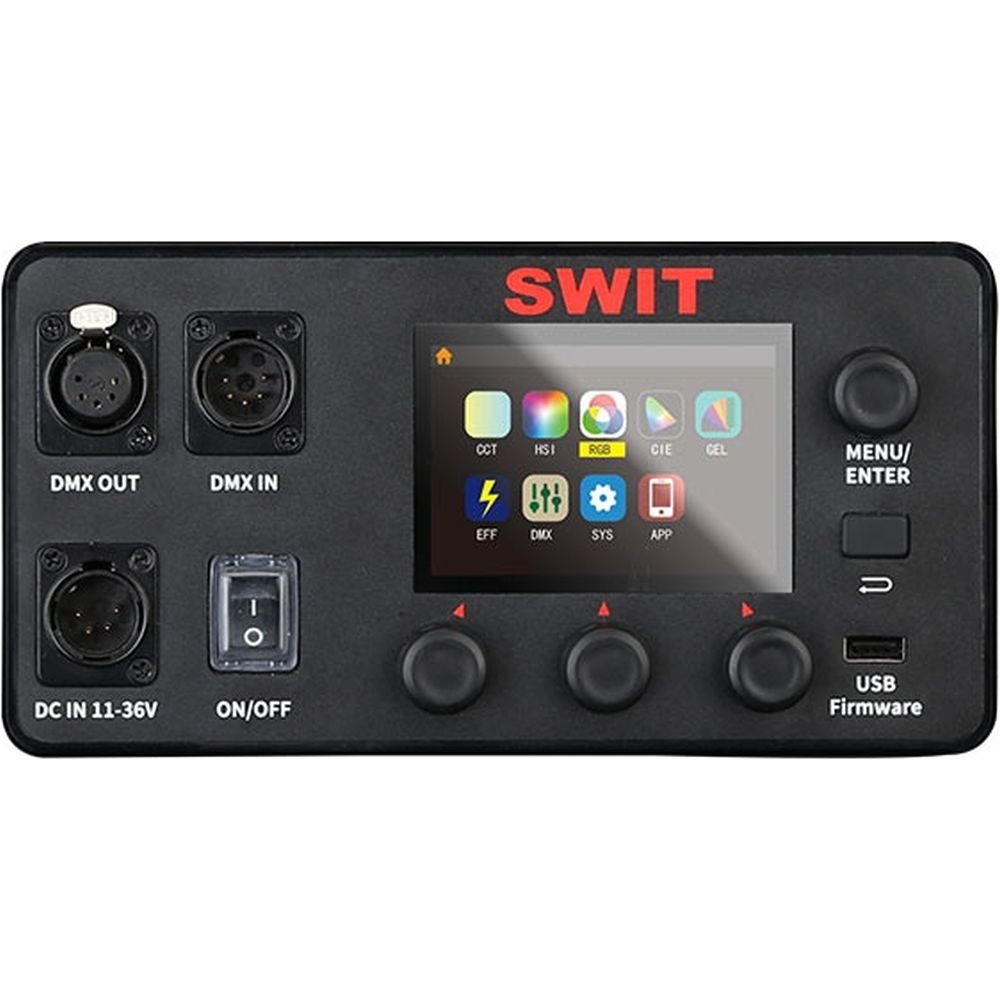

The control panel on the rear of the VANGO-100L supports 5-pin DMX input and output, 4-pin XLR DC 11–36V input, and a V-mount battery plate (gold-mount connector available as an option), as well as a large colour LCD with menu and shortcut keys for easy colour selection. The USB-A port is used for firmware updates or uploading custom colour profiles, and for powering the wireless DMX receiver.

Download the "SWIT Console" app from the iOS App Store or Google Play to connect and control VANGO lights via Bluetooth. The app supports CCT, HSI, RGB, and CIE colour modes and offers the ability to select preset colour gels and lighting effects.

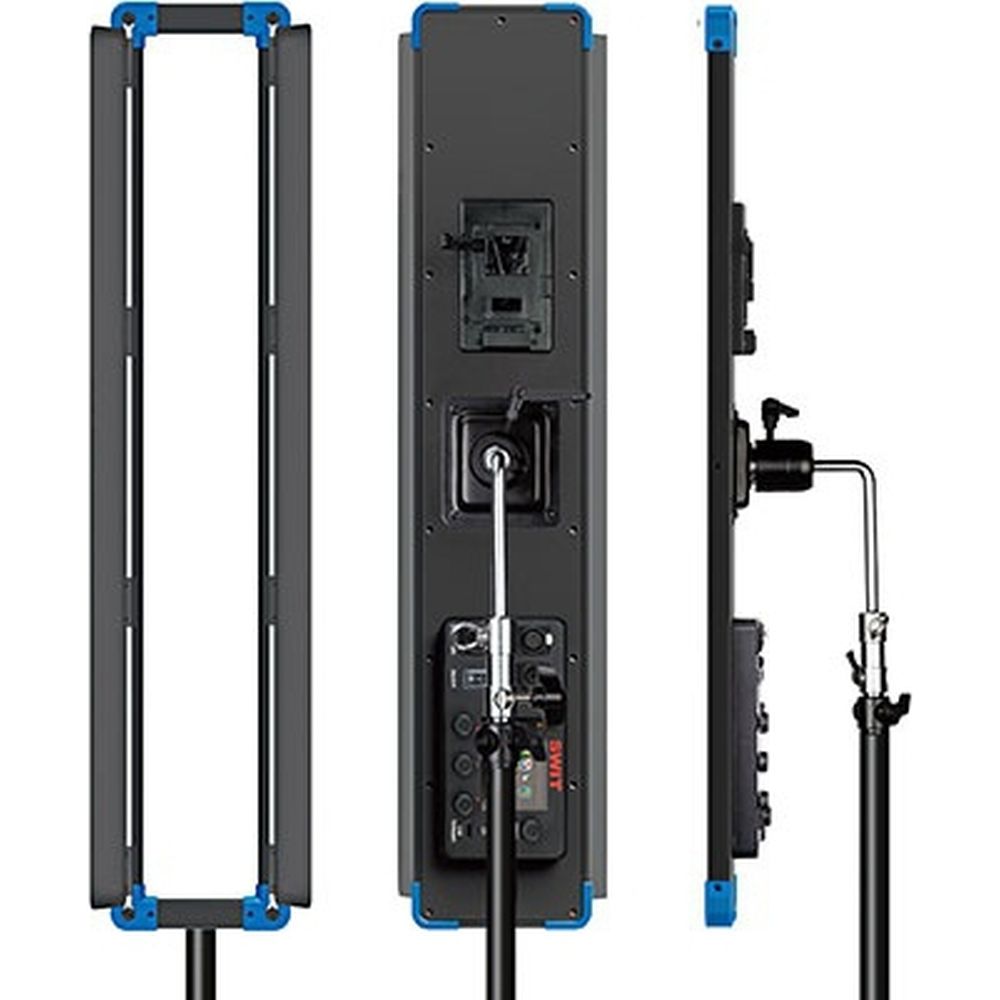

The VANGO-100L features a sturdy goose-neck ball head for tripod mounting, with both a junior pin male and a baby pin female connector.
