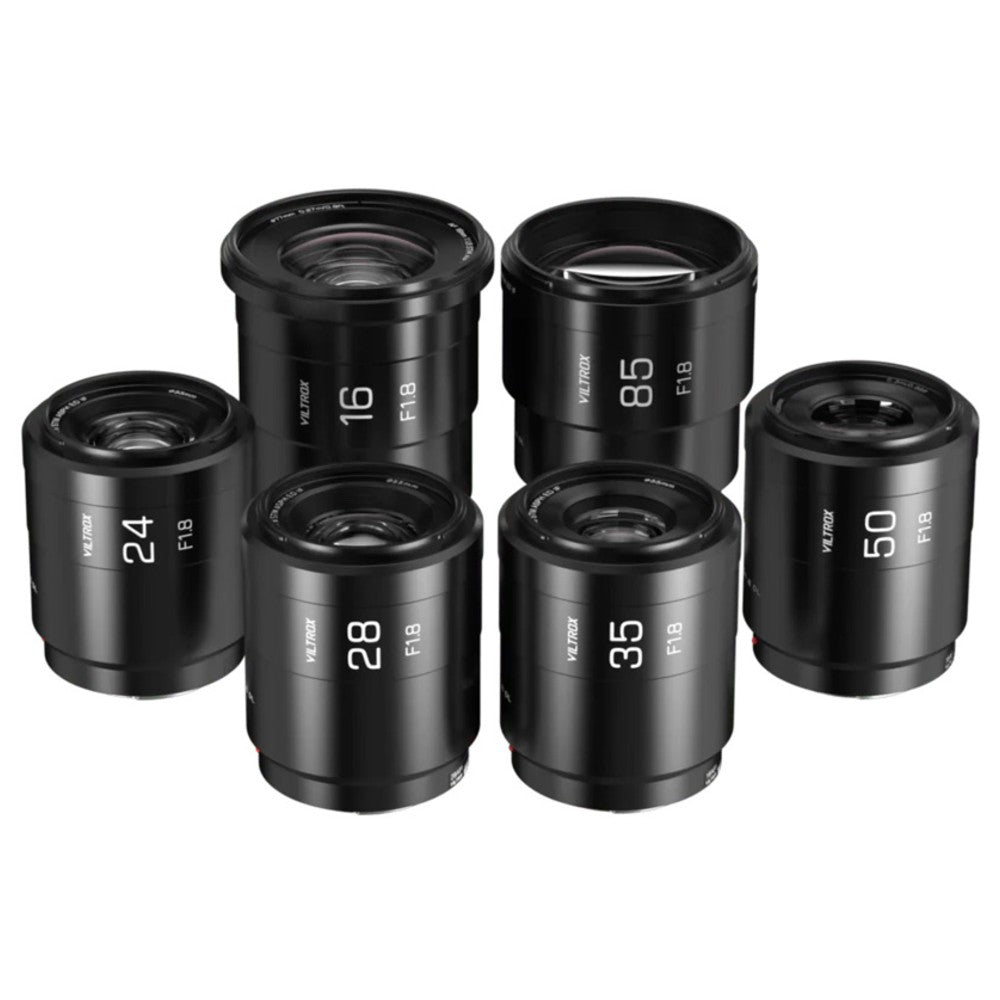

Viltrox Raze AF Full-Frame Lens Set for DJI Ronin 4D DL-Mount
The Viltrox Raze AF Full-Frame Lens Set DL Mount for Ronin 4D has been specially developed for the DJI Ronin 4D camera system. This lens set consists of full-frame autofocus lenses with a DL mount, a fast maximum aperture of f/1.8 and focal lengths of 16, 24, 28, 35, 50 and 85 mm. Thanks to the lightweight and compact design, the lenses remain easy to handle without compromising image quality. The lenses integrate seamlessly with the professional DJI Ronin 4D system and are fully integrated into the DL-mount ecosystem, giving you fast, accurate autofocus and optimal performance during dynamic shooting.
Seamless compatibility with the DL mount
With a carefully crafted lens structure and refined optical performance, the Raze series fits seamlessly with the DJI Ronin 4D system to ensure DL-mount compatibility. The gap-free structural design ensures effortless installation, fast response and immediate readiness for shooting.
Gap-free synergy, efficient autofocus
Supports the DL-mount protocol, ensuring lossless transmission of electronic contact signals and synchronisation with the gimbal’s stabilisation algorithm. The efficient autofocus system is deeply integrated with the DJI Ronin 4D’s LIDAR focusing system, allowing the subject to be tracked accurately without the need for an external focus system, capturing every moment clearly and quickly with ease.
Razor-sharp speed, ultra-light for dynamic filmmaking
The Raze lens offers an extremely lightweight and compact design across the entire focal range, weighing just 316-473 grams per lens. It can be mounted on a gimbal without the need for counterweights, providing a glide-like shooting experience similar to a slider.
Versatile control over key focal lengths

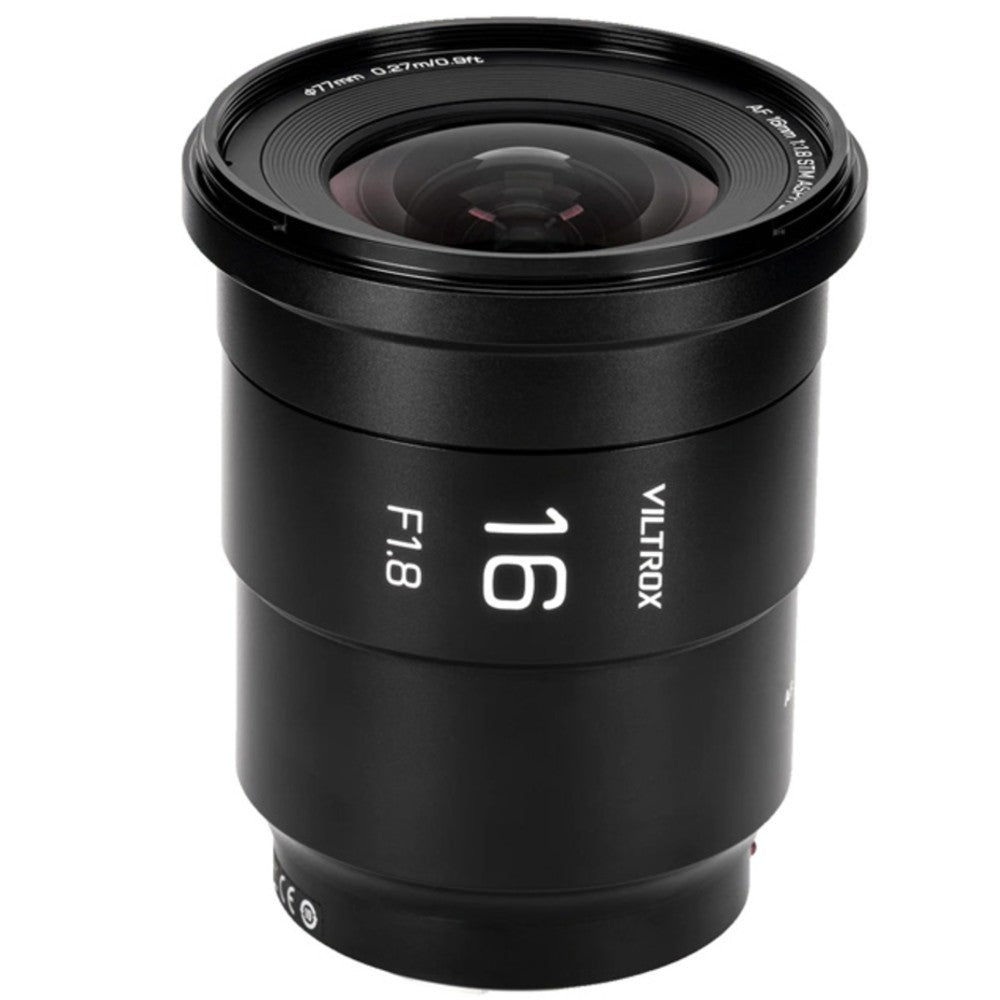

The 16 mm ultra-wide angle captures a wider field of view, while the 85 mm lens offers excellent scene compression. The 24mm, 28mm, 35mm and 50mm lenses maintain consistent image quality when switching between focal lengths, without the need to rebalance. All lenses in the series offer a uniform style and colour performance, making post-production colour correction easier and more consistent.
f1.8 ultra-large aperture for optimal low-light performance
Thanks to the f1.8 ultra-large aperture, you can effortlessly capture light and shadow, even in dark conditions. Create razor-sharp images with soft, natural background blur for a professional look. The electronically controlled aperture ensures precise light capture, enabling seamless adaptation to complex lighting conditions for unmatched creative control.
Edge-to-edge sharpness, exceptional full-frame quality
The lens fully covers the entire full-frame sensor, preventing vignetting or distortion. Thanks to its ultra-high resolution, it delivers exceptional image quality, with accurate colour reproduction and detailed, refined rendering, even in complex lighting conditions.
Whisper-quiet focusing, cinematic precision
The Raze series is powered by a quiet STM motor and redefines autofocus with micron-level step precision. The ultra-smooth focusing minimises focus breathing, creating an immersive, distraction-free sound environment—perfect for cinematic storytelling.
Outstanding image quality, even in low light
The triple optical structure (low-dispersion ED element+high-refractive element+aspherical element) combined with nanometre-level multi-layer coatings
effectively suppresses chromatic aberration, distortion and edge aberrations. In backlit conditions, ghosting and flare are effectively eliminated while preserving pure colours. Image quality remains sharp from centre to corner and retains rich detail, even in cropped frames.
Stable and reliable, resistant to extreme environments
The front lens element features a waterproof and anti-smudge coating that ensures clear image quality, even in sand, dust, rain and snow. A precision-engineered brass mount locks securely onto the camera body and meets the demands of professional, intensive shooting. The internal focusing design ensures smooth camera movements.
Features of the AF 24/1.8 DL
- Lens mount: DL mount
- Sensor format: FF
- Lens elements: 11/9
- Focal length: F=24 mm
- Angle of view: 84º
- Aperture range: F1.8-F16
- Number of aperture blades: 9
- Shooting distance: 0.3m-
- Focusing mechanism: Ultra-light internal focusing
- Focus motor: STM+lead screw
- Focus modes: AF
- Max. magnification: 0.1x
- Lens size: 69,8 x 81 mm
- Weight: 316 g
- Filter size: 55 mm

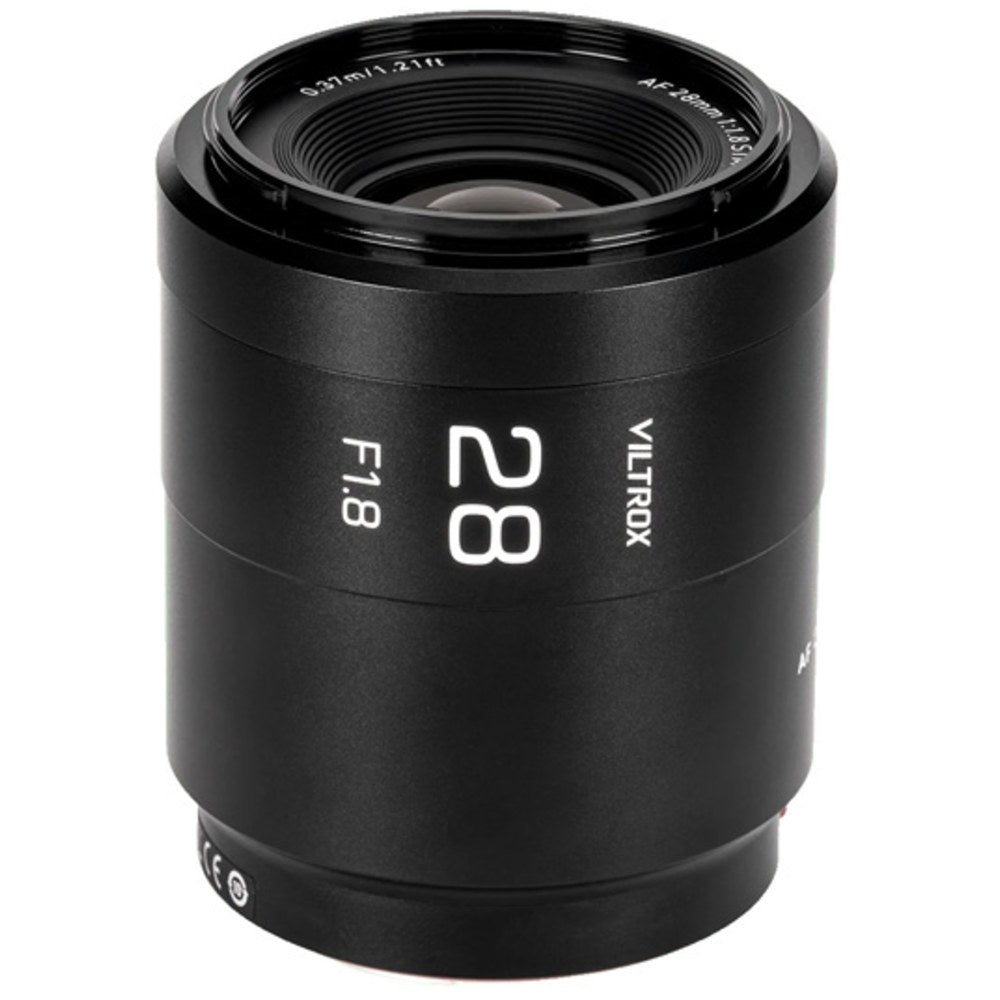

Features of the AF 28/1.8 DL
- Lens mount: DL mount
- Sensor format: FF
- Lens elements: 11/9
- Focal length: F=28 mm
- Angle of view: 74.6º
- Aperture range: F1.8-F16
- Number of aperture blades: 9
- Shooting distance: 0.37m-
- Focusing mechanism: Ultra-light internal focusing
- Focus motor: STM+lead screw
- Focus modes: AF
- Max. magnification: 0.1x
- Lens size: 69,8 x 84,2 mm
- Weight: 350 g
- Filter size: 55 mm

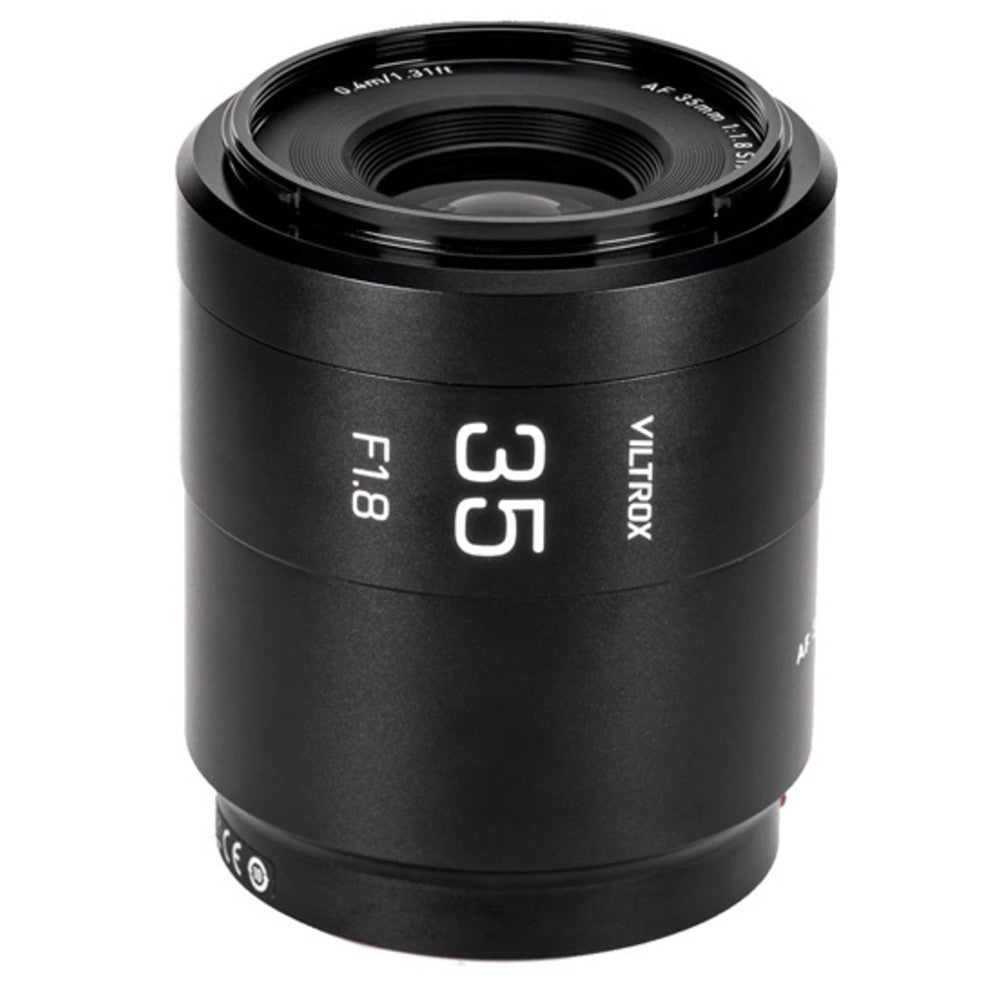

Features of the AF 35/1.8 DL
- Lens mount: DL mount
- Sensor format: FF
- Lens elements: 10/8
- Focal length: F=35 mm
- Angle of view: 63.2º
- Aperture range: F1.8-F16
- Number of aperture blades: 9
- Shooting distance: 0.4m-
- Focusing mechanism: Ultra-light internal focusing
- Focus motor: STM+lead screw
- Focus modes: AF
- Max. magnification: 0.1x
- Lens size: 69,8 x 84,2 mm
- Weight: 320 g
- Filter size: 55 mm

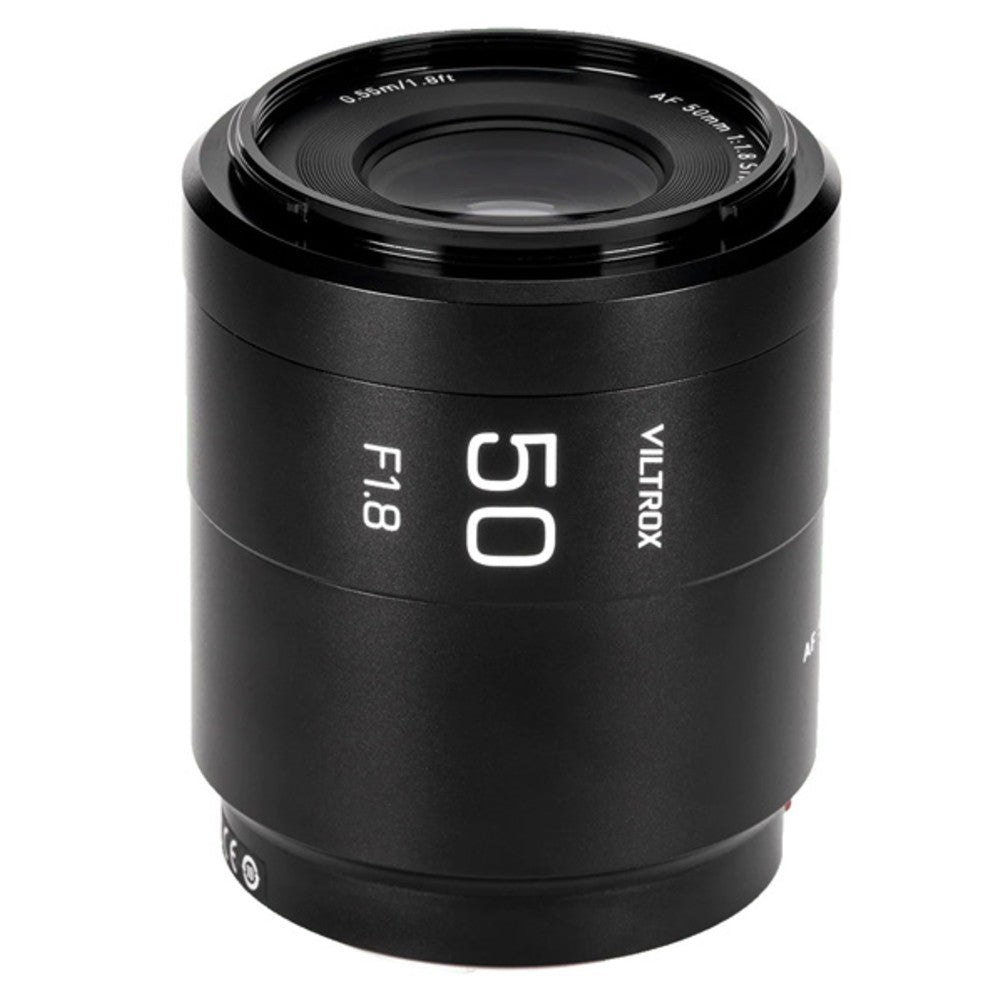

Features of the AF 50/1.8 DL
- Lens mount: DL mount
- Sensor format: FF
- Lens elements: 11/10
- Focal length: F=50 mm
- Angle of view: 47.6º
- Aperture range: F1.8-F16
- Number of aperture blades: 9
- Shooting distance: 0.55m-
- Focusing mechanism: Ultra-light internal focusing
- Focus motor: STM+lead screw
- Focus modes: AF
- Max. magnification: 0.1x
- Lens size: 69,8 x 84,2 mm
- Weight: 330 g
- Filter size: 55 mm

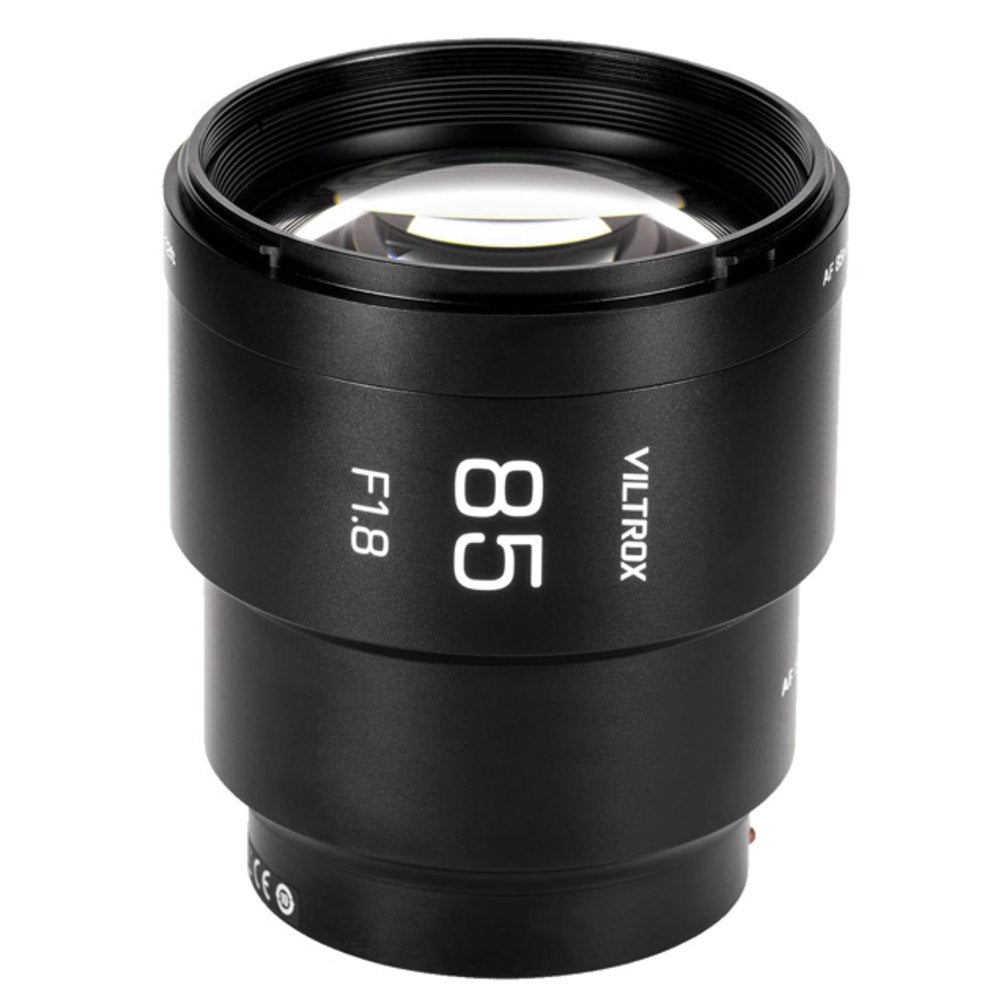

Features of the AF 85/1.8 DL
- Lens mount: DL mount
- Sensor format: FF
- Lens elements: 10/7
- Focal length: F=85 mm
- Angle of view: 28.8º
- Aperture range: F1.8-F16
- Number of aperture blades: 9
- Shooting distance: 0.8m-
- Focusing mechanism: Ultra-light internal focusing
- Focus motor: STM+lead screw
- Focus modes: AF
- Max. magnification: 0.1x
- Lens size: 81 x 94,1 mm
- Weight: 473 g
- Filter size: 72 mm
Contents of the package
- AF 16mm f/1.8
- AF 24mm f/1.8
- AF 28mm f/1.8
- AF 35mm f/1.8
- AF 50mm f/1.8
- AF 85mm f/1.8

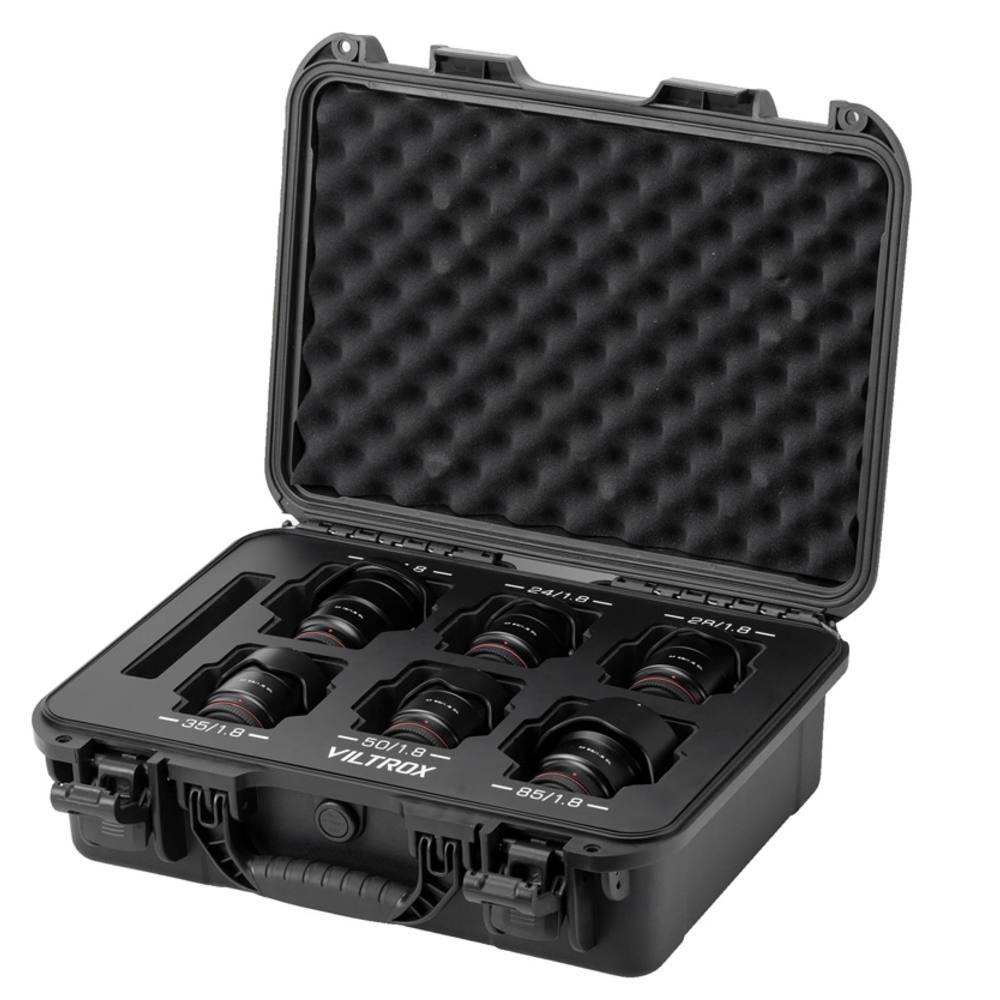

- Hard-shell storage case
