Atomos Ninja V

Atomos Ninja V

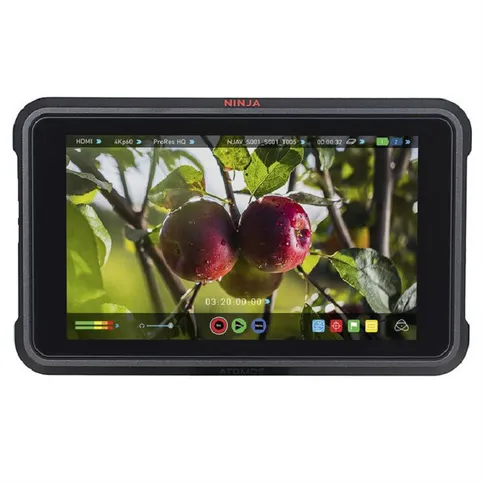

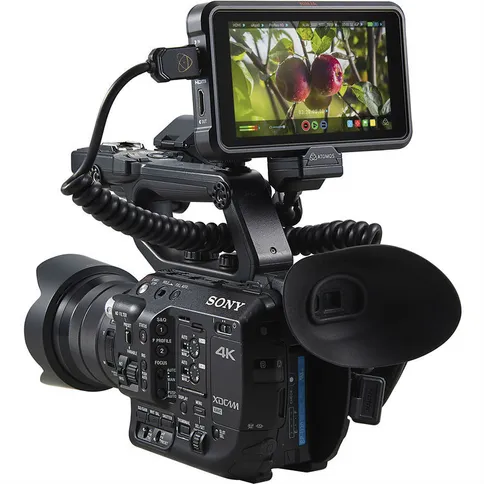

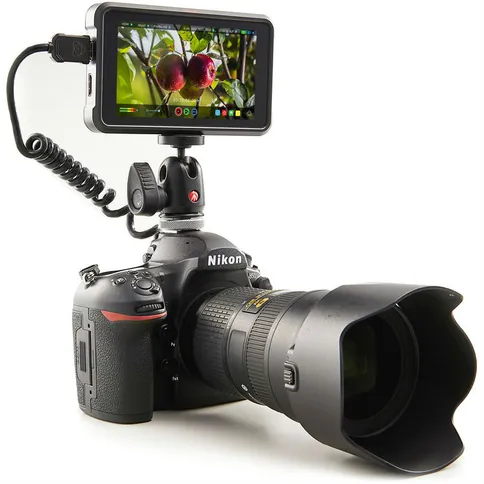

The Atomos Ninja V 4K HDMI recording monitor is a 5 inch monitor / recorder that can be mounted on the camera. The Ninja V can record and play DCI 4K, UHD 4K and HD video from specially built mini SSDs. The device has a 10-bit FRC IPS screen with a brightness of 1000 CD / m², so that it can be used both indoors and outdoors. With AtomHDR rendering technology, you can accurately track your log gamma recordings without having to view flat, pale images or use a Look Up Table (LUT) to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED and JVC cameras. The settings only affect the playback, while the recorded video remains unchanged. The Ninja V is built to withstand the testing of a production and has an aluminum chassis and is powered by a single L-series battery. Additional functions include various exposure analyzes on the screen, frame and focussing tools. A power supply and an SSD caddy are included with the unit.

AtomHDR

With AtomHDR you can follow up to ten stops of the dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is great for standard images; but a log image looks too flat.

Supported log formats

• ARRI Log C
• Canon CLog / CLog 2
• Fuji F-LogJVC JLog
• Sony SLog2 / SLog3
• Panasonic Vlog
• RED LogFilm

HDR-recording

• ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
• Canon CLog / CLog2 / Clog3
• Fuji F-LogJVC JLog1
• Panasonic Vlog
• PQ10k, HLG
• RED LogFilm / Log3G10 / Log3G12
• Sony SLog / SLog2 / SLog3

HDR-monitors

• ARRI ALEXA Wide Gamut
• Canon Cinema / DCI P3 / DCI P3+ / BT2020
• Fuji F-Log
• JVC LS300
• Panasonic V Gamut
• Rec. 2100Rec. 709RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
• Sony SGamut / SGamut3 / SGamut3.cine / BT2020Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / ARRI ALEXA Wide Gamut) mapping to Rec. 709 on screen
• Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / ARRI ALEXA Wide Gamut) mapping to Rec. 709 / BT2020 / DCI P3 on loop out

Features of the Atomos Ninja V

• 1920 x 1200 touchscreen display 4K

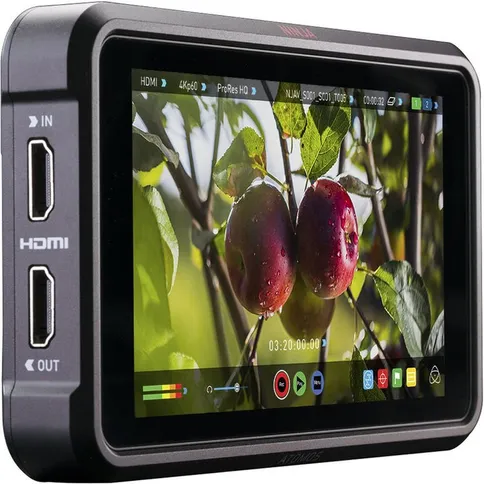

• HDMI input
• Brightness of 1000 cd/m²
• AtomHDR-mode with 10-stops dynamic range 10-bit 4:2:2 ProRes & DNxHR coding Stores to Mini SSDs
• Supports a variety of log formats

In the Box

• Atomos Ninja V
• Power supply
• Master Caddy II
