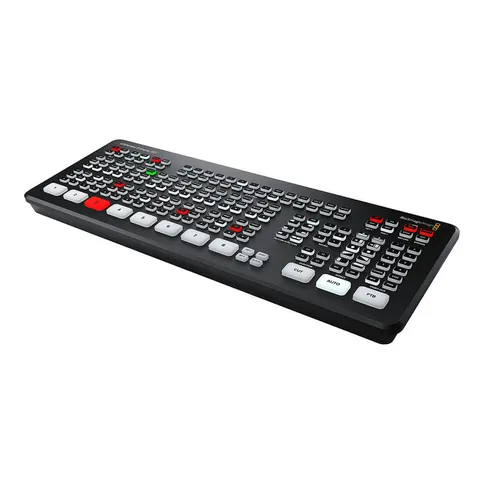

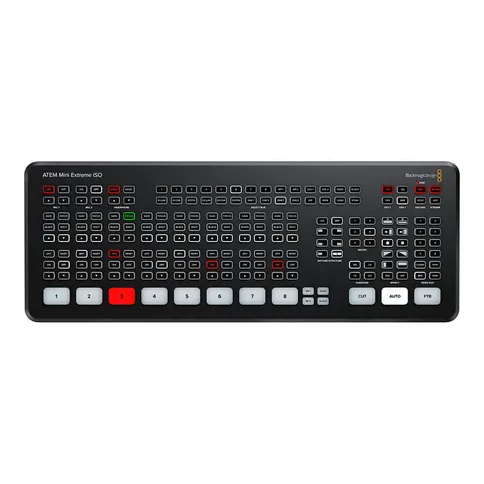

Blackmagic ATEM Mini Extreme ISO

The Blackmagic ATEM Mini Extreme ISO is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher's eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.

Switch, add effects, colour grade, and key in real time using the control surface's buttons, or via the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme ISO supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two colour generators. Designed for live streaming or webcam, the Mini Extreme ISO has HDMI outputs to feed monitors and supports up to 16-screen multi-view.

Compatibility: macOS 10.15 / macOS 11.1 or newer / Windows 10.

Features of the Blackmagic ATEM Mini Extreme ISO

• 8-input HDMI Live Streaming Switcher
• Supports up to 1080p60
• RTMP streaming over Ethernet or USB-C
• Record program outputs and individual inputs
• Dimensions: 36.98 x 13.64 x 3.96 cm
• Weight: 1.23 kg

In the box

• Blackmagic ATEM Mini Extreme ISO
• Power cabe
