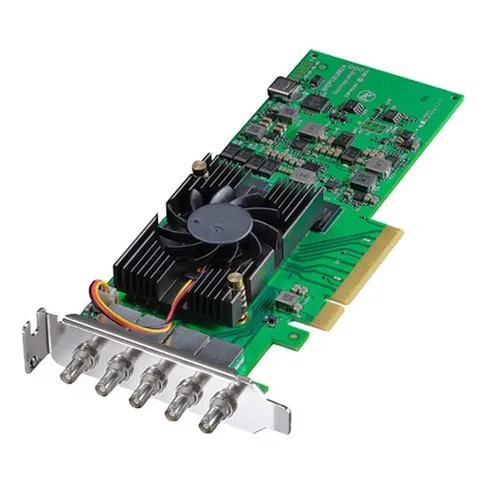

Blackmagic DeckLink 8K Pro Mini
The Blackmagic DeckLink 8K Pro Mini is a low-profile PCIe 8K recording and playback card designed for high-quality feature film production, including quad-link 12G-SDI connections with support for all SD, HD, Ultra HD, 4K and 8K standards.
765.-
Delivered within 2 to 3 working days
The Blackmagic DeckLink 8K Pro Mini is a low-profile PCIe 8K recording and playback card designed for high-quality feature film production, including quad-link 12G-SDI connections with support for all SD, HD, Ultra HD, 4K and 8K standards.
Reviews
Description
Blackmagic DeckLink 8K Pro Mini
The Blackmagic DeckLink 8K Pro Mini is a low-profile PCIe 8K recording and playback card designed for high-quality feature film production, including quad-link 12G-SDI connections with support for all SD, HD, Ultra HD, 4K and 8K standards.
The DeckLink 8K Pro Mini is the ultimate low profile 8K digital card for recording and playback. With 4 independent 12G-SDI Micro BNC connections, the DeckLink 8K Pro Mini can operate in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI standards. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 colour, making it perfect for next-generation high-resolution, high-dynamic-range workflows!
Low profile PCI Express 8-lane generation 3, compatible with 8, 16-lane PCI Express slots on Mac OS, Windows and Linux.
Features of the Blackmagic DeckLink 8K Pro Mini:
- SDI video inputs: 4x bidirectional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
- SDI video outputs: 4x bidirectional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
- SDI audio inputs: 16 channels embedded in SD/HD/2K. 64 channels embedded in 4K/8K.
- SDI audio outputs: 16 channels embedded in SD/HD/2K. 64 channels embedded in 4K/8K.
- Sync input: Tri-Sync or Black Burst.
- Computer interface: PCI Express 8-lane generation 3, compatible with 8- and 16-lane PCI Express slots.
- Energy consumption: 18 W
In the Box:
- Blackmagic DeckLink 8K Pro Mini
Blackmagic DeckLink 8K Pro Mini
The Blackmagic DeckLink 8K Pro Mini is a low-profile PCIe 8K recording and playback card designed for high-quality feature film production, including quad-link 12G-SDI connections with support for all SD, HD, Ultra HD, 4K and 8K standards.
The DeckLink 8K Pro Mini is the ultimate low profile 8K digital card for recording and playback. With 4 independent 12G-SDI Micro BNC connections, the DeckLink 8K Pro Mini can operate in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI standards. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 colour, making it perfect for next-generation high-resolution, high-dynamic-range workflows!
Low profile PCI Express 8-lane generation 3, compatible with 8, 16-lane PCI Express slots on Mac OS, Windows and Linux.
Features of the Blackmagic DeckLink 8K Pro Mini:
- SDI video inputs: 4x bidirectional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
- SDI video outputs: 4x bidirectional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
- SDI audio inputs: 16 channels embedded in SD/HD/2K. 64 channels embedded in 4K/8K.
- SDI audio outputs: 16 channels embedded in SD/HD/2K. 64 channels embedded in 4K/8K.
- Sync input: Tri-Sync or Black Burst.
- Computer interface: PCI Express 8-lane generation 3, compatible with 8- and 16-lane PCI Express slots.
- Energy consumption: 18 W
In the Box:
- Blackmagic DeckLink 8K Pro Mini
