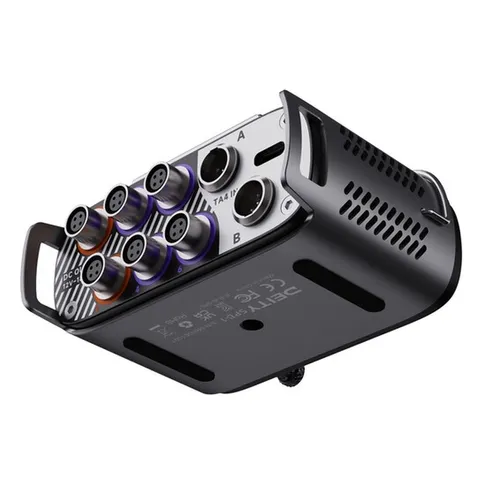

Deity SPD-1 (Smart Power Distributor)

Deity SPD-1 (Smart Power Distributor)

The Deity SPD-1 (Smart Power Distributor) is the perfect solution for managing power in a sound bag or on a sound cart. This powerful and versatile device is designed to make your life on set easy and stress-free.

The SPD-1 supports both smart and non-smart batteries with triple DC inputs and hot-swappable functionality. The device also displays battery telemetry data to keep track of your power consumption. Monitoring power on set is crucial to keep production running smoothly. With the SPD-1, you can easily track your power consumption, so you never run out of power at the wrong time. This is especially important when stopping production or moving between locations.

The SPD-1's 1.1-inch colour display provides all the information you need, such as total power consumption, battery temperatures, voltage, battery life and number of battery cycles. Lockable rocker switches make it easy to turn your devices on and off, and this helps prevent random power cuts.

The SPD-1 also features two 1/4" threaded mounts, allowing you to securely mount the device in any position. The reversible mounting clip makes it easy to change the orientation of the device if needed, and the 12V-18V operating range ensures that it works with a wide range of devices.

Moreover, the SPD-1 features an easily accessible 5V2A Type A USB port on the front, allowing you to easily charge and power your devices. And with six unregulated 4-Pin Push Power outputs (which are Hirose compatible), you can power multiple devices simultaneously. The six outputs are split between two power circuit groups, so you can turn auxiliary devices on and off without turning off your primary devices.

The USB-C input provides regulated 12V to the system via the wall socket. This is useful if you will be in one place for a while and don't want to use batteries. Keep in mind that your USB-C power supply supports the 12V USB-C power standard and provides enough watts. It is recommended to use a ??USB-C laptop-style power supply with the SPD-1.

If you are looking for a powerful and versatile power distribution box for your audio system, the SPD-1 is a perfect choice. With its triple DC inputs, hot-swappable functionality and a host of other features, it is designed to make your life on set as easy and stress-free as possible.

The SPD-1 is compatible with the following devices:

• Sound Devices MX-HIROSE DC Input Sled
• Sound Devices 633, 664, 688
• Sound Devices A10-RX A-TA3 Adapter, A10-RX A-XLR
• Zaxcom Nova, Nova 2
• Zaxcom Deva 24
• Zoom F8, F8n, F8n Po
• Zoom F4
• Sound Devices A10-RX A-TA3 adapter, A10-RX A-XLR
• Lectrosonics SREXT SR Mounting kit, DSR4EXT, DCR822
• Wisycom MCR54 End plate
• MiPro MR-90SC
• Sony UWP-D

Features of the Deity SPD-1 (Smart Power Distributor)

• Manage power in Sound Bag or Sound Cart
• 12 to 18V for a wide range of devices
• Supports smart and non-smart batteries
• 2x TA4 inputs + USB-C input
• 6x unregulated Hirose power outputs
• Front USB-A 5V/2A output
• 2x power circuit groups
• 1.1" TFT colour display
• Displays battery telemetry data
• Dimensions: 36 x 89 x 64 mm
• Weight: 159 g

Package contents

• 1x Deity SPD-1 Smart Power Distributor
• 1x SPD-T4BATT (TA4f to NH2054 battery holder)
• 1x Deity stickers
• 1x QR card for digital manual
