Hikmicro PocketE Thermal Camera

Hikmicro PocketE Thermal Camera

The Hikmicro PocketE Thermal Camera is surprisingly affordable, absolutely brilliant and fits in any pocket. Powered by Hikmicro SuperIR image enhancement technology, it scales up thermal images from 96 x 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when live viewing at a fast frame rate of 25 Hz and taking photos.

Built-in IR camera and visible camera, allowing you to switch between 5 image modes (Thermal, Visual, PIP, Fusion and Blending). "Fusion" combines the key details of a 0.3 megapixel visual camera with the IR image, adding extra detail and brightness. "Blending" merges partially transparent infrared and visible images into one view and lets you adjust transparency. "PIP" overlays a fixed portion of a thermal image over a digital photo to clarify the locations of anomalies.

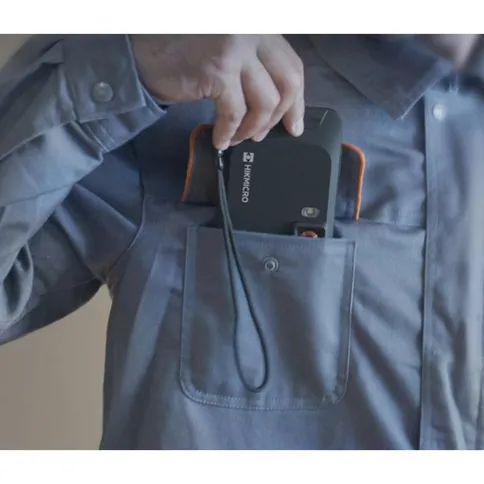

Easy to carry and hold. Fits perfectly in pockets and toolboxes. View details of your images on the large, intuitive 3.5-inch LCD touch screen. Stream and download images on the WiFi enabled device to your smartphone or tablet with Hikmicro Viewer.

50° wide-angle lens
Scan large areas quickly with the 50° wide-angle lens to detect problems such as water leaks, insulation problems and air infiltration.

Supports full-screen radiometric image capture and automatically tracks max/min/centre points to locate temperature anomalies at a glance. Accurately measures temperatures from -20°C to 350°C, with temperature accuracy to +/-2°C or +/-2% of reading.

Simply tap an area of interest on the screen and the image contrast is instantly increased and potential problems highlighted. By saving visual and thermal images simultaneously with a single click, you can get an efficient workflow and a quick inspection report. The built-in 4GB eMMC flash storage can store about 30,000 standard thermal/visual images or 20 hours of MP4 video. And it allows onboard recording and playback.

Features of the Hikmicro PocketE Thermal Camera

• IR resolution: 96 x 96 (9216 pixels)
• NETD: < 50 mK (@ 25°C, F#=1.0)
• Image frequency: 25 Hz
• Detector height: 12 μm
• Spectral range: 7.5 to 14 μm
• Focal length: 1.35 mm
• F-number: F1.0
• Field of view (FOV): 50° x 50°
• Spatial resolution (IFOV): 8.89 mrad
• Focus mode: Focus free
• SuperIR: Yes, on captured images and live view
• Distance to spot ratio (D:S): 112:1
• Minimum focus distance: 0.1 m
• Visual camera: 640 z 480 (0.3 MP)
• Display: Resolution 320 × 240, 3.5-inch LCD touch screen
• Screen brightness: Manual
• Digital magnification: 1.0x to 4.0x continuous
• Image modes: Thermal/Visual/Fusion/PIP/Blending
• Colour palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
• Object temperature range: -20°C to 350°C
• Accuracy: Max. (±2°C ±2%) at ambient temperature 25°C and object temperature above 0°C
• Measuring instruments: Middle spot, hot spot, cold spot
• Level and range mode: Automatic/Manual/1-Tap touchscreen
• Storage media: Built-in 4GB flash memory (user-available storage is less than rated capacity)
• Image storage capacity: Approximately 30,000 images
• Annotations: Text annotation: up to 255 characters
• Video storage capacity: Approximately 20 hours
• Video file format: MP4 video
• Image file format: Radiometric JPEG
• WiFi: 802.11 b/g/n (2.4 GHz)
• USB interface: USB Type-C
• Battery type: Rechargeable Li-ion battery
• Battery operating time: Approximately 4 hours
• Battery charging time: About 2.5 hours fully charged
• Energy-saving mode: Auto power-off and manual sleep mode
• Protection level: IP54
• Drop test height: 2 m
• Operating temperature range: -10°C to 50°C
• Storage temperature range: -20°C to 60°C
• Relative humidity: < 95% non-condensing
• Tripod mounting: UNC 1/4"-20
• Power supply: USB-C (5V/2A)
• LED illumination: yes
• Dimensions: 138.45 x 85.2 x 23.6 mm
• Weight: Approximately 218 grams

Package contents

• 1x Hikmicro PocketE Thermal Camera
• 1x Storage pouch
• 1x 2-in-1 USB-A/C to USB-C cable
• 1x Wrist strap
• 1x Quick start guide
