SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696
The SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696 is designed to provide a ??compact, lightweight and fast all-in-one NP-F battery power solution for mirrorless camera users.
€ 69. 90
Delivered within 3 to 4 working days
The SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696 is designed to provide a ??compact, lightweight and fast all-in-one NP-F battery power solution for mirrorless camera users.
Reviews
Description
SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696
The SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696 is designed to provide a ??compact, lightweight and fast all-in-one NP-F battery power solution for mirrorless camera users. The mounting plate has a rear-mounted design, effectively balancing the centre of gravity of the lens, handheld shooting more energy; foldable design, portable and easy to store.
The mounting plate's built-in Arca-Swiss clamp and cages that have the built-in Arca-Swiss plate can be inserted directly into the rig. The mounting plate has a built-in Arca-Swiss quick-coupling plate at the bottom, which can be quickly mounted on an Arca-Swiss tripod for quick handheld and tripod switching; the Arca quick-coupling plate has a built-in anti-drop pin, which effectively prevents dropping. The mounting plate can be rotated, which is convenient for using the LCD screen and viewfinder; the swivel position has a cushioning design to prevent sudden dropping and protect the equipment; the swivel locking knob has a pull-out design, which is both compact and easy to use.
All adjustment and locking parts of the Mount Plate require no tools, quick and time-saving. The Mount Plate has built-in 1/4"-20 threaded holes and 3/8"-16 threaded holes, which can be mounted with accessories such as magic arms and quick-release plates. The Mount Plate has a built-in dual DC output interface (7.4V and 12V) to power multiple devices simultaneously. Comes with a built-in anti-drop pin Arca-Swiss quick-release plate and can be used without a cage.
Features of the SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696
- Complete power supply solution for NP-F batteries, lightweight, compact and easy to store
- Rear-mounted design balances lens centre of gravity and saves power for handheld shooting
- Rotatable design for easy access to LCD screen and viewfinder
- Dual Arca-Swiss design, to cater for more scenarios
- Built-in dual DC output interface, convenient for powering multiple devices
- Input voltage: 7.4 V
- Output voltage: DC 12 V / DC 7.4 V
- Output current: 1.5 A
- Operating current: 50 mA~100 mA
- Material: aluminium alloy, stainless steel, silicone, ABS+PC

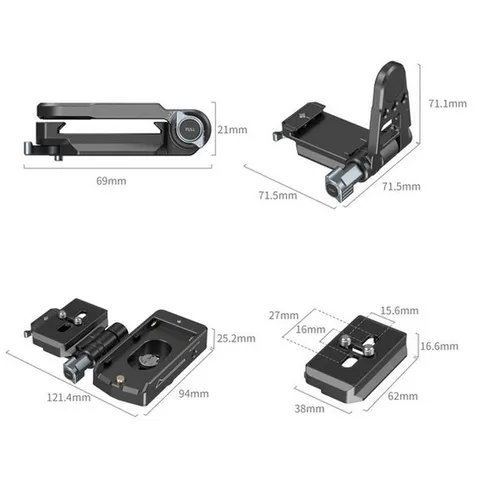

- Dimensions: 122.0 x 94.0 x 25.2 mm
- Weight: 182.0 g
Package contents
- 1x NP-F battery adapter plate
- 1x Foldable mounting plate
- 1x Arca-Swiss quick release plate
- 2x 1/4"-20 screw
- 1x Allen key
SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696
The SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696 is designed to provide a ??compact, lightweight and fast all-in-one NP-F battery power solution for mirrorless camera users. The mounting plate has a rear-mounted design, effectively balancing the centre of gravity of the lens, handheld shooting more energy; foldable design, portable and easy to store.
The mounting plate's built-in Arca-Swiss clamp and cages that have the built-in Arca-Swiss plate can be inserted directly into the rig. The mounting plate has a built-in Arca-Swiss quick-coupling plate at the bottom, which can be quickly mounted on an Arca-Swiss tripod for quick handheld and tripod switching; the Arca quick-coupling plate has a built-in anti-drop pin, which effectively prevents dropping. The mounting plate can be rotated, which is convenient for using the LCD screen and viewfinder; the swivel position has a cushioning design to prevent sudden dropping and protect the equipment; the swivel locking knob has a pull-out design, which is both compact and easy to use.
All adjustment and locking parts of the Mount Plate require no tools, quick and time-saving. The Mount Plate has built-in 1/4"-20 threaded holes and 3/8"-16 threaded holes, which can be mounted with accessories such as magic arms and quick-release plates. The Mount Plate has a built-in dual DC output interface (7.4V and 12V) to power multiple devices simultaneously. Comes with a built-in anti-drop pin Arca-Swiss quick-release plate and can be used without a cage.
Features of the SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696
- Complete power supply solution for NP-F batteries, lightweight, compact and easy to store
- Rear-mounted design balances lens centre of gravity and saves power for handheld shooting
- Rotatable design for easy access to LCD screen and viewfinder
- Dual Arca-Swiss design, to cater for more scenarios
- Built-in dual DC output interface, convenient for powering multiple devices
- Input voltage: 7.4 V
- Output voltage: DC 12 V / DC 7.4 V
- Output current: 1.5 A
- Operating current: 50 mA~100 mA
- Material: aluminium alloy, stainless steel, silicone, ABS+PC
- Dimensions: 122.0 x 94.0 x 25.2 mm
- Weight: 182.0 g
Package contents
- 1x NP-F battery adapter plate
- 1x Foldable mounting plate
- 1x Arca-Swiss quick release plate
- 2x 1/4"-20 screw
- 1x Allen key
