Swit S-1243FS 23.8-inch FHD Studio Monitor

brand logo
Reviews
Description

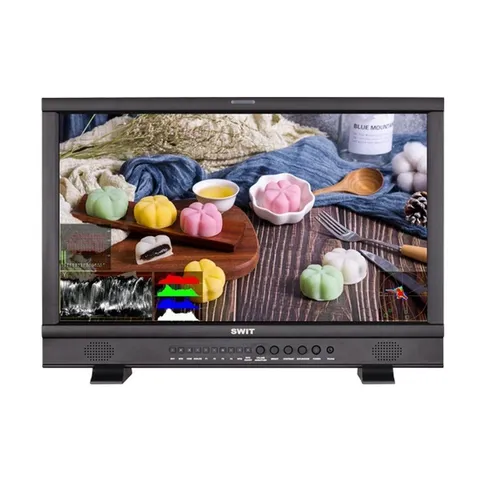

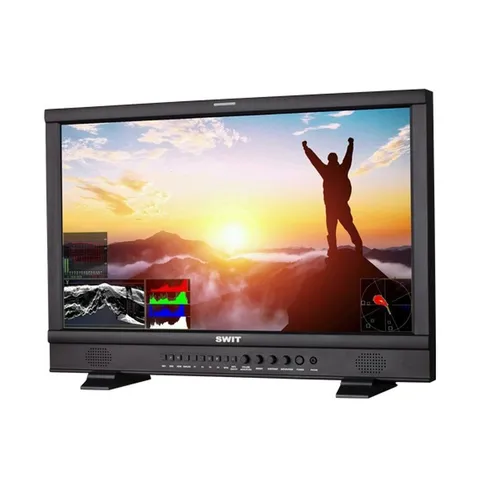

Swit S-1243FS 23.8-inch FHD Studio Monitor

The Swit S-1243FS 23.8-inch FHD Studio Monitor features a 23.8-inch IPS (In-Plane Switching) LCD panel, Full HD 1920 x 1080 resolution and LED backlighting, 1000:1 contrast for accurate colour reproduction. The viewing angle is horizontal: 178° / vertical: 178°.

The S-1243FS supports assistive patterns for video analysis, including: waveform (Y/Pb/Pr/R/G/B), vector scope, histogram (R/G/B/Y), to convert digital video quality information (Luma, colour, saturation, etc.) into patterns, and the patterns can be individually enabled/disabled, select display position (up/down/left/right), size, colour and translucency.

The S-1243FS also supports playback of SDI-16ch and HDMI-8ch built-in audiometers, with markings and abnormal audio warning information. Users can also select any 2-channel audio for output via a 3.5mm jack or speakers. The position of the audiometer pattern can be selected from Up/Down/Left/Right, and you can choose to display only 2 channels, 8 channels and full 16 channels. Scale marks, warning information and transparency of the audiometer pattern are also selectable.

The S-1243FS supports UMD and Text-Tally display of the TSL 3.1/4.0 protocol, with 1-126 TSL address selection and up to 8 letters displayed. UMD is input via RS485 or RS232C port and output via RS485 port.

Supports 17x17x17 3DLUT accurate colour calibration. Use a professional colour analyser (e.g. KONICA MINOLTA CA310) and 3DLUT calibration software (e.g. SpectralCal CalMAN5) to measure and generate a 3DLUT cube file to upload to the monitor via USB stick.

The monitor also has built-in camera logs for Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can import your own 3DLUTs for monitoring via a USB stick. The S-1243F supports:

  • 2x 2K/3G/HD/SD-SDI input
  • 2x 2K/3G/HD/SD-SDI loop
  • 1x HDMI input
  • 1x HDMI loop
  • 1x YUV input
  • 1x VGA input
  • 1x CVBS input
  • 1x CVBS loop
  • 1x RS485 UMD input
  • 1x RS485 UMD output
  • 1x RS232C UMD input
  • 1x RS485 GPI input
  • 1x L/R analogue audio input

Features of the Swit S-1243FS 23.8-inch FHD Studio Monitor

  • 23.8-inch LCD panel, 1920 x 1080 resolution
  • 2K/3G/HD/SD-SDI(x2), HDMI monitoring
  • Y/Pb/Pr, VGA, CVBS monitoring
  • 3DLUT 17x17x17 colour calibration
  • Built-in multiple De-log 3DLuts
  • User-LUTs upload via USB
  • 16-channel built-in audiometers with warning
  • Select any two audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vectorscope, histogram R/G/B/Y
  • Peaking focus aid (red/blue switch)
  • AFD, time code, H/V delay
  • Size: 23.8 inches
  • Display area: 527.04 x 296.46 mm
  • Resolution: 1920 x 1080
  • Contrast ratio: 16:9 (4:3)
  • Brightness: 250 cd/m2
  • Contrast: 1000:1
  • Dimensions: 576 x 387 x 87 mm
  • Weight: 7.2 kg

Package contents

  • Swit S-1243FS 23.8-inch FHD Studio Monitor
  • Power adapter
  • Feet

Swit S-1243FS 23.8-inch FHD Studio Monitor

The Swit S-1243FS 23.8-inch FHD Studio Monitor features a 23.8-inch IPS (In-Plane Switching) LCD panel, Full HD 1920 x 1080 resolution and LED backlighting, 1000:1 contrast for accurate colour reproduction. The viewing angle is horizontal: 178° / vertical: 178°.

The S-1243FS supports assistive patterns for video analysis, including: waveform (Y/Pb/Pr/R/G/B), vector scope, histogram (R/G/B/Y), to convert digital video quality information (Luma, colour, saturation, etc.) into patterns, and the patterns can be individually enabled/disabled, select display position (up/down/left/right), size, colour and translucency.

The S-1243FS also supports playback of SDI-16ch and HDMI-8ch built-in audiometers, with markings and abnormal audio warning information. Users can also select any 2-channel audio for output via a 3.5mm jack or speakers. The position of the audiometer pattern can be selected from Up/Down/Left/Right, and you can choose to display only 2 channels, 8 channels and full 16 channels. Scale marks, warning information and transparency of the audiometer pattern are also selectable.

The S-1243FS supports UMD and Text-Tally display of the TSL 3.1/4.0 protocol, with 1-126 TSL address selection and up to 8 letters displayed. UMD is input via RS485 or RS232C port and output via RS485 port.

Supports 17x17x17 3DLUT accurate colour calibration. Use a professional colour analyser (e.g. KONICA MINOLTA CA310) and 3DLUT calibration software (e.g. SpectralCal CalMAN5) to measure and generate a 3DLUT cube file to upload to the monitor via USB stick.

The monitor also has built-in camera logs for Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can import your own 3DLUTs for monitoring via a USB stick. The S-1243F supports:

  • 2x 2K/3G/HD/SD-SDI input
  • 2x 2K/3G/HD/SD-SDI loop
  • 1x HDMI input
  • 1x HDMI loop
  • 1x YUV input
  • 1x VGA input
  • 1x CVBS input
  • 1x CVBS loop
  • 1x RS485 UMD input
  • 1x RS485 UMD output
  • 1x RS232C UMD input
  • 1x RS485 GPI input
  • 1x L/R analogue audio input

Features of the Swit S-1243FS 23.8-inch FHD Studio Monitor

  • 23.8-inch LCD panel, 1920 x 1080 resolution
  • 2K/3G/HD/SD-SDI(x2), HDMI monitoring
  • Y/Pb/Pr, VGA, CVBS monitoring
  • 3DLUT 17x17x17 colour calibration
  • Built-in multiple De-log 3DLuts
  • User-LUTs upload via USB
  • 16-channel built-in audiometers with warning
  • Select any two audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vectorscope, histogram R/G/B/Y
  • Peaking focus aid (red/blue switch)
  • AFD, time code, H/V delay
  • Size: 23.8 inches
  • Display area: 527.04 x 296.46 mm
  • Resolution: 1920 x 1080
  • Contrast ratio: 16:9 (4:3)
  • Brightness: 250 cd/m2
  • Contrast: 1000:1
  • Dimensions: 576 x 387 x 87 mm
  • Weight: 7.2 kg

Package contents

  • Swit S-1243FS 23.8-inch FHD Studio Monitor
  • Power adapter
  • Feet
Specifications
Screen diagonal (inch) 23.8
Touchscreen
Display
Aspect ratio
Shape (Flat/Curved)
Type of display IPS
General
Article number 12422725
Product colour
Built-in speakers
Image quality
HD type
Brightness (cd/m2) 250
Contrast ratio (x: 1)
Maximum image resolution 1920x1080
Size & packaging
Weight (in grams) 7,200.00
Screen diagonal (inch) 23.8
Touchscreen
General
Article number 12422725
Product colour
Built-in speakers
Size & packaging
Weight (in grams) 7,200.00
Display
Aspect ratio
Shape (Flat/Curved)
Type of display IPS
Image quality
HD type
Brightness (cd/m2) 250
Contrast ratio (x: 1)
Maximum image resolution 1920x1080
