Aputure LS 1200D Pro (kit)

Aputure LS 1200D Pro (kit)

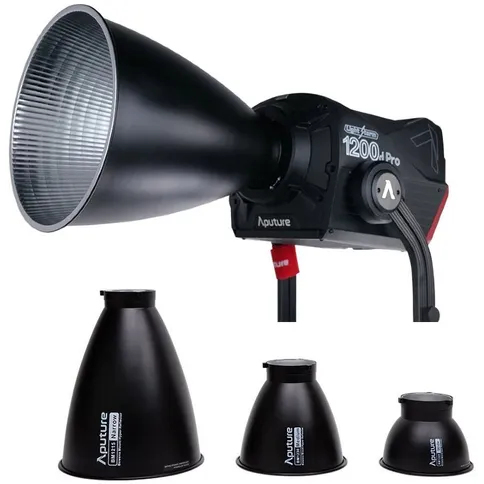

The Aputure LS 1200D Pro (kit) consists of the Aputure LS 1200D Pro LED light and three reflectors: the Hyper Reflector Narrow, the Hyper Reflector Medium and the Hyper Reflector Wide.

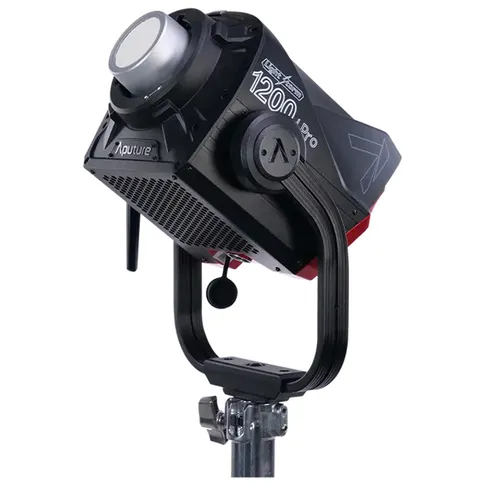

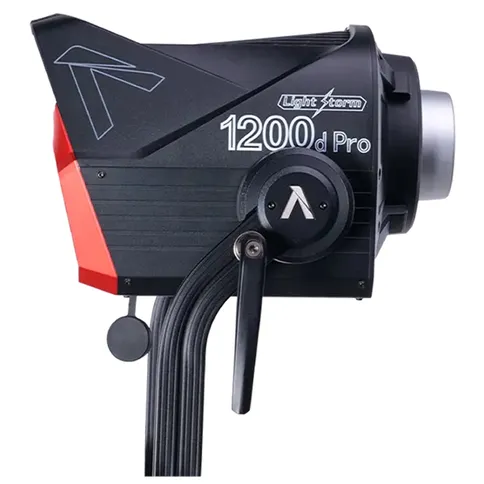

The Aputure LS 1200D PRO LED lamp is the flagship with the brightest light in the Aputure and Light Storm line-up. It uses a 1200W Daylight COB chipset to compete on the same level as industrialële HMI lamps, with a staggering 83,100+ lux output at three metres with the Hyper Reflector. This fixture is compatible with Bowens Mounts modifiers such as Aputure Light Dome softboxes and Lanterns. You can adjust the light output and beam angle of the lamp to your liking using the three included hyper reflectors.

You can expect a professional lamp to reproduce colour as accurately as possible. The Aputure LS 1200D PRO LED light has a colour accuracy of CRI ≥96, TLCI ≥98, CQS ≥95, and SSI (D56) ≥73. In doing so, you can infinitely dim the light in 0.1% increments so you can control the light yourself. In addition, you can choose from eight different built-in lighting effects.

The Aputure LS 1200D PRO LED lamp has professional controls and supports the most commonly used settings of lighting technicians. sACN and Art-net via a durable etherCON connector, as well as Wireless Lumenradio CRMX, in addition to responsive on-board controls, DMX512 5-pin XLR In and Out, and Sidus Link app compatibility, to seamlessly integrate into existing lighting workflows. For example, the Sidus Link app allows you to control the LED lamp from your tablet or Smartphone up to a distance of 400 metres and add other Aputure luminaires. All information with settings of the lamp is easy to read from the detailed LCD screen.

The design of the Aputure LS 1200D's control box has also changed compared to other LED lights. These include DMX512 In and Out ports, an industry-standard etherCON connector, two 48V/15A 3-pin XLR Inputs and an AC input. These connectors are all located on the side of the fixture for maximum flexibility and minimum damage. This design allows the switchgear to be placed upright on its legs for seamless placement on the set. The switch box also has two Lightning clips for different oriëntations on a lighting stand.

The switch box also has two Lightning clips for different oriëntations on a lighting stand.

You can feel free to use the Aputure LS 1200D outdoors. After all, it has an IP54 weatherproof design. Using waterproof fans, sealed internal structures, rubber caps for all ports and weatherproof connectors, the LS 1200D Pro can withstand challenging bad-weather environments. To take this entire set with you, everything is transported in a rolling lamp case and reflector carrying case.

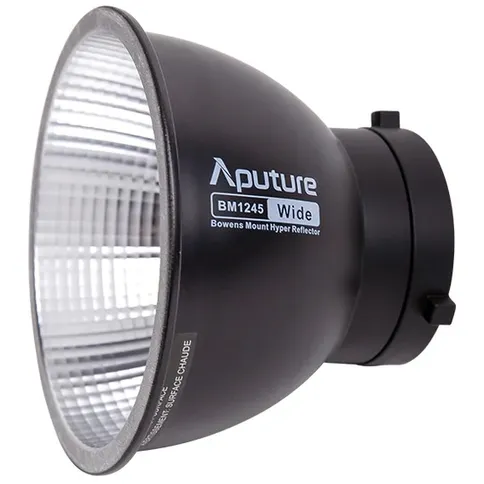

Supplied is the Bowens Mount Hyper Reflector (LS 1200 Series Wide, Narrow and Medium) kit. The kit consists of three reflectors with different widths: Narrow (15º), Medium (30º) and Wide (45º). The Reflectors provide higher brightness, while keeping the light fall-off natural.

Features of the Aputure LS 1200D PRO LED light

• Professional Aputure PRO LED light
• 1200W daylight
• 5600K daylight
• Light output at 3 metres with small Reflector: 83,100 lux
• Light output at 3 metres with medium reflector: 22,400 lux
• Light output at 3 metres with large reflector: 9,610 lux
• Colour accuracy: CRI 96, TLCI 98, CQS 95 and SSI (D56) 73
• IP54 weatherproof
• Infinitely adjustable from -0.1 to 100%
• Controllable via the Sidus Link app
• 8 different built-in lighting effects
• Supports the most commonly used settings by lighting technicians
• New design of control box for maximum flexibility and minimum damage
• Comes with rolling case

Features of the Bowens Mount Hyper Reflector (LS 1200 Series Wide, Narrow and Medium)

• Reflectors for the Aputure LS 1200D Pro
.
• Also compatible with the LS 600c Pro
• Luminance:
  .
  • Narrow: 83,100 lux at 3 metres (with 1200D Pro)
  • Medium: 83.100 lux at 3 metres (with 1200D Pro)
  • Wide: 13.010 lux at 3 metres (with 1200D Pro)
• Wides:
  • Narrow (15º)
  • Medium (30º)
  • Wide (45º)

Contents of packaging

• 1x LS 1200D Pro lamp head
• 1x LS 1200D Pro control panel
• 1x LS 1200 Series Hyper Reflector (Medium)
• 1x LS 1200 Series 7-pin weatherproof head cable (7.5 m)
• 1x Neutrik powerCON TRUE1 TOP AC power cable (6m)
• 1x Lamp Clamp
• 1x LS 1200D Pro roller case
• 1x Hyper Reflector Narrow
• 1x Hyper Reflector Medium
• 1x Hyper Reflector Wide
• 1x Carrier bag
