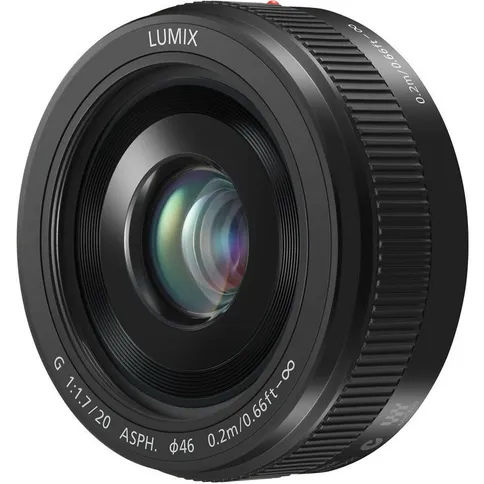

Panasonic Lumix G 20mm F 1.7 Asph. II
The Panasonic Lumix G 20mm f/1.7 II is a black pancake lens for Micro Four Thirds cameras. The lens system consists of seven lenses in five groups and makes full use of two aspherical lenses to minimize both distortion and chromatic aberration.
List price €299.00
€ 279. 00
Back in stock soon
The Panasonic Lumix G 20mm f/1.7 II is a black pancake lens for Micro Four Thirds cameras. The lens system consists of seven lenses in five groups and makes full use of two aspherical lenses to minimize both distortion and chromatic aberration.
Promotions and services
Reviews
Average rating
7-5-2023 Tanja
Overall rating
22-8-2021 Oskar
Overall rating
Description
A Compact and Lightweight Pancake Lens Based on the Micro Four Thirds System Standard
The LUMIX G 20mm / F1.7 ASPH., a pancake interchangeable lens, is based on the Micro Four Thirds System standard. It features a compactness and light weight despite its F1.7 brightness allowing a beautiful soft focus for photos to be even more impressive.
Comprising of 7 lenses in 5 groups, the lens system uses 2 aspherical lenses most effectively to minimize both distortion and chromatic aberrations, achieving high resolution corner to corner.
The versatile 40mm of focal distance (35mm camera equivalent) is suitable for a wide variety of occasions from daily snapshots including sceneries like sunsets and dimly lit indoor shots to the deliberately creative shots taking advantage of its beautiful soft focus.
When mounted on the LUMIX G Micro System Cameras, the LUMIX G 20mm / F1.7 ASPH. allows use of the advanced contrast AF system, which includes a Face Recognition function, for more convenient, more enjoyable shooting.
Seven blades give the aperture a rounded shape that produces an attractively smooth effect in out-of-focus areas when shooting at larger aperture settings. The LUMIX G 20mm / F1.7 ASPH. also features a highly reliable metal mount, and uses multi-coated lens elements that minimize ghosts and flare to further enhance its optical performance.
Specifications
- Lens Construction: 7 elements in 5 groups (2 Aspherical lenses)
- Mount: Micro Four Thirds mount
- Optical Image Stabilizer: No
- Focal Length: f=20mm (35mm camera equivalent 40mm)
- Aperture Type: 7 diaphragm blades / Circular aperture diaphragm
- Aperture Range: F1.7
- Minimum Aperture: F16
- Closest Focusing Distance: 0.2m
- Maximum magnification: Approx. 0.13x / 0.25x (35mm camera equivalent)
- Diagonal Angle of View: 57°
- Filter Size: f46mm:
- Max.Diamete: f63mm
- Overall Length: Approx. 25.5mm (from the tip of the lens to the base side of the lens mount)
- Weight [g]: 100.0
- Standard Accessories: Lens Cap, Lens Rear Cap, Lens Storage Bag
Information on the EU General Product Safety Regulation (GPSR)
Panasonic
Panasonic Deutschland eine Division der Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
A Compact and Lightweight Pancake Lens Based on the Micro Four Thirds System Standard
The LUMIX G 20mm / F1.7 ASPH., a pancake interchangeable lens, is based on the Micro Four Thirds System standard. It features a compactness and light weight despite its F1.7 brightness allowing a beautiful soft focus for photos to be even more impressive.
Comprising of 7 lenses in 5 groups, the lens system uses 2 aspherical lenses most effectively to minimize both distortion and chromatic aberrations, achieving high resolution corner to corner.
The versatile 40mm of focal distance (35mm camera equivalent) is suitable for a wide variety of occasions from daily snapshots including sceneries like sunsets and dimly lit indoor shots to the deliberately creative shots taking advantage of its beautiful soft focus.
When mounted on the LUMIX G Micro System Cameras, the LUMIX G 20mm / F1.7 ASPH. allows use of the advanced contrast AF system, which includes a Face Recognition function, for more convenient, more enjoyable shooting.
Seven blades give the aperture a rounded shape that produces an attractively smooth effect in out-of-focus areas when shooting at larger aperture settings. The LUMIX G 20mm / F1.7 ASPH. also features a highly reliable metal mount, and uses multi-coated lens elements that minimize ghosts and flare to further enhance its optical performance.
Specifications
- Lens Construction: 7 elements in 5 groups (2 Aspherical lenses)
- Mount: Micro Four Thirds mount
- Optical Image Stabilizer: No
- Focal Length: f=20mm (35mm camera equivalent 40mm)
- Aperture Type: 7 diaphragm blades / Circular aperture diaphragm
- Aperture Range: F1.7
- Minimum Aperture: F16
- Closest Focusing Distance: 0.2m
- Maximum magnification: Approx. 0.13x / 0.25x (35mm camera equivalent)
- Diagonal Angle of View: 57°
- Filter Size: f46mm:
- Max.Diamete: f63mm
- Overall Length: Approx. 25.5mm (from the tip of the lens to the base side of the lens mount)
- Weight [g]: 100.0
- Standard Accessories: Lens Cap, Lens Rear Cap, Lens Storage Bag
Information on the EU General Product Safety Regulation (GPSR)
Panasonic
Panasonic Deutschland eine Division der Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Specifications
| Aperture | |
|---|---|
| Number of aperture blades | 7 |
| Maximum aperture (f) | 1.7 |
| Fixed aperture zoom lens | |
| Aperture of 2.8 or faster |
| Focal point | |
|---|---|
| Minimum focal length (mm) | 20.0 |
| Maximum focal length (mm) | 20.0 |
| Fixed focal point |
| Focus | |
|---|---|
| Type of focus motor | |
| Manual focus | |
| Auto focus |
| Info | |
|---|---|
| Article number | 12187146 |
| Lens & Zoom | |
|---|---|
| Max. viewing angle (degrees) | 57.0 |
| Lens system | |
|---|---|
| Lens structure (elements/groups) | |
| Number of aspherical lens elements |
| Physical properties | |
|---|---|
| Weight (in grams) | 87.00 |
| Size & Packaging | |
|---|---|
| Length (mm) | 26.0 |
| Technical specs | |
|---|---|
| Lensmount | Micro Four Thirds |
| Filter size (mm) | 46.0 |
| Dust & splash proof |
| Aperture | |
|---|---|
| Number of aperture blades | 7 |
| Maximum aperture (f) | 1.7 |
| Fixed aperture zoom lens | |
| Aperture of 2.8 or faster |
| Info | |
|---|---|
| Article number | 12187146 |
| Lens & Zoom | |
|---|---|
| Max. viewing angle (degrees) | 57.0 |
| Lens system | |
|---|---|
| Lens structure (elements/groups) | |
| Number of aspherical lens elements |
| Technical specs | |
|---|---|
| Lensmount | Micro Four Thirds |
| Filter size (mm) | 46.0 |
| Dust & splash proof |
| Focal point | |
|---|---|
| Minimum focal length (mm) | 20.0 |
| Maximum focal length (mm) | 20.0 |
| Fixed focal point |
| Focus | |
|---|---|
| Type of focus motor | |
| Manual focus | |
| Auto focus |
| Physical properties | |
|---|---|
| Weight (in grams) | 87.00 |
| Size & Packaging | |
|---|---|
| Length (mm) | 26.0 |
